KitchenAid KP26M8XMC5 Manuale utente

c2006 KITCHENAID

10−06 Litho in U.S.A. (skr) Part No. 8212365 Rev. A

6 QT. STAND MIXER

PROFESSIONAL 620 BOWL LIFT

MODEL:

KP26M8XMC5 (Metallic Chrome)

KP26M8XCP5 (Satin Copper)

KP26M8XNK5 (Brushed Nickel)

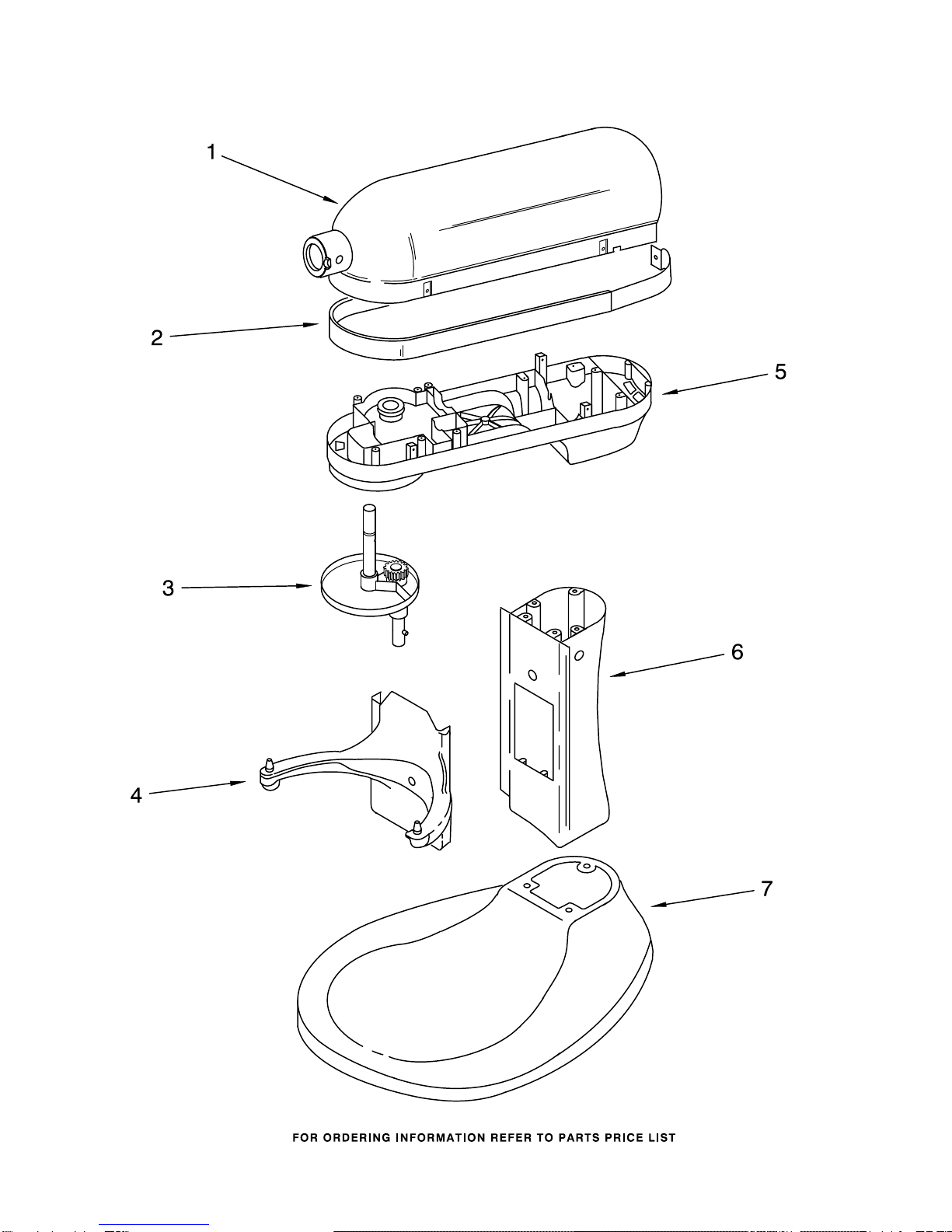

COLOR VARIATION PARTS

For Model: KP26M8X_ _5

8212365

COLOR VARIATION PARTS

For Model: KP26M8X_ _5

8212365

Illus. Part

No. No. DESCRIPTION

1 Motor Housing

9703433 Metallic Chrome

W10112806

Satin Copper

W10112542

Brushed Nickel

2 Trim Band

9708797 Platinum/Frost

3 Planetary

9708175 Metallic Chrome

W10112810

Satin Copper

W10112546

Brushed Nickel

4 Bowl Support

And Pins

9703397 Metallic Chrome

W10112815

Satin Copper

W10112553

Brushed Nickel

5 Lower Gearcase

9706306 Metallic Chrome

W10112812

Satin Copper

W10112549

Brushed Nickel

6 Column

9703349 Metallic Chrome

W10112817

Satin Copper

W10112556

Brushed Nickel

7 Base & Foot

Assembly

9703346 Metallic Chrome

W10112820

Satin Copper

W10112559

Brushed Nickel

CASE, GEARING AND PLANETARY UNIT

For Model: KP26M8X_ _5

8212365

CASE, GEARING AND PLANETARY UNIT

For Model: KP26M8X_ _5

8212365

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Gearcase Motor

Housing

2 9707507 Motor

3 Cap, Attachment

Hub

9707983 Pearl Nickel

4 Thumb Screw

9709194 Black

5Band, Trim

6 Power Cord

9706552 Black

7 9709125 Transmission

Housing & Bearings

8 Control Assembly

(Incl. Knob)

9706648 Black Knob

9 9703312 Sensor, Hall

Effect

10 9706090 Washer

11 9703434 Washer, Fiber

12 9707627 Gear, Pinion

13 9703438 Retaining Clip

14 9708191 Agitator Shaft

15 Planetary Assembly

16 16897 Bearing, Lower

Center

17 9709231 Worm Gear

18 9707223 Retaining Pin

19 9706529 Gear, Worm

Follower

20 9703338 Gear, Attachment

Hub Bevel

21 9703337 Gear, Bevel

22 3400617 Screw

23 3400814 Screw

24 Lower Gear Case

25 9703680 Retaining Clip

27 3400200 Screw

28 Bearing

9703560 Front

9703570 Rear

29 9703445 Thrust Bearing

30 67500−55 "O" Ring

31 9709511 Gasket,

Transmission

32 9706036 Lead, Motor To

Control

33 9706247 Seal, Motor

Shaft

34 9703339 Gear, Internal

35 9704677 Pin, Groove

36 8533910 Washer

Refer To Page 3

Color Variation Parts

BASE AND PEDESTAL UNIT

For Model: KP26M8X_ _5

8212365

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

Use & Care Guide

9708307 U.S.

8212365 Repair Parts List

2 9708649 Foot, Rubber

3Column Assembly

4Bowl Support

5 9703474 Latch, Bowl Spring

6 9706885 Arm, Bowl Lift

7 9706787 Rod, Bowl Lift

8Base And Foot

Supports

9 9703439 Washer

10 9237 Spring

11 8533907 Nut

12 9706788 Handle, Bowl Lift

13 3400863 Screw

14 9703687 Bowl (6 Qt)

15 9703485 Beater, Flat

16 9703655 Dough Hook

17 9707637 Wire Whip

19 9709924 Pouring Shield

20 9703426 Cam, Adjusting

21 3400200 Screw

22 3400018 Screw

23 9703307 Clip

24 240185 Pin, Bowl Locating

25 9703698 Handle

Refer To Page 3

Color Variation Parts

ACCESSORY PARTS

For Model: KP26M8X_ _5

8212365

Illus. Part

No. No. DESCRIPTION

4164778 Mixer Attachment

Pak (Includes Food

Grinder (FG−A),

Food Strainer

(FVSP), And

Vegetable Slicer,

(RVS−A)

(FPP−A)

4164749 Food Grinder

(FG−A)

8211924 Grain Mill

(KGMA)

4164768 Pasta Maker And

Food Grinder

(Includes SNP

Pasta Maker

Plates)

(SN/FG−A)

4164775 Fruit/Vegetable

Strainer Parts (Use

With FG−A Model

Only) (FVSP)

4164750 Rotor Slicer/Shredder

(With 4 Standard

Cones) Fine Shredder,

Coarse Shredder,

Thick Slicer, And

Thin Slicer (RVS−A)

4164824 Pasta Maker Plates

(SNP−A)

4164774 Fruit/Vegetable

Strainer And Food

Grinder (FVS/FG−A)

4162838 Food Tray (FT)

4164748 Juicer (JE)

4164747 Can Opener (CO)

4164803 Sausage Stuffer

Kit (SSA)

9707963 Ice Cream Maker

(KICA)

4160588 Grease, Planetary
