KitchenAid KSM150PSAC1 Manuale utente
c2007 KITCHENAID
2−07 Litho in U.S.A. (skr) Part No. W10122280 Rev. A
5 QT. STAND MIXER
ARTISAN TILT HEAD
MODELS:
KSM150PSOB1 (Onyx Black)
KSM150PSMY1 (Majestic Yellow)
KSM150PSGR1 (Imperial Grey)
KSM150PSGN1 (Empire Green)
KSM150PSER1 (Empire Red)
KSM150PSBU1 (Cobalt Blue)
KSM150PSAC1 (Almond Creme)
2
COLOR VARIATION PARTS
For Models: KSM150PS__1
W10122280
Illus. Part
No. No. DESCRIPTION
1 Motor Housing
240291−13
Onyx Black
240291−20
Majestic Yellow
240291−22
Imperial Grey
240291−10
Empire Green
240291−21
Empire Red
240291−7 Cobalt Blue
240291−16
Almond Creme
2 Trim Band
9706630 Black/Silver
9706632 Almond Creme
3 End Cover
240253−14
Onyx Black
240253−21
Majestic Yellow
240253−23
Imperial Grey
240253−11
Empire Green
240253−22
Empire Red
240253−8 Cobalt Blue
240253−16
Almond Creme
4 Planetary
240286−16
Onyx Black
240286−22
Majestic Yellow
240286−24
Imperial Grey
240286−13
Empire Green
240286−23
Empire Red
240286−10
Cobalt Blue
240286−18
Almond Creme
5 Lower Gearcase
240350−56
Onyx Black
240350−82
Majestic Yellow
240350−86
Imperial Grey
240350−46
Empire Green
240350−84
Empire Red
240350−31
Cobalt Blue
240350−62
Almond Creme
6 Pedestal
3179275 Onyx Black
9702303 Majestic Yellow
9702305 Imperial Grey
3179273 Empire Green
9702304 Empire Red
3179263 Cobalt Blue
3179277 Almond Creme
Colors Subject To Change.
Any Color Not Listed is
No Longer Available.
If Additional Colors Are Added,
This Page Will Be Updated.

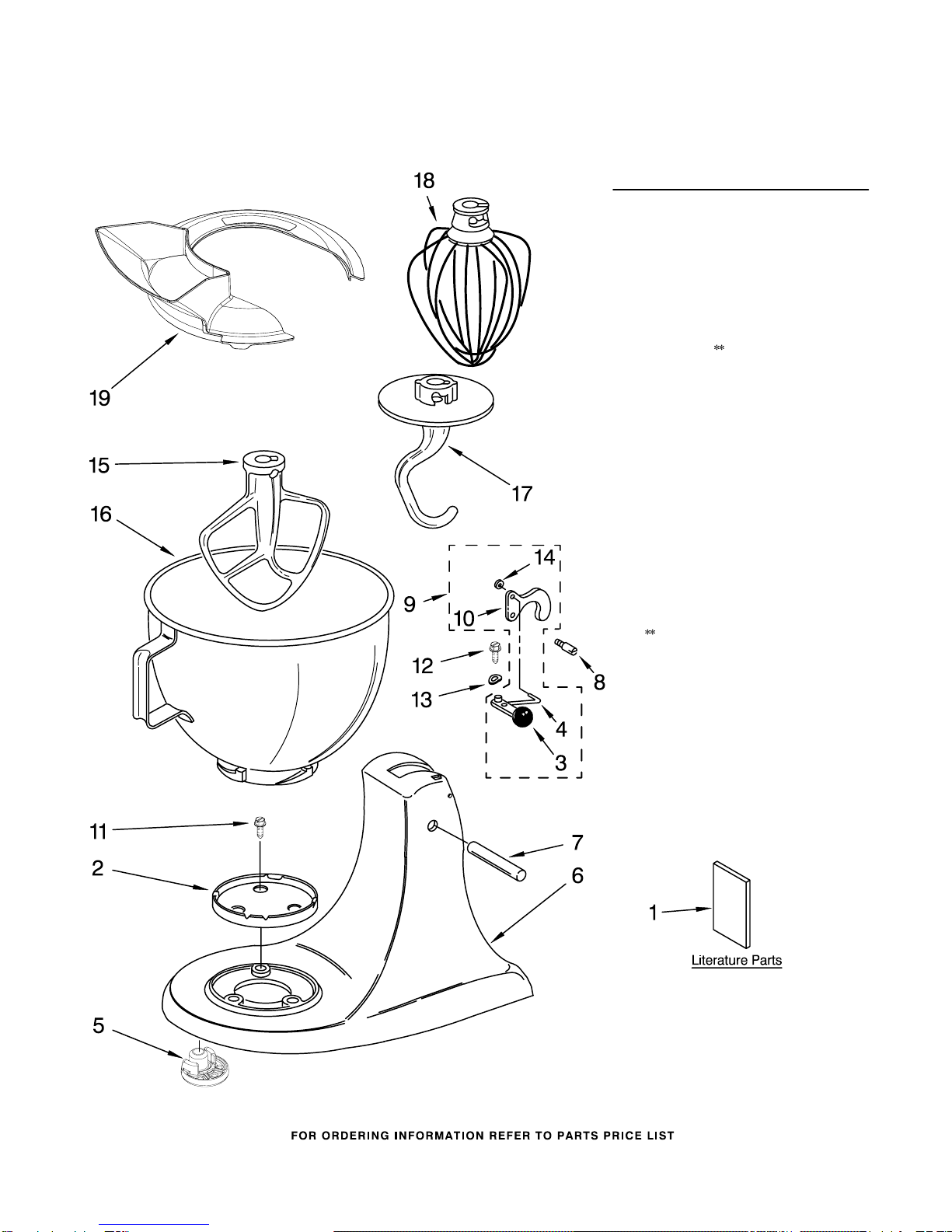

BASE AND PEDESTAL UNIT
3
For Models: KSM150PS__1
W10122280
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
9709785 Use & Care Guide
W10122280
Repair Parts List
2 4162529 Screw Cap Kit
3 Lever, Latch
9709280 Black
9709282 Buff
4 24450 Link, Latch
5 9709707 Foot, Base
6Pedestal
7 16910 Pin, Hinge
8 103993 Screw, Latch
Bearing
9 24452 Latch, Link &
Lever
10 9709055 Latch
11 3400020 Screw
12 110679 Screw, Pivot
13 116241 Washer, Spring
14 8533912 Washer
15 Beater, Flat
9708472 Coated, White
16 9706619 Bowl, 5 Qt.
17 9708471 Hook, Dough
18 9706446 Whip, Wire
19 9709923 Shield, Pouring
REFER TO PAGE 2.
CASE, GEARING AND PLANETARY UNIT
4
For Models: KSM150PS__1
W10122280
CASE, GEARING AND PLANETARY UNIT
5
For Models: KSM150PS__1
W10122280
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Gearcase Motor
Housing
2 Cap, Attachment
Hub
242765−2 Chrome
242765−5 Almond Creme
3 Thumb Screw
9709194 Black
9709198 Buff
4Band, Trim
5 3180161 Washer
6
W10112253
Worm Gear
7 240308 Worm Gear Bracket
And Bearing
8 3400022 Screw
9 240210−2 Shaft & Pinion
10 9705444 Pin
11 240026 Shaft, Vertical
Center
12 9705130 Gear, Attachment
Hub Bevel
13 9709627 Bevel Pinion
Center Gear
14 240018−1 Pin (Vertical
Center Shaft)
15 3180163 Washer
16 9705443 Pin, Groove
17 4162324 Gasket,
Transmission
Case
18 Lower Gear Case
19 3180163 Washer
20 9703904 Gear, Internal
21 103994 Screw
22 Planetary
23 4176067 Agitator Shaft
24 240285 Ring, Planetary
Drip
25 9706090 Washer
26 9703903 Pinion, Gear
Agitator Shaft
27 89411 Screw, Adjusting
28 3400203 Screw, Set
29 3400025 Screw
30 67500−55 "O" Ring
31 311932 Screw
32 Cover, End
33 4162914 Screw
34 240309−2 Worm Gear Bracket
And Gear
35 4160474 Center Shaft
& "O" Ring
36 9703438 Ring
37 9704677 Pin, Groove
38 8533914 Washer, Spring
Lock
Refer to Page 2
MOTOR AND CONTROL PARTS
6
For Models: KSM150PS__1
W10122280
MOTOR AND CONTROL PARTS
7
For Models: KSM150PS__1
W10122280
Illus. Part
No. No. DESCRIPTION
1 110679 Screw, Pivot
2 116241 Washer, Spring
3 Lever, Speed
Control Assy
9709276 Black
9709278 Buff
4 3183680 Spring, Control
Plate
5 3184176 Speed Link & Cam
6 240205 Spring, Flat
7 240769 Screw
8 9702695 Field Assembly
9
W10068260
Screw
10 16998 Stud, Governor
Drive
11 3180162 Washer
12
W10068270
Washer
13 9704324 Washer, Ball
Bearing (Front)
14 240775−1 Seal, End
15 3180526 Bracket, Bearing
Asm.
16 3180238 Washer
17 8533905 Nut
18 240680 Insert, Brush
Holder
19 9706416 Brush, Carbon
20 9707926 Screw, Set
21 116286 Cap, Spring
Seat
22 116287 Spring, Cap
23 Cap, Brush Holder
3184212 Black
3184213 Almond Creme
24 17830 Governor Assembly
25 240904−2 Control Plate
Assembly
26 Power Cord
9701025 White
9701026 Black
27 9706595 Phase Control
Board
28 9708315 Armature &
Bearing
29 4162634 Sleeve, Motor
Stud
30 3184609 Screw, Self
Tapping
31 3179908 Housing, Brush
Holder
32 4162546 Brush Holder
ACCESSORY PARTS
8
For Models: KSM150PS__1
W10122280
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
FOLLOWING PARTS
NOT ILLUSTRATED
4164839 Speed Disc
(Service Tool)
4160588 Grease, Planetary
4164778 Mixer Attachment
Pak (Includes Food
Grinder (FGA),
Food Strainer
(FVSP), And
Vegetable Slicer,
(RVSA)
(FPPA)
4164749 Food Grinder
(FGA)
8211924 Grain Mill
(KGMA)
4164768 Pasta Maker And
Food Grinder
(Includes SNP
Pasta Maker
Plates)
(SNFGA)
4164775 Fruit/Vegetable
Strainer Parts
(Use With FGA
Model Only) (FVSP)
4164750 Rotor Slicer/
Shredder(With
4 Standard Cones)
Fine Shredder,
Coarse Shredder,
Thick Slicer,and
Thin Slicer
(RVSA)
9704568 Pouring Shield
(KPS2CL)
4164824 Pasta Maker Plates
(SNPA)
4164774 Fruit/Vegetable
Strainer and Food
Grinder (FVSFGA)
3180617 Cover, Decorative
(Cotton Polyester)
4162838 Food Tray (FT)
4164748 Juicer (JE)
4164747 Can Opener (CO)
4164803 Sausage Stuffer
Kit (SSA)
8212519 Ice Cream Maker
(KICA0WH0)
3177924 Bowl Cover,
Plastic Non−
Sealing
4163337 Bowl, Stainless
W/Handle, 4.5 QT
3180262 Bowl, 3 Qt.
