KitchenAid KSM500ER0 Manuale utente

5 QT. STAND MIXER

PRO 500 − LIFT

MODELS:

11−07 Litho in U.S.A. (wam) Part No. W10168434 Rev. B

KSM500SM0 (Silver Metallic)

KSM500ER0 (Empire Red)

KSM500OB0 (Onyx Black)

KSM500WH0 (White)

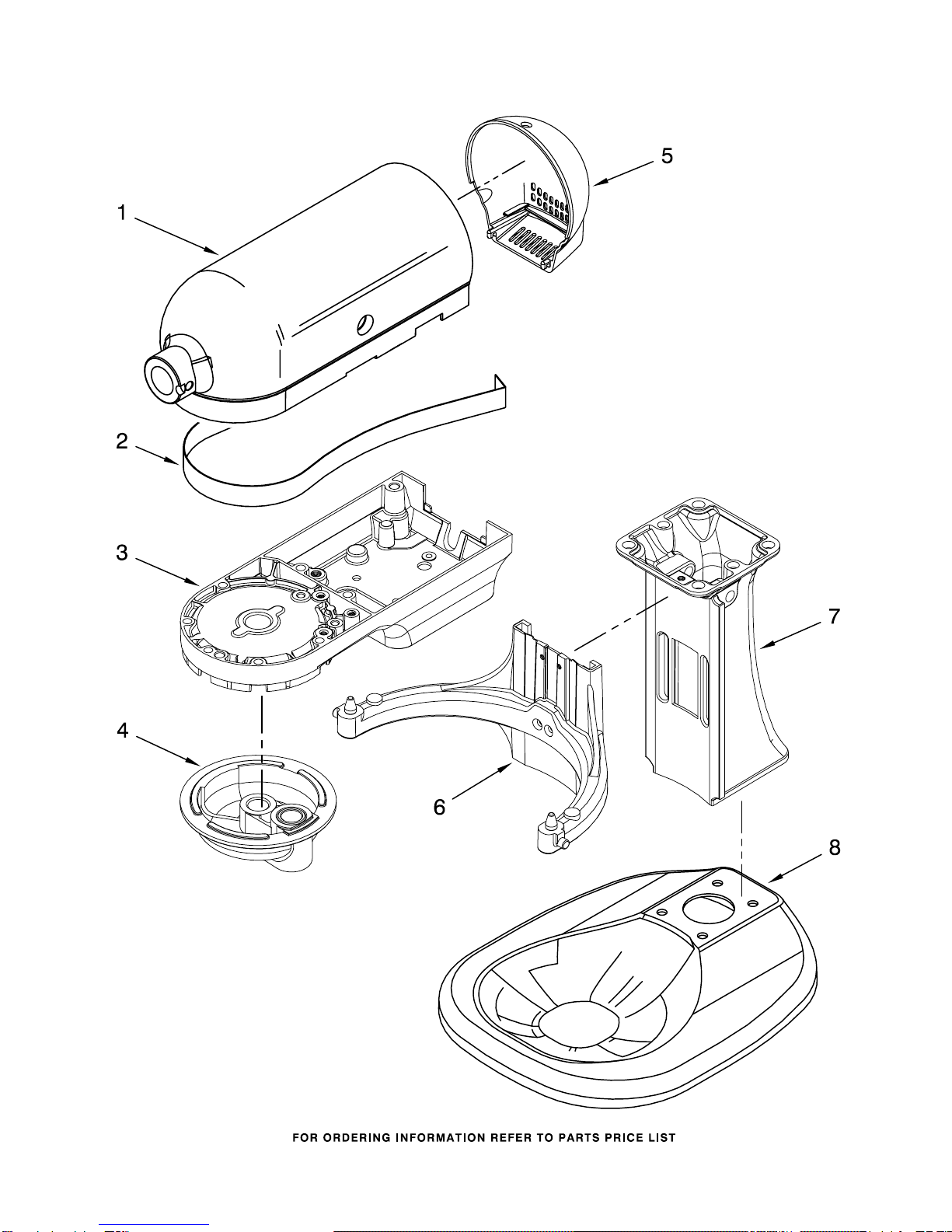

COLOR VARIATION PARTS

For Models: KSM500__0

W10168434

COLOR VARIATION PARTS

For Models: KSM500__0

W10168434

Illus. Part

No. No. DESCRIPTION

1 Motor Housing

W10121193

Silver Metallic

240291−21

Empire Red

240291−13

Onyx Black

240291−1 White

2 Trim Band

W10158179

Black

3 Lower Gearcase

W10158521

Silver Metallic

9704499 Empire Red

240354−43

Onyx Black

240354−3 White

4 Planetary

W10121190

Silver Metallic

240286−23

Empire Red

240286−16

Onyx Black

240286−1 White

5 End Cover

W10121188

Silver Metallic

240253−22

Empire Red

240253−14

Onyx Black

240253−1 White

6 Bowl Support

And Pins

W10158518

Silver Metallic

3179318 Empire Red

3179311 Onyx Black

3179300 White

7 Column

W10158516

Silver Metallic

9702393 Empire Red

240148−15

Onyx Black

240148−4 White

8 Base & Foot

Assembly

W10158515

Silver Metallic

3179299 Empire Red

3179292 Onyx Black

3179280 White

Colors Subject To Change.

Any Color Not Listed is

No Longer Available.

If Additional Colors Are Added,

This Page Will Be Updated.

CASE, GEARING AND PLANETARY UNIT

For Models: KSM500__0

W10168434

CASE, GEARING AND PLANETARY UNIT

For Models: KSM500__0

W10168434

Illus. Part

No. No. DESCRIPTION

1 Motor Housing

2 242765−2 Cap, Attachment

Hub

3 9709194 Thumb Screw

4Band, Trim

5 3180161 Washer, Fiber

W10112253

Gear, Worm

7 240308 Worm Gear Bracket

and Bearing

8 9705444 Pin

9 240210−2 Shaft & Pinion

10 9705130 Gear, Attachment

Hub Bevel

11 9709627 Bevel Pinion

and Center Gear

12 240026 Shaft, Vertical

Center

13 240018−1 Pin (Vertical

Center Shaft)

14 9705443 Pin, Groove

15 4162324 Gasket, Transmssn

16 67500−55 "O" Ring

17 3180163 Washer

18 Lower Gearcase

19 103994 Screw

20 4176067 Shaft, Agitator

21 9703438 Ring, Retaining

22 9704677 Pin, Groove

23 4162914 Screw

24 Cover, End

25 311932 Screw

26 3400022 Screw

27 240309−2 Worm Gear Bracket

and Gear

28 4160474 Center Shaft and

"O" Ring

30 3400025 Screw

31 3400026 Screw

32 9703903 Pinion, Gear

(Agitator Shaft)

33 9706090 Washer, Shim

34 Planetary

35 240285 Ring, Planetary

Drip

36 9703904 Gear, Internal

Refer to Page 3

Color Variation Parts

MOTOR AND CONTROL PARTS

For Models: KSM500__0

W10168434

MOTOR AND CONTROL PARTS

For Models: KSM500__0

W10168434

Illus. Part

No. No. DESCRIPTION

1 110679 Screw, Pivot

2 116241 Washer, Spring

3 Lever, Speed

Control Assembly

9709276 Black

4 3183680 Spring, Control

Plate

5 9704324 Washer, Ball

Bearing (Front)

6 9708315 Armature & Bearing

Assembly

7 3180162 Washer

8 16998 Stud, Governor Drv

9 3180526 Bracket, Bearing

Assembly

10 240775−1 Seal, End

W10131078

Nut

12 3180238 Washer

13 240769 Screw, Stator

W10068270

Washer, Lock

15 3184176 Speed Link & Cam

16 240205 Spring, Flat

17 9702695 Field Assembly

18 4162634 Sleeve, Motor Stud

19 9706416 Brush & Spring

Assembly

20 9707926 Screw, Set

21 4162546 Brush Holder Assy

22 3179908 Housing, Brush

Holder

23 240680 Insert, Brush

Holder

24 116286 Cap, Spring

Seat

25 116287 Spring, Cap

26 3184212 Cap, Brush Holder

W10068260

Screw

W10119326

Control Plate

Assembly

29 17830 Governor Assembly

30 9706595 Phase Control

Board

31 Cord, Power

W10164883

Black

W10164882

White

32 3184609 Screw, Self Tap

BASE AND PEDESTAL UNIT

For Models: KSM500__0

W10168434

BASE AND PEDESTAL UNIT

9W10168434

For Models: KSM500__0

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9706634 Use & Care Guide

W10168434

Repair Parts List

2 9709923 Shield, Pouring

3 4162161 Bowl, 5 Qt.

4 240185 Pin, Bowl Locating

5 3182857 Latch, Bowl Spring

6 3400024 Screw

7Bowl Support & Pns

8Base & Foot Assy

9 9708649 Foot

10 9704608 Pin, Cotter

11 9085 Rod, Bowl Lift

12 240169 Bracket, Bowl Lift

13 WS00323 Washer

14 9237 Spring

15 8533907 Nut

16 3182904 Screw

17 3180500 Pin, Dowel

18 240235−4 Beater, Flat

19 3183233 Hook, Dough

20 9704309 Whip, Wire

21 241764 Arm, Bowl Lift

22 240912 Screw

23 9703442 Pin, Roll

24 9079 Handle, Bowl Lift

25 Column Assembly

26 3400018 Screw

Refer to Page 3

Color Variation Parts

ACCESSORY PARTS

W10168434

For Models: KSM500__0

Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

4164778 Mixer Attachment

Pak (Includes Food

Grinder (FG−A),

Food Strainer

(FVSP), And

Vegetable Slicer,

(RVS−A)

(FPP−A)

4164749 Food Grinder

(FGA)

8211924 Grain Mill

(KGMA)

4164768 Pasta Maker And

Food Grinder

(Includes SNP

Pasta Maker

Plates)

(SN/FG−A)

4164775 Fruit/Vegetable

Strainer Parts (Use

With FG−A Model

Only) (FVSP)

4164750 Rotor Slicer/Shredder

(With 4 Standard

Cones) Fine Shredder,

Coarse Shredder,

Thick Slicer, And

Thin Slicer (RVS−A)

3177975 Pouring Shield

(KPS2CL)

4164824 Pasta Maker Plates

(SNP−A)

4164774 Fruit/Vegetable

Strainer And Food

Grinder (FVS/FG−A)

3180616 Cover, Decorative

(Cotton Polyester)

4162838 Food Tray (FT)

4164748 Juicer (JE)

4164747 Can Opener (CO)

4164803 Sausage Stuffer

Kit (SSA)

4162154 Water Jacket

(K5AWJ)

3177925 Bowl Cover, Plastic

Non−Sealing

4176100 5 Qt. Bowl,

Polished Stainless

Steel

4164839 Speed Disc

(Service Tool)

4160588 Grease, Planetary

8212519 Ice Cream Maker

(KICA0WH0)
