KitchenAid SUPERBA KEBS277BAL0 Manuale utente

CONTROL PANEL PARTS

For Model: KEBS277BBL0, KEBS277BAL0,

KEBS277BWH0

(Black (Almond) (White)

5−94 Litho in U.S.A.(jcn) Part No. 4174375

SUPERBA

27" BUILT−IN ELECTRIC

DOUBLE OVEN

Convection Upper

Self Clean Lower

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

CONTROL PANEL PARTS

OPTIONAL PARTS (NOT INCLUDED)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Model: KEBS277BBL0, KEBS277BAL0,

KEBS277BWH0

(Black (Almond) (White)

4174375

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Membrane, Switch

3181783 Black

3181784 White

3181785 Almond

2 3181889 Bracket, Mounting

Membrane Switch

3 3181705 Microcomputer

3185648 Screw (2)

4 3183705 Retainer, Bracket

3182939 Screw

5 3182985 Clip, (3)

Retainer

6 3182162 Hinge, Vent Door

7 Door, Latch Handle

3182151 Black

3182157 Almond

3182154 White

3179847 Screw (2)

3178001 Screw

8 3183702 Trim, Panel

3185647 Screw

9 3184321 Bracket (2)

3182939 Screw (2)

10 Frame, Control

Panel

3187954 Black Model

3187955 White Model

3187956 Almond Model

11 3184567 Clip, Control

Frame

LITERATURE PARTS

LIT3185962 Tech Sheet

LIT3183659 Installation

Instructions

LIT3188199 Use & Care Guide

LIT3150693 Cookbook

LIT3183987 Guide, Auto Set

Miscellaneous

3171507 Mounting Hardware

FOLLOWING PARTS

NOT ILLUSTRATED

SPLICING WIRES−−25FT.

LENGTH

18 Ga. 80 c Rating

350806 Yellow

16 Ga. 80 c Rating

242829 Blue

14 Ga. 150 c Rating

242820 Black

242821 Blue

242822 Brown

242823 Green

242824 Orange

242825 Red

242826 White

242827 Yellow

14 Ga. 200 c Rating

242830 Brown

242831 Red

242832 Yellow

12 Ga. 150 c Rating

242828 Black

242829 Red

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

72110 Harvest Gold

72112 Toast

72113 Platinum

72032 Black

261869 Citrine White

PAINT, PRESSURIZED SPRAY

(13 oz.)

350930 White

350956 Almond

261890 Harvest Gold

285365 Toast

285366 Platinum

830864 Black

350942 Primer

350941 Leveler (Primer)

PAINT, BULK (1 qt.)

799344 White

978883 Almond

261891 Harvest Gold

285367 Toast

285368 Platinum

ADHESIVE

482338 Sealer, Silastic

(3 Oz.)

591014 Adhesive, Loctite

(1/3 Oz.)

UPPER OVEN PARTS

For Model: KEBS277BBL0, KEBS277BAL0,

KEBS277BWH0

(Black (Almond) (White)

4174375

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

CONVECTION FAN PARTS

UPPER OVEN PARTS

For Model: KEBS277BBL0, KEBS277BAL0,

KEBS277BWH0

(Black (Almond) (White)

4174375

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

2 3177545 Bracket, Conduit

3 3177739 Cabinet, Back

3185647 Screw

6 3178143 Cabinet, Top

3185647 Screw

7 3183748 Top, Module

3185647 Screw

8 Side, Cabinet

3177440 Right Hand

3177438 Left Hand

3185647 Screw

9 3181699 Tube, Vent

3185648 Screw (3)

10 3150505 Oven Light Assy.

11 3184533 Gasket, Light

12 311255 Bulb, Oven

Light

13 3185085 Plug, Button

Bulb

14 3185861 Frame, Front

15 3179813 Seal, Door

16 3179848 Clip, Oven Seal

17 3177681 Bracket, Switch

18 3177923 Insulator, Switch

19 3177621 Module, Bottom

20 3179220 Rail, Support (4)

3185647 Screw

22 3177434 Support, Oven

3185647 Screw

23 3178612 Shield, Radiation

3179795 Screw (6)

3185647 Screw

24 3177433 Bracket, Hinge

3185647 Screw

25 Side Trim,

Door (2)

3187875 Black Model

3187878 White Model

3187881 Almond Model

26 3177561 Back, Module

3185647 Screw

27 3185563 Liner, Oven

28 3178298 Hinge, Door (2)

31 4173553 Switch, Door

4159117 Nut (2)

313489 Screw (2)

33 3179587 Retainer, Seal

4159450 Screw (2)

34 Vent, Middle Trim

3187883 Black Model

3187885 White Model

3187887 Almond Model

3180022 Screw (4)

4168863 Screw (2)

35 3183791 Vent, Tube

4173231 Screw

39 4168203 Cover, Cap Tube

4159445 Screw

41 3183752 Bracket, Control

3177991 Screw

44 4173179 Retainer,

Insulation

3185647 Screw

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

3185551 Insulation, Wrap

3177872 Insulation, Back

1 3178512 Mounting Plate

2 4173193 Screw (3)

3 4173194 Lockwasher (3)

5 4173237 Nut(Left Hand)

6 4173236 Fan

7 3182088 Motor

8 4173238 E−Ring

9 4173185 Bracket Guard

10 4173230 Flatwasher

11 3179790 Gasket, Foam

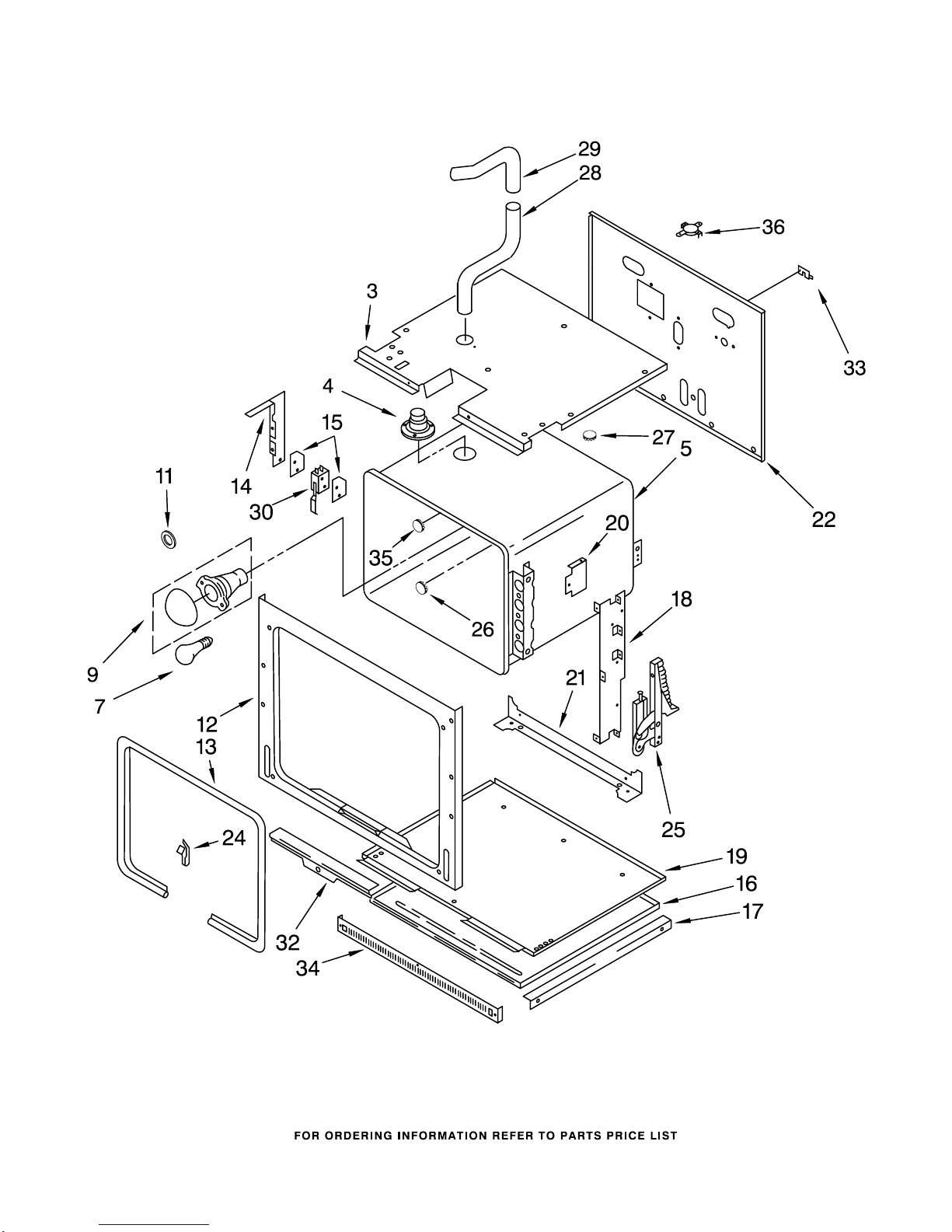

LOWER OVEN PARTS

For Model: KEBS277BBL0, KEBS277BAL0,

KEBS277BWH0

(Black (Almond) (White)

4174375

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LOWER OVEN PARTS

For Model: KEBS277BBL0, KEBS277BAL0,

KEBS277BWH0

(Black (Almond) (White)

4174375

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

3 3183748 Top, Module

3185647 Screw

4 3181699 Tube, Vent

3185648 Screw (3)

5 3185562 Liner, Oven

7 311255 Bulb, Oven Light

9 3150505 Oven Light Assy.

11 3184533 Gasket, Light

12 3188161 Frame, Front

13 3179813 Seal, Door

3179848 Clip, Oven Seal

14 3177681 Bracket, Switch

3177991 Screw (2)

15 3177923 Insulator, Switch

16 3177551 Bottom, Oven

17 3179220 Rail, Support (2)

3185647 Screw

18 3177433 Bracket, Hinge (2)

3179795 Screw (6)

3185647 Screw

19 3177621 Bottom, Module

20 3178612 Shield, Radiation

3179795 Screw (6)

3185647 Screw

21 3177434 Support, Oven

3185647 Screw

22 3177560 Back, Module

3185647 Screw

24 3179848 Clip, Seal (3)

25 3178298 Hinge, Door (2)

26 3185085 Button, Plug

27 3182814 Button, Plug

28 3182159 Vent Tube, Lower

3185647 Screw

29 3182160 Vent Tube, Upper

30 4173553 Switch, Door

4159117 Nut (2)

313489 Screw (2)

32 3179587 Retainer, Seal

4159450 Screw (2)

33 4168203 Cover, Cap Tube

4159445 Screw

34 Trim, Lower Vent

3177783 Black Model

3187957 White Model

3187959 Almond Model

35 4163883 Cover, Probe

36 3149652 SPST Thermostat

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

3185551 Insulation, Wrap

3177872 Insulation, Back

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

For Model: KEBS277BBL0, KEBS277BAL0,

KEBS277BWH0

(Black (Almond) (White)

4174375

1 3185497 Liner, Door

2 3185462 Gasket, Window

3 3185457 Glass, Clear

4 3185460 Insulation, Door

5 3185437 Insulation

Retainer

4168863 Screw (4)

6 3185458 Glass, Reflective

7 Glass, Door

3187863 Black Model

3187867 Almond Model

3187865 White Model

8 3185439 Retainer, Glass

9 3185459 Glass, Clear

10 Handle, Door

3185986 Black Model

3185988 Almond Model

3185987 White Model

11 3185438 Plate, Latch

12 Frame, Door

3187850 Black Model

3187852 White Model

3187854 Almond model

13 3182138 Spacer, Handle

14 3188599 Bushing, Handle

3181637 Screw

342043 Screw

15 3188633 Foil, Adhesive

16 3188635 Foil, Adhesive

UPPER AND LOWER OVEN DOOR PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

INTERNAL OVEN PARTS

For Model: KEBS277BBL0, KEBS277BAL0,

KEBS277BWH0

(Black (Almond) (White)

4174375

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Liner, Oven

3185562 Self Clean (Lower)

3185563 Convection (Upper)

2 661415 Element, Broil

3 3147563 Grill, Broiler

4 3147845 Pan, Broiler

5 3185307 Rack, Offset

6 3185308 Rack, Oven

7 661416 Element, Bake

3185648 Screw (2)

8 4167277 Nut, Meat Probe

9 4163975 Gasket, Meat Probe

10 4167266 Probe Cover

11 4159557 Washer

12 3179672 Spacer − Tubing

13 3150107 Meat Probe Jack

14 3150144 Meat Probe

19 3180815 Cover, Fan

3185648 Screw (4)

20 3178517 Element, Convect.

3185648 Screw (3)

22 313570 Clip, Tubing

23 3180694 Bracket, Element

3185648 Screw (2)

24 3181534 Rack, Roasting T/C

25 3148440 Sensor

LATCH AND VENT PARTS

For Model: KEBS277BBL0, KEBS277BAL0,

KEBS277BWH0

(Black (Almond) (White)

4174375

LATCH AND VENT PARTS

Illus. Part

No. No. DESCRIPTION

For Model: KEBS277BBL0, KEBS277BAL0,

KEBS277BWH0

(Black (Almond) (White)

4174375

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 3183748 Module, Top

2 258076 Block, Terminal

308043 Screw

4 Switch, Latch

3178668 Upper Oven

3183784 Lower Oven

98106 Screw

5 3178185 Insulator, Switch

98106 Screw

254225 Screw

6 3177662 Guard, Latch

3177991 Screw

7 Handle, Latch

3177969 Upper Oven

3184037 Screw (2)

3179116 Screw

3181963 Lower Over

3185414 Screw (2)

8 3184039 Knob, Handle

3183294 Screw

9 3184040 Spacer, Latch

Handle

3184037 Screw

10 3178410 Latch Mechanism

11 3177496 Plate, Mounting

3177991 Screw

12 3185455 Baffle, Blower

311773 Screw

13 3183954 Nozzle, Vent

Bottom (2)

14 3183955 Nozzle, Vent

Top (2)

15 3183999 Box, Vent

16 3183964 End, Vent Box

3185647 Screw

17 3183533 Bracket, Mounting

Fan

3177991 Screw

18 3183720 Blower, Fan

19 3183791 Vent, Tube

4173231 Screw

20 3149650 SPST Thermostat

3185647 Screw

21 3183785 Shield, Heat

3177991 Screw

22 3183953 Box, Vent

23 3183965 End, Vent Box

3185647 Screw

24 3183793 Vent Tube, Lower

Oven

25 3183532 Clamp, Tube

26 313755 Seal, Foam

27 4159035 Bushing

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali KitchenAid Forno

KitchenAid

KitchenAid KEBS278DBL2 Manuale utente

KitchenAid

KitchenAid kco1005 - Countertop Oven Guida rapida

KitchenAid

KitchenAid KEMS306X Manuale utente

KitchenAid

KitchenAid KEBS207YAL2 Manuale utente

KitchenAid

KitchenAid KEBC167MSS - Architect Series 36'' Single Electric Wall... Manuale utente

KitchenAid

KitchenAid KEBS276WBL3 Manuale utente

KitchenAid

KitchenAid Architect Series II KEBU208SSS Manuale utente

KitchenAid

KitchenAid KCO124 Manuale utente

KitchenAid

KitchenAid KCO222OB Manuale utente

KitchenAid

KitchenAid KEBI171B Manuale utente

KitchenAid

KitchenAid KEBS277DAL2 Manuale utente

KitchenAid

KitchenAid KEMS379B Manuale utente

KitchenAid

KitchenAid KEBS208DBL4 Manuale utente

KitchenAid

KitchenAid KEMC377KBL05 Manuale utente

KitchenAid

KitchenAid KEBC247KBL02 Manuale utente

KitchenAid

KitchenAid KEBS208AAL0 Manuale utente

KitchenAid

KitchenAid KEBK206 Manuale utente

KitchenAid

KitchenAid KEBS246Y Manuale utente

KitchenAid

KitchenAid KEBS107S Manuale utente

KitchenAid

KitchenAid KBMS1454 Manuale utente

KitchenAid

KitchenAid KEBS278DBL6 Manuale utente

KitchenAid

KitchenAid YKEBS107 Manuale utente

KitchenAid

KitchenAid KESS907SBB00 Manuale utente

KitchenAid

KitchenAid SUPERBA KEBS277BAL1 Manuale utente

Manuali Forno popolari di altre marche

Bosch

Bosch HVA531NS0 Manuale utente

Electrolux

Electrolux EOF6P46X Manuale utente

NEFF

NEFF B44S32 5GB Series Manuale utente

Combi

Combi BLODGETT BC142GDS Manuale utente

AEG

AEG COMPETENCE 311704300 Manuale utente

Falcon

Falcon DOMINATOR PLUS G3106 Series Guida utente

Rational

Rational SCC WE 61G Manuale utente

Smeg

Smeg DOSPA38X Manuale di installazione e funzionamento

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuale utente

Miele

Miele HR 1954-2 Manuale utente

KHIND

KHIND OT50 Manuale utente

Henny Penny

Henny Penny Smoker Box Manuale utente

Lang

Lang ECOD-AP Manuale utente

AEG

AEG BEK455310M Manuale utente

Frigidaire

Frigidaire FNGE90JGR Manuale utente

Hotpoint

Hotpoint FE9 S831 JSH IX Manuale utente

GE Advantium SCB2000 Manuale utente

AEG

AEG DE401301DM Manuale utente
