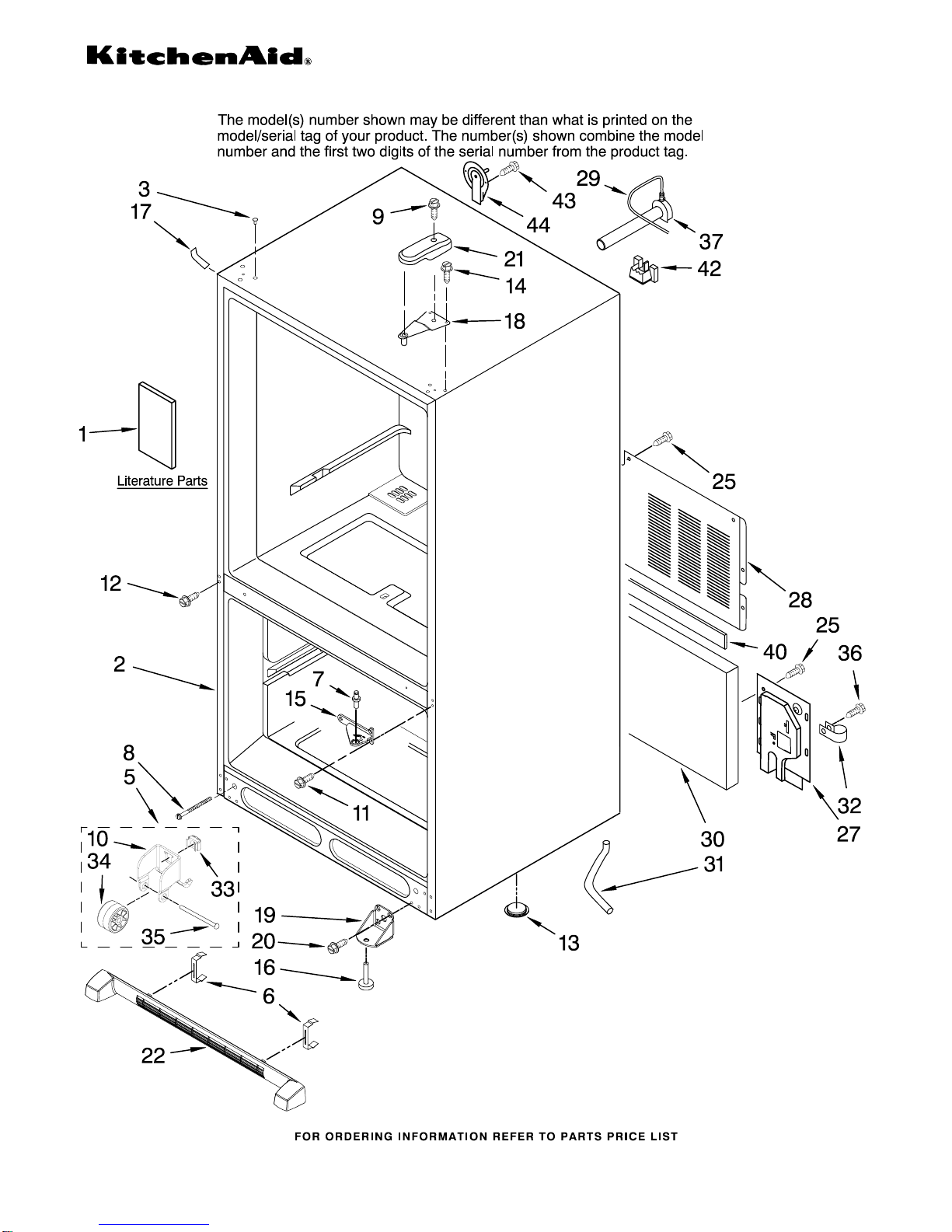

CABINET PARTS
1
3−09 Litho In U.S.A. (CJJ) (eeb) Part No. W10183469 Rev. B
REFRIGERATOR
For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01
(White) (Black) (Stainless Steel−RH) (Stainless Steel−LH)
CABINET PARTS
2W10183469
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10137649
Owners Manual
W10123819
Energy Tag
W10168777
Tech Sheet
2 Cabinet (Not a
Servicable Part)
3 Plug, Button (3)
67001130 White
67001131 Black
5 67006118 Roller Assembly
6 12627302 Clip, Grille
7 67006642 Pin, Center Hinge
8 67006611 Bolt, Adjusting
(Rear)
9 67006287 Screw
10 12456801 Bracket, Roller
11 67006380 Screw
12 67006473 Screw
13 A3076901 Plug, Button
14 67006303 Screw
15 Hinge, Center
67006960 White
67007043 Black
16 67003868 Foot Brake
17 Cover, Corner
67003484 White
67003485 Black
18
12566604ED
Hinge, Top
19 67007174 Bracket, Foot (2)
20 67006564 Screw (8)
21 Cover, Hinge
67001014 White
67001012 Black
22 Grille Assembly
(Includes Clips)
67007004 White
67006954 Black
25 67006425 Screw
27 67004611 Cover, Water Valve
28
12575101ED
Cover, Unit
29 B5705307 Tube, Plastic
30 67003796 Insulation, Sound
31
W10164397
Tube, Drain
32 67001067 Clip, Drain Tube
33 M0286708 Nut, Speed
34 67005127 Roller
35 M1205302 Pin
36 67006737 Screw
37
W10137519
Elbow, Fill Tube
40 B5759649 Gasket
42 67004092 Block, Filter
43 67006287 Screw
44 67003331 Cover, Water Line
For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01
(White) (Black) (Stainless Steel−RH) (Stainless Steel−LH)

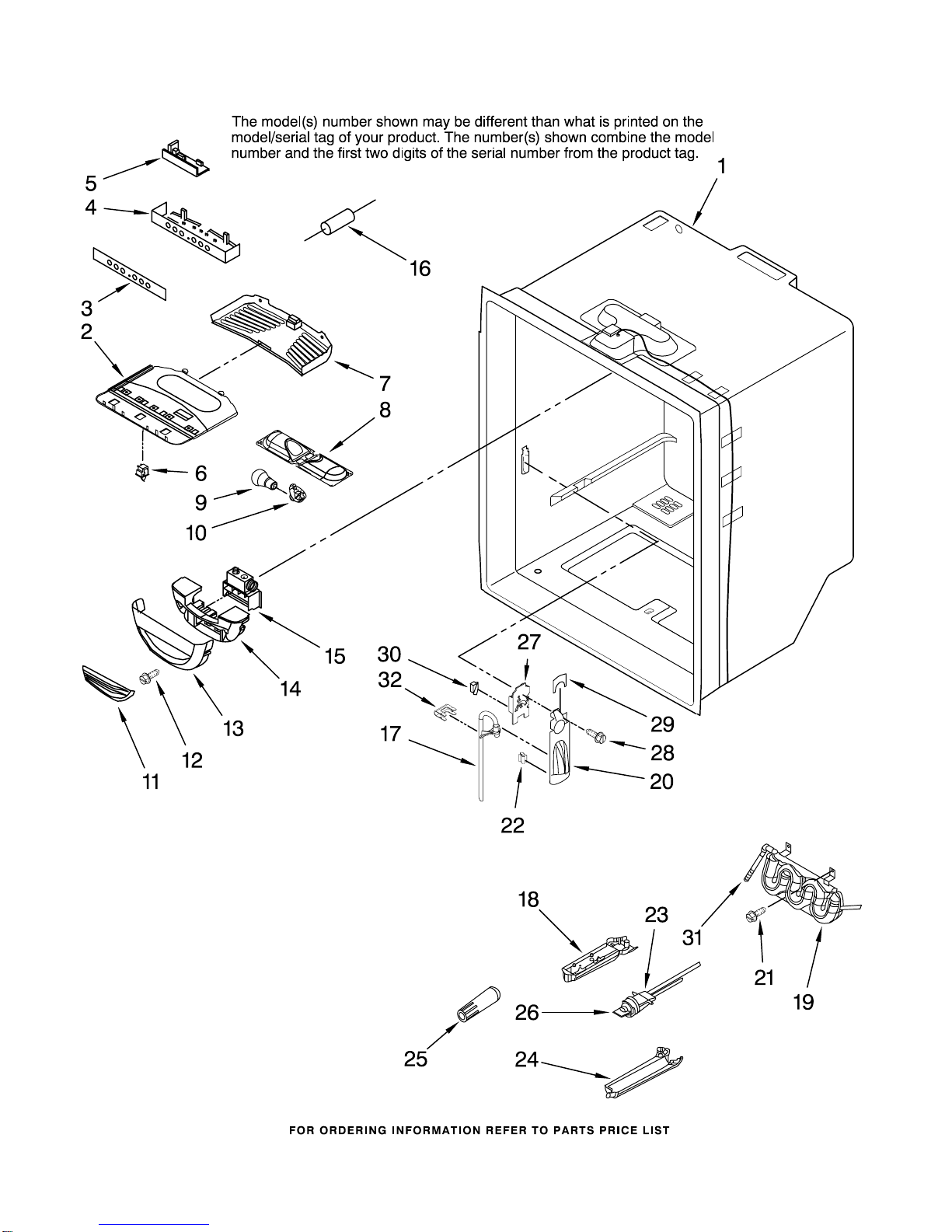

REFRIGERATOR LINER PARTS
3
(White) (Black) (Stainless Steel−RH) (Stainless Steel−LH)
W10183469
For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01
REFRIGERATOR LINER PARTS
4W10183469
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2
Y67003896
Bracket, Control
and Lights
3 67005628 Overlay
4 67005444 Housing,
Electronic Control
5 67005397 Board, Control
6 C3680310 Switch, Light
7 67003897 Cover, Light
8 67003901 Housing, Light
9 A0282812 Bulb, Light (2)
10
Y12570701
Socket, Light (2)
11 67003900 Insert,
Damper Cover
12 67006602 Screw
13 67003899 Cover, Damper
14 67006604 Insulation
15
W10127429
Control, Damper
16 12002355 Thermistor
17 67002743 Guide, Water
18 67001668 Plate
19
W10153958
Tank, Water
20
W10158503
Dispenser
21 67006400 Screw
22 B8390302 Clip
23 67006524 Housing, Filter
Head
24 12568001 Cover, Filter
25
W10181835
Filter, Water
26 12664501 Head, Filter
Bypass
27 67002742 Plate, Switch
28 67006287 Screw
29 67005674 Cover
30 12575501 Switch, Limit
31 61006182 Union
32 67002816 Clip, Water
Following Parts Not Illustrated
67005644 Harness, Controls
(Refrigerator)
(Includes # 16)
For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01
(White) (Black) (Stainless Steel−RH) (Stainless Steel−LH)

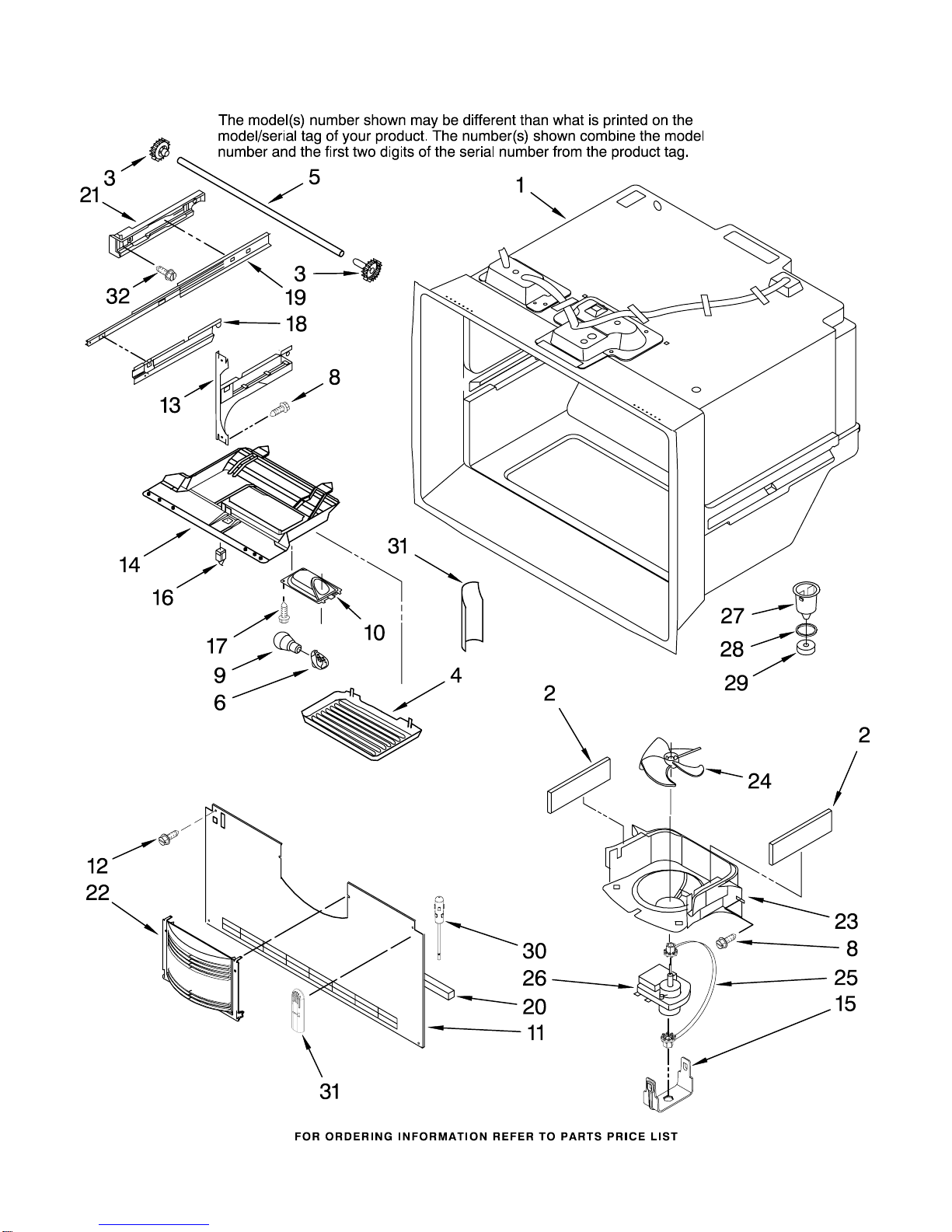

FREEZER LINER PARTS
5
W10183469
For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01
(White) (Black) (Stainless Steel−RH) (Stainless Steel−LH)
FREEZER LINER PARTS
6W10183469
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 67001291 Gasket, Foam
3 12002497 Gear (2)
(Includes RH & LH)
4 67003905 Cover, Light
5 67004261 Shaft
6
Y12570701
Socket, Light
8 67006473 Screw (8)
9 A0282812 Bulb, Light
10 67001035 Housing, Frz. Light
11 67005872 Cover, Evaporator
12 67006425 Screw
13 Bracket, Door
W10122147
Left
W10122148
Right
14 67003906 Housing, Lighting
15
W10167028
Clip, Evap. Motor
16 67005653 Switch, Light
17 67006530 Screw
18 Bracket, Basket
67004014 Left
67004015 Right
19
W10120018
Slide, Drawer (2)
20 67001776 Gasket, Bottom
21 Bracket, Slide
W10128118
Left
W10128119
Right
22
W10175909
Cover, Fan Shroud
23
W10167023
Shroud, Evap.Fan
24 2169142 Fan, Evaporator
25
W10121318
Grommet
26 67003636 Motor, Evaporator
27 D7753903 Funnel, Drain
28 M0500703 Seal
29 B8381501 Gasket
30 12002355 Thermistor
31 67003924 Cover, Thermistor
32 67006406 Screw
Following Parts Not Illustrated
67006095 Harness, Lights
(Freezer)
For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01
(White) (Black) (Stainless Steel−RH) (Stainless Steel−LH)

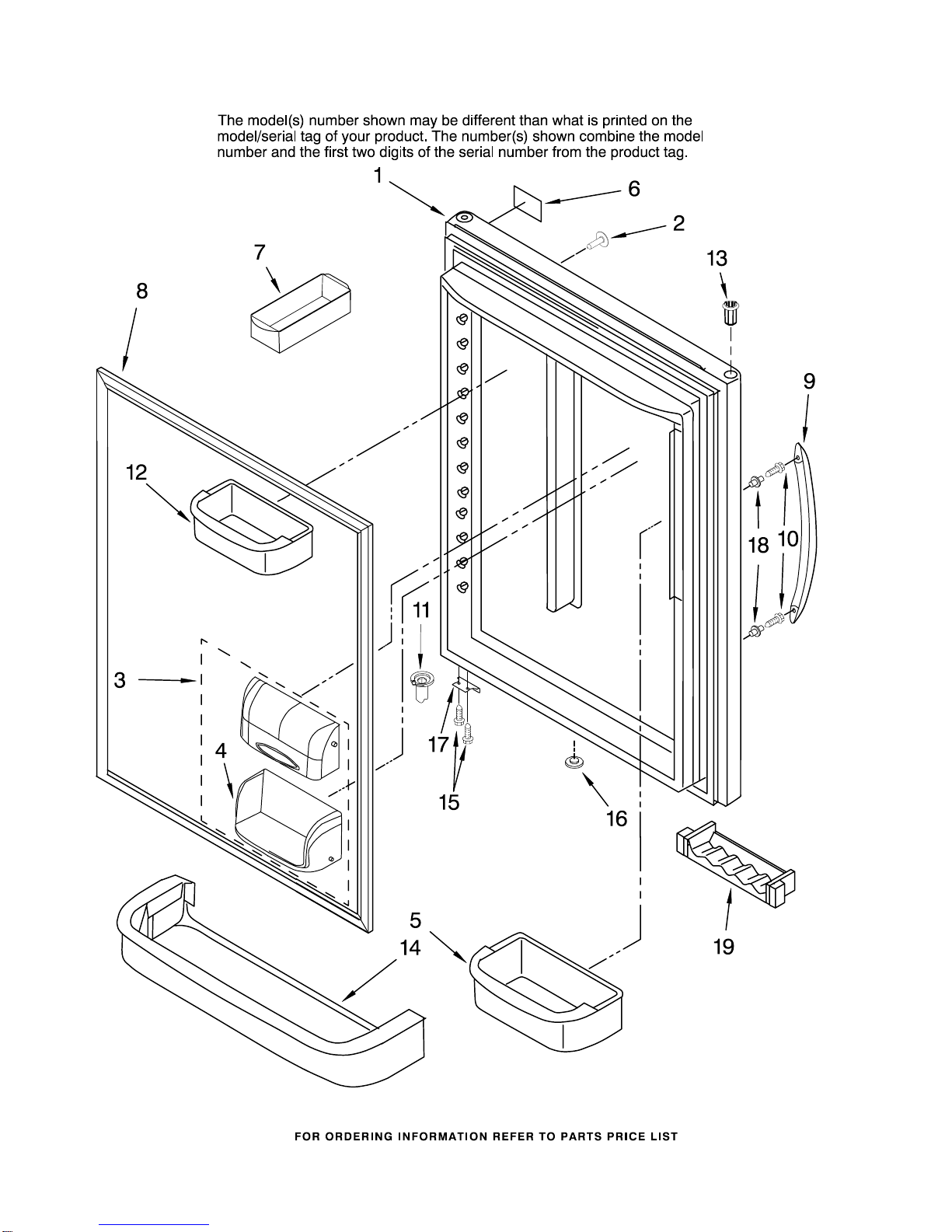

REFRIGERATOR DOOR PARTS
7
W10183469
For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01
(White) (Black) (Stainless Steel−RH) (Stainless Steel−LH)
REFRIGERATOR DOOR PARTS
8W10183469
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(w/ Insulation)
67004777 White
67004775 Black
W10170544
Stainless Steel−RH
W10170545
Stainless Steel−LH
2 Plug, Handle Hole
67001130 White
67001131 Black
3 67003819 Door, Compartment
4 67001279 Tray, Dairy
5 67005672 Bin, Shelf (3)
(Medium)
6 Nameplate
W10046670
White
W10046640
Black
W10046610
Grey
7
W10136387
Bin, Egg
8 Gasket, Door
Magnetic
W10130893
White
W10131327
Black
9 Handle, Door
2319727W White
2319727B Black
2319727S Stainless Steel
10 67002935 Screw
11 Closure, Door
67003638 White
67003639 Black
12 67005724 Bin, Shelf (1)
(Small)
13 Bushing
67004977 White
67004978 Black
14 67001748 Retainer, Door
15 67006521 Screw
16 Plug, Button
10712401 White
67004838 Black
17 Stop, Door
67003779 White
67003780 Black
18 67006113 Mount, Handle
19 67005626 Caddy, Can
For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01
(White) (Black) (Stainless Steel−RH) (Stainless Steel−LH)

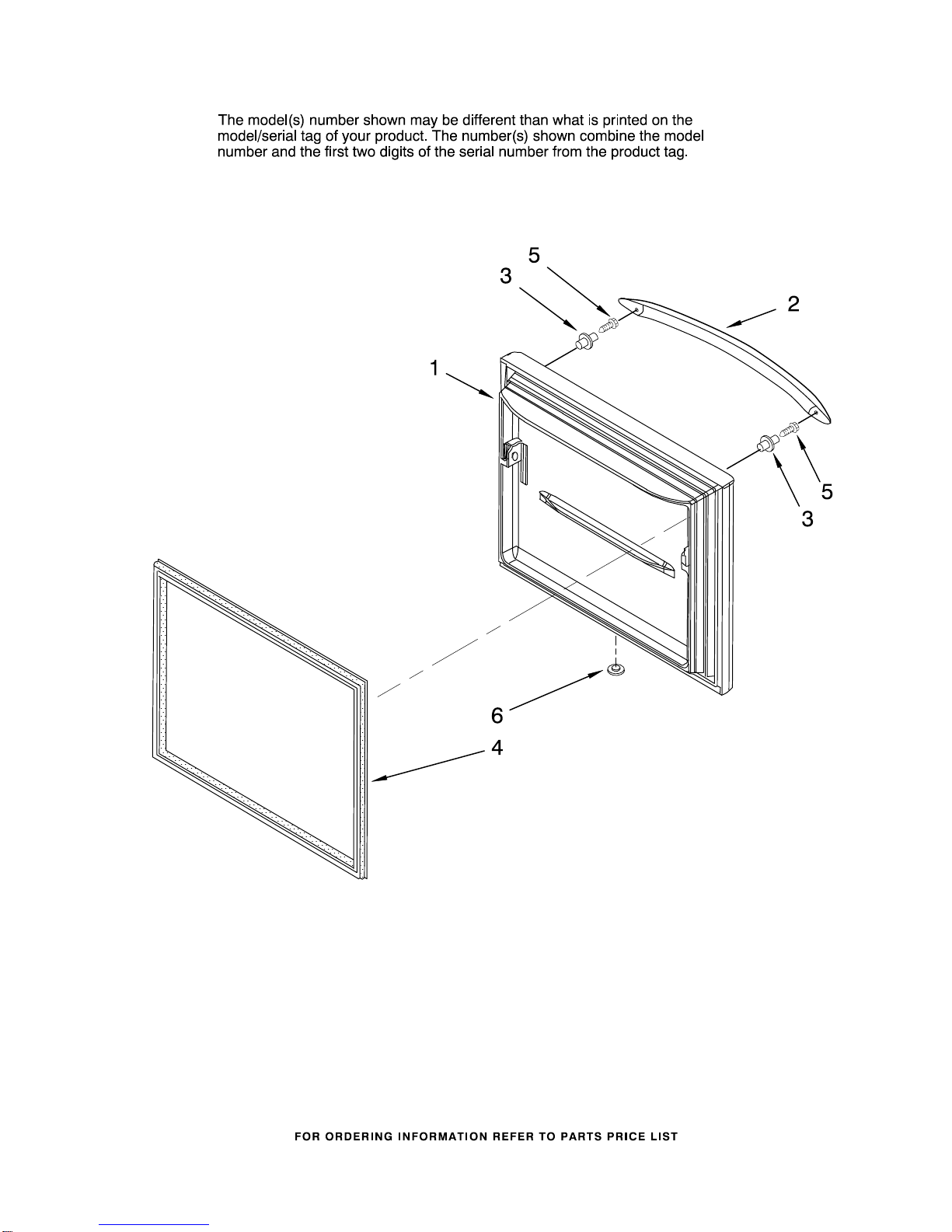

FREEZER DOOR PARTS
9
W10183469
For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01
(White) (Black) (Stainless Steel−RH) (Stainless Steel−LH)
FREEZER DOOR PARTS
10 W10183469
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(w/ Insulation)
W10168778
White
W10168779
Black
W10170543
Stainless Steel
2 Handle, Door
2319727W White
2319727B Black
2319727S Stainless Steel
3 67006113 Mount, Handle
4 Gasket, Door
W10130894
White
W10130587
Black
5 67002935 Screw (2)
6 Plug, Vent (2)
10712401 White
67004838 Black
For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01
(White) (Black) (Stainless Steel−RH) (Stainless Steel−LH)
