1

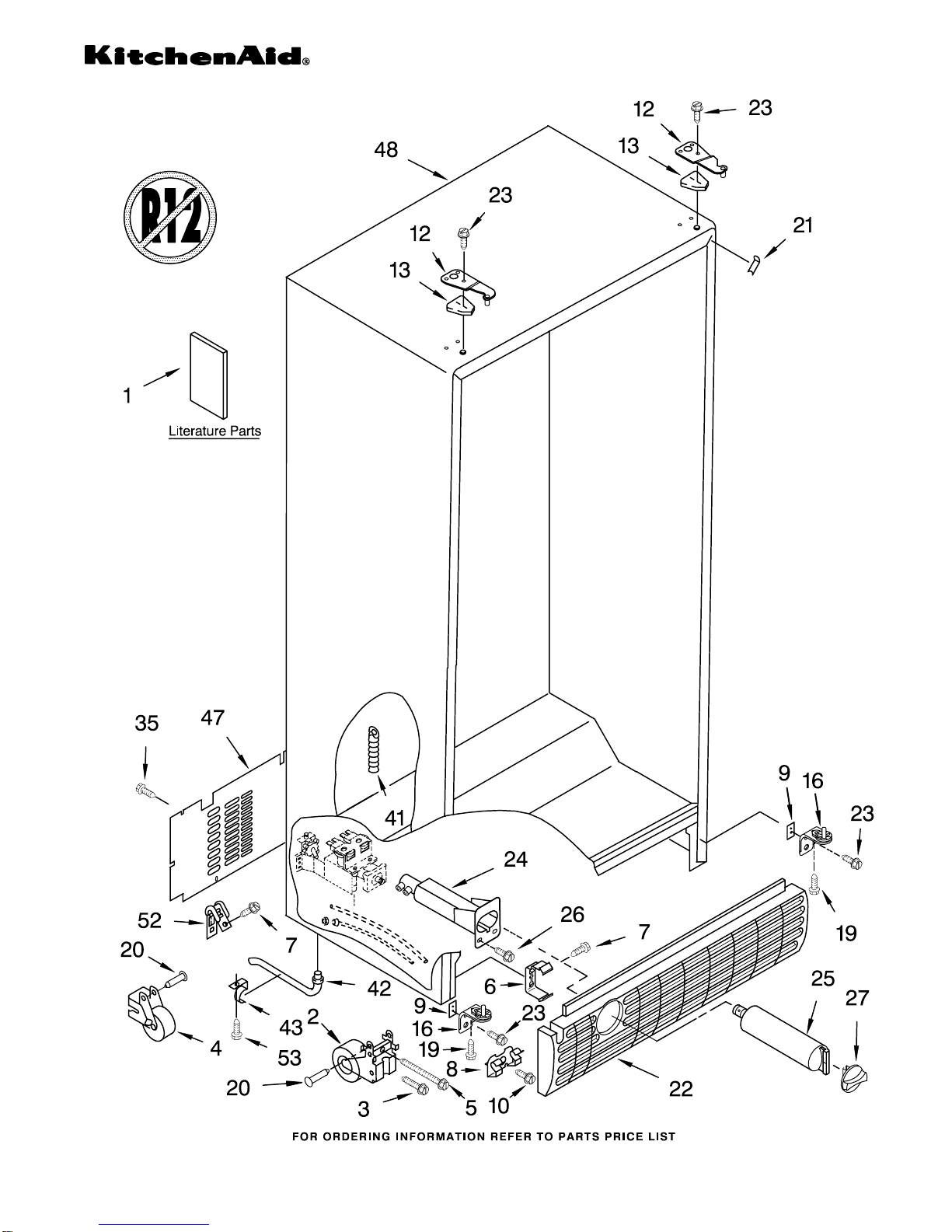

CABINET PARTS
For Model: KSCS25FJSS00
(Stainless Steel)
REFRIGERATOR
10−01 Litho In U.S.A. (mdg) Part No. 4398601 Rev. C
CABINET PARTS
2
For Model: KSCS25FJSS00
(Stainless Steel)
4398601
Illus. Part
No. No. DESCRIPTION
LITERATURE PARTS
1 LIT2210719 Use & Care Guide
LIT2199974
Service & Wiring
Sheet
LIT2211871
Energy Label
LIT628370
Modular Icemaker
Service Sheet
2 2203007 Front Roller (2)
3 3400512 Bolt
4 2203008 Roller (Rear) (2)
5 3400511 Bolt
6 2210749 Clip, Grille
7 489478 Screw
8 2209529 Clip
9 2156056 Shim
10 3400515 Screw
12 Hinge Top
2203124B Right, Black
2199935B Left, Black
13 2196048 Shim, Hinge Top
16 2208137 Hinge & Cam Assy
19 3400110 Screw
20 981126 Pin
21 Filler, Wrapper
2203067B Black
22 Grille
2199904B Black
23 489497 Screw
24 2199840 Housing, Water
Filter
25 2203220 Water Filter
26 489478 Screw
27 Cap, Water
Filter
2186494B Black
35 489464 Screw
41 940139 Drain Fitting
42 2199954 Extension Tube
43 1108439 Clip, Drain Tube
47 2199963 Cover, Unit
48 Cabinet (Not A
Serviceable Part)
52 549193 Clamp, Service
Cord
Cord
53 489084 Screw

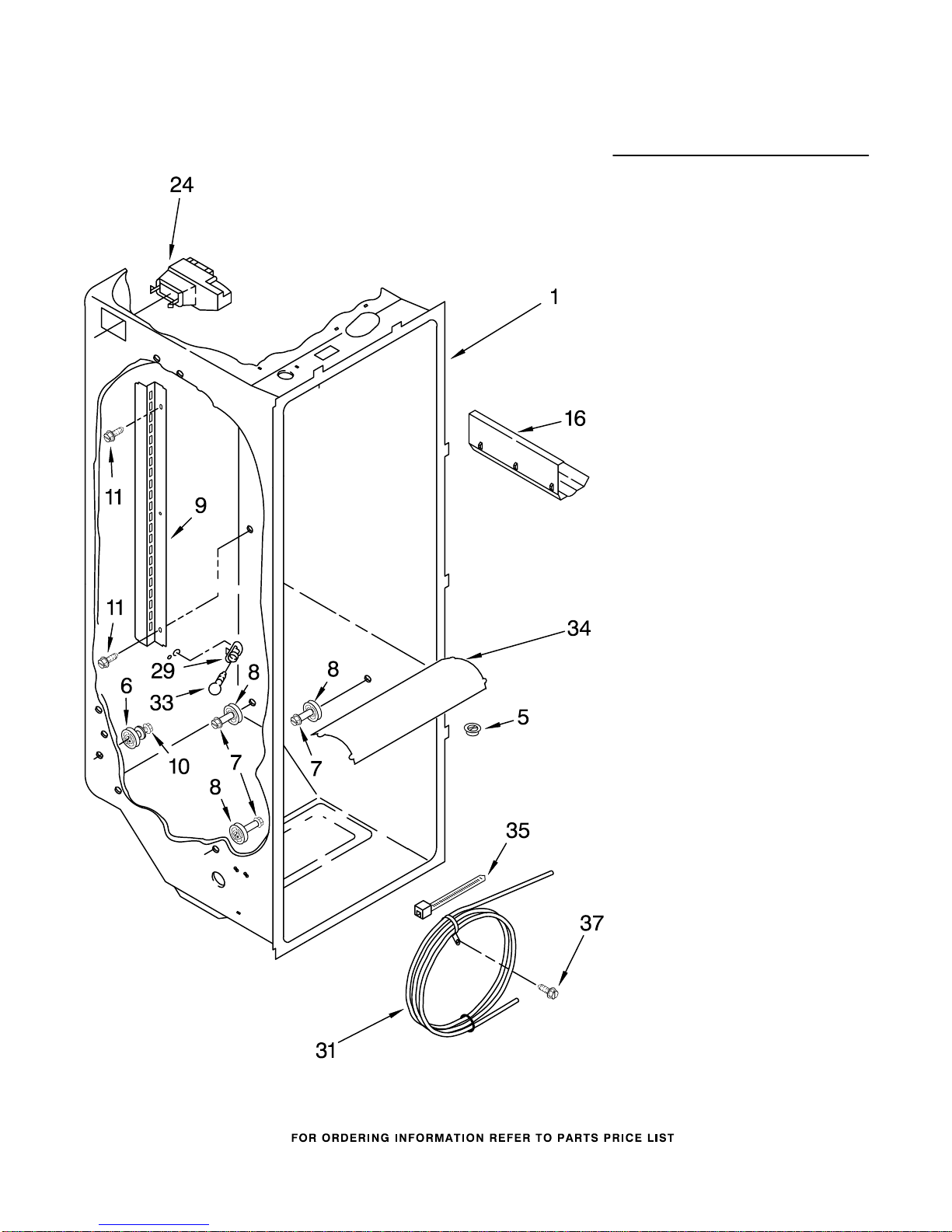

REFRIGERATOR LINER PARTS
3
For Model: KSCS25FJSS00
(Stainless Steel)
4398601
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
5 2171846 Release Valve
6 2196485 Stud Assembly (3)
7 8281158 Screw (9)
8 2196483 Stud Assembly (9)
9 2181796 Ladder, Shelf
10 3400894 Screw (3)
11 489478 Screw
16 2179404 Rack, Wine & Egg
24 2203078 Air Diffuser
Assembly
29 2162085 Socket
31 2196171 Reservoir
33 527949 Light Bulb
34 2203266 Light Lens
35 2205813 Strap
37 489478 Screw

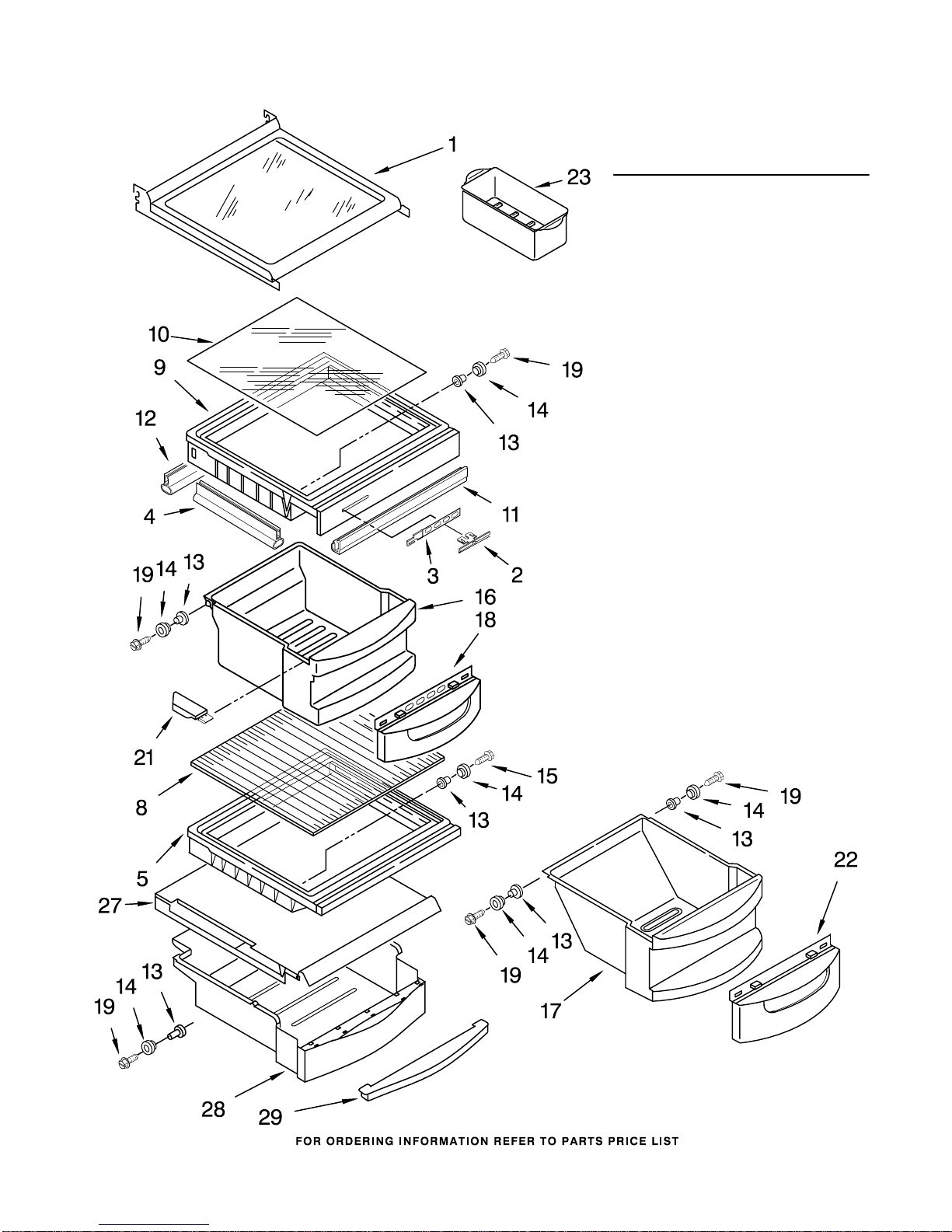

REFRIGERATOR SHELF PARTS
4
For Model: KSCS25FJSS00
(Stainless Steel)
4398601
Illus. Part
No. No. DESCRIPTION
1 2203054 Shelf Assembly,
Cantilever (3)
2 2174253 Button, Humidity
3 2174252 Slide, Humidity
4 2174273 Gasket, Side (2)
5 2203034 Cover, Meat Pan
(Includes Items
13, 14 & 15)
8 2203038 Glass, Cover
9 2174250 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14 & 19)
10 2174148 Glass, Cover
11 2174272 Gasket (Front)
12 2174274 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 2179227 Crisper Pan
(Includes 13,
14, 18, 19 & 21)
17 2203036 Meat Pan
(Includes 13,
14, 19 & 22)
18 2174076 Window, Crisper
19 489261 Screw
21 Cap, Crisper Pan
2174259 Right Side
2174258 Left Side
22 2174076 Window, Meat Pan
23 2182730 Egg Bin
27 2203027 Cover, Beverage
28 2203028 Beverage Pan
29 2203029 Handle, Beverage
5

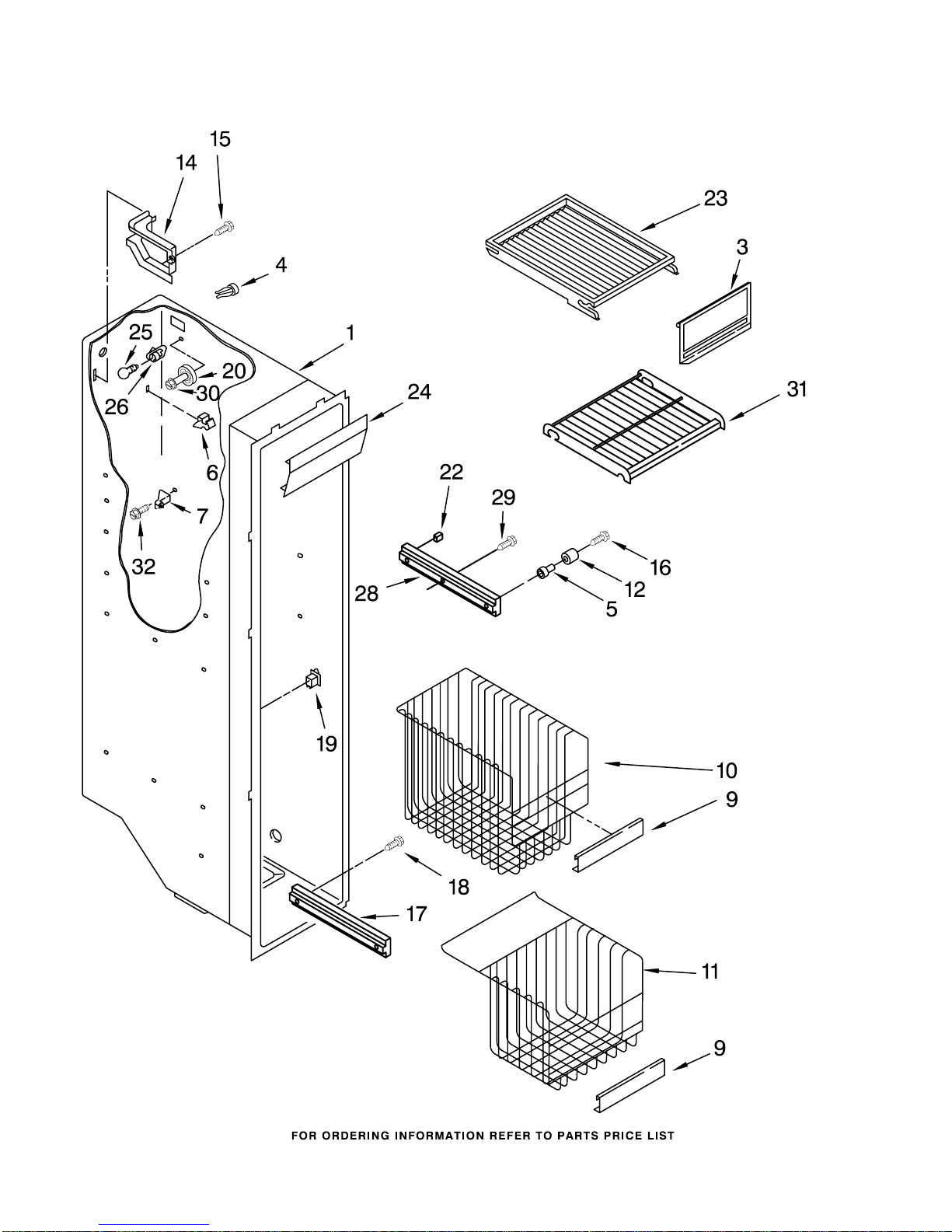

FREEZER LINER PARTS
For Model: KSCS25FJSS00
(Stainless Steel)
4398601
6
FREEZER LINER PARTS
For Model: KSCS25FJSS00
(Stainless Steel)
4398601
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
3 2199860 Door, Ice
Compartment
4 2172803 Grommet
5 2174478 Eyelet, Roller
6 842534 Clip, Air Duct (2)
7 2196206 Support, Stud (4)
9 2199867 Trim, Basket
10 2199863 Basket (2)
11 2199892 Basket, Shallow
12 2188212 Roller
14 2203111 Wiring Cover
15 489464 Screw
16 2003478 Screw
17 Slide, Basket
2208198 Right Side (2)
2208197 Left Side (2)
18 489355 Screw
19 1115373 Switch, Rocker Arm
20 2196483 Stud Assembly (12)
22 1113169 Stop, Roller
23 2209533 Shelf, Top
Compartment
24 2199965 Light Lens
25 527949 Light Bulb
26 2162085 Light Socket
28 Slide, Container
2002721 Left Side
2002720 Right Side
29 2003478 Screw
30 8281158 Screw(12)
31 2199861 Shelf
32 3400893 Screw (4)

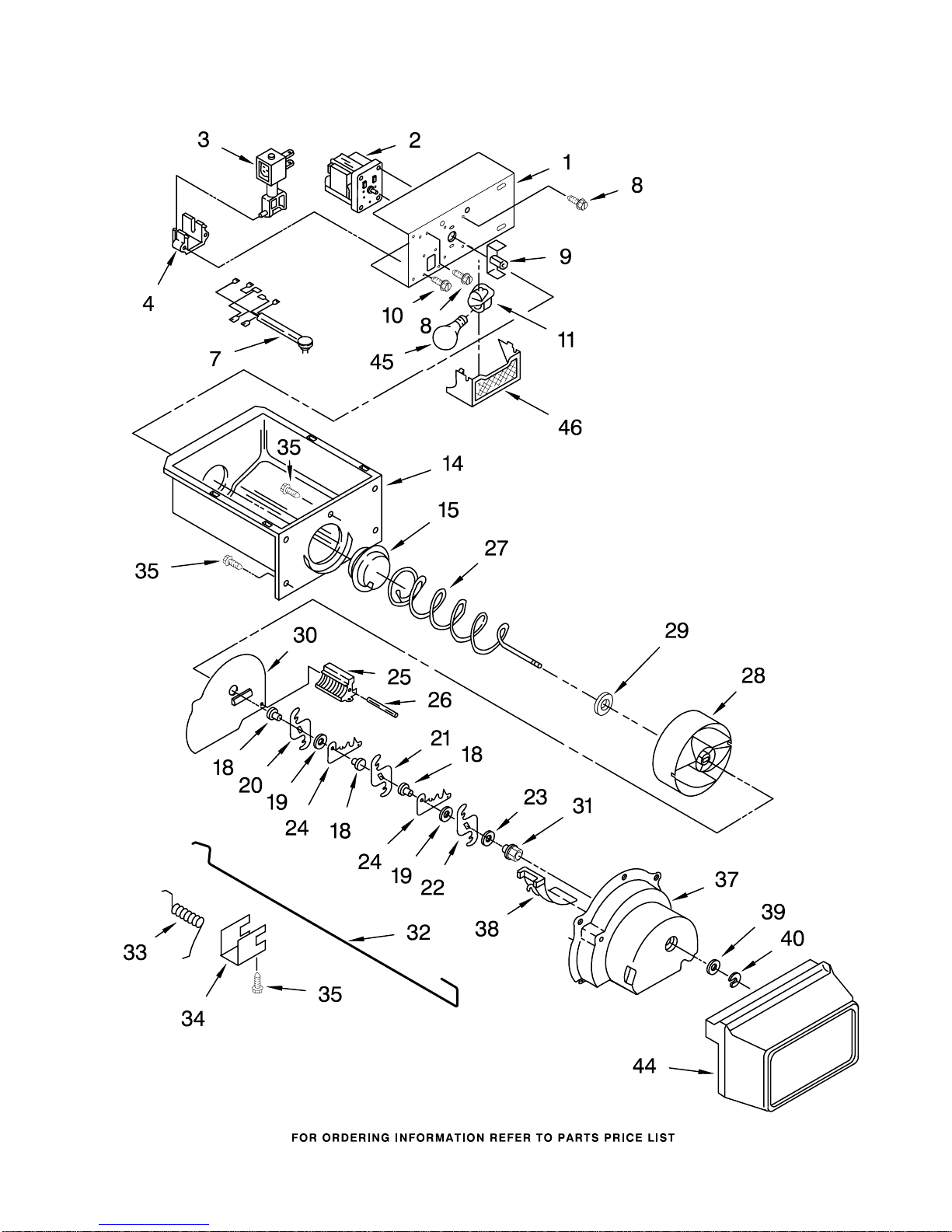

MOTOR AND ICE CONTAINER PARTS
7
For Model: KSCS25FJSS00
(Stainless Steel)
4398601
MOTOR AND ICE CONTAINER PARTS
8
For Model: KSCS25FJSS00
(Stainless Steel)
4398601
Illus. Part
No. No. DESCRIPTION
1 2199843 Bracket, Motor
2 2188385 Motor, Dispenser
3 2152713 Soleniod Assembly
4 2149100 Guide, Solenoid
7 2199846 Wiring Assembly,
Ice Dispenser
8 489399 Screw
9 2205716 Coupling, Motor
10 489355 Screw
11 2162085 Socket, Light
14 2199895 Ice Container
15 983668 Coupling, Conveyor
18 1119005 Spacer, Step (3)
19 1119007 Spacer, Flat (2)
20 1119006 Blade, Rotary
21 1119012 Blade, Rotary
22 1119013 Blade, Rotary
23 489235 Washer, Plain
24 1119009 Blade, Fixed (2)
25 2157405 Block, Blade
26 489229 Roll Pin
27 2160602 Conveyor
28 2196194 Drum
29 3400912 Washer
30 2171682 Floating Baffle
31 1119018 Nut, Bearing
32 2002728 Control Arm
33 1119020 Spring, Return
34 1119021 Retainer Clip, Rod
35 488886 Screw
37 2180348 Housing, Crusher
38 1119017 Deflector, Ice
39 489234 Washer, Plain
40 489236 Retainer Ring
44 2199913 Front Cover,
Ice Container
45 527949 Light Bulb
46 2171706 Light Lens,
Dispenser
9

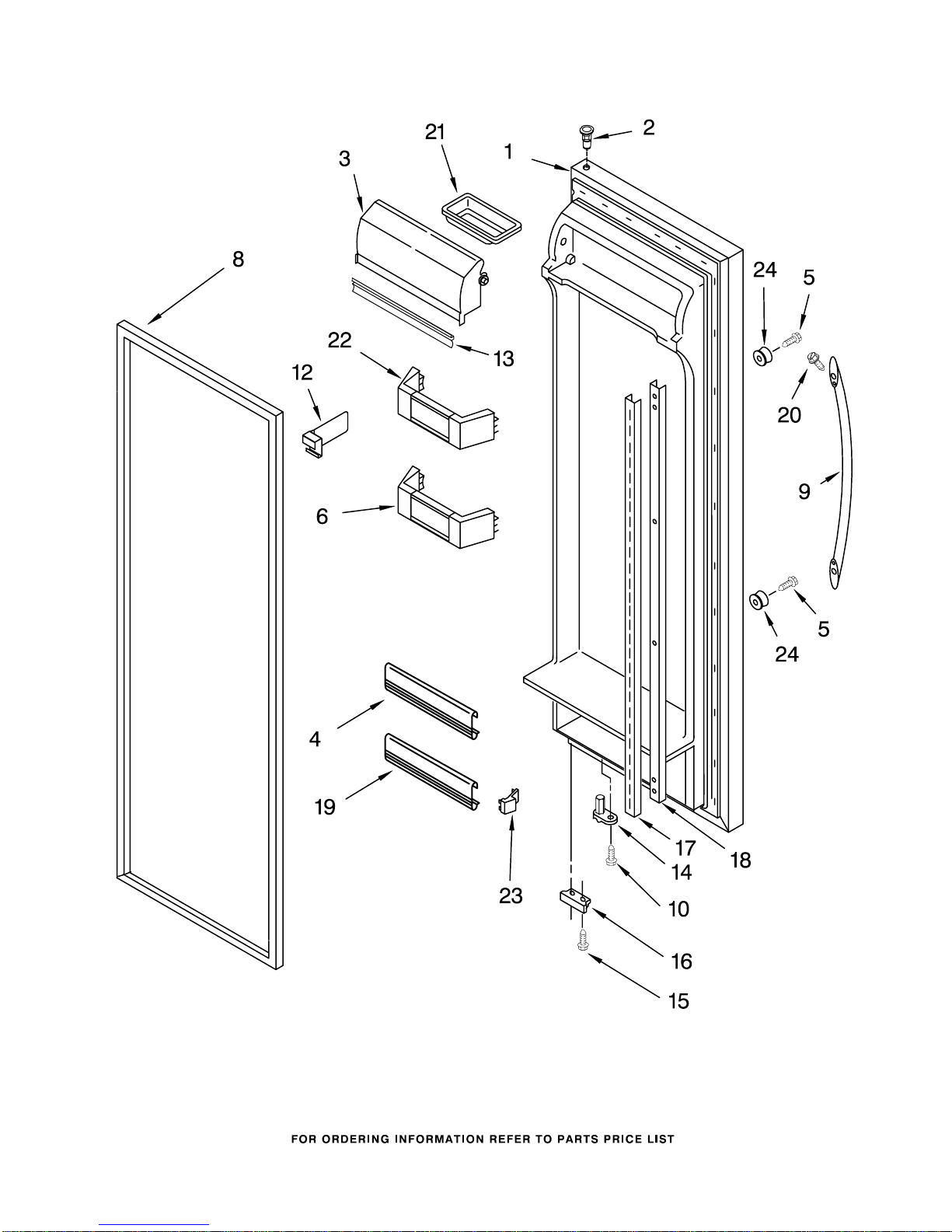

REFRIGERATOR DOOR PARTS
For Model: KSCS25FJSS00
(Stainless Steel)
4398601
REFRIGERATOR DOOR PARTS
10
For Model: KSCS25FJSS00
(Stainless Steel)
4398601
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
2209549S Stainless Steel
2 2182181 Thimble−Top
3 2182399 Door, Compartment
4 2182190 Trim, Door Shelf
5 489463 Screw
6 2199986 Bin, Door
8 Door Gasket,
Magnetic (Service)
2209515 Black
9 2204454 Handle
(Includes Item 20)
10 3400012 Screw
12 2195497 Divider, Bin
13 2159124 Gasket
14 2182179 Door Closer,
Upper Cam
15 489420 Screw
16 2195952 Bracket, Door Stop
17 1113948 Retainer, Shelf
Ladder (2)
18 1113949 Ladder, Shelf (2)
19 2203087 Trim, Door Shelf
20 98654 Set Screw
21 2165792 Butter Dish
22 2199983 Bin, Door (3)
23 2195916 Endcap (2)
24 2203690 Stud, Handle
