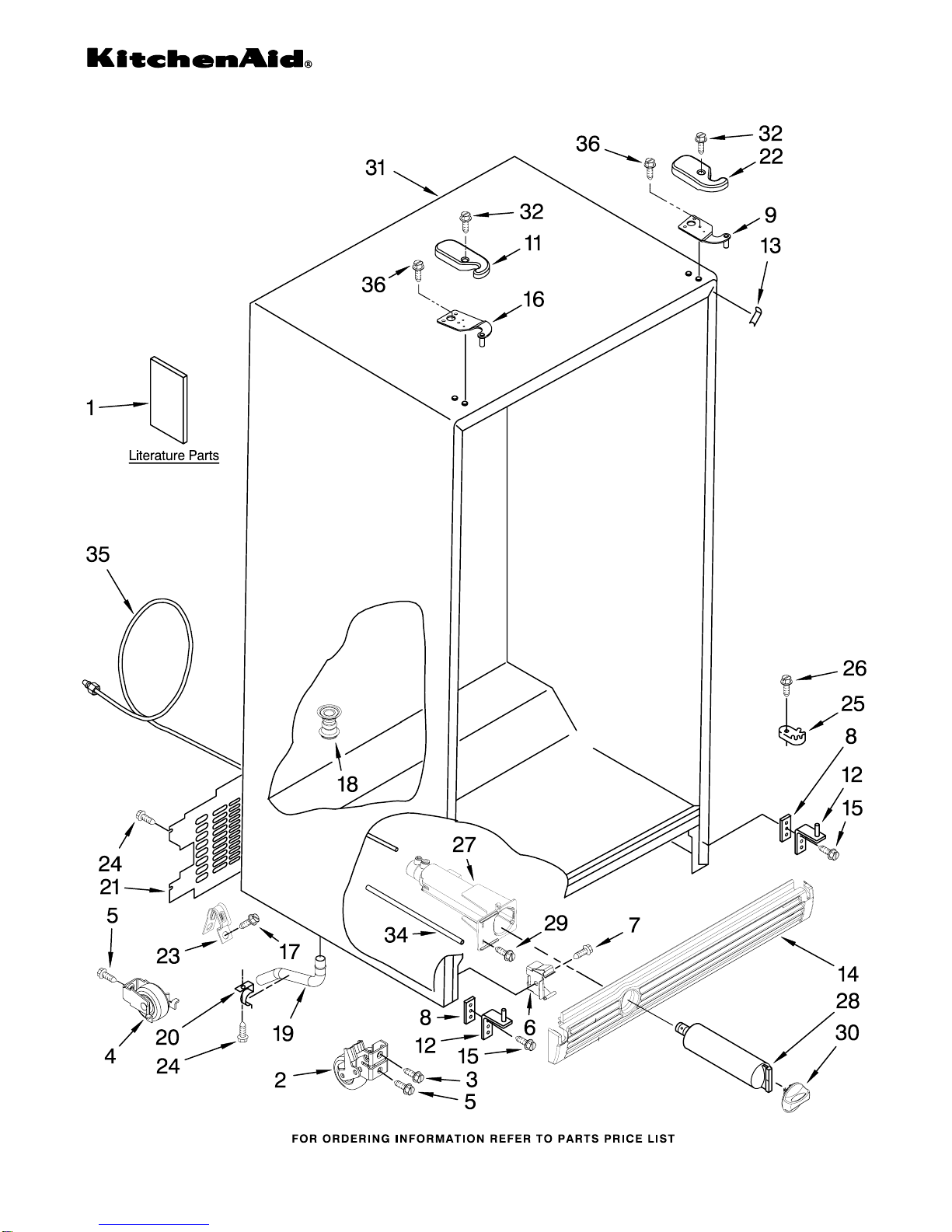

CABINET PARTS

For Models: KSRG25FKSS17, KSRG25FKST17

(Stainless Steel) (Stainless−VCM)

5−06 Printed In U.S.A. (kdr) Part No. 8214592

REFRIGERATOR

CABINET PARTS

For Models: KSRG25FKSS17, KSRG25FKST17

(Stainless Steel) (Stainless−VCM)

8214592

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2315214 Use & Care Guide

2255385 Service & Wiring

Sheet

2305906 Energy Label

2220407 Modular Icemaker

Service Sheet

2 2174748 Front Roller (2)

3 3400517 Screw

4 2196236 Roller (Rear) (2)

5 489427 Screw

6 2155013 Clip, Grille

7 489478 Screw

8 2156056 Shim

9 2203771 Hinge Top, RC

11 Hinge Cover, FC

2203407B Black

12 2304322 Hinge Bottom

13 Filler, Wrapper

2196097 Black

14 Grille

2198468B Black

15 3400113 Screw

16 2203770 Hinge, Top FC

17 489464 Screw

18 940139 Drain Fitting

19 1108438 Tube, Extension

20 1108439 Clip, Drain Tube

21 2252036 Cover, Unit

22 Hinge Cover, RC

2203408B Black

23 549193 Clamp, Service

Cord

24 489084 Screw

25 2155311 Door Closer,

Lower Cam (2)

26 489483 Screw

27 2186443 Housing, Water

Filter

28 2255519 Water Filter

29 489500 Screw

30 Cap, Water

Filter

2186494B Black

31 Cabinet (Not A

Serviceable Part)

32 8281227 Screw

34 2255012 Tube, Filter

Outlet

35 2304697 Tube, Filter

Inlet

36 489497 Screw

REFRIGERATOR LINER PARTS

For Models: KSRG25FKSS17, KSRG25FKST17

(Stainless Steel) (Stainless−VCM)

8214592

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2255612 Escutcheon, Meat

Pan Control

3 2301339 Slide Meat

Pan Control

4 2257741 Louver

6 2256035 Bracket,

Dual Crisper

8 2256037 Wire Harness,

Dual Crisper

9 2206273 Ladder, Shelf (2)

11 486298 Screw (2)

12 489478 Screw

16 2179404 Rack, Wine & Egg

18 2162085 Socket

20 2255743 Light Bulb

22 1123919 Bracket Retainer

23 489290 Screw (2)

24 2209754 Air Diffuser

Assembly

25 2152019 Air Diffuser

Cover

26 2150331 Cover, Conduit

31 2217199 Reservoir

34 2209769 Light Lens

37 488280 Screw

REFRIGERATOR SHELF PARTS

For Models: KSRG25FKSS17, KSRG25FKST17

(Stainless Steel) (Stainless−VCM)

8214592

Illus. Part

No. No. DESCRIPTION

1 2195975 Frame Assembly,

Cantilever (2)

2 2174253 Button, Humidity

3 2174252 Slide, Humidity

4 2174273 Gasket, Side (2)

5 2223357 Cover, Meat Pan

(Includes Items

13, 14 & 15)

6 2305595 Snack Pan

(Includes #7)

7 2179243 Trim, Handle

8 2255144 Glass, Cover

9 2301484 Cover, Crisper

(Includes 2,

3, 4, 11, 12,

13, 14 & 19)

10 2255143 Glass, Cover

11 2223361 Gasket (Front)

12 2223362 Gasket (Rear)

13 2174478 Eyelet, Roller

14 2188212 Roller

15 489211 Screw

16 2301481 Crisper Pan

(Includes 13,

14, 18, 19 & 21)

17 2301482 Meat Pan

(Includes 13,

14, 19 & 22)

18 2174076 Window, Crisper

19 489261 Screw

20 2176095 Deflector

21 Cap, Crisper Pan

2223286 Right Side

2223285 Left Side

22 2174362 Window, Meat Pan

24 2216102 Shelf Assembly,

Slide Out (2)

25 3400894 Screw

26 2206346 Shelf, Snack Pan

27 2196485 Stud Assembly

28 8281158 Screw

29 2196483 Stud Assembly

FREEZER LINER PARTS

For Models: KSRG25FKSS17, KSRG25FKST17

(Stainless Steel) (Stainless−VCM)

8214592

FREEZER LINER PARTS

For Models: KSRG25FKSS17, KSRG25FKST17

(Stainless Steel) (Stainless−VCM)

8214592

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 941839 Hole Plug

3 3400893 Screw

4 940014 Hole Plug

6 2301190 Basket, Tall

7 Track, Basket−Dual

2301293 Right Side

2301294 Left Side

9 2211746K Shelf, Slide Out

Upper

12 2305580K Basket, Front

13 Shelf Track

2301289 Right Side

2301290 Left Side

14 2205837K Shelf (2)

15 2301191 Basket, Sloped

16 486298 Screw

17 842534 Clip, Air Duct

19 2198587 Cover, Emitter

22 2198635 Spring

23 2198634 Pin

25 1115373 Switch, Rocker Arm

26 2220398 P.C. Board

Emitter

27 2255590 Cover, Ice Maker

28 2212321 Slide, Ice Maker

Mounting

29 489478 Screw

30 489214 Screw (2)

32 2162085 Light Socket

33 2255743 Light Bulb

34 8281185 Screw

35 2198633 Flipper

36 2255561 Cover, Receiver

37 2301340 Slide, Ice Maker

Shut Off

38 2255114 P.C. Board,

Receiver

39 2198643 Lens

40 2198589 Light Shield

41 2212340 Light Lens

42 2198641 Bracket, Ice Maker

Cover

43 2155597 Socket, Light

45 Ladder

2198609 Left Side

2198610 Right Side

46 2219878 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS

For Models: KSRG25FKSS17, KSRG25FKST17

(Stainless Steel) (Stainless−VCM)

8214592

MOTOR AND ICE CONTAINER PARTS

For Models: KSRG25FKSS17, KSRG25FKST17

(Stainless Steel) (Stainless−VCM)

8214592

Illus. Part

No. No. DESCRIPTION

1 2198573 Ice Bin

2 2255580 Crusher Bin

3 2258222 Auger

4 2258220 Blade, Stirring

5 1119007 Spacer, Flat (6)

6 2255460 Cover, Crusher

7 2257024 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2257020 Blade, Fixed

10 2257023 Blade, Rotary

11 2198602 Block, Blade

12 489229 Roll Pin

13 2257022 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2220457 Coupling

17 8281164 Screw

18 3400065 Screw

19 2301345 Button, Bin

20 2212371 Latch, Bin

21 2198608 Spring, Latch

22 2198671 Screw

23 8281163 Screw

24 2212369 Holder

25 2220458 Coupling, Bottom

26 2198628 Seal

27 2212370 Washer

29 2198607 Spring

30 999536 Drive Shaft

31 2256154 Enclosure, Motor

32 2188868 Dispenser, Motor

33 2212305 Cover

36 2212365 Sleeve, Coupling

REFRIGERATOR DOOR PARTS

For Models: KSRG25FKSS17, KSRG25FKST17

(Stainless Steel) (Stainless−VCM)

8214592

REFRIGERATOR DOOR PARTS

For Models: KSRG25FKSS17, KSRG25FKST17

(Stainless Steel) (Stainless−VCM)

8214592

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes #7)

2301184S Stainless Steel

2301184LG

Stainless−VCM

3 2301486 Door, Compartment

4 2193409K Holder, Beverage

5 2165792K Butter Dish

6 Handle

2255516SK

Stainless Steel

7 Door Gasket,

Magnetic

2221313 Black

9 8533976 Screw

10 2219698 Stud, Handle

11 488208 Screw

12 2182178 Door Closer,

Upper Cam

13 2159124 Gasket

14 489420 Screw

15 Bracket, Door Stop

2206629B Black

16 2171063K Shelf Bin (4)

17 3400012 Screw

18 Thimble−Top

2308050 For Stainless

Steel Model

2308091 For Stainless

VCM Model
