CABINET PARTS

(White) (Black)

For Models: KBRS22EVWH2, KBRS22EVBL2

2−10 Litho In U.S.A (rrm)(bay) Part No. W10304517 Rev.A

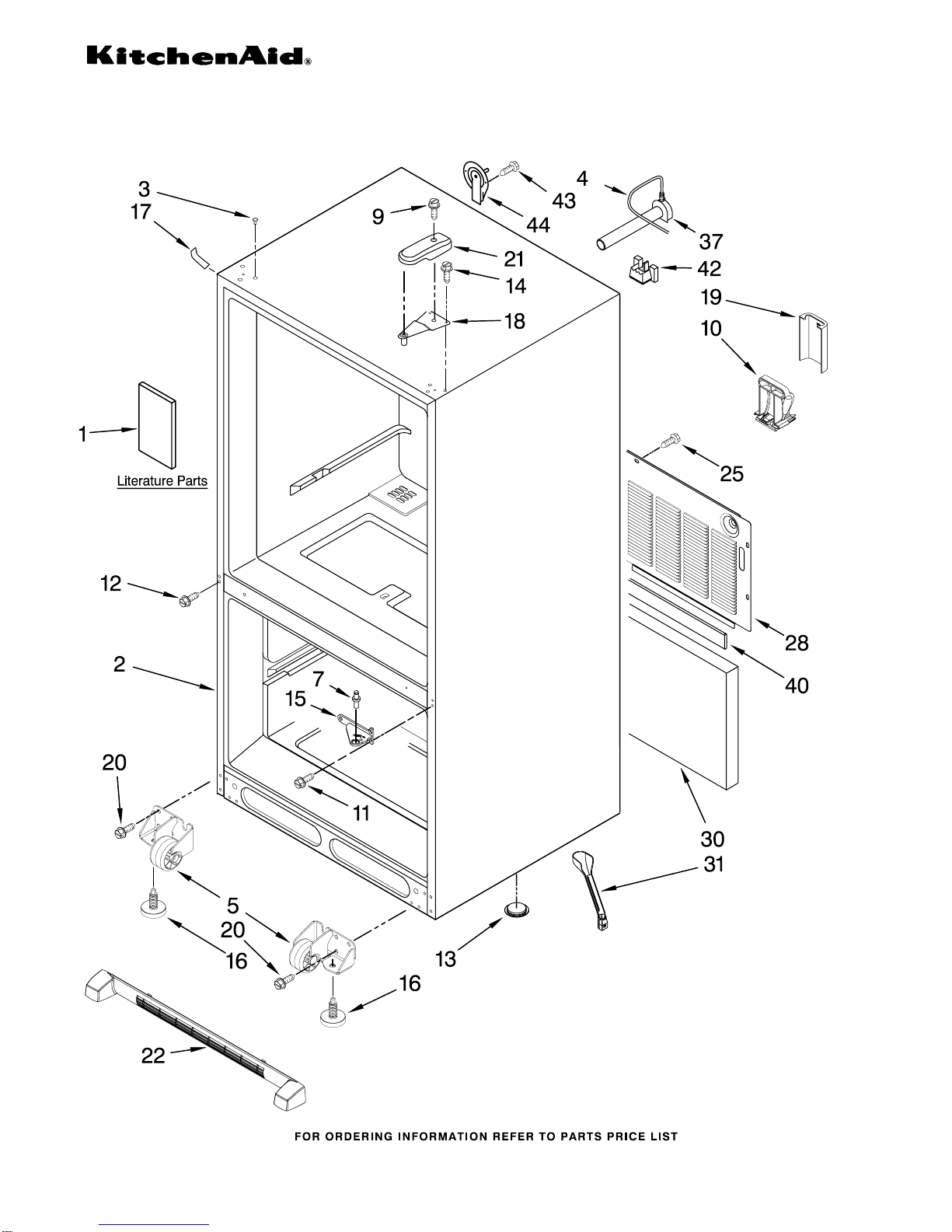

REFRIGERATOR

CABINET PARTS

(White) (Black)

For Models: KBRS22EVWH2, KBRS22EVBL2

W10304517

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10137649

Use & Care Guide

W10212714

Energy Guide

W10279330

Tech Sheet

2 Cabinet (Not a

Serviceable Part)

3 Plug, Button (3)

12477601W

White

12246608 Black

B5705333SP

Tube, Plastic

5 Roller Foot

Assembly

W10275850

Left

W10275849

Right

7 10351006 Pin, Center Hinge

9 12990504 Screw

10 12831101 Sweep, Dual Tube

11 12992201 Screw

12 12990521 Screw

13 A3076901 Plug, Button

14 12992403 Screw

15 Hinge, Center

12607103WD

White

12607103ED

Black

W10141622

Foot Brake (2)

17 Cover, Corner

12587703W

White

12587703B

Black

12566606ED

Hinge, Top Left

W10208593

Guard, Dual

Water Valve

20 12991302 Screw (8)

21 Cover, Hinge

12477601W

White

12477601B

Black

22 Grille Assembly

W10236195

White

W10236196

Black

25 12990511 Screw

W10210980

Cover, Unit

30 12820505 Insulation, Sound

W10210988

Tube, Drain

10463203SP

Elbow, Fill Tube

40 B5759655 Gasket

42 12777701 Block, Filter

43 12990504 Screw

44 12726003 Cover, Water Line

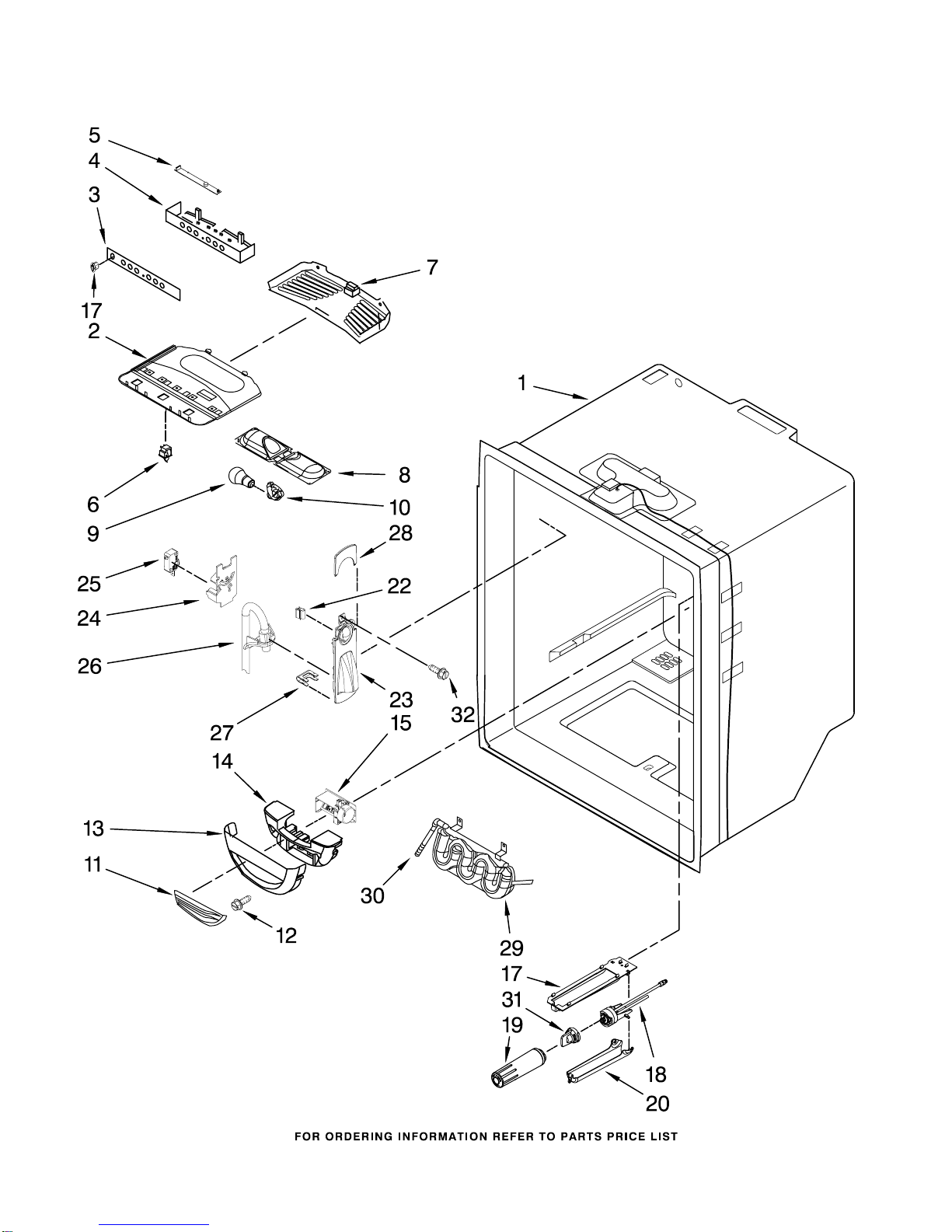

REFRIGERATOR LINER PARTS

(White) (Black)

For Models: KBRS22EVWH2, KBRS22EVBL2

W10304517

REFRIGERATOR LINER PARTS

(White) (Black)

For Models: KBRS22EVWH2, KBRS22EVBL2

W10304517

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 12806301 Module, Light

W10217738

Overlay

4 12806405 Housing, Control

W10217475

Board, Control

C3680310V

Switch, Light (2)

7 12806501 Cover, Light

12806601V

Housing, Light

W10194422V

Bulb, Light (2)

12570701V

Socket, Light (2)

11 12806801 Insert,

Damper Cover

12 12990604 Screw

13 12806701 Cover, Damper

14 13012402 Insulation

W10207517

Control, Damper

17 12704801 Plate

18 12590620 Head, Water Filter

UKF8001AXX

Filter, Water

20 12568001 Cover, Filter

B8390302SP

Clip, Facade (2)

12706909SP

Facade, Disp.

12707303SP

Plate, Switch

25 12575501 Switch, Limit

12707205SP

Guide, Waterline

12251001SP

Clip, Waterline

28 12707005 Facade, Disp (Top)

29 12706111 Tank, Water

30 61006182 Union

12664501SP

Plug, Bypass

32 12990513 Screw

Following Parts Not Illustrated

W10224290

Harness, Control

(Refrigerator)

(Includes

Thermistor)

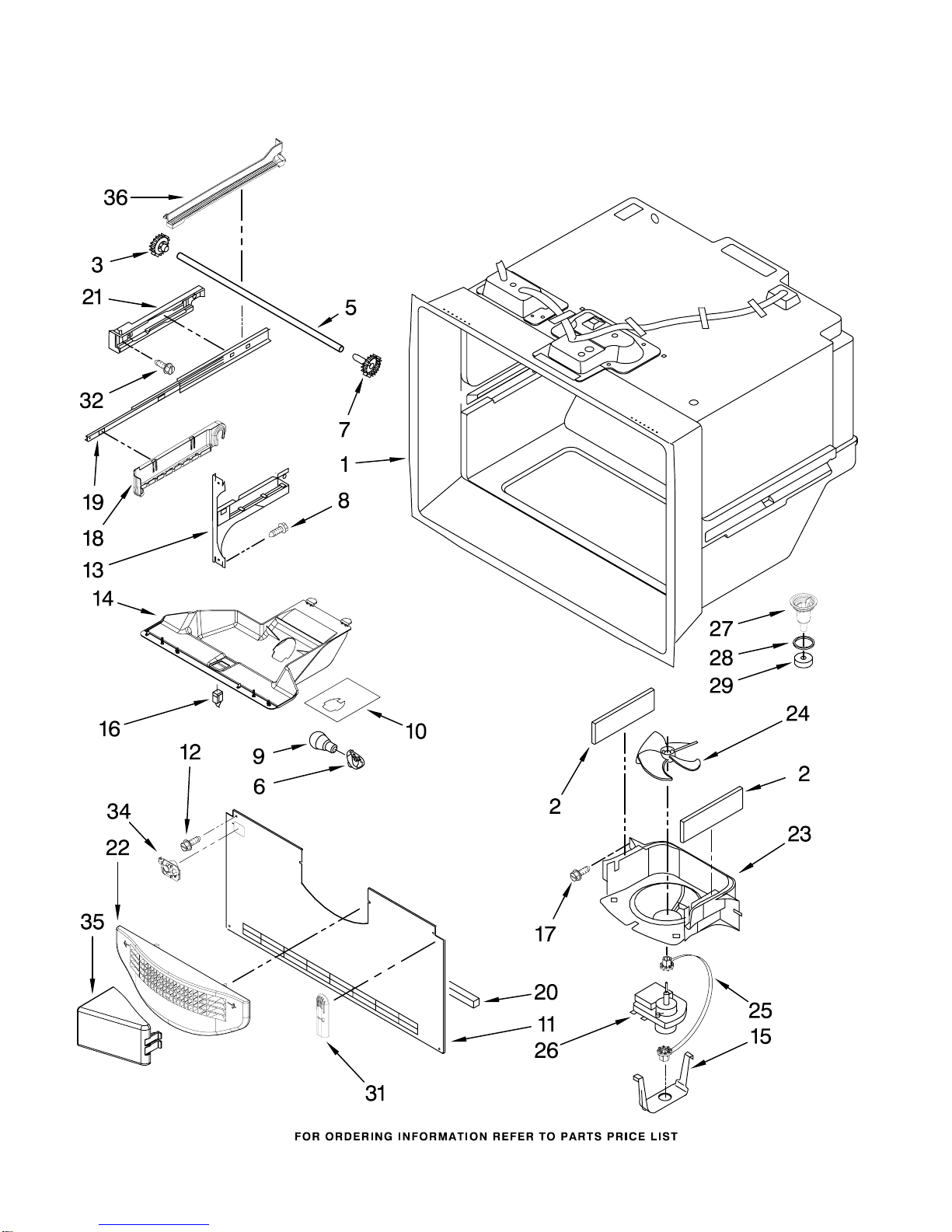

FREEZER LINER PARTS

(White) (Black)

For Models: KBRS22EVWH2, KBRS22EVBL2

W10304517

FREEZER LINER PARTS

(White) (Black)

For Models: KBRS22EVWH2, KBRS22EVBL2

W10304517

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 A3189392 Gasket, Foam

3 12002497 Gear (Left)

(Includes Item 7)

12812902WD

Shaft

12570701V

Socket, Light

7 12002497 Gear (Right)

(Includes Item 3)

8 12990521 Screw (8)

W10194422V

Bulb, Light

W10277466

Foil−FZ Light

11 12226111 Cover, Evaporator

12 12990511 Screw (4)

13 Bracket, Door

W10122147

Left

W10122148

Right

W10277025

Module−FZ Light

15 13058002 Clip, Evap Motor

16 12466105 Switch, Light

17 12990504 Screw (2)

18 Cradle, Basket

W10280608

Left

W10280613

Right

W10120018

Slide, Drawer (2)

20 A3189395 Gasket, Bottom

21 Adapter, Slide

W10261203

Left

W10261204

Right

22 13024803 Grille, Fz Air

23 13057901 Shroud, Evap Fan

24 2169142 Blade, Fan

(Evaporator)

W10150583

Grommet

26 13062901 Motor, Evaporator

27 D7753903 Funnel, Drain

28 M0500703 Seal

29 B8381501 Gasket

31 12815301 Cover, Thermistor

32 12990501 Screw (6)

34 12932103 Guide, Fill Tube

W10157765

Diverter, Air

W10284694

Rack−Left Side

W10284695

Rack−Right Side

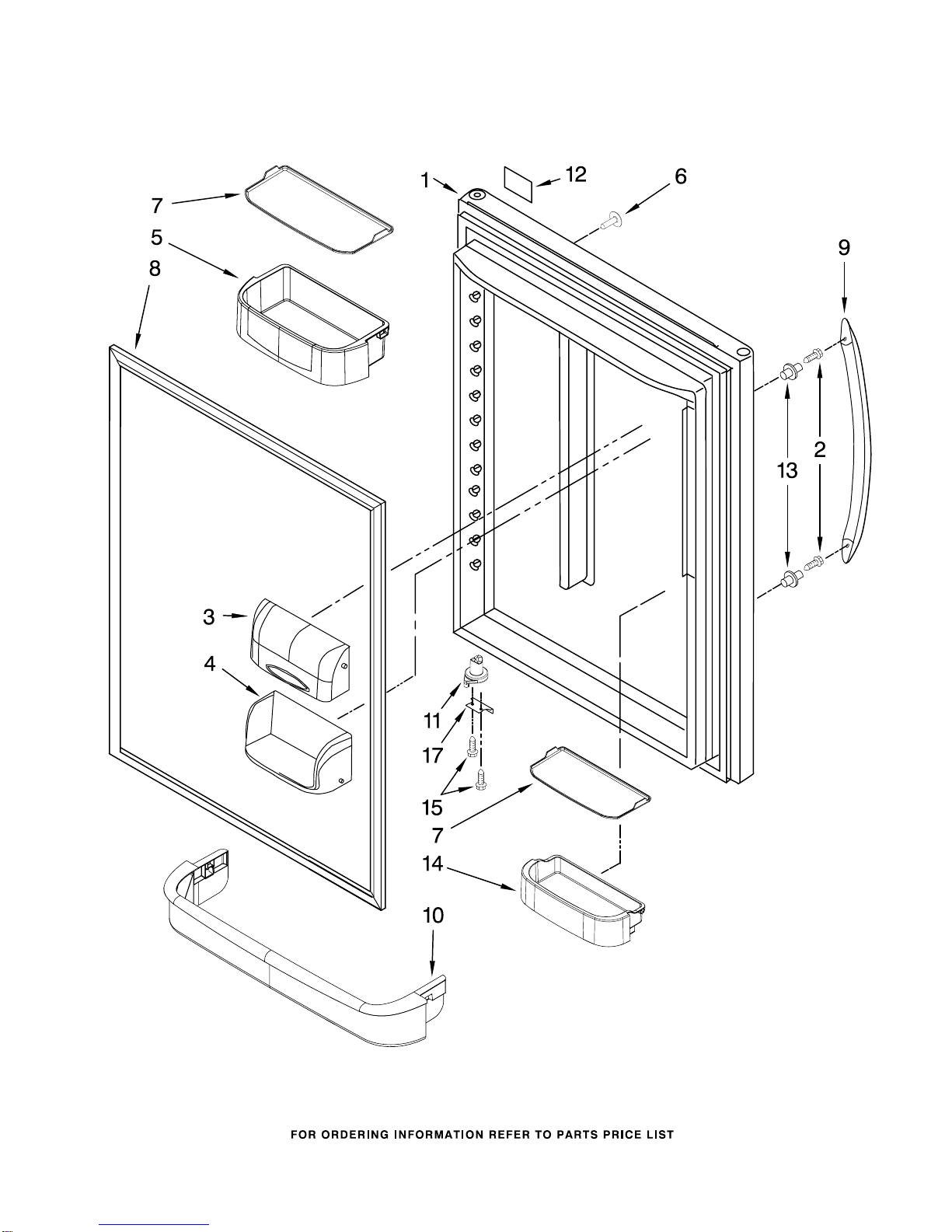

REFRIGERATOR DOOR PARTS

(White) (Black)

For Models: KBRS22EVWH2, KBRS22EVBL2

W10304517

REFRIGERATOR DOOR PARTS

(White) (Black)

For Models: KBRS22EVWH2, KBRS22EVBL2

W10304517

Illus. Part

No. No. DESCRIPTION

1 Door, Refrigerator

12658572WQ

White

12658572BQ

Black

2 3196181 Screw

12804701SP

Door, Dairy

12369502SP

Tray, Dairy

12849114SP

Bucket, Medium (3)

6 Plug, Handle Hole

12246607 Black

12567321SP

Gripper, Medium

8 Gasket, Door

W10164034

White

W10164035

Black

9 Handle, Door

W10119642N

White

W10119643N

Black

10 12690502 Retainer, Door

11 Closure, Door

12028505W

White

12028505B

Black

12 Nameplate

W10046670

White

W10046640

Black

W10046610

Apollo Grey

13 12691403 Mount, Handle

12643911SP

Bucket, Short

15 12990504 Screw

17 Stop, Door

10447111 White

10447112 Black

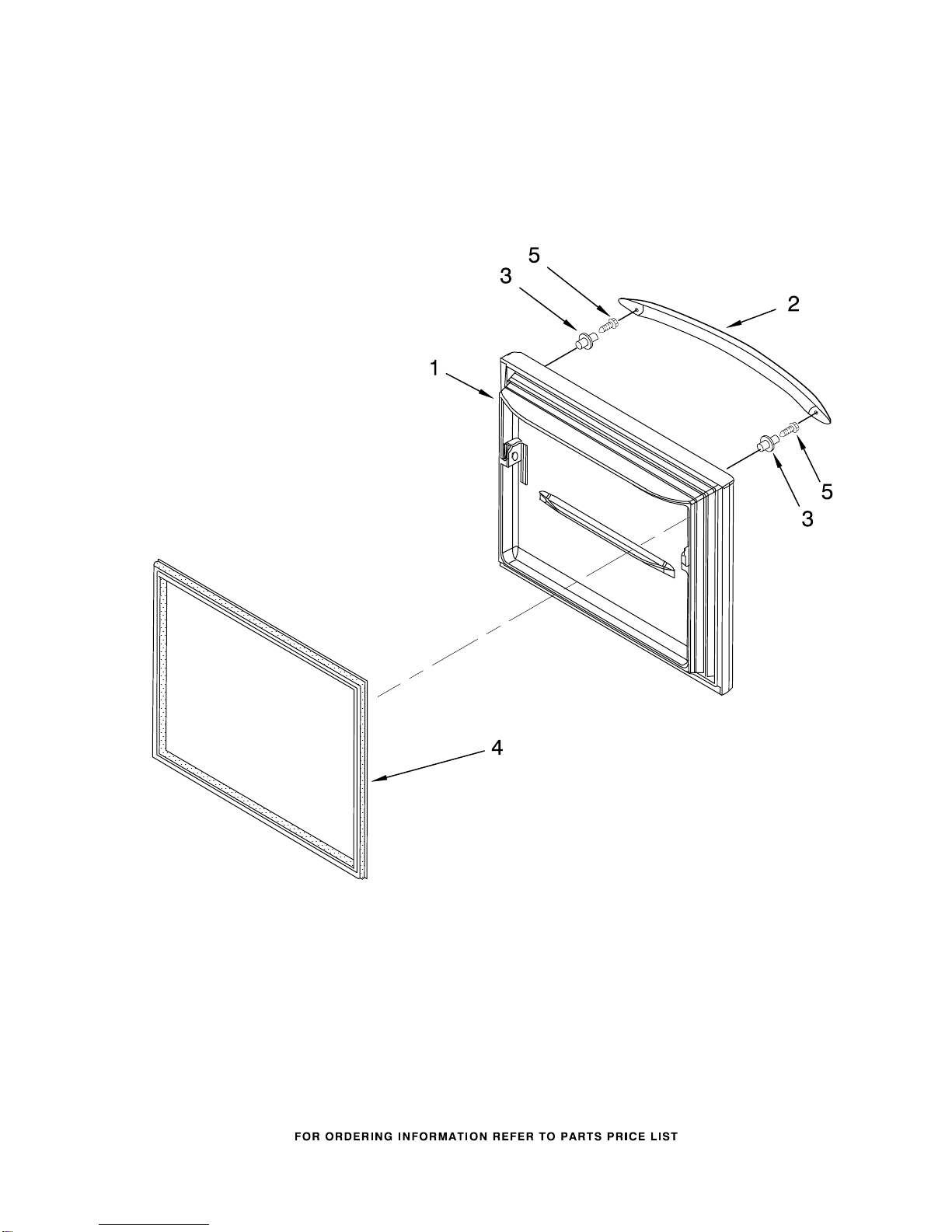

FREEZER DOOR PARTS

(White) (Black)

For Models: KBRS22EVWH2, KBRS22EVBL2

W10304517

FREEZER DOOR PARTS

(White) (Black)

For Models: KBRS22EVWH2, KBRS22EVBL2

W10304517

Illus. Part

No. No. DESCRIPTION

1 Door, Freezer

13092244WQ

White

13092244BQ

Black

2 Handle, Door

W10119642N

White

W10119643N

Black

3 12691403 Mount, Handle

4 Gasket, Door

W10164036

White

W10164037

Black

5 3196181 Screw
