1

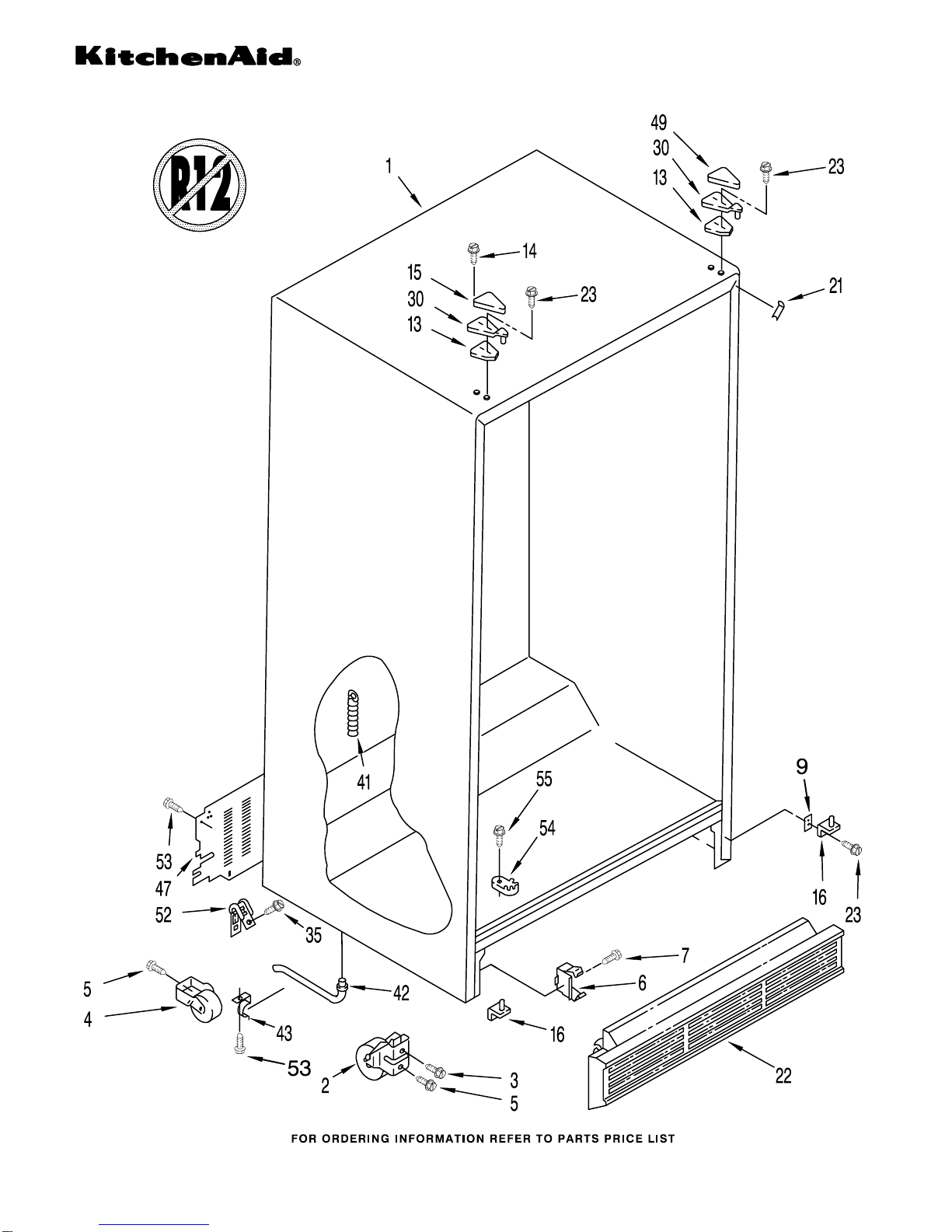

CABINET PARTS
For Models: KSRS25FDWH02, KSRS25FDAL02
(White) (Almond)
5−96 Printed In U.S.A. (RCG) Part No. 4394425
REFRIGERATOR
CABINET PARTS
2
For Models: KSRS25FDWH02, KSRS25FDAL02
(White) (Almond)
4394425
Illus. Part
No. No. DESCRIPTION
1 Cabinet (Not A
Serviceable Part)
2 2174748 Front Roller (2)
3 489456 Screw
4 981122 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
9 2156056 Shim
13 2171868 Shim, Hinge Top
14 489284 Screw
15 Hinge Cover
1129262 White
2150343 Almond
16 2171851 Hinge Bottom (2)
21 Filler, Wrapper
1110708 White
1110709 Almond
22 Grille
2155486 White
2155487 Almond
23 489367 Screw
30 2171865 Hinge, Top (2)
35 489464 Screw
41 940139 Drain Fitting
42 1108438 Tube, Extension
43 1108439 Clip, Drain Tube
47 2176140 Cover, Unit
49 Hinge Cover
1119787 White
1119789 Almond
52 549193 Clamp, Service
Cord
53 489084 Screw
54 2155311 Door Closer,
Lower Cam (2)
55 489483 Screw

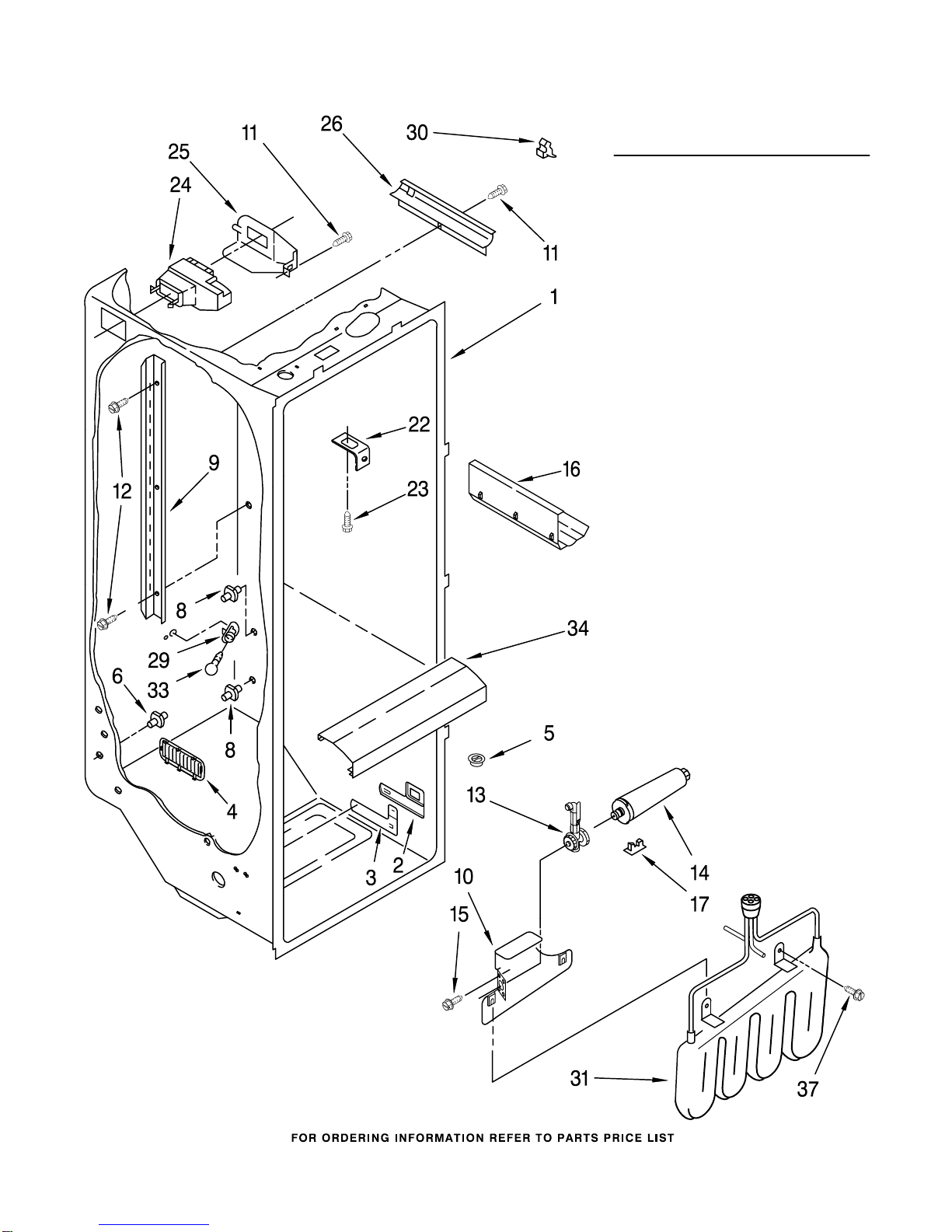

REFRIGERATOR LINER PARTS
3
For Models: KSRS25FDWH02, KSRS25FDAL02
(White) (Almond)
4394425
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2182761 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 1127161 Louver
5 2171846 Release Valve
6 2172943 Stud (2)
8 1110718 Stud (10)
9 2181796 Ladder, Shelf (2)
10 2168740 Bracket
11 486298 Screw (2)
12 487539 Screw
13 2168939 Head Assembly
Filter
14 2168701 Filter
15 489437 Screw
16 2179375 Rack, Wine & Egg
17 1115374 Clip
22 1123919 Bracket Retainer
23 489290 Screw (2)
24 2161467 Air Diffuser
Assembly
25 2161470 Air Diffuser
Cover
26 2150331 Cover, Conduit
29 2162085 Socket
30 842534 Clip, Air Duct
31 2168798 Reservoir
33 527949 Light Bulb
34 2174436 Light Lens
37 488678 Screw (2)

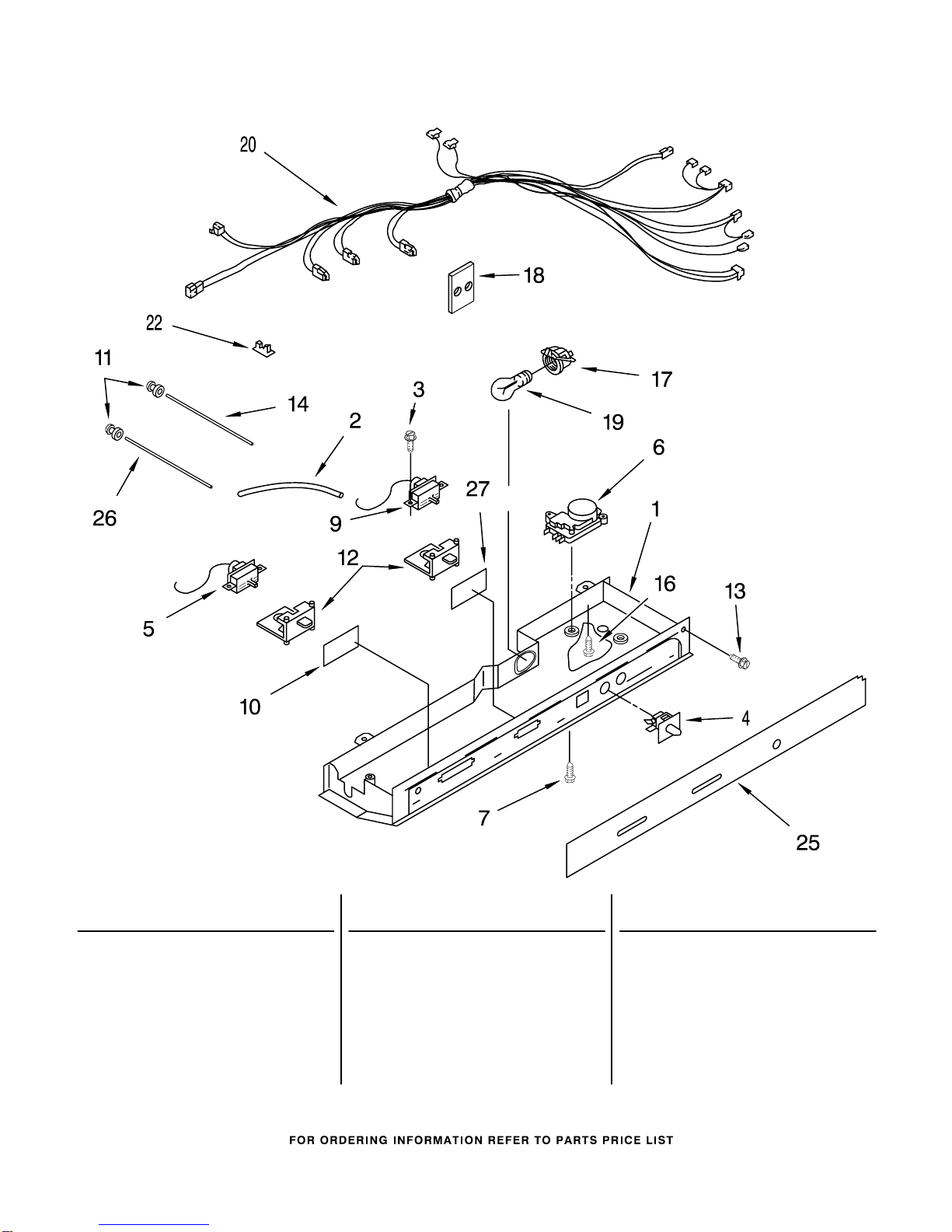

CONTROL PARTS
4
For Models: KSRS25FDWH02, KSRS25FDAL02
(White) (Almond)
4394425
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 2161459 Control Box
2 2172948 Tube Barrier,
Thermostat
3 489214 Screw (3)
4 2149705 Light Switch
5 2161461 Thermostat (FC)
6 2162046 Defrost Timer
(10 Hr.)
7 489398 Screw (2)
9 2161460 Thermostat (R.C.)
10 2172940 Window
11 2172906 Grommet, Light Bar
12 2161466 Slide, Thermostat
13 489084 Screw (2)
14 2179920 Light Bar (RC)
16 489290 Screw (2)
17 2162085 Light Socket
18 2172931 Heat Shield
19 946059 Light Bulb
20 2182130 Control Box
Harness
22 1115375 Clip, Wiring
25 2161486 Escutcheon,
Control Box
26 2179921 Light Bar (FC)
27 2172941 Window

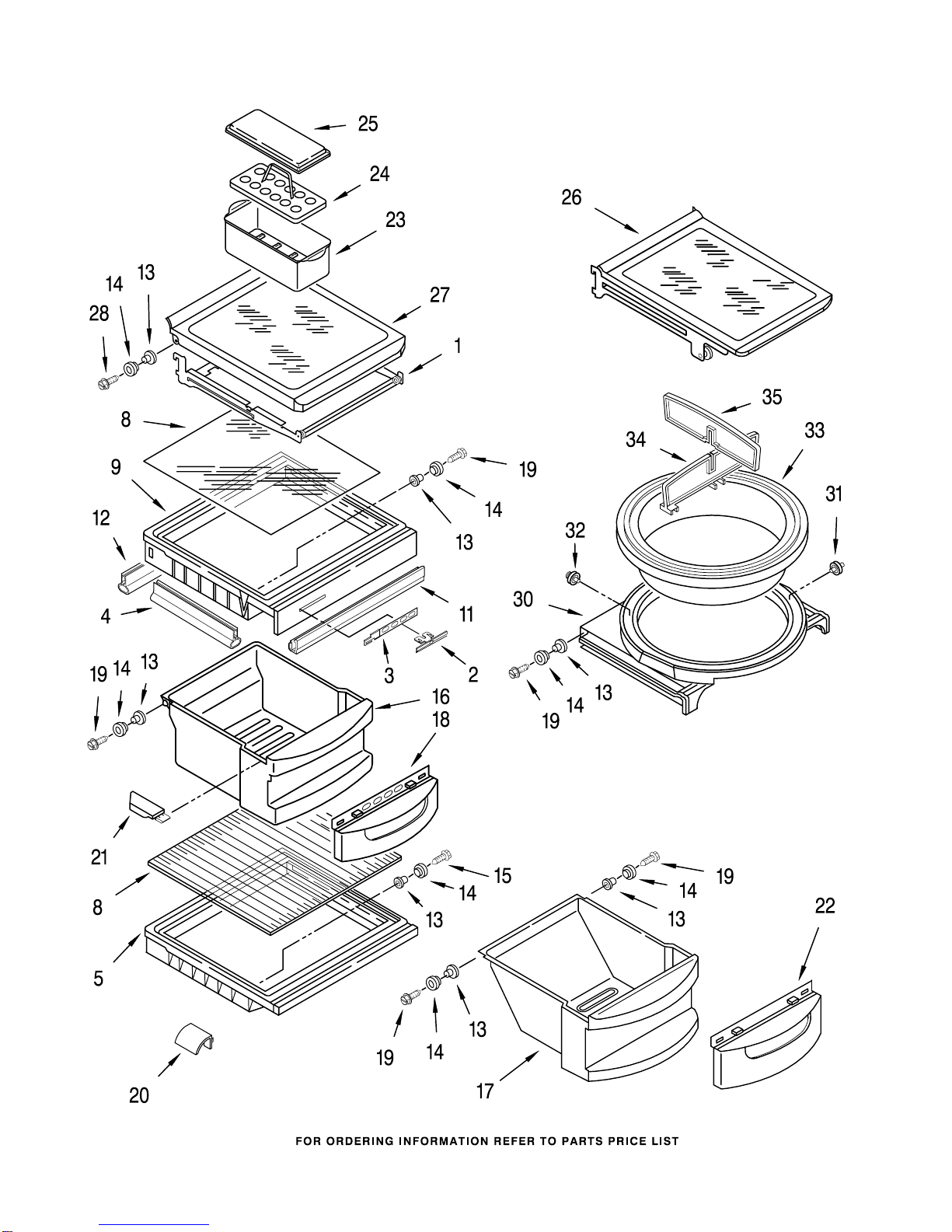

REFRIGERATOR SHELF PARTS
5
For Models: KSRS25FDWH02, KSRS25FDAL02
(White) (Almond)
4394425
REFRIGERATOR SHELF PARTS
6
For Models: KSRS25FDWH02, KSRS25FDAL02
(White) (Almond)
4394425
Illus. Part
No. No. DESCRIPTION
1 2174023 Shelf Assembly,
Cantilever (2)
2 2174253 Button, Humidity
3 2174252 Slide, Humidity
4 2174273 Gasket, Side (2)
5 2161491 Cover, Meat Pan
(Includes Items
13, 14 & 15)
8 2189526 Glass, Cover
9 2174250 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14 & 19)
11 2174272 Gasket (Front)
12 2174274 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2174388 Roller
15 489211 Screw
16 2179227 Crisper Pan
(Includes 13,
14, 18, 19 & 21)
17 2179231 Meat Pan
(Includes 13,
14, 19 & 22)
18 2174076 Window, Crisper
19 489261 Screw
20 2176095 Deflector
21 Cap, Crisper Pan
2174259 Right Side
2174258 Left Side
22 2174362 Window, Meat Pan
23 2169933 Egg Bin
24 2164373 Egg Carrier
25 2169935 Cover
26 2174387 Frame And Roller
Asm. (Cantilever)
27 2174021 Shelf & Roller
Assembly
28 489439 Screw
30 2168792 Carriage
31 2179486 Roller, Front (2)
32 2179487 Roller, Rear (2)
33 2168793 Round Pan
34 2174363 Divider (1/2)
35 2174364 Divider (1/4)

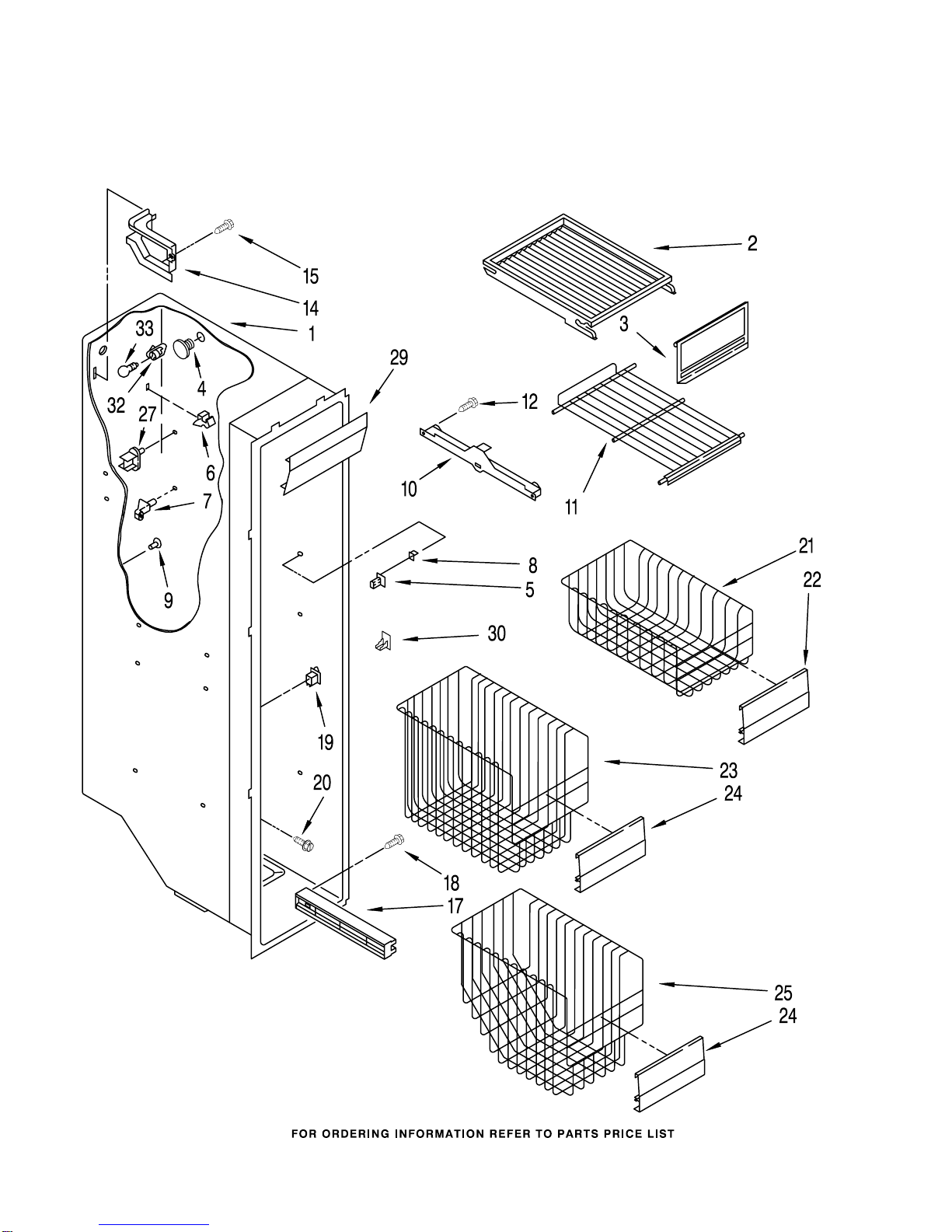

FREEZER LINER PARTS
7
For Models: KSRS25FDWH02, KSRS25FDAL02
(White) (Almond)
4394425
FREEZER LINER PARTS
8
For Models: KSRS25FDWH02, KSRS25FDAL02
(White) (Almond)
4394425
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2174493 Shelf, Top
Compartment
3 2171713 Door, Ice
Compartment
4 940014 Hole Plug
5 946356 Stud, R.S. Front
6 842534 Clip, Air Duct (2)
7 1115317 Support, Stud (4)
8 946355 Support, Stud (2)
9 2176134 Grommet (2)
10 Slide, Container
1119237 Left Side
1119293 Right Side
11 2174267 Shelf
12 489100 Screw (4)
14 2155572 Cover, Wiring
15 489355 Screw
17 Shelf Track
2181760 Right Side (3)
2181759 Left Side (3)
18 487042 Screw
19 1115373 Switch, Rocker Arm
20 489478 Screw
21 2181763 Basket, Shallow
22 2171767 Front, Basket
23 2181765 Basket, Square
24 2171766 Front, Basket
25 2181764 Basket, Sloped
27 1115386 Stud, Shelf (4)
29 2171705 Light Lens
30 1106982 Stud, R.S. Rear
32 2162085 Socket, Light
33 527949 Bulb, Light

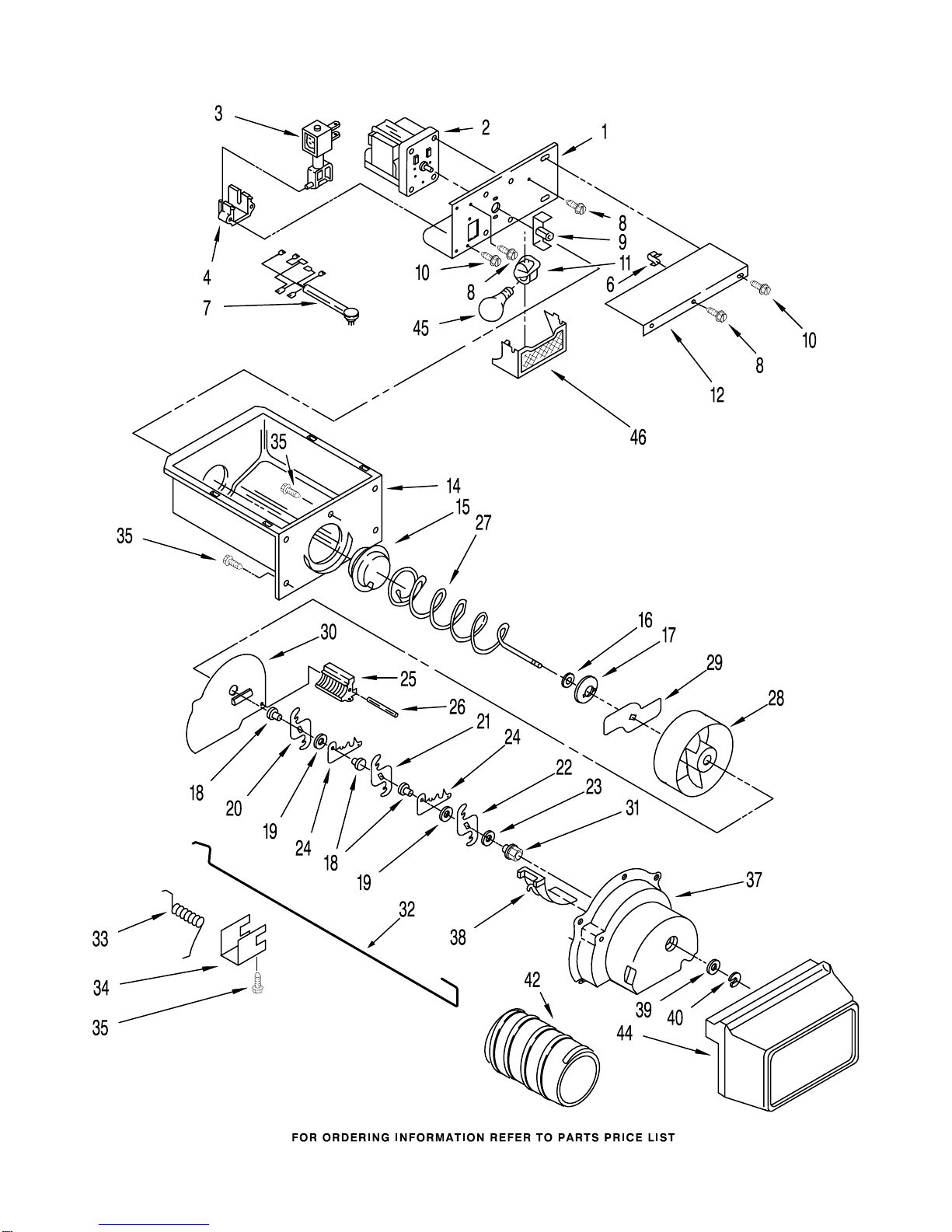

MOTOR AND ICE CONTAINER PARTS
9
For Models: KSRS25FDWH02, KSRS25FDAL02
(White) (Almond)
4394425
MOTOR AND ICE CONTAINER PARTS
10
For Models: KSRS25FDWH02, KSRS25FDAL02
(White) (Almond)
4394425
Illus. Part
No. No. DESCRIPTION
1 1118386 Bracket, Motor
2 2155263 Motor, Dispenser
3 2152713 Soleniod Assembly
4 2149100 Guide, Solenoid
6 1115374 Clip, Wiring
7 2169490 Wiring Assembly,
Ice Dispenser
8 489399 Screw
9 983663 Coupling, Motor
10 489478 Screw
11 2162085 Socket, Light
12 1115339 Cover, Motor
14 2182100 Ice Container
15 983668 Coupling, Conveyor
16 1118480 Stop, Cone
17 1119074 Feeder Cone
18 1119005 Spacer, Step (3)
19 1119007 Spacer, Flat (2)
20 1119006 Blade, Rotary
21 1119012 Blade, Rotary
22 1119013 Blade, Rotary
23 489235 Washer, Plain
24 1119009 Blade, Fixed (2)
25 2157405 Block, Blade
26 489229 Roll Pin
27 2181955 Conveyor
28 2171681 Drum
29 1118470 Drive Bar
30 2171682 Floating Baffle
31 1119018 Nut, Bearing
32 2155231 Control Arm
33 1119020 Spring, Return
34 1119021 Retainer Clip, Rod
35 488886 Screw
37 2180348 Housing, Crusher
38 1119017 Deflector, Ice
39 489234 Washer, Plain
40 489236 Retainer Ring
42 2152021 Sleeve−Auger
44 2171708 Front Cover,
Ice Container
45 527949 Light Bulb
46 2171706 Light Lens,
Dispenser
