KitchenAid KBRS22KVBL00 Manuale utente

CABINET PARTS

For Models: KBRS22KVWH00, KBRS22KVBL00, KBRS22KVSS00

(White) (Black) (Stainless Stainless)

10−08 Litho In U.S.A. (mat) (eeb) Part No. W10234665 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: KBRS22KVWH00, KBRS22KVBL00, KBRS22KVSS00

(White) (Black) (Stainless Stainless)

W10234665

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10137649

Use & Care Guide

W10212714

Energy Guide

W10168777

Tech Sheet

2 Cabinet (Not a

Serviceable Part)

3 Plug, Button (3)

M0310729 White

M0310731 Black

4 B5759649 Gasket

12580304KVF

Roller Foot

Assembly

6 67003868 Foot Brake

7 67006642 Pin, Center Hinge

8 67006611 Bolt, Adjusting

(Front Roller)

9 67006521 Screw

10 Cover, Right Hinge

67001014 White

67001012 Black

11 67006380 Screw

12 67006473 Screw

13 67005064 Label, Fill Tube

14 67006303 Screw

15 Hinge, Center (2)

67006960 White

67007043 Black

12566606ED

Hinge, Top

17 Cover, Corner

67003484 White

67003485 Black

W10157973

Clip, Drain Tube

W10208641

Bracket, Foot

20 67006564 Screw (8)

12575101WD

Back, MC

22 Grille Assembly

(Includes Clips)

67007004 White

67006954 Black

23 67001098 Cover, Fill Tube

W10164397

Tube, Drain

25 67006425 Screw

26 67003796 Insulation, Sound

27 67001097 Cover, Water Valve

28 12479901 Plate, Cover

29 67006662 Screw

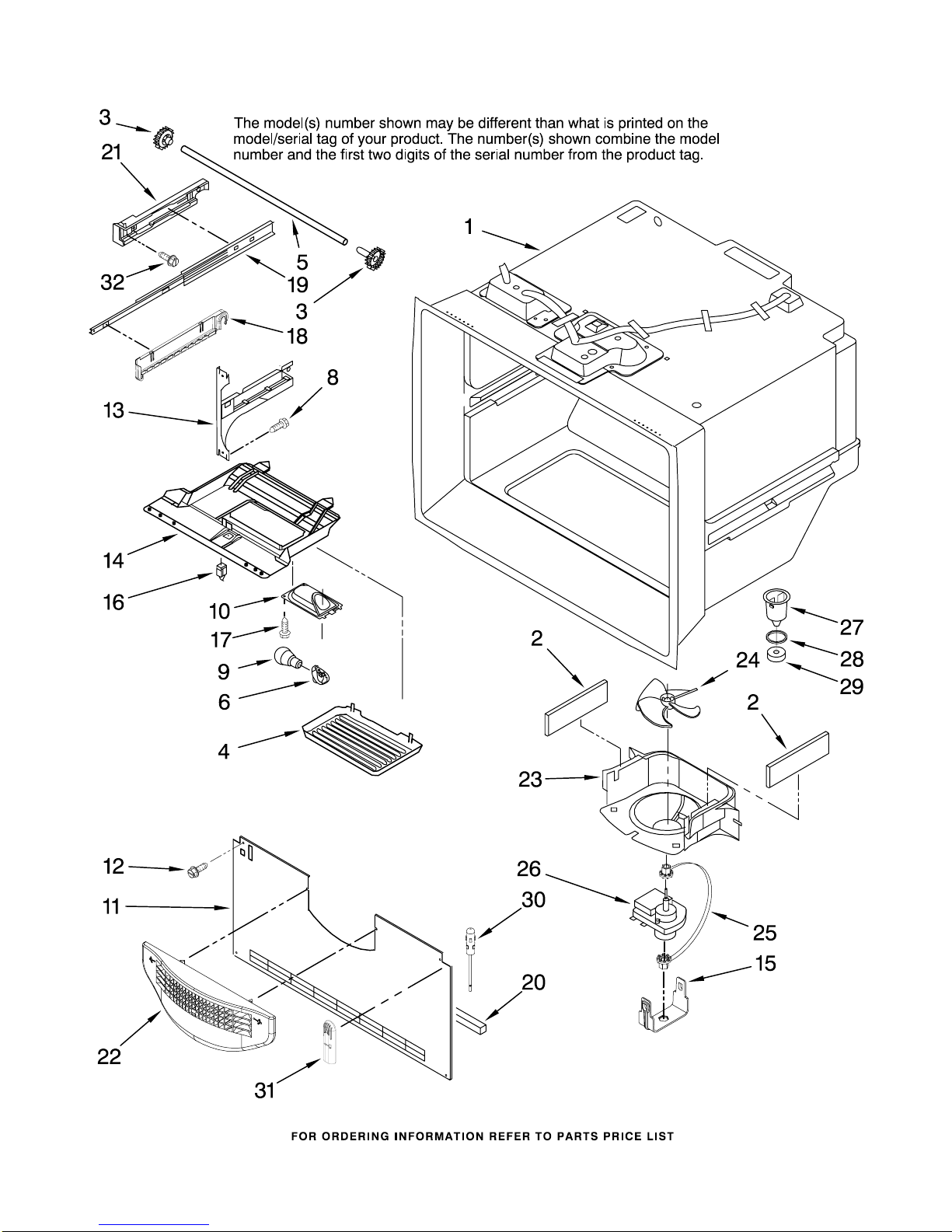

FREEZER LINER PARTS

For Models: KBRS22KVWH00, KBRS22KVBL00, KBRS22KVSS00

(White) (Black) (Stainless Stainless)

W10234665

FREEZER LINER PARTS

For Models: KBRS22KVWH00, KBRS22KVBL00, KBRS22KVSS00

(White) (Black) (Stainless Stainless)

W10234665

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam

3 12002497 Gear (2)

(Includes RT & LT)

4 67003905 Cover, Light

5 67004017 Shaft

Y12570701

Socket, Light

8 67006473 Screw (8)

9 A0282812 Bulb, Light

10 67001035 Housing, Light

11 67005872 Cover, Evaporator

12 67006425 Screw (7)

13 Bracket, Door

W10122147

Left

W10122148

Right

14 67003906 Housing, Lighting

15 10623002 Clip, Evap. Motor

16 67005653 Switch, Light

17 67006530 Screw

18 Cradle, Basket

W10187668

Left

W10187667

Right

W10120018

Slide, Drawer

20 67003731 Gasket, Bottom

21 Adapter, Slide

W10149390

Left

W10149391

Right

W10175909

Grille, Fz Air

W10167023

Shroud, Evap.Fan

24 2169142 Blade, Fan

(Evaporator)

W10150583

Grommet

W10199049

Motor, Evaporator

27 D7753903 Funnel, Drain

28 M0500703 Seal

29 B8381501 Gasket

30 12002355 Thermistor

31 67003924 Cover, Thermistor

32 67006406 Screw (6)

Following Parts Not Illustrated

67006095 Harness, Lights

(Freezer)

FREEZER DOOR PARTS

For Models: KBRS22KVWH00, KBRS22KVBL00, KBRS22KVSS00

(White) (Black) (Stainless Stainless)

W10234665

Illus. Part

No. No. DESCRIPTION

1 Door, Freezer

13092244WQ

White

13092244BQ

Black

13092210SQ

Stainless

2 Handle, Door

W10119642

White

W10119643

Black

W10119644

Stainless

3 67006113 Mount, Handle

4 Gasket, Door

W10164036

White

W10164037

Black

5 67006901 Screw

REFRIGERATOR LINER PARTS

For Models: KBRS22KVWH00, KBRS22KVBL00, KBRS22KVSS00

(White) (Black) (Stainless Stainless)

W10234665

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

Y67003896

Bracket, Control

and Lights

W10212326

Overlay

W10185585

Module, Control

W10207861

Board, Control

6 C3680310 Switch, Light

7 67003897 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light (2)

Y12570701

Socket, Light (2)

11 67003900 Insert,

Damper Cover

12 67006602 Screw (2)

13 67003899 Cover, Damper

14 67006604 Insulation

W10127429

Control, Damper

(Includes Harness)

16 12002355 Thermistor

Following Parts Not Illustrated

67005644 Harness, Controls

(Refrigerator)

REFRIGERATOR DOOR PARTS

For Models: KBRS22KVWH00, KBRS22KVBL00, KBRS22KVSS00

(White) (Black) (Stainless Stainless)

W10234665

REFRIGERATOR DOOR PARTS

For Models: KBRS22KVWH00, KBRS22KVBL00, KBRS22KVSS00

(White) (Black) (Stainless Stainless)

W10234665

Illus. Part

No. No. DESCRIPTION

1 Door, Refrigerator

12658583WQ

White

12658583BQ

Black

13023839SQ

Stainless

2 67006901 Screw (2)

3 67003819 Door, Dairy

(Includes #4)

4 67001279 Tray, Dairy

5 67005672 Bucket, Medium (3)

6 Plug, Handle Hole

67001130 White

67001131 Black

7 Plug, Button

10712401 White

67004838 Black

8 Gasket, Door

W10164034

White

W10131327

Black

9 Handle, Door

W10119642

White

W10119643

Black

W10119644

Stainless

12567321SP

Gripper, Bucket(4)

11 Closure, Door

67003638 White

67003639 Black

W10046670

Nameplate

14 12690502 Retainer, Door

15 67006287 Screw

16 Bushing, Door

67004977 White

67004978 Black

17 Stop, Door

67003779 White

67003780 Black

12643911SP

Bucket, Short

19 67005626 Caddy, Can

20 67006113 Mount, Handle

UNIT PARTS

For Models: KBRS22KVWH00, KBRS22KVBL00, KBRS22KVSS00

(White) (Black) (Stainless Stainless)

W10234665

UNIT PARTS

For Models: KBRS22KVWH00, KBRS22KVBL00, KBRS22KVSS00

(White) (Black) (Stainless Stainless)

W10234665

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 67006433 Screw

2 12825802 Blade, Fan

3 12591404 Basepan

4 67006425 Screw

5 67005491 Block, Consenser

W10183706

Discharge Tube

W10171661

Harness, Evap.

Heater

8 67004713 Drain Pan

9 61004743 Grommet (3)

10 67001794 Heater, Defrost

W10136415

Clip, Capacitor

W10136414

Start Device

13 61003210 Gasket

W10165425

Thermostat,

Defrost

W10137529

Grommet (4)

16 67006573 Screw

W10169124

Grommet (4)

W10135027

Condenser

19 67006432 Screw

20 67001080 Tray, Drip

21 67006737 Screw

22 67003719 Evaporator

23 Dam

67001084 Right Side

67001083 Left Side

24 67004432 Motor, Fan

25 10428101 Clip, Heater

26 13060202 Harness, Unit

with Power Cord

W10143759

Drier

W10130129

Compressor

(Includes Items

11,12,15,17, & 27)

29 2264017 Capacitor

30 67006434 Axle, Roller

31 12575309 Shroud

32 67004953 Screw

33 67004954 Screw

34 10547003 Clip, Drier

35 67005149 Roller

36 10623002 Clip, Evap

37 67005680 Grommet (2)

38 67004969 Box, HV

39 67005418 Spacer, HV

12782036SP

Board, HV

41 67005938 Harness, HV

42 67006550 Screw (2)

43 67005421 Cover, HV

44 67006615 Screw, HV

Cover

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.0 Ozs.

(R−134A)
