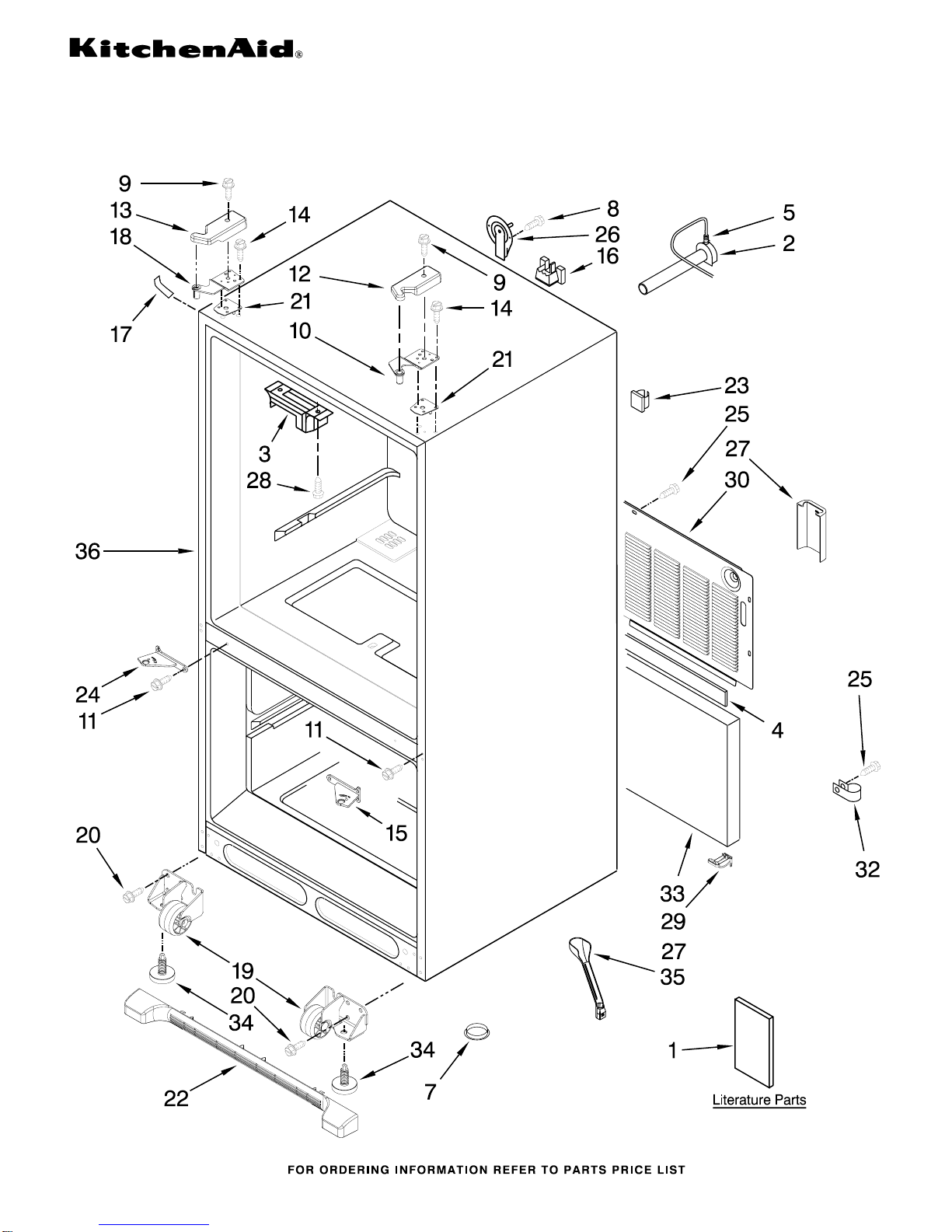

CABINET PARTS

For Models: KFCS22EVWH3, KFCS22EVBL3

(White) (Black)

8−11 Litho In U.S.A. (MMS) (psw) Part No. W10448011 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: KFCS22EVWH3, KFCS22EVBL3

(White) (Black)

W10448011

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10414028

Tech Sheet

W10326027

Owners Manual

W10321164

Tag, Energy

10463203SP

Elbow, Fill Tube

W10120087

Block, Pivot

4 B5759655 Gasket

M0114003SP

Clip, Speed

7 A3076901 Plug, Button

8 12990504 Screw

9 12992603 Screw

W10210891

Hinge, Top Right

11 12992201 Screw (6)

12 Cover, Right Hinge

W10163247

White

W10153131

Black

13 Cover, Left Hinge

W10163248

White

W10153130

Black

14 12992403 Screw (6)

15 Hinge, Center (RT)

W10162695

White

W10210883

Black

16 12777701 Block, Fill Tube

17 Cover, Corner (2)

12587703W

White

12587703B

Black

W10210890

Hinge, Top Left

19 Roller Assy.

(Front)

W10275849

Right

W10275850

Left

20 12991302 Screw (8)

21 Shim, Hinge

12999501 Left

12999502 Right

22 Grille, Toe

W10244559N

White

W10244561N

Black

23 M0104106 Clip (2)

24 Hinge, Center (LT)

W10162694

White

W10210882

Black

25 12990511 Screw (10)

26 12726003 Cover, Water Line

W10208593

Guard, Water Valve

(Dual)

28 12990302 Screw (2)

29 12831101 Sweep, Dual Tube

W10211855

Cover, Unit

32 M0108105 Clamp, Tube

33 12820505 Insulation, Sound

W10141622

Brake, Foot

W10210988

Tube, Drain

36 Cabinet (Not a

Servicable Part)

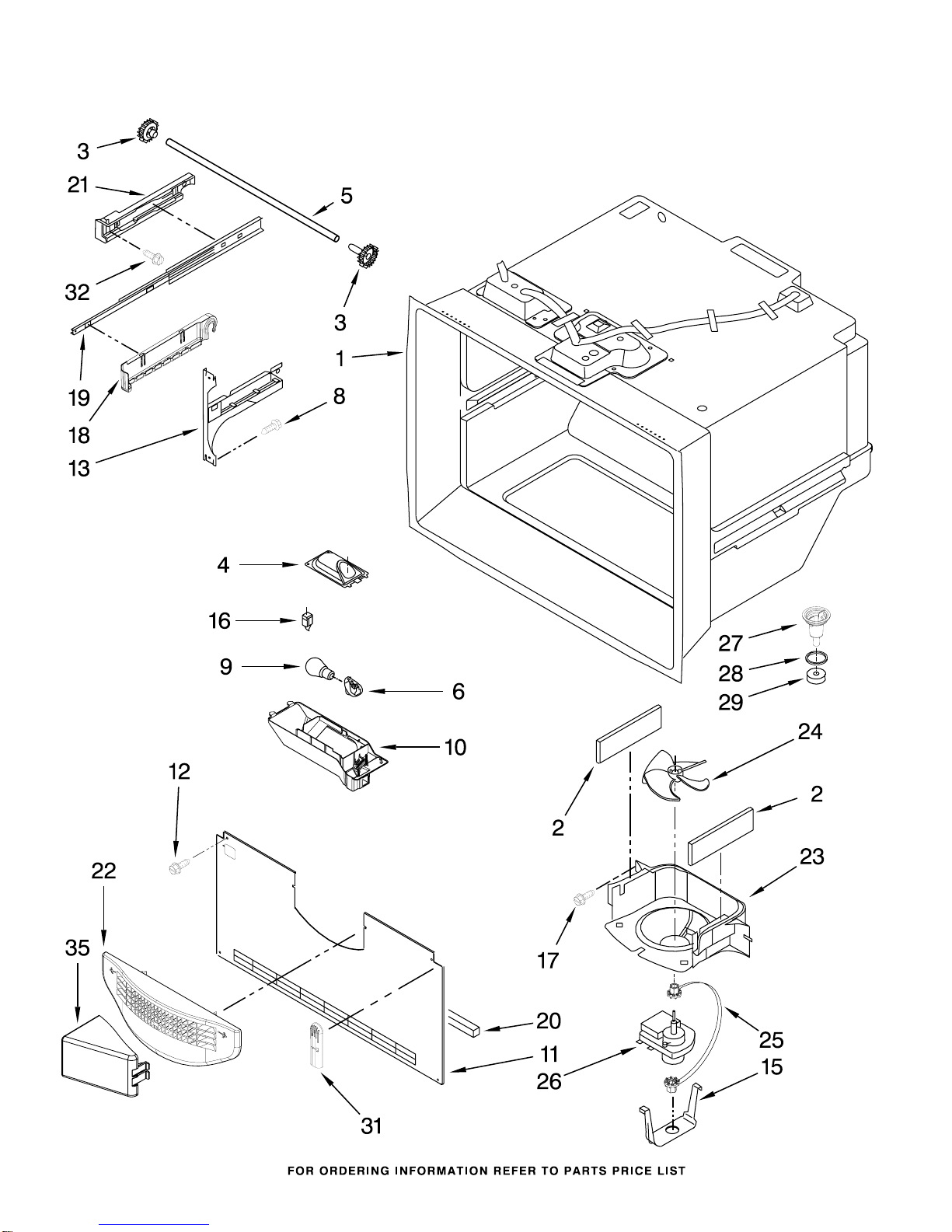

FREEZER LINER PARTS

For Models: KFCS22EVWH3, KFCS22EVBL3

(White) (Black)

W10448011

FREEZER LINER PARTS

For Models: KFCS22EVWH3, KFCS22EVBL3

(White) (Black)

W10448011

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 A3189392 Gasket, Foam

3 12002497 Gear

(Includes Both)

12476401V

Housing, Light

12812903WD

Shaft

12570701V

Socket, Light

8 12990521 Screw (8)

9 2255743N Bulb, Light

W10119832

Module, Light

W10308420

Cover, Evaporator

12 12990511 Screw (4)

13 Bracket, Door

W10330991

Left

W10330993

Right

15 13058002 Clip, Evap Motor

16 12466105 Switch, Light

17 12990504 Screw (2)

18 Cradle, Basket

W10119848

Left

W10119849

Right

13055901N

Slide, Drawer (2)

20 A3189396 Gasket, Bottom

21 Adapter, Slide

W10284686

Left

W10284687

Right

22 13024803 Grille, Fz Air

23 13057901 Shroud, Evap Fan

24 2169142 Blade, Fan

(Evaporator)

W10121318

Grommet

W10128551

Motor, Evaporator

27 D7753903 Funnel, Drain

28 M0500703 Seal

29 B8381501 Gasket

31 12815301 Cover, Thermistor

32 12990501 Screw (6)

W10157765

Diverter, Air

Following Parts Not Illustrated

W10196195

Harness, Fz Module

(Includes

Thermistor)

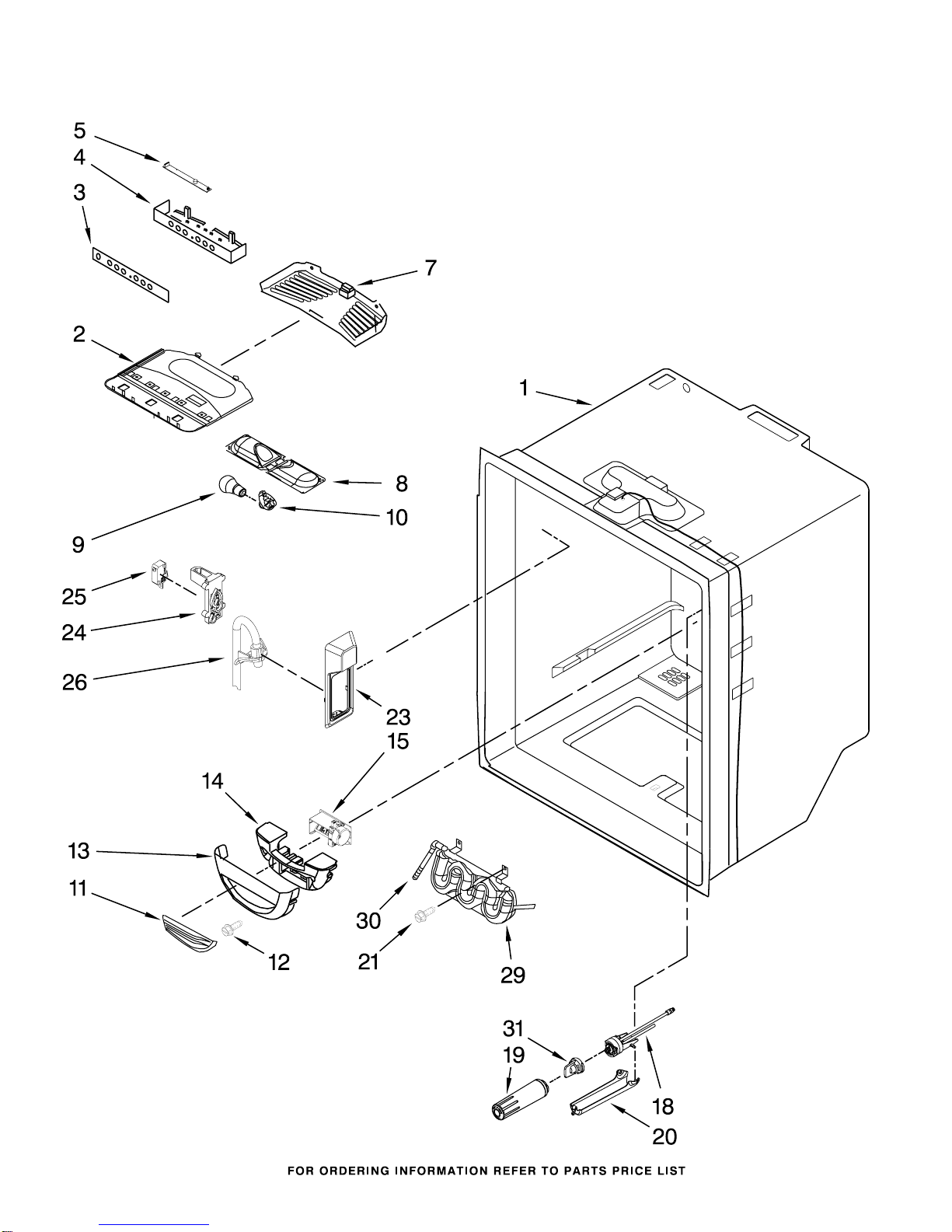

REFRIGERATOR LINER PARTS

For Models: KFCS22EVWH3, KFCS22EVBL3

(White) (Black)

W10448011

REFRIGERATOR LINER PARTS

For Models: KFCS22EVWH3, KFCS22EVBL3

(White) (Black)

W10448011

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 12806303 Module, Light

W10317133

Overlay

4 12806405 Housing, Control

W10116216

Board, Control

12806501N

Cover, Light

W10368228

Housing, Light

9 2255743N Bulb, Light (2)

12570701V

Socket, Light (2)

11 12806801 Insert,

Damper Cover

12 12990604 Screw

13 12806701 Cover, Damper

14 13012402 Insulation

W10207517

Control, Damper

18 12590621 Head, Water Filter

19 UKF8001 Filter, Water

20 12568001 Cover, Filter

21 12990504 Screw (2)

W10204292

Facade, Dispenser

W10204289

Plunger Switch

25 12575502 Switch, Limit

W10117324

Waterline,

Dispenser

29 12706109 Tank, Water

30 61006182 Union

12664501SP

Plug, Bypass

Following Parts Not Illustrated

W10119821

Harness, Control

(Refrigerator)

(Includes

Thermistor)

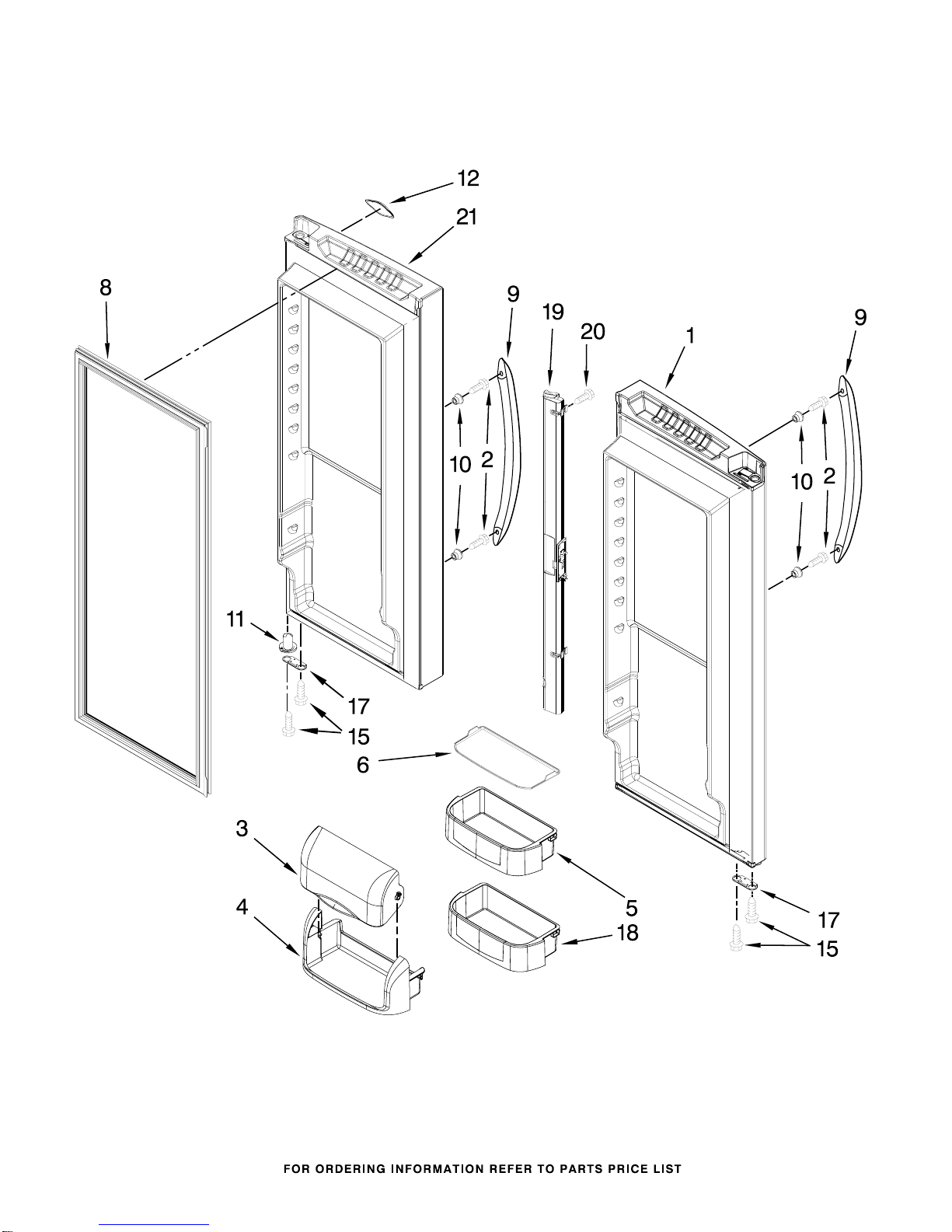

REFRIGERATOR DOOR PARTS

For Models: KFCS22EVWH3, KFCS22EVBL3

(White) (Black)

W10448011

REFRIGERATOR DOOR PARTS

For Models: KFCS22EVWH3, KFCS22EVBL3

(White) (Black)

W10448011

Illus. Part

No. No. DESCRIPTION

1 Door, Refrigerator

13094713W

White, LH

13094713B

Black, LH

W10290759

Screw

12804701SP

Door, Dairy

12369502SP

Tray, Dairy

W10119841

Bucket, Medium (3)

6 Gripper, Bucket

W10184031

Medium

W10184032

Gallon

8 Gasket, Door

W10183535

White

W10163998

Black

9 Handle, Door

W10314515N

White

W10314516N

Black

10 13001201 Mount, Handle

11 Closure, Door

12028505W

White

12028505B

Black

12 Nameplate

W10243393

White

W10243392

Black

15 12990504 Screw

17 Stop, Door

W10163249

White

W10153126

Black

W10119846

Bucket, Gallon (2)

19 Mullion, Door

12732508W

White

12732508B

Black

20 12990204 Screw

21 Door, Right

13094714W

White

13094714B

Black

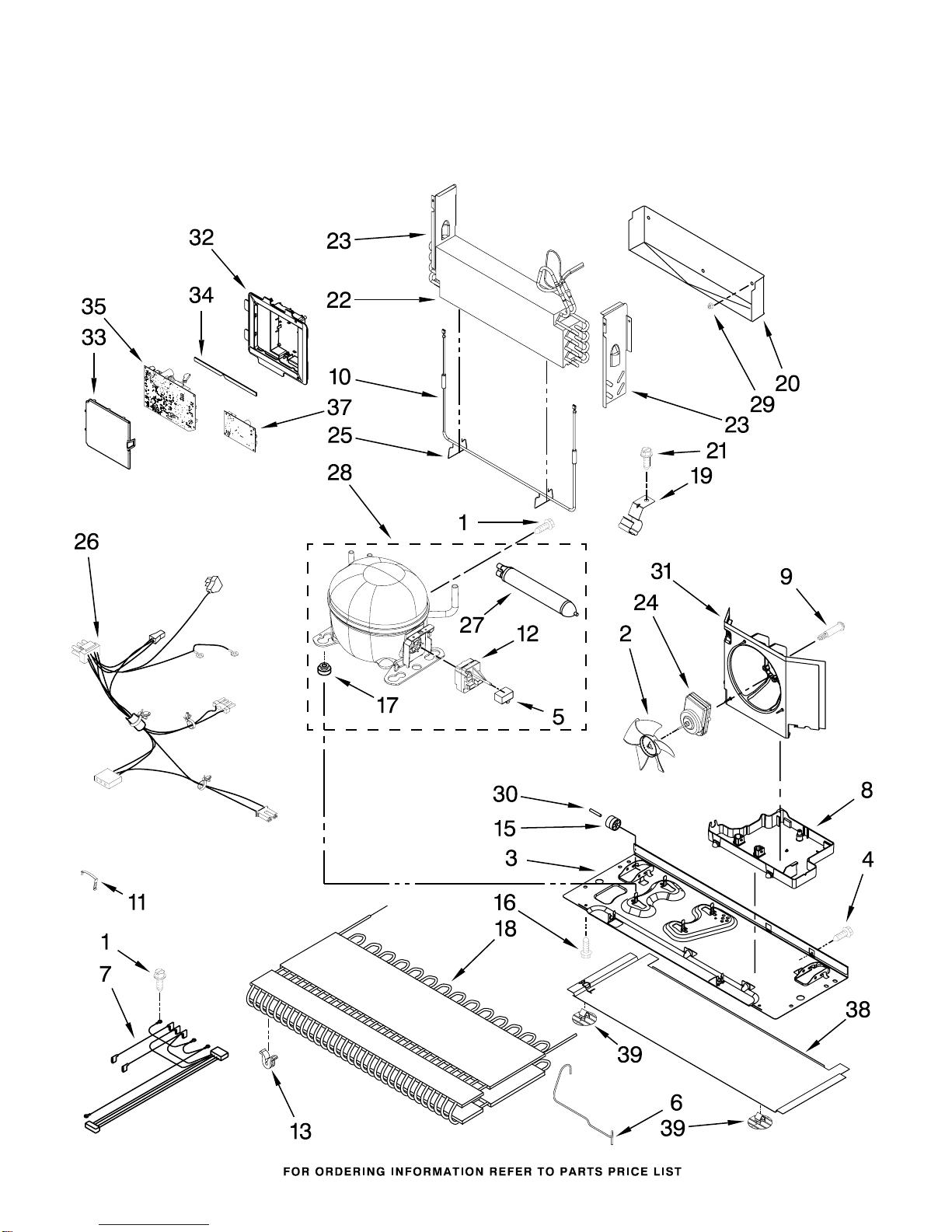

UNIT PARTS

For Models: KFCS22EVWH3, KFCS22EVBL3

(White) (Black)

W10448011

UNIT PARTS

For Models: KFCS22EVWH3, KFCS22EVBL3

(White) (Black)

W10448011

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 12992301 Screw

2 12825803 Blade, Fan

W10210985

Basepan

4 12990511 Screw

5 2264017 Capacitor

W10233569

Tube, Discharge

W10292241

Harness, Evap.

Heater

W10296785

Pan, Drain

W10216919

Screw, Shoulder

10 12729129 Heater, Defrost

W10216075

Strap, Bale

W10361443

Start Device

W10137529

Grommet, Cond (4)

15 12477102 Roller (2)

16 12992101 Screw

10835903SP

Grommet (4)

W10346415

Condenser

W10281329

Clip, Drier

W10292803

Tray, Drip

21 12990701 Screw

W10317014

Evaporator

23 Dam

12225702 Right Side

12225602 Left Side

W10239053

Motor, Fan

25 10428101 Clip, Heater

W10256742

Harness, Unit

with Power Cord

W10143759

Drier

W10187125

Compressor

(Includes items

11,12,17,27)

29 10623002 Clip, Evaporator

30 12477202 Axle, Roller (2)

W10189184

Shroud

W10119790

Box, HV Control

W10296541

Lid, HV Box

34 12957801 Gasket, HV Box

W10120827

Board, Control

W10120821

Board, Power

Supply

W10206338

Extension, Basepan

W10206339

Fastener, Basepan

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.25 Ozs.

(R−134A)
