KitchenAid KSBS25IVBL00 Manuale utente

CABINET PARTS

For Models: KSBS25IVWH00, KSBS25IVBL00, KSBS25IVSS00

(White) (Black) (Stainless Steel)

04−08 Printed In U.S.A. (jdc) (psw) Part No. W10205706 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: KSBS25IVWH00, KSBS25IVBL00, KSBS25IVSS00

(White) (Black) (Stainless Steel)

W10205706

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

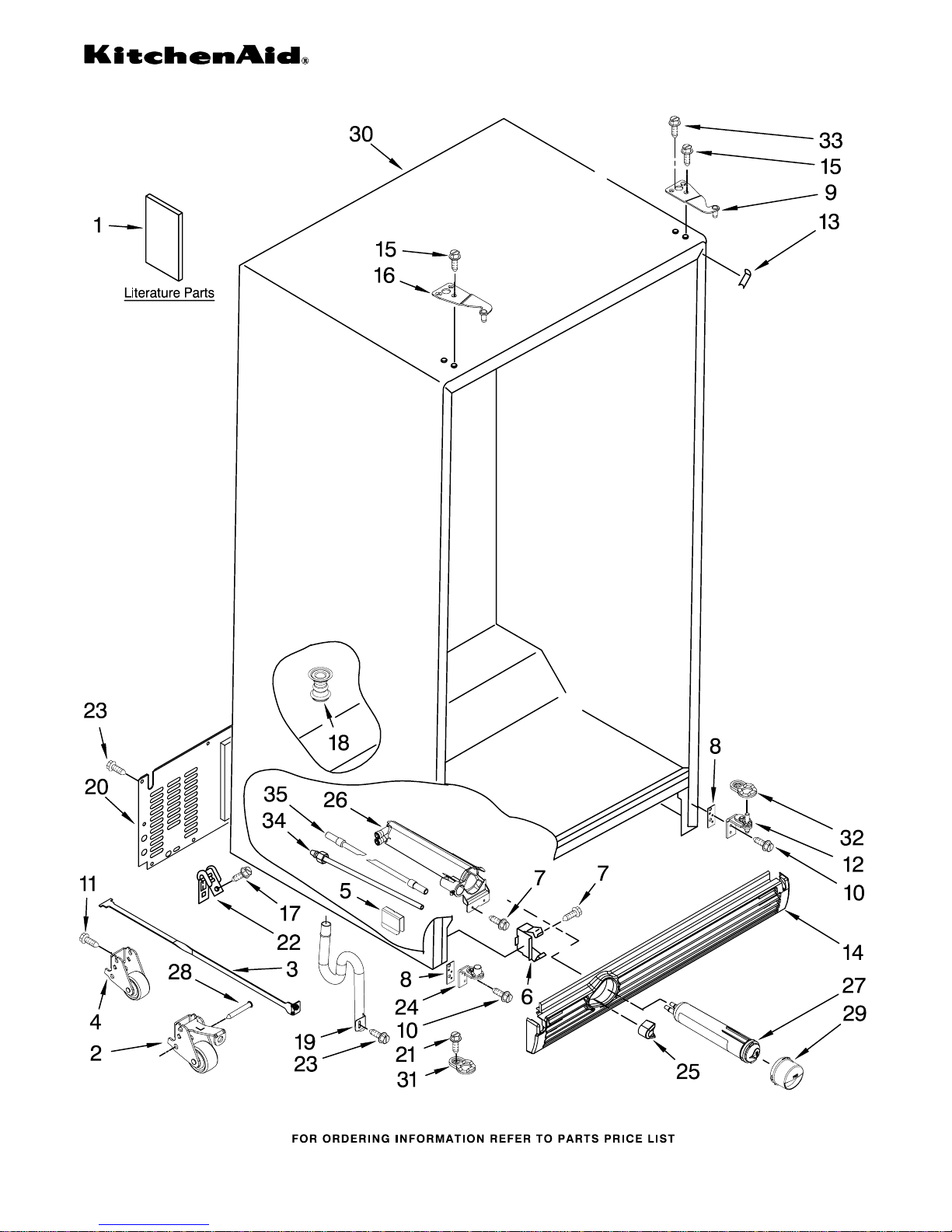

1 Literature Parts

W10162434

Use & Care Guide

W10142175

Service & Wiring

Sheet

W10194146

Energy Guide

628370 Modular Icemaker

Service Sheet

2223996 Installation

Instructions

2 Front Roller Asm

2306950 Left Side

2306951 Right Side

3 2223263 Strap, Roller

4 2306949 Roller, Rear (2)

5 2223388 Clip, Retainer (4)

6 2155013 Clip, Grille

7 489478 Screw

8 2223545 Shim

9 Hinge Top, RC

2307008W White

2307008B Black

10 3400113 Screw

11 3400243 Screw

12 2307179 Hinge Assembly,

Bottom−RC

Includes # (34)

13 Filler, Wrapper

2223893W White

2223893B Black

14 Grille

W10194047

White

W10194057

Black

15 3400108 Screw

16 Hinge, Top FC

2307007W White

2307007B Black

17 489464 Screw

18 2304888 Drain Fitting

19 2254566 Tube, Extension

20 2223409 Cover, Unit

21 489483 Screw

22 549193 Clamp, Service

Cord

23 489084 Screw

24 2307152 Hinge Assembly,

Bottom−FC

Includes #31

25 Button, Water

Filter

2260503W White

2260503B Black

26 2260526 Housing, Water

Filter

27 4396841 Water Filter

28 2223387 Pin, Roller(4)

29 Cap, Water

Filter

2260502W White

2260502B Black

30 Cabinet (Not A

Serviceable Part)

31 2307051 Door Closer (FC)

32 2307049 Door Closer (RC)

33 3400858 Screw

34 2224020 Tube, Filter

Outlet

35 2319867 Tube, Filter

Inlet

REFRIGERATOR LINER PARTS

For Models: KSBS25IVWH00, KSBS25IVBL00, KSBS25IVSS00

(White) (Black) (Stainless Steel)

W10205706

Illus. Part

No. No. DESCRIPTION

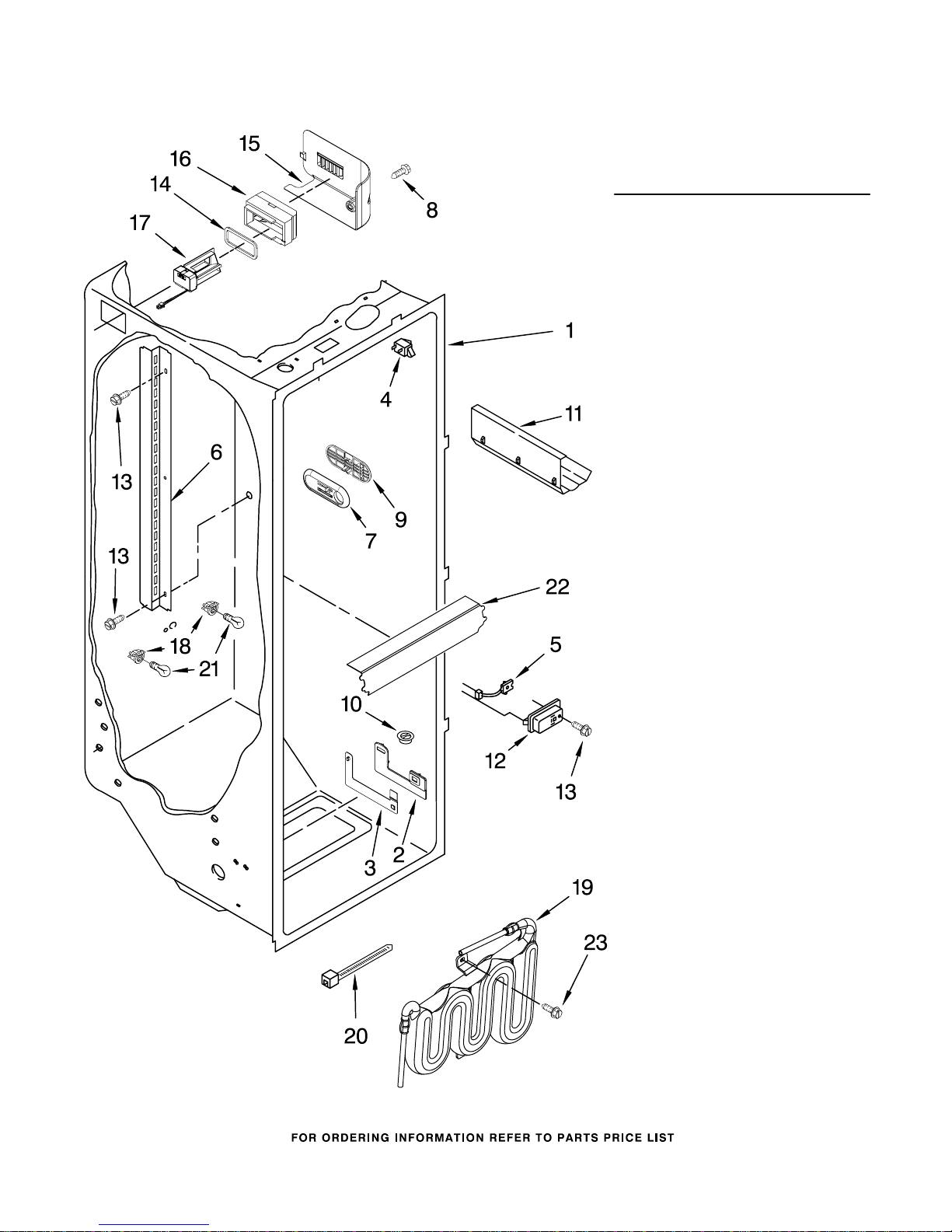

1 Liner (Not A

Serviceable Part)

2 2223524 Escutcheon, Meat

Pan Control

3 2223339 Slide Meat

Pan Control

4 1118894 Switch, Rocker

Arm

5 2188820 Thermistor

6 2223456 Ladder, Shelf (2)

7 2301234 Housing, Door

Control

8 489084 Screw

9 2301235 Slide, Door

Control

10 2171846 Release Valve

11 2179375 Rack, Wine & Egg

12 2317105 Cover, Thermistor

13 489478 Screw

14 2304597 Gasket,

Air Baffle

15 2223403 Cover,

Air Baffle

16 2224076 Air Diffuser

Assembly

17 2220377 Air Baffle

18 2162085 Socket

19 2307107 Reservoir

20 2205813 Strap

21 2255743 Light Bulb

22 2223663 Light Lens

23 488280 Screw

REFRIGERATOR SHELF PARTS

For Models: KSBS25IVWH00, KSBS25IVBL00, KSBS25IVSS00

(White) (Black) (Stainless Steel)

W10205706

Illus. Part

No. No. DESCRIPTION

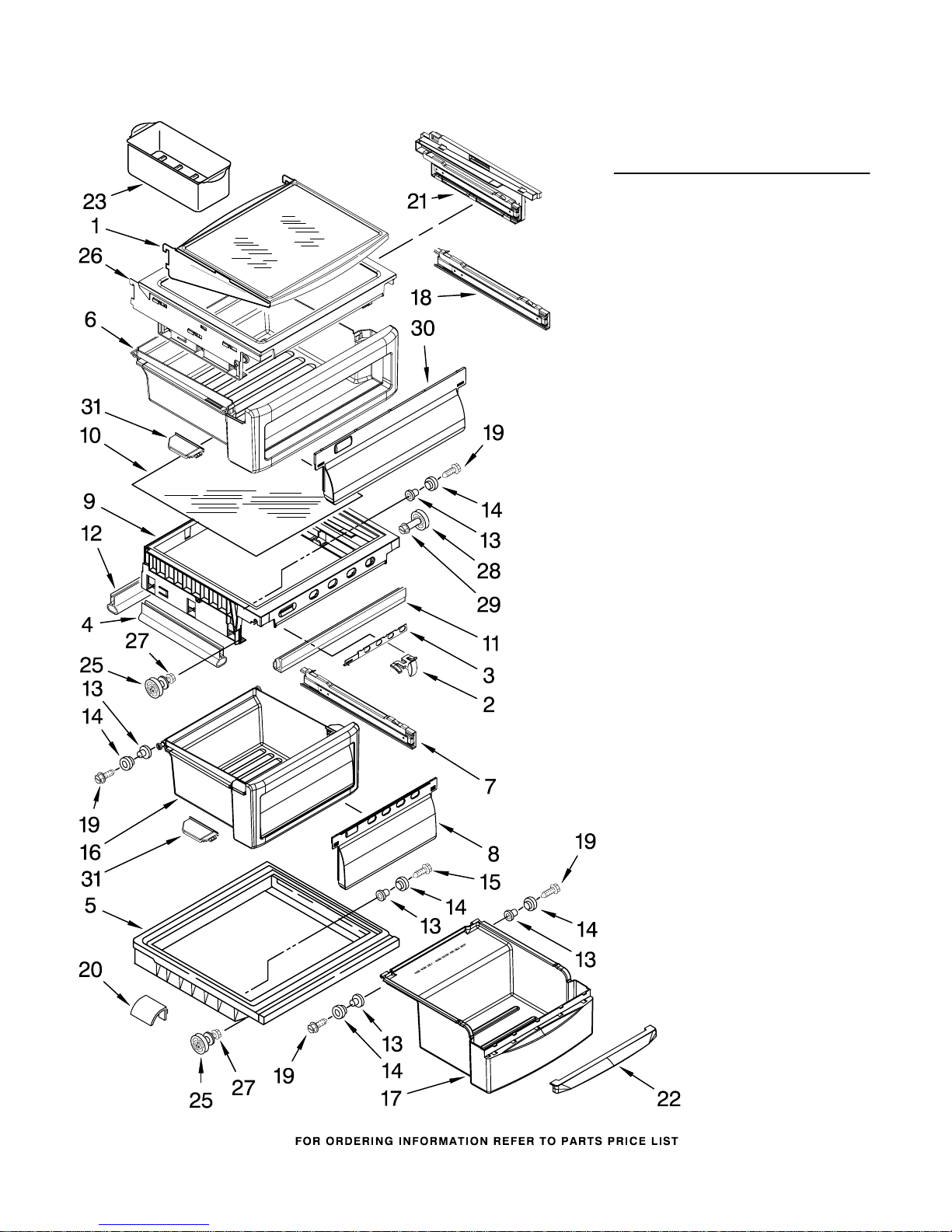

1 2224061 Shelf Assembly,

Cantilever (2)

2 2301025 Button, Humidity

3 2301026 Slide, Humidity

4 2301117 Gasket, Side (2)

5 2203027 Cover, Meat Pan

(Includes Items

13, 14, 15 & 20)

6 2301023 Snack Pan

(Includes 30 & 31)

7 Glide Assembly,

Crisper Pan

2301548 Right Side

2301549 Left Side

8 2301001 Window,

Crisper Pan

9 2301567 Cover, Crisper

(Includes 2,

3, 4, 11, 12,

13, 14 & 19)

W10141754

Glass, Cover

11 2301116 Gasket (Front)

12 2301115 Gasket (Rear)

13 2174478 Eyelet, Roller

14 2188212 Roller

15 489211 Screw

16 2301031 Crisper Pan

(Includes 8, 13,

14, 19 & 31)

17 2223790 Meat Pan

(Includes 13,

14, 19 & 22)

18 Glide Assembly,

Snack Pan

2301550 Right Side

2301551 Left Side

19 489261 Screw

20 2223487 Deflector

21 Support Assembly

2301569 Right Side

2301570 Left Side

22 2203031 Handle

23 2216625 Egg Bin

25 2196485 Stud Assembly

26 2301566 Shelf, Snack Pan

27 3400894 Screw

28 2196483 Stud Assembly

29 8281158 Screw

30 2301006 Window, Snack Pan

31 Cap, Snack Pan

2301016 Right Side

2301017 Left Side

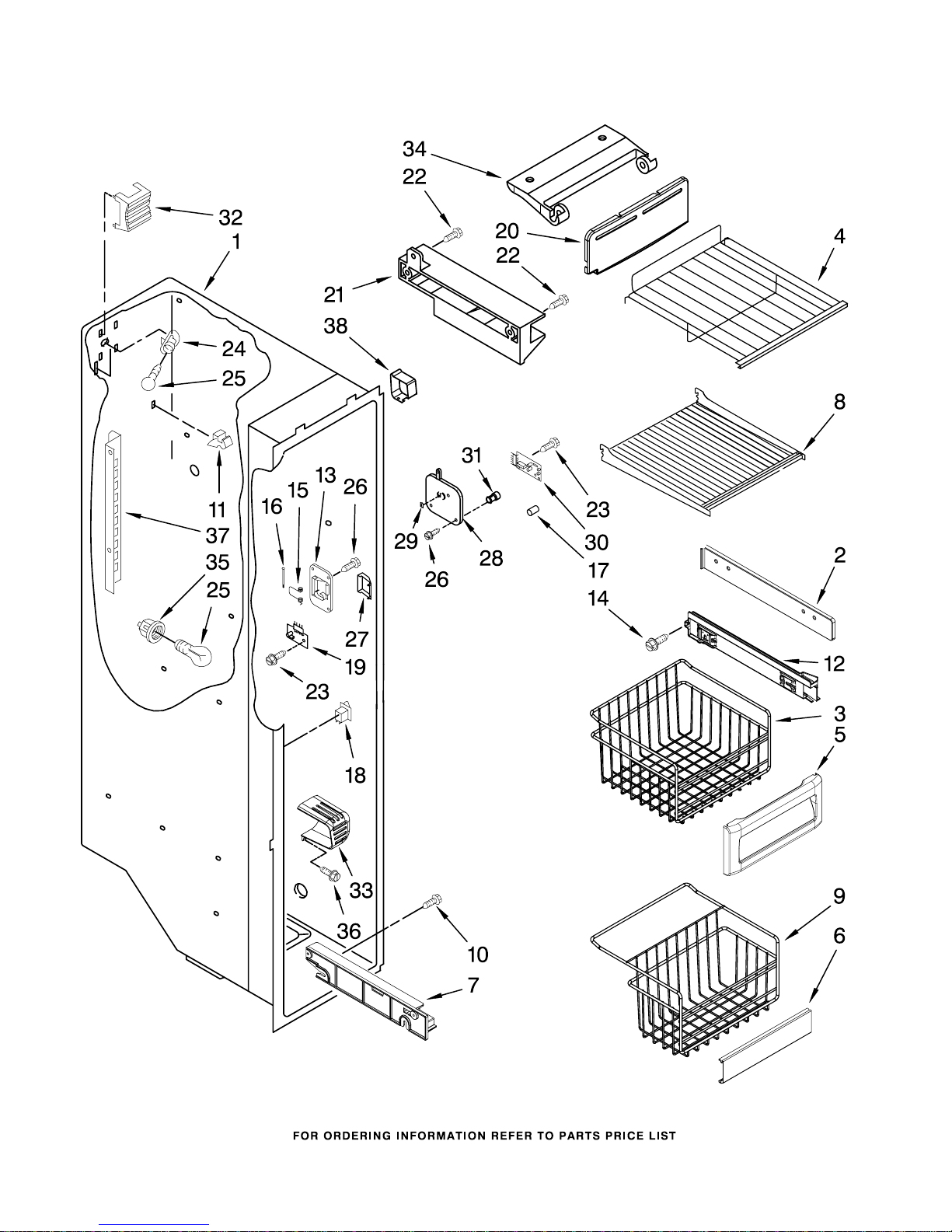

FREEZER LINER PARTS

For Models: KSBS25IVWH00, KSBS25IVBL00, KSBS25IVSS00

(White) (Black) (Stainless Steel)

W10205706

FREEZER LINER PARTS

For Models: KSBS25IVWH00, KSBS25IVBL00, KSBS25IVSS00

(White) (Black) (Stainless Steel)

W10205706

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2223777 Spacer, Slide (2)

3 2223691 Basket, Deep (2)

4 2223500 Shelf Assembly,

Cantilever (2)

5 2224053 Front, Basket

6 2224053 Front−Frzr.Basket

7 Shelf Track

2223787 Right Side

2223788 Left Side

8 2254615 Shelf, Fixed

9 2223694 Basket, Lower

10 489427 Screw

11 842534 Clip, Air Duct (2)

12 Glide Assembly,

Basket (2)

2301544 Right Side

2301545 Left Side

13 2259487 Cover, Emitter

14 8534064 Screw

15 2198635 Spring

16 2198634 Pin

17 2198665 Tube, P.C. Board

18 1115373 Switch, Rocker Arm

W10193840

P.C. Board

Emitter

W10185438

Cover, Ice Maker

21 Slide, Ice Maker

Mounting

2212321 Right Side

2306900 Left Side

22 489478 Screw

23 489214 Screw

24 2162085 Light Socket

25 2255743 Light Bulb

26 8281185 Screw

27 2198633 Flipper

W10173569

Cover, Receiver

29 2315398 Slide, Ice Maker

Shut Off

W10193666

P.C. Board,

Receiver

31 2198643 Lens

32 2198589 Light Shield

33 2212340 Light Lens

34 2198641 Bracket, Ice Maker

Cover

35 2155597 Socket, Light

36 3400893 Screw

37 Ladder

2223414 Left Side

2223415 Right Side

38 2303378 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS

For Models: KSBS25IVWH00, KSBS25IVBL00, KSBS25IVSS00

(White) (Black) (Stainless Steel)

W10205706

MOTOR AND ICE CONTAINER PARTS

For Models: KSBS25IVWH00, KSBS25IVBL00, KSBS25IVSS00

(White) (Black) (Stainless Steel)

W10205706

Illus. Part

No. No. DESCRIPTION

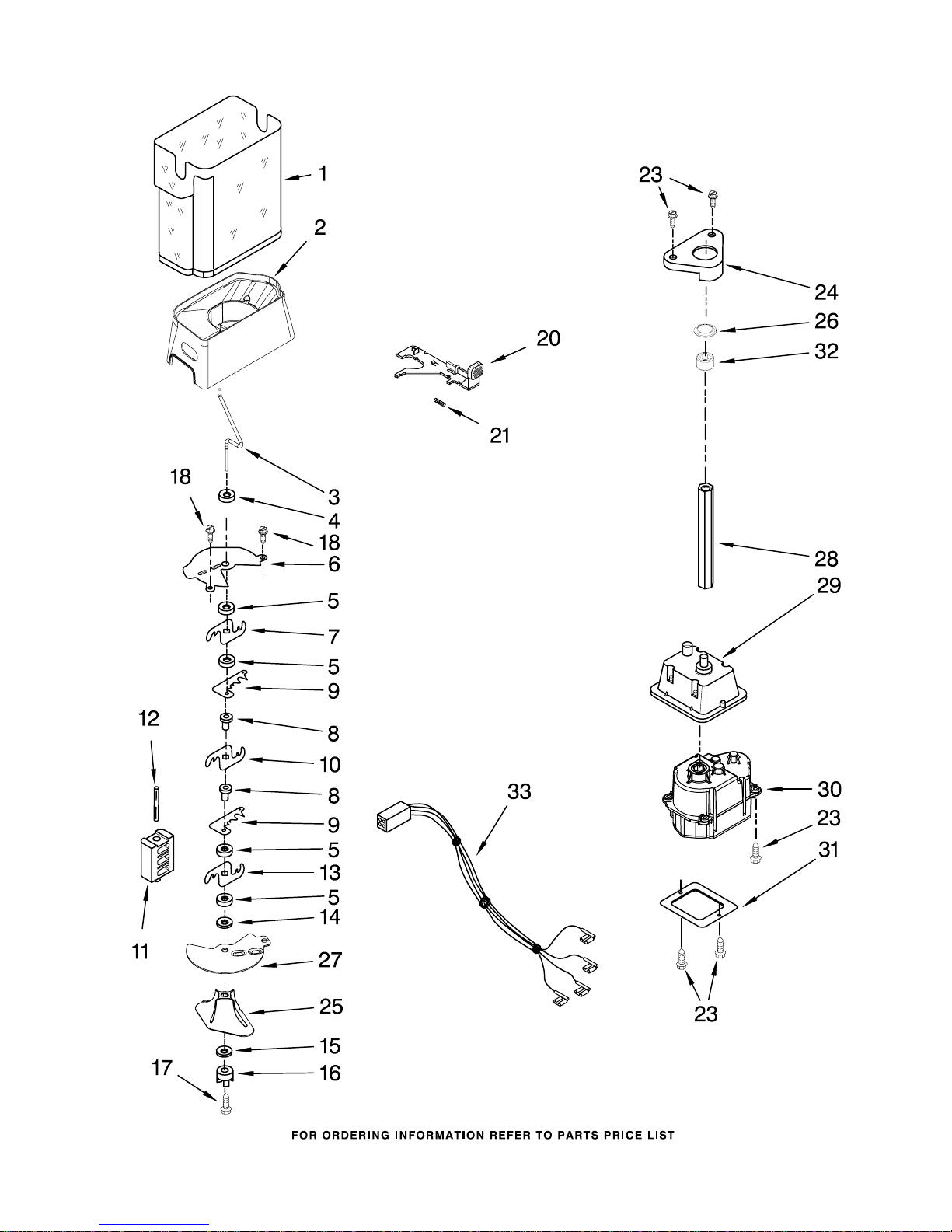

1 2223317 Ice Bin

2 2317256 Crusher Bin

3 2317240 Auger

4 2258220 Washer

5 1119007 Spacer, Flat (6)

6 2317248 Cover, Crusher

7 2257024 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2257020 Blade, Fixed

10 2257023 Blade, Rotary

11 2317239 Block, Blade

12 489229 Roll Pin

13 2257022 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2188918 Coupling

17 8281164 Screw

18 3400065 Screw

20 2317277 Latch, Bin

21 2198608 Spring, Latch

23 8281163 Screw

24 2188919 Holder

25 2317243 Wiper

26 2198628 Seal

27 2317250 Divider−Chamber

28 2188916 Drive Shaft

29 2256154 Enclosure, Motor

30 2315547 Dispenser, Motor

31 2212305 Cover

32 2315559 Sleeve, Coupling

33 2187725 Wire Harness,

IDI Motor

100 2317268 Ice Container

Assembly

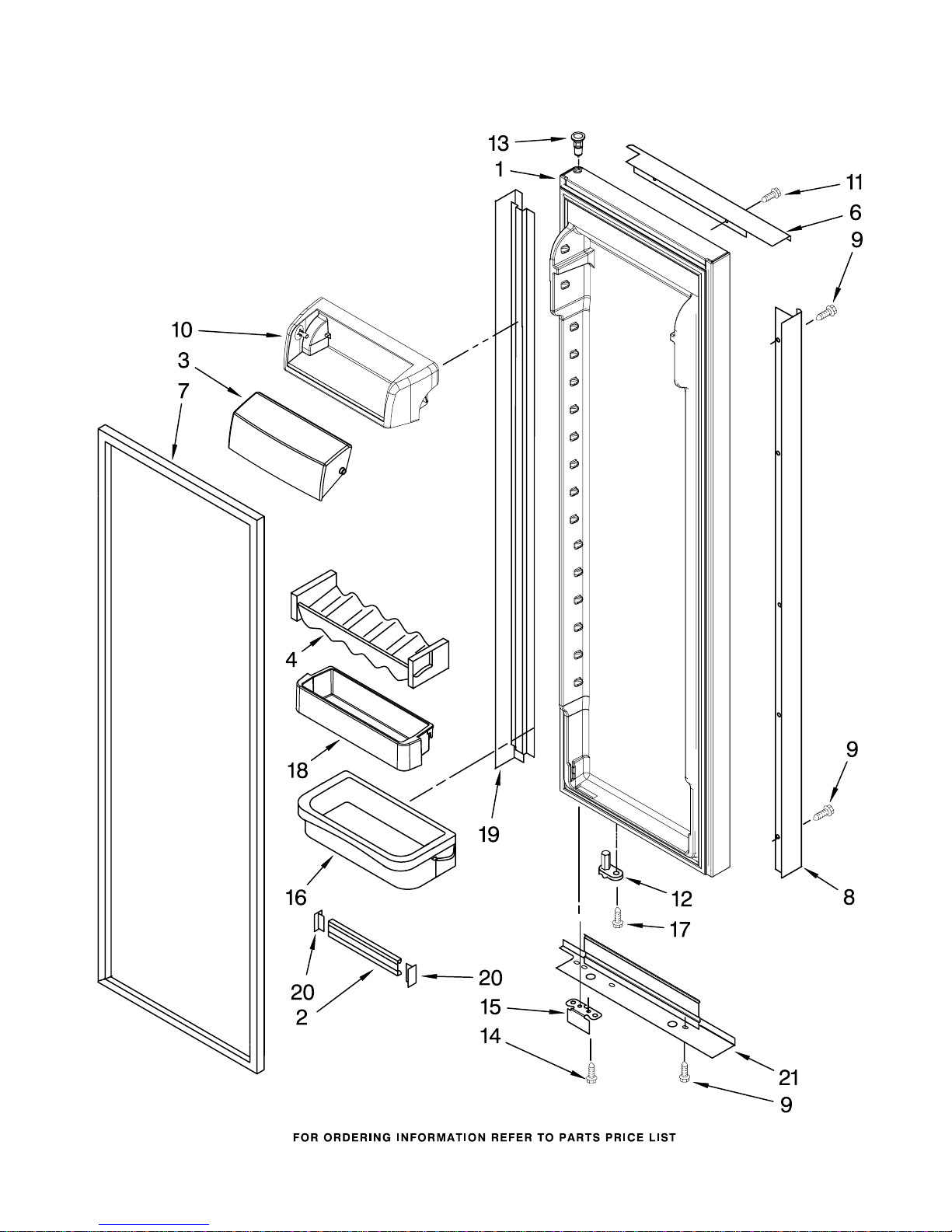

REFRIGERATOR DOOR PARTS

For Models: KSBS25IVWH00, KSBS25IVBL00, KSBS25IVSS00

(White) (Black) (Stainless Steel)

W10205706

REFRIGERATOR DOOR PARTS

For Models: KSBS25IVWH00, KSBS25IVBL00, KSBS25IVSS00

(White) (Black) (Stainless Steel)

W10205706

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes #7)

2307195W White

2307195B Black

2 2203087K Trim, Shelf

3 2255421 Dairy Door

4 2223883 Caddy, Can

6 Trim, Top

2224096W White

2224096B Black

2224096S Stainless Steel

7 Door Gasket,

Magnetic

2223326 Mist Beige

2223909 Black

8 Handle

2223821W White

2223821B Black

2223821S Stainless Steel

9 3196537 Screw

10 2223879 Dairy Compartment

11 3196180 Screw

12 2307048 Door Closer,

Upper Cam

13 2308091 Thimble, Top

14 489420 Screw

15 Bracket, Door Stop

2306940 Chrome

2306940B Black

16 2223860 Door Bin (3)

17 3400012 Screw

18 2224173 Door Bin,

Shallow

19 Trim, Hinge Side

2223824W White

2223824B Black

2223824S Stainless Steel

20 2156006K Plug, Trim

21 Trim, Bottom

2223823W White

2223823B Black

2223823S Stainless Steel
