CABINET PARTS

For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02

(White) (Black) (Stainless) (Monochromatic (Monochromatic

Stainless) Stainless)

11−09 Printed In U.S.A. (jdc)(bay) Part No. W10307477 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02

(White) (Black) (Stainless) (Monochromatic (Monochromatic

Stainless) Stainless)

W10307477

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10162436

Use & Care Guide

W10152832

Service & Wiring

Sheet

2318510 Installation

Instructions

W10194145

Energy Guide

2220407 Modular Icemaker

Service Sheet

2 Front Roller Asm

W10199222

Left Side

W10199223

Right Side

W10199260

Strap, Roller

W10173132

Roller, Rear (2)

5 2223388 Clip, Retainer (4)

6 2155013 Clip, Grille

7 488500 Screw

8 2223545 Shim

9 Hinge Top, RC

2307008W White

2307008B Black

2307008AP

Apollo Gray

10 3400113 Screw

11 3400243 Screw

12 2307179 Hinge Assembly,

Bottom−RC

(Includes #20)

13 Filler, Wrapper

2223893W White

2223893B Black

2223893AP

Apollo Gray

14 Grille

W10194047

White

W10194057

Black

W10194061

Midnight Grey

15 3400108 Screw

16 Hinge, Top FC

2307007W White

2307007B Black

2307007AP

Apollo Gray

17 489464 Screw

18 2304888 Drain Fitting

19 2254566 Tube, Extension

20 2307049 Door Closer, RC

21 2223409 Cover, Unit

23 549193 Clamp, Service

Cord

24 489084 Screw

25 2307152 Hinge Assembly,

Bottom−FC

(Includes #29)

26 Button, Water

Filter

2260503W White

2260503B Black

2260503MG

Midnight Grey

W10121140

Housing, Water

Filter

28 8212650 Water Filter

29 2307051 Door Closer, FC

30 Cap, Water

Filter

2260502W White

2260502B Black

2260518MG

Midnight Grey

31 Cabinet (Not A

Serviceable Part)

32 489483 Screw

35 3400858 Screw

36 2224020 Tube, Filter

Outlet

W10212512

Tube, Filter

Inlet

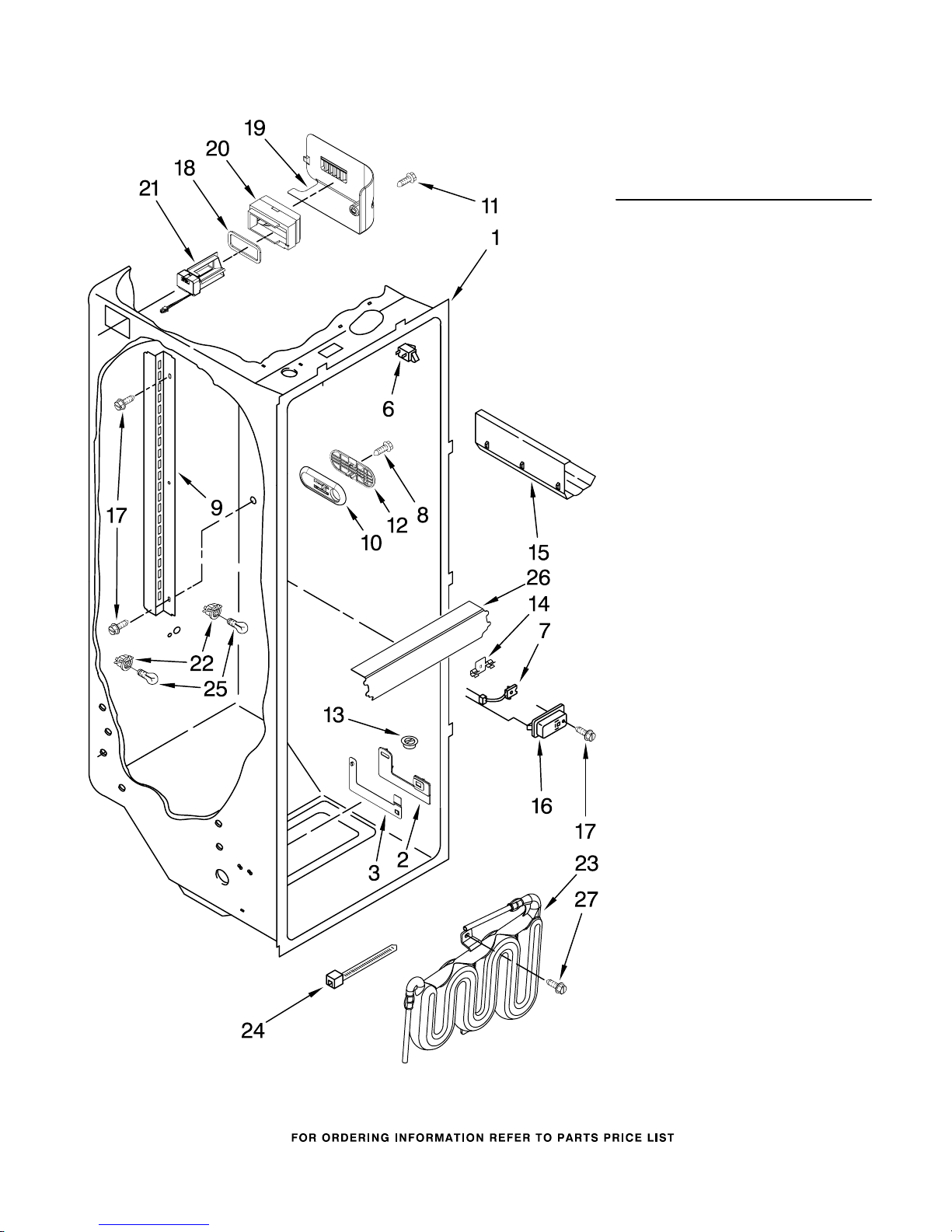

REFRIGERATOR LINER PARTS

For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02

(White) (Black) (Stainless) (Monochromatic (Monochromatic

Stainless) Stainless)

W10307477

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2223524 Escutcheon, Meat

Pan Control

3 2223339 Slide Meat

Pan Control

6 1118894 Switch, Rocker

Arm

7 2188820 Thermistor

8 3400893 Screw

9 2319866 Ladder, Shelf (2)

10 2301234 Housing, Door

Control

11 489084 Screw

12 2301235 Slide, Door

Control

14 2209204 Clip, Thermistor

15 2179404 Rack, Wine & Egg

16 1116793 Cover, Thermistor

17 489478 Screw

18 2304597 Gasket,

Air Baffle

19 2223403 Cover,

Air Baffle

20 2224076 Air Diffuser

Assembly

21 2220377 Air Baffle

22 2162085 Socket

23 2307107 Reservoir

24 2205813 Strap

W10194422

Light Bulb

26 2223663 Light Lens

27 488280 Screw

REFRIGERATOR SHELF PARTS

For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02

(White) (Black) (Stainless) (Monochromatic (Monochromatic

Stainless) Stainless)

W10307477

Illus. Part

No. No. DESCRIPTION

W10235943

Shelf Assembly,

Cantilever (3)

2 2301025 Button, Humidity

3 2301026 Slide, Humidity

4 2301117 Gasket, Side (2)

5 2203027 Cover, Meat Pan

(Includes Items

13, 14, 15 & 20)

6 2301023 Snack Pan

(Includes 30 & 31)

7 Glide Assembly,

Crisper Pan

2301548 Right Side

2301549 Left Side

8 2301001 Window,

Crisper Pan

9 2301028 Cover, Crisper

(Includes 2,

3, 4, 11, 12,

13, 14 & 19)

10 2301009 Glass, Cover

11 2301116 Gasket (Front)

12 2301115 Gasket (Rear)

13 2174478 Eyelet, Roller

14 2188212 Roller

15 489211 Screw

16 2301031 Crisper Pan

(Includes 8, 13

14, 19 & 31)

17 2223790 Meat Pan

(Includes 13,

14, 19 & 22)

18 Glide Assembly,

Snack Pan

2301550 Right Side

2301551 Left Side

19 489261 Screw

20 2223487 Deflector

21 Support Assembly

2301569 Right Side

2301570 Left Side

22 2203031 Handle

W10173126

Stud Assembly

26 2301566 Shelf, Snack Pan

W10191954

Screw

W10173127

Stud Assembly

W10191952

Screw

30 2301006 Window, Snack Pan

31 Cap, Snack Pan

2301016 Right Side

2301017 Left Side

FREEZER LINER PARTS

For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02

(White) (Black) (Stainless) (Monochromatic (Monochromatic

Stainless) Stainless)

W10307477

FREEZER LINER PARTS

For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02

(White) (Black) (Stainless) (Monochromatic (Monochromatic

Stainless) Stainless)

W10307477

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2223777 Spacer, Slide (2)

3 2224051 Basket, Front

W10173126

Stud Assembly

5 2223691 Basket, Deep (2)

W10191954

Screw

7 2223500 Shelf Assembly,

Cantilever (2)

8 2224053 Front, Basket

9 Shelf Track

2223787 Right Side

2223788 Left Side

10 2223681 Shelf, Fixed

11 2223694 Basket, Lower

12 2315163 Clip, Air Duct

13 Glide Assembly,

Basket (2)

2301544 Right Side

2301545 Left Side

14 2259487 Cover, Emitter

15 8534064 Screw

16 2198635 Spring

17 2198634 Pin

18 2198665 Tube, P.C. Board

19 1115373 Switch, Rocker Arm

W10193840

P.C. Board

Emitter

W10185438

Cover, Ice Maker

22 Slide, Ice Maker

Mounting

2212321 Right Side

2306900 Left Side

23 489478 Screw

24 489214 Screw

25 2162085 Light Socket

W10194422

Light Bulb

27 8281185 Screw

28 2198633 Flipper

W10173569

Cover, Receiver

30 2315398 Slide, Ice Maker

Shut Off

W10193666

P.C. Board,

Receiver

32 2198643 Lens

33 2198589 Light Shield

34 2212340 Light Lens

35 2198641 Bracket, Ice Maker

Cover

36 2155597 Socket, Light

37 3400893 Screw

38 Ladder

2198609 Left Side

2198610 Right Side

39 2303378 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS

For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02

(White) (Black) (Stainless) (Monochromatic (Monochromatic

Stainless) Stainless)

W10307477

MOTOR AND ICE CONTAINER PARTS

For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02

(White) (Black) (Stainless) (Monochromatic (Monochromatic

Stainless) Stainless)

W10307477

Illus. Part

No. No. DESCRIPTION

W10139482

Ice Bin

W10140686

Crusher Bin

W10140642

Auger

4 2258220 Washer

5 1119007 Spacer, Flat (4)

W10139321

Cover, Crusher

W10278733

Blade, Rotary

8 1119005 Spacer, Step (2)

9 2257020 Blade, Fixed

W10278732

Blade, Rotary

11 2317239 Block, Blade

12 489229 Roll Pin

W10178731

Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2220457 Coupling

17 8281164 Screw

18 3400065 Screw

19 2317243 Wiper

W10140685

Latch, Bin

21 2198608 Spring, Latch

22 2187813 Wire Assembly,

IDI Motor

23 8281163 Screw

24 2212369 Holder

25 2220458 Coupling, Bottom

26 2198628 Seal

27 2212370 Washer

28 2305382 Rubber Boot

29 2198607 Spring

30 2305243 Drive Shaft

31 2252130 Dispenser, Motor

32 2305208 Bracket, Motor

33 2212365 Sleeve, Coupling

34 2317250 Divider−Chamber

100

W10140693

Ice Container

(Complete)

REFRIGERATOR DOOR PARTS

For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02

(White) (Black) (Stainless) (Monochromatic (Monochromatic

Stainless) Stainless)

W10307477

REFRIGERATOR DOOR PARTS

For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02

(White) (Black) (Stainless) (Monochromatic (Monochromatic

Stainless) Stainless)

W10307477

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes #7)

W10128346

White

W10128348

Black

2307199SAP

Monochromatic

Stainless

2307199S Stainless Steel

2 2203087K Trim, Shelf

3 2255421 Dairy Door

4 2223883 Caddy, Can

W10170540

Stud, Handle

7 Door Gasket,

Magnetic

2223841 Mist Beige

2223911 Black

2326342 Apollo Grey

8 Handle

2319727W White

2319727B Black

2319727S Stainless Steel

9 Set Screw

W10010140

Chrome

W10010150

Black

10 2223879 Dairy Compartment

11 488208 Screw

12 2307048 Door Closer,

Upper Cam

13 2308091 Thimble, Top

14 489420 Screw

15 Bracket, Door Stop

2306940 Chrome

2306940B Black

16 2223860 Door Bin (3)

17 3400012 Screw

18 2224173 Door Bin,

Shallow

19 Nameplate

W10046670

White

W10046640

Black

W10046610

Gray

20 2156006 Plug, Trim
