KitchenAid KTRC22KXWH20 Manuale utente

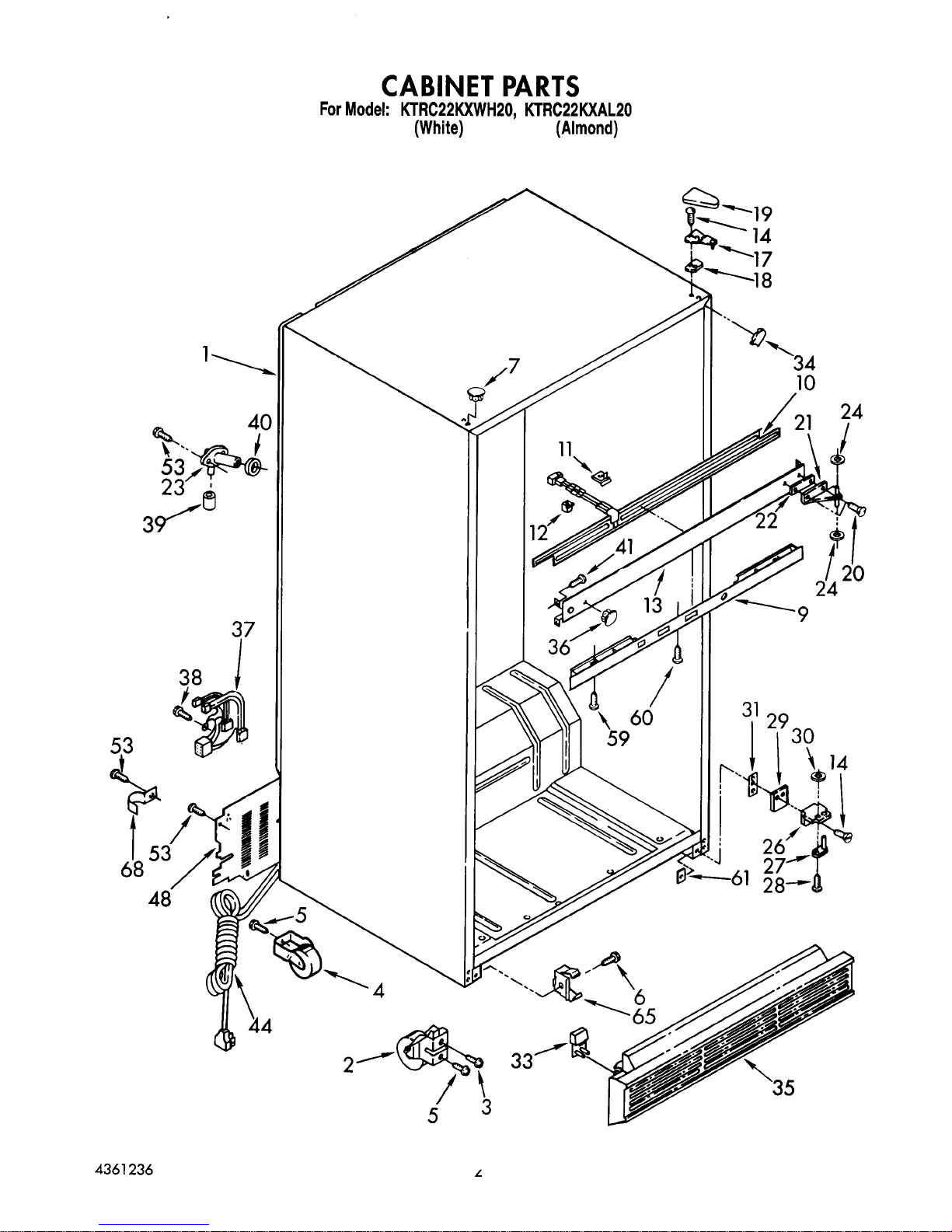

1 Cabinet (Not A Serviceable Part)

2 2152011 Roller, Front

3 489333 Screw, 5/16-24 x 1-1/4

4 981122 Roller, Rear (2)

5 489339 Screw (6)

6 489242 Screw

7 Hole Plug

2151652 White

2151653 Almond

9 1126276 Control, Front Cover

10 2154065 Heater, Mullion

11 1129018 Clip, Center Rail (4)

12 2149077 Spacer (3)

13 Center Rail

1122566 White

1122569 Almond

14 489327 Screw

17 1123514 Hinge, Top

18 1123517 Shim, Hinge Top

19 Hinge Cover

842010 White

989194 Almond

20 489105 Screw

21 2147335 Hinge, Center

22 836155 Shim, Hinge Center

23 2154081 Fitting-Water Tube

24 488296 Washer, 11/64

26 2148563 Hinge Butt, Bottom

27 654366 Hinge Pin, Bottom

28 488714 Screw, 10-32 x 5/16

29 1123379 Shim, Bottom

30 488184 Washer, 7/32

31 1121117 Spacer

33 Corner Filler, Grille

1125665 White

1125670 Almond

34 Filler, Wrap Corner

1118058 White

1118059 Almond

35 Grille

1125663 White

1125667 Almond

36 Hole Plug (5)

1129062 White

1129063 Almond

37 2153994 Wiring Assy. Intermediate

38 489048 Screw, 8-32 x 1/2

39 487996 Cap

40 1106508 Gasket

41 488725 Screw

44 937360 Cord, Service

48 1105531 Cover, Unit

53 489084 Screw

59 488725 Screw, 8 x 13/16 (2)

60 489174 Screw (2)

61 2147310 Tap-Plate, Bottom Hinge

65 2155013 Clip, Grille Retainer (2)

68 549193 Clamp

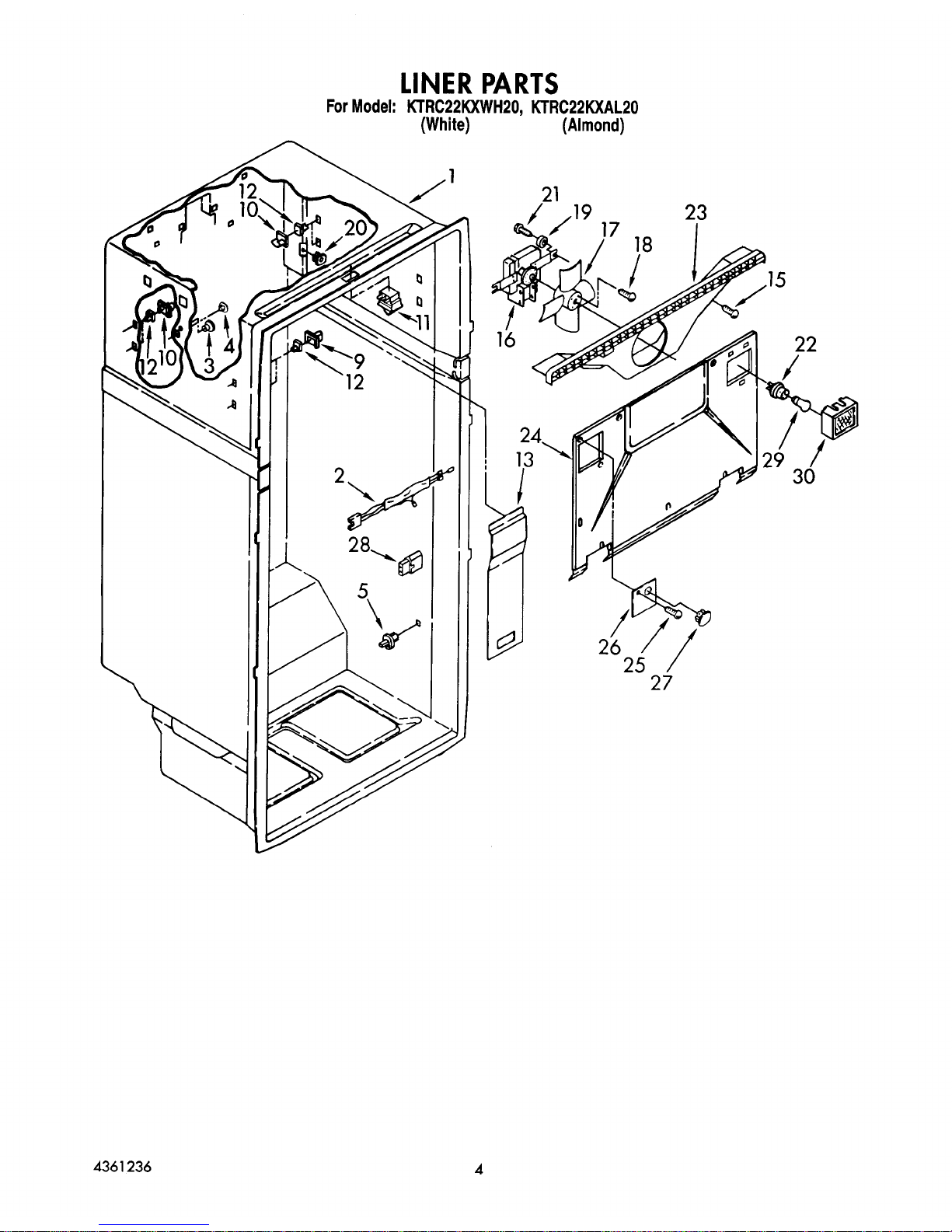

1 Liner (Not A Serviceable Part)

2 1127626 Wiring, Fan Motor

3 1110779 Grommet (4)

4 941839 Hole Plug (3)

5 1118066 Stud (2)

9 946356 Stud (3)

10 946357 Saddle Stud, R.S.

946358 Saddle Stud, L.S.

11 1108112 Rocker Arm Switch

12 946355 Support, Stud (6)

13 2157410 Cover, Air Duct

15 489242 Screw

16 2154977 Motor, Fan

17 1127752 Blade, Fan

18 487887 Screw, 3-48 x 1/4 (2)

19 531933 Grommet (2)

20 848445 Grommet (2)

21 489168 Screw

22 2155597 Socket, Light

23 1127100 Scroll, Fan

24 2157427 Evaporator Cover

25 489355 Screw (5)

26 1125567 Hole Cover, Evaporator

27 1103725 Hole Plug

28 934326 Housing Plug

29 946059 Light Bulb

30 981365 Light Lens

1 Liner (Not A Serviceable Part)

2 1127626 Wiring, Fan Motor

3 1110779 Grommet (4)

4 941839 Hole Plug (3)

5 1118066 Stud (2)

9 946356 Stud (3)

10 946357 Saddle Stud, R.S.

946358 Saddle Stud, L.S.

11 1108112 Rocker Arm Switch

12 946355 Support, Stud (6)

13 2157410 Cover, Air Duct

15 489242 Screw

16 2154977 Motor, Fan

17 1127752 Blade, Fan

18 487887 Screw, 3-48 x 1/4 (2)

19 531933 Grommet (2)

20 848445 Grommet (2)

21 489168 Screw

22 2155597 Socket, Light

23 1127100 Scroll, Fan

24 2157427 Evaporator Cover

25 489355 Screw (5)

26 1125567 Hole Cover, Evaporator

27 1103725 Hole Plug

28 934326 Housing Plug

29 946059 Light Bulb

30 981365 Light Lens

1 1125507 Bottom, Compartment Separator

2 1125510 Box, Control

3 1116849 Switch, Light

4 1127570 Timer, Defrost (10 Hour)

5 488693 Screw

6 1125964 Switch, Toggle

7 851067 Socket (2)

8 946059 Bulb, Light (2)

9 940014 Hole Plug

10 1125768 Thermostat Assembly

11 489214 Screw (2)

12 1125511 Light Pipe (R.S.)

14 1125512 Light Pipe (L.S.)

15 1125515 Connecting Rod, Short

16 1125514 Rod, Connecting

17 1126124 Air Diffuser Assembly

18 1114325 Gasket, Air Diffuser

19 1125941 Cover, Air Diffuser

20 1125581 Pivot Arm

22 2153995 Wiring Assembly, Control Box

23 1114382 Gasket, Bottom Separator

24 489048 Screw, 8-32 x 1/2 (2)

25 488540 Screw

26 1108196 Insulation, Filler

27 1105464 Insulation, Compartment Separator

28 1125513 Slide, Thermostat

29 1125578 Slide, Air Control

30 1125579 Window, Air Control

31 1125580 Window, Thermostat

33 2151663 Separator, Compartment (Top)

34 937065 Cup, Drain

36 489242 Screw
