KitchenAid KSRG25FVBL01 Manuale utente

CABINET PARTS

For Models: KSRG25FVWH01, KSRG25FVBL01

(White) (Black)

03−09 Printed In U.S.A. (jdc)(bay) Part No. W10266844 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: KSRG25FVWH01, KSRG25FVBL01

(White) (Black)

W10266844

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10206410

Use & Care Guide

W10238215

Service & Wiring

Sheet

W10194134

Energy Guide

2220407 Modular Icemaker

Service Sheet

W10206334

Inst Sheet,

Door Removal

2 2174748 Front Roller (2)

3 3400517 Screw

4 2196236 Roller (Rear) (2)

W10146358

Screw

6 2155013 Clip, Grille

W10001260

Screw

8 2156056 Shim

9 2203771 Hinge Top, RC

W10142235

Screw

11 Hinge Cover, FC

W10138581

White

W10138582

Black

W10138965

Hinge Bottom (RC)

13 Filler, Wrapper

2304846 White

2304848 Black

14 Grille

W10184886

White

W10184888

Black

15 489497 Screw

16 2203770 Hinge, Top FC

W10001250

Screw

18 2304888 Drain Fitting

W10153550

Tube, Extension

20 2303141 Hinge Bottom (FC)

21 2188735 Cover, Unit

22 Hinge Cover, RC

W10138576

White

W10138577

Black

23 549193 Clamp, Service

Cord

W10141645

Screw

25 2155311 Door Closer,

Lower Cam (2)

26 489483 Screw

27 2260507 Housing, Water

Filter

28 4396841 Water Filter

29 489500 Screw

30 Cap, Water

Filter

2260502W White

2260502B Black

31 Cabinet (Not A

Serviceable Part)

32 8281227 Screw

33 2260519 Block, Housing

Support

34 2255012 Tube, Filter

Outlet

35 2319867 Tube, Filter

Inlet

36 Button, Water

Filter

2260503W White

2260503B Black

REFRIGERATOR LINER PARTS

For Models: KSRG25FVWH01, KSRG25FVBL01

(White) (Black)

W10266844

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

W10175967

Escutcheon, Meat

Pan Control

3 2182757 Slide Meat

Pan Control

4 2257741 Louver

9 2319866 Ladder, Shelf (2)

W10004810

Screw (2)

W10001260

Screw

14 2256085 Bracket Retainer

15 489290 Screw (2)

W10151374

Air Diffuser

Assembly

17 2152019 Air Diffuser

Cover

18 2150331 Cover, Conduit

19 2162085 Socket

20 2307107 Reservoir

W10194422

Light Bulb

W10242623

Shield Assy, Light

W10141518

Screw

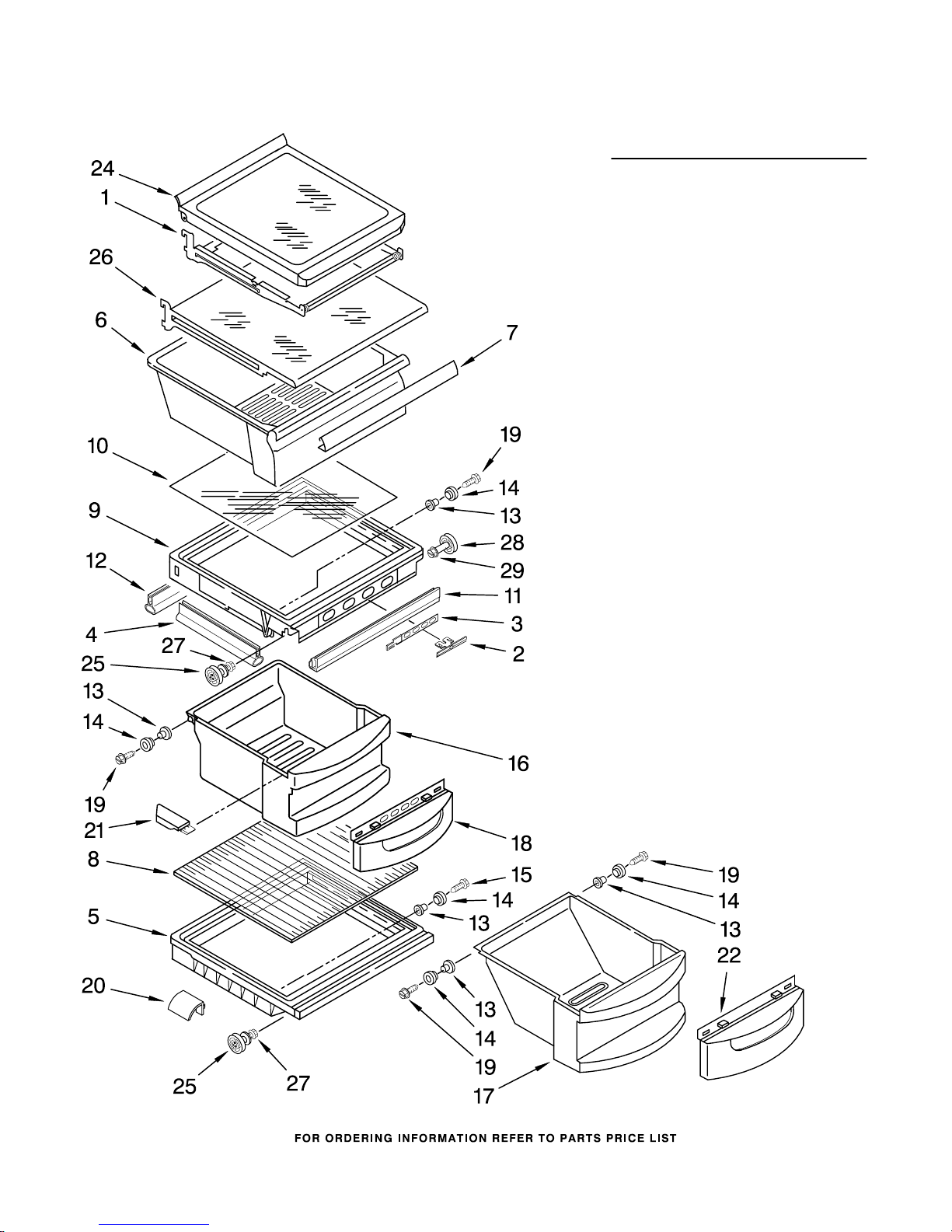

REFRIGERATOR SHELF PARTS

For Models: KSRG25FVWH01, KSRG25FVBL01

(White) (Black)

W10266844

Illus. Part

No. No. DESCRIPTION

1 2195975 Frame Assembly,

Slide Out (2)

2 2319720 Button, Humidity

3 2174252 Slide, Humidity

4 2174273 Gasket, Side (2)

5 2223357 Cover, Meat Pan

(Includes Items

13, 14 & 15)

W10142718

Snack Pan

(Includes #7)

7 2179243 Trim, Handle

8 2255144 Glass, Cover

W10160318

Cover, Crisper

(Includes 2,

3, 4, 11, 12,

13, 14 & 19)

10 2255143 Glass, Cover

11 2223361 Gasket (Front)

12 2223362 Gasket (Rear)

13 2174478 Eyelet, Roller

14 2188212 Roller

15 489211 Screw

W10142714

Crisper Pan

(Includes 13,

14, 18, 19 & 21)

W10149982

Meat Pan

(Includes 13,

14, 19 & 22)

18 2174076 Window, Crisper

19 489261 Screw

20 2176095 Deflector

21 Cap, Crisper Pan

2223286 Right Side

2223285 Left Side

22 2174362 Window, Meat Pan

W10141748

Shelf Assembly,

Slide Out (2)

25 2196485 Stud Assembly

W10141750

Shelf, Snack Pan

27 3400894 Screw

28 2196483 Stud Assembly

29 8281158 Screw

FREEZER LINER PARTS

For Models: KSRG25FVWH01, KSRG25FVBL01

(White) (Black)

W10266844

FREEZER LINER PARTS

For Models: KSRG25FVWH01, KSRG25FVBL01

(White) (Black)

W10266844

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

W10142289

Screw

3 2211742K Shelf, S/O

4 Track, Basket−Dual

2301291 Right Side

2301292 Left Side

5 2211746K Shelf, Slide Out

Upper

6 Track, Basket

2301289 Right Side

2301290 Left Side

7 2205837K Shelf (2)

8 2182971 Basket, Sloped

W10004810

Screw

10 842534 Clip, Air Duct

11 2198587 Cover, Emitter

12 2198635 Spring

13 2198634 Pin

14 1115373 Switch, Rocker Arm

W10193840

P.C. Board

Emitter

16 2255720 Cover, Ice Maker

17 2212321 Slide, Ice Maker

Mounting

W10001260

Screw

19 489214 Screw

20 2162085 Light Socket

W10194422

Light Bulb

W10142283

Screw

23 2198633 Flipper

W10173569

Cover, Receiver

25 2315398 Slide, Ice Maker

Shut Off

W10193666

P.C. Board,

Receiver

27 2198643 Lens

28 2198589 Light Shield

29 2212340 Light Lens

30 2198641 Bracket, Ice Maker

Cover

31 2155597 Socket, Light

32 Ladder

2198609 Left Side

2198610 Right Side

33 2303234 Shield, Wiring

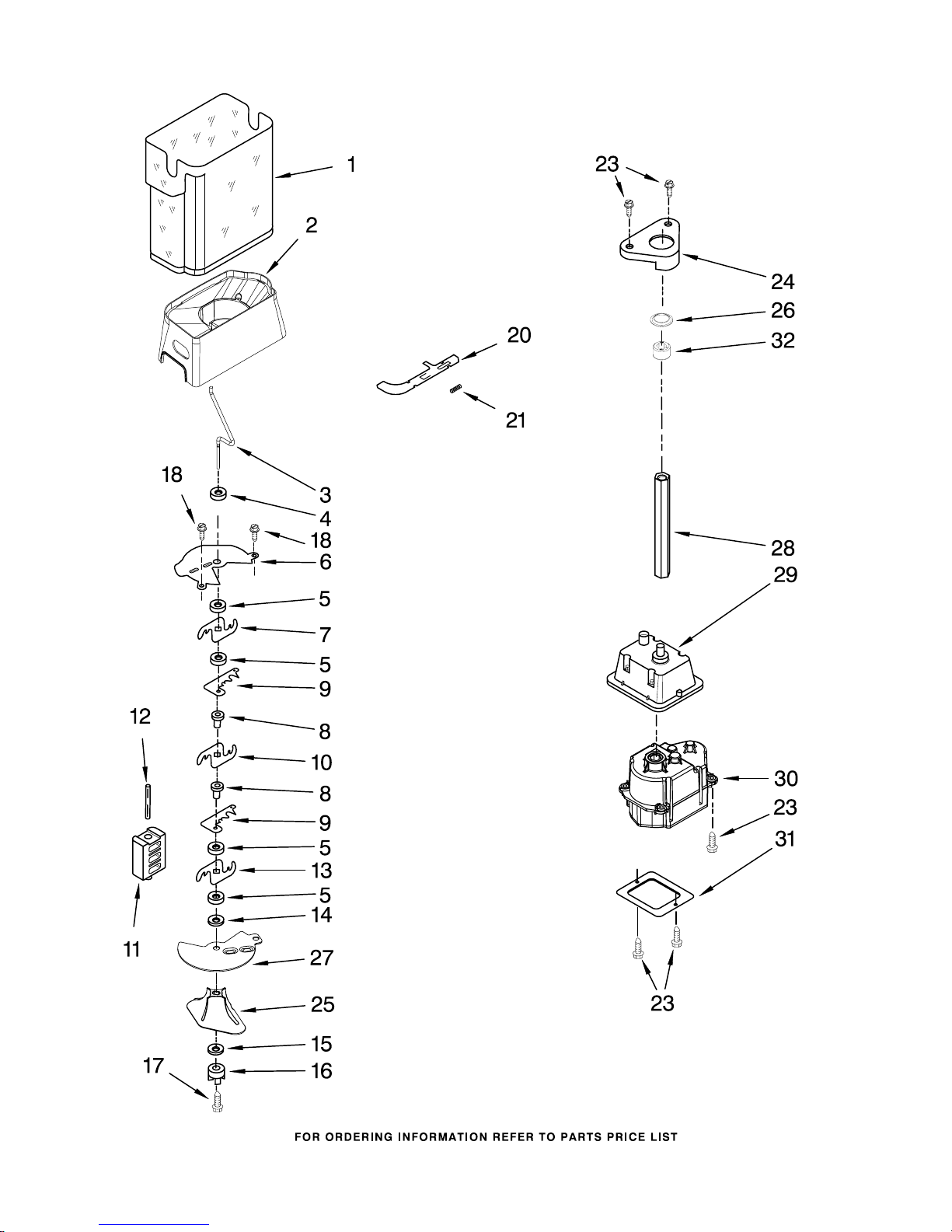

MOTOR AND ICE CONTAINER PARTS

For Models: KSRG25FVWH01, KSRG25FVBL01

(White) (Black)

W10266844

MOTOR AND ICE CONTAINER PARTS

For Models: KSRG25FVWH01, KSRG25FVBL01

(White) (Black)

W10266844

Illus. Part

No. No. DESCRIPTION

1 2198573 Ice Bin

2 2317256 Crusher Bin

3 2317240 Auger

4 2258220 Washer

5 1119007 Spacer, Flat (4)

6 2317248 Cover, Crusher

7 2257024 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2257020 Blade, Fixed

10 2257023 Blade, Rotary

11 2317239 Block, Blade

12 489229 Roll Pin

13 2257022 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2188918 Coupling

17 8281164 Screw

18 3400065 Screw

20 2317277 Latch, Bin

21 2198608 Spring, Latch

23 8281163 Screw

24 2188919 Holder

25 2317243 Wiper

26 2198628 Seal

27 2317250 Divider−Chamber

28 2188916 Drive Shaft

29 2322488 Enclosure, Motor

30 2326873 Motor, Dispenser

31 2212305 Cover

32 2315559 Sleeve, Coupling

100 2317273 Ice Container

(Complete)

REFRIGERATOR DOOR PARTS

For Models: KSRG25FVWH01, KSRG25FVBL01

(White) (Black)

W10266844

REFRIGERATOR DOOR PARTS

For Models: KSRG25FVWH01, KSRG25FVBL01

(White) (Black)

W10266844

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes #3)

2313299W White

2313299B Black

2 Handle

2319727W White

2319727B Black

3 Door Gasket,

Magnetic

2221302 Mist

2221313 Black

4 Set Screw

W10010140

Chrome

5 Nameplate

W10046670

White

W10046640

Black

6 2219698 Stud

W10141596

Screw

8 2182178 Door Closer,

Upper Cam

9 489420 Screw

10 Bracket, Door Stop

W10185570

Chrome

W10185571

Black

W10169669

Door Bin (4)

12 3400012 Screw

13 2308091 Thimble, Top
