CABINET PARTS
1
For Models: KSRG25FVMS00, KSRG25FVMT00
(Monochromatic (Monochromatic
Stainless) Satina)
04−08 Printed In U.S.A. (jdc)(bay) Part No. W10202609 Rev.A
REFRIGERATOR
CABINET PARTS
2
For Models: KSRG25FVMS00, KSRG25FVMT00
(Monochromatic (Monochromatic
Stainless) Satina)
W10202609
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10162446
Use & Care Guide
W10180857
Service & Wiring
Sheet
W10194134
Energy Guide
2220407 Modular Icemaker
Service Sheet
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8 2156056 Shim
9 2203771 Hinge Top, RC
10 3400113 Screw
11 Hinge Cover, FC
W10138584
Apollo Grey
12
W10138965
Hinge Bottom (RC)
13 Filler, Wrapper
W10143043
Apollo Grey
14 Grille
2323580MG
Midnight Grey
15 489497 Screw
16 2203770 Hinge, Top FC
17 489464 Screw
18 2304888 Drain Fitting
19 2304937 Tube, Extension
20 2303141 Hinge Bottom (FC)
21 2188735 Cover, Unit
22 Hinge Cover, RC
W10138579
Apollo Grey
23 549193 Clamp, Service
Cord
24 489084 Screw
25 2155311 Door Closer,
Lower Cam (2)
26 489483 Screw
27 2260507 Housing, Water
Filter
28 4396841 Water Filter
29 489500 Screw
30 Cap, Water Filter
2260502MG
Midnight Grey
31 Cabinet (Not A
Serviceable Part)
32 8281227 Screw
33 2260519 Block, Housing
Support
34 2255153 Tube, Filter
Outlet
35 2319867 Tube, Filter
Inlet
36 Button, WaterFilter
2260503MG
Midnight Grey
REFRIGERATOR LINER PARTS
3
For Models: KSRG25FVMS00, KSRG25FVMT00
(Monochromatic (Monochromatic
Stainless) Satina)
W10202609
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2
W10175967
Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2257741 Louver
5 2256035 Bracket, Dual
Crisper Lights
7 2311637 Wire Harness,
Dual Crisper
Lights
9 2319866 Ladder, Shelf (2)
11
W10004810
Screw (2)
12 489478 Screw
13 2179404 Rack, Wine & Egg
14 2256085 Bracket Retainer
15 489290 Screw (2)
16
W10151374
Air Diffuser
Assembly
17 2152019 Air Diffuser
Cover
18 2150331 Cover, Conduit
19 2162085 Socket
20 2307107 Reservoir
21 2255743 Light Bulb
22 2209769 Light Lens
23 488280 Screw

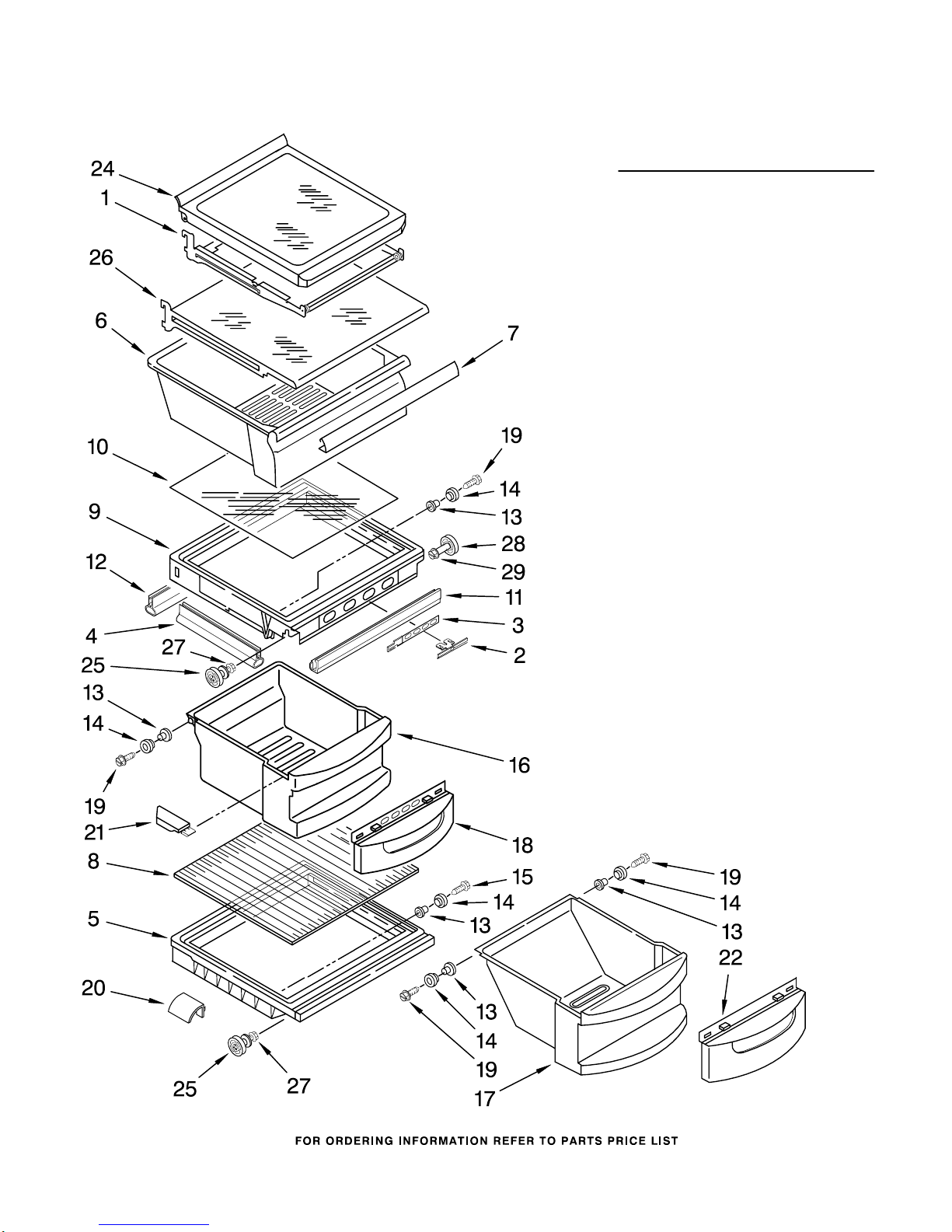

REFRIGERATOR SHELF PARTS
4
For Models: KSRG25FVMS00, KSRG25FVMT00
(Monochromatic (Monochromatic
Stainless) Satina)
W10202609
Illus. Part
No. No. DESCRIPTION
1 2195975 Frame Assembly,
Slide Out (2)
2 2319720 Button, Humidity
3 2174252 Slide, Humidity
4 2174273 Gasket, Side (2)
5 2223357 Cover, Meat Pan
(Includes Items
13, 14 & 15)
6
W10142718
Snack Pan
(Includes #7)
7 2179243 Trim, Handle
8 2255144 Glass, Cover
9
W10160318
Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14 & 19)
10
W10141753
Glass, Cover
11 2223361 Gasket (Front)
12 2223362 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16
W10142714
Crisper Pan
(Includes 13,
14, 18, 19 & 21)
17
W10149982
Meat Pan
(Includes 13,
14, 19 & 22)
18 2174076 Window, Crisper
19 489261 Screw
20 2176095 Deflector
21 Cap, Crisper Pan
2223286 Right Side
2223285 Left Side
22 2174362 Window, Meat Pan
24 2216102 Shelf Assembly,
Slide Out (2)
25 2196485 Stud Assembly
26
W10141750
Shelf, Snack Pan
27 3400894 Screw
28 2196483 Stud Assembly
29 8281158 Screw
FREEZER LINER PARTS
5
For Models: KSRG25FVMS00, KSRG25FVMT00
(Monochromatic (Monochromatic
Stainless) Satina)
W10202609
FREEZER LINER PARTS
6
For Models: KSRG25FVMS00, KSRG25FVMT00
(Monochromatic (Monochromatic
Stainless) Satina)
W10202609
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 3400893 Screw
3 2211742K Shelf, S/O
4 Track, Basket−Dual
2301291 Right Side
2301292 Left Side
5 2211746K Shelf, Slide Out
Upper
6 Track, Basket
2301289 Right Side
2301290 Left Side
7 2205837K Shelf (2)
8 2182971 Basket, Sloped
9
W10004810
Screw
10 842534 Clip, Air Duct
11 2198587 Cover, Emitter
12 2198635 Spring
13 2198634 Pin
14 1115373 Switch, Rocker Arm
15 2220398 P.C. Board
Emitter
16 2255720 Cover, Ice Maker
17 2212321 Slide, Ice Maker
Mounting
18 489478 Screw
19 489214 Screw
20 2162085 Light Socket
21 2255743 Light Bulb
22 8281185 Screw
23 2198633 Flipper
24
W10173569
Cover, Receiver
25 2315398 Slide, Ice Maker
Shut Off
26 2255114 P.C. Board,
Receiver
27 2198643 Lens
28 2198589 Light Shield
29 2212340 Light Lens
30 2198641 Bracket, Ice Maker
Cover
31 2155597 Socket, Light
32 Ladder
2198609 Left Side
2198610 Right Side
33 2303234 Shield, Wiring

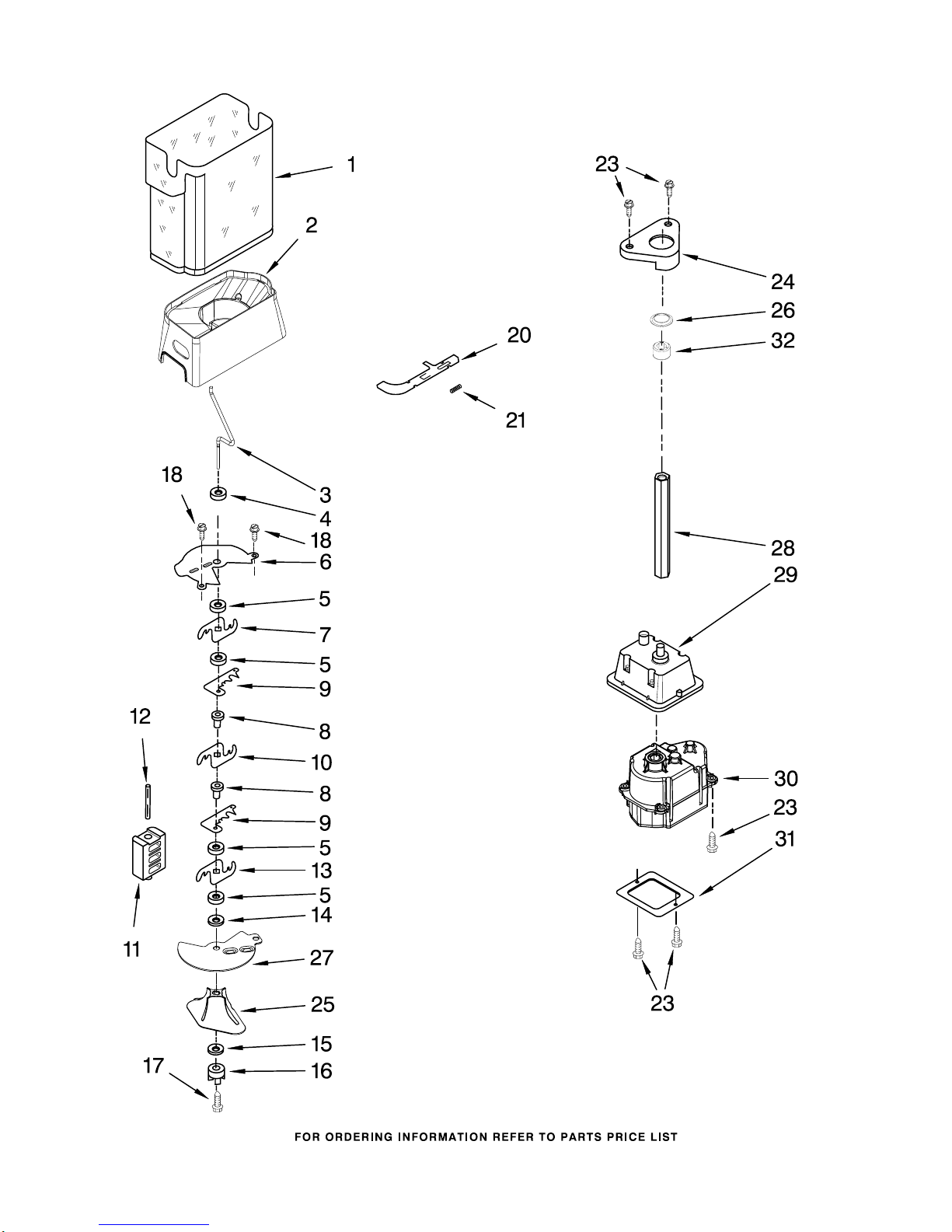

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSRG25FVMS00, KSRG25FVMT00
(Monochromatic (Monochromatic
Stainless) Satina)
W10202609
MOTOR AND ICE CONTAINER PARTS
8
For Models: KSRG25FVMS00, KSRG25FVMT00
(Monochromatic (Monochromatic
Stainless) Satina)
W10202609
Illus. Part
No. No. DESCRIPTION
1 2198573 Ice Bin
2 2317256 Crusher Bin
3 2317240 Auger
4 2258220 Washer
5 1119007 Spacer, Flat (4)
6 2317248 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2317239 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2188918 Coupling
17 8281164 Screw
18 3400065 Screw
20 2317277 Latch, Bin
21 2198608 Spring, Latch
23 8281163 Screw
24 2188919 Holder
25 2317243 Wiper
26 2198628 Seal
27 2317250 Divider−Chamber
28 2188916 Drive Shaft
29 2322488 Enclosure, Motor
30 2322580 Motor, Dispenser
31 2212305 Cover
32 2315559 Sleeve, Coupling
100 2317273 Ice Container
(Complete)
REFRIGERATOR DOOR PARTS
9
For Models: KSRG25FVMS00, KSRG25FVMT00
(Monochromatic (Monochromatic
Stainless) Satina)
W10202609
REFRIGERATOR DOOR PARTS
10
For Models: KSRG25FVMS00, KSRG25FVMT00
(Monochromatic (Monochromatic
Stainless) Satina)
W10202609
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #3)
2301184SAP
Mono Stainless
2301184LAP
Mono Satina
2 Handle
2319727S Stainless Steel
3 Door Gasket,
Magnetic
2326338 Apollo Grey
4 Set Screw
W10010140
Chrome
5 Nameplate
W10046610
Grey
6 2219698 Stud
7 488208 Screw
8 2182178 Door Closer,
Upper Cam
9 489420 Screw
10 Bracket, Door Stop
2206629 Chrome
11
W10169669
Door Bin (4)
12 3400012 Screw
13 2308091 Thimble, Top
