KitchenAid KSRS25FGSS14 Manuale utente
1

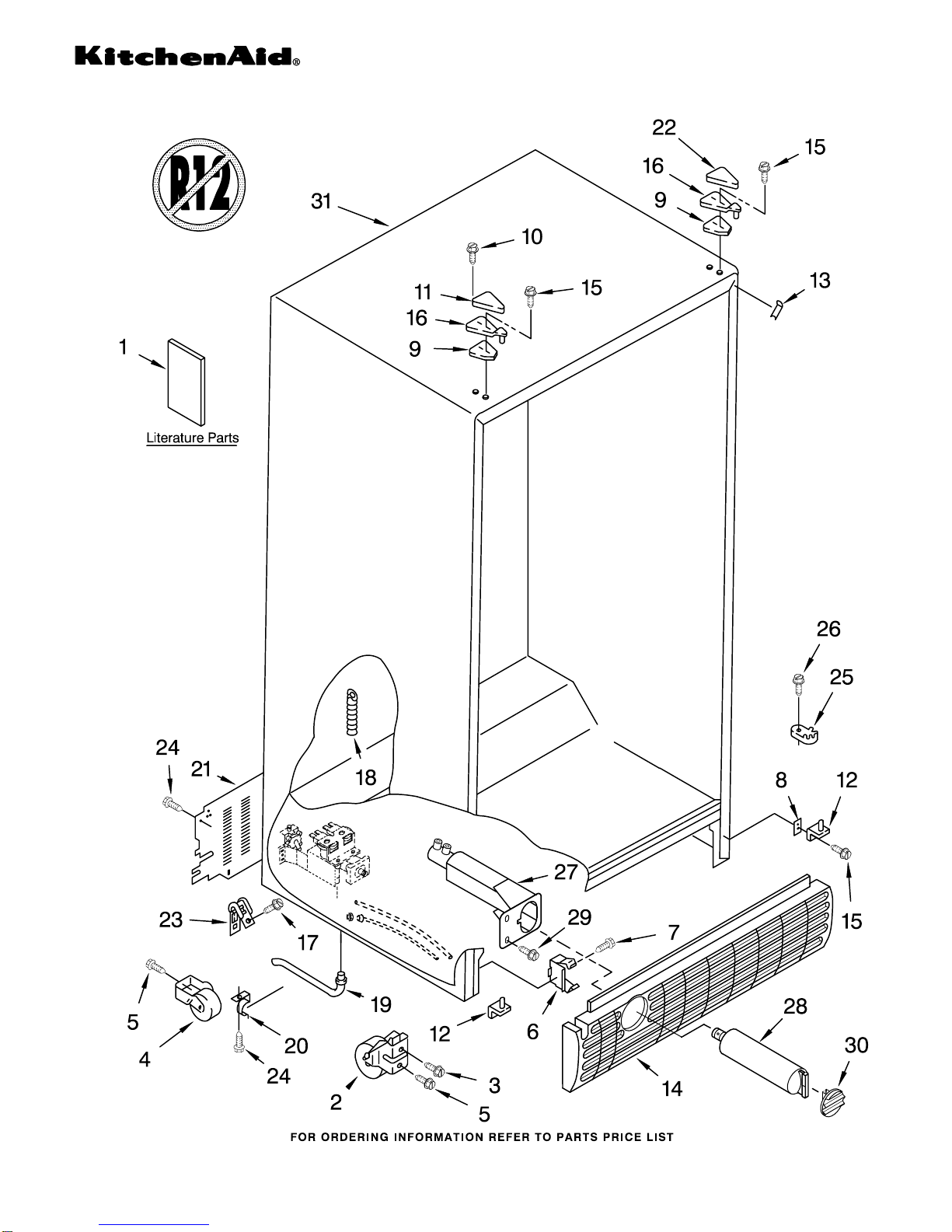

CABINET PARTS
For Model: KSRS25FGSS14
(Stainless Steel)
10−00 Printed In U.S.A. (mdg) Part No. 4398870
REFRIGERATOR
CABINET PARTS
2
For Model: KSRS25FGSS14
(Stainless Steel)
4398870
Illus. Part
No. No. DESCRIPTION
LITERATURE PARTS
1
LIT2206106
Use & Care Guide
LIT2200278
Service & Wiring
Sheet
LIT2211866
Energy Guide
LIT628370
Modular Icemaker
Service Sheet
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8 2156056 Shim
9 2196048 Shim, Hinge Top
10 489284 Screw
11 Hinge Cover
2151694 Black
12 2171851 Hinge Bottom (2)
13 Filler, Wrapper
2196097 Black
14 Grille
2186881B Black
15 489497 Screw
16 2196046 Hinge, Top (2)
17 489464 Screw
18 940139 Drain Fitting
19 1108438 Tube, Extension
20 1108439 Clip, Drain Tube
21 2176140 Cover, Unit
22 Hinge Cover
2155938 Black
23 549193 Clamp, Service
Cord
24 489084 Screw
25 2155311 Door Closer,
Lower Cam (2)
26 489483 Screw
27 2186443 Housing, Water
Filter
28 2203220 Water Filter
29 489500 Screw
30 Cap, Water
Filter
2186884B Black
31 Cabinet (Not A
Serviceable Part)

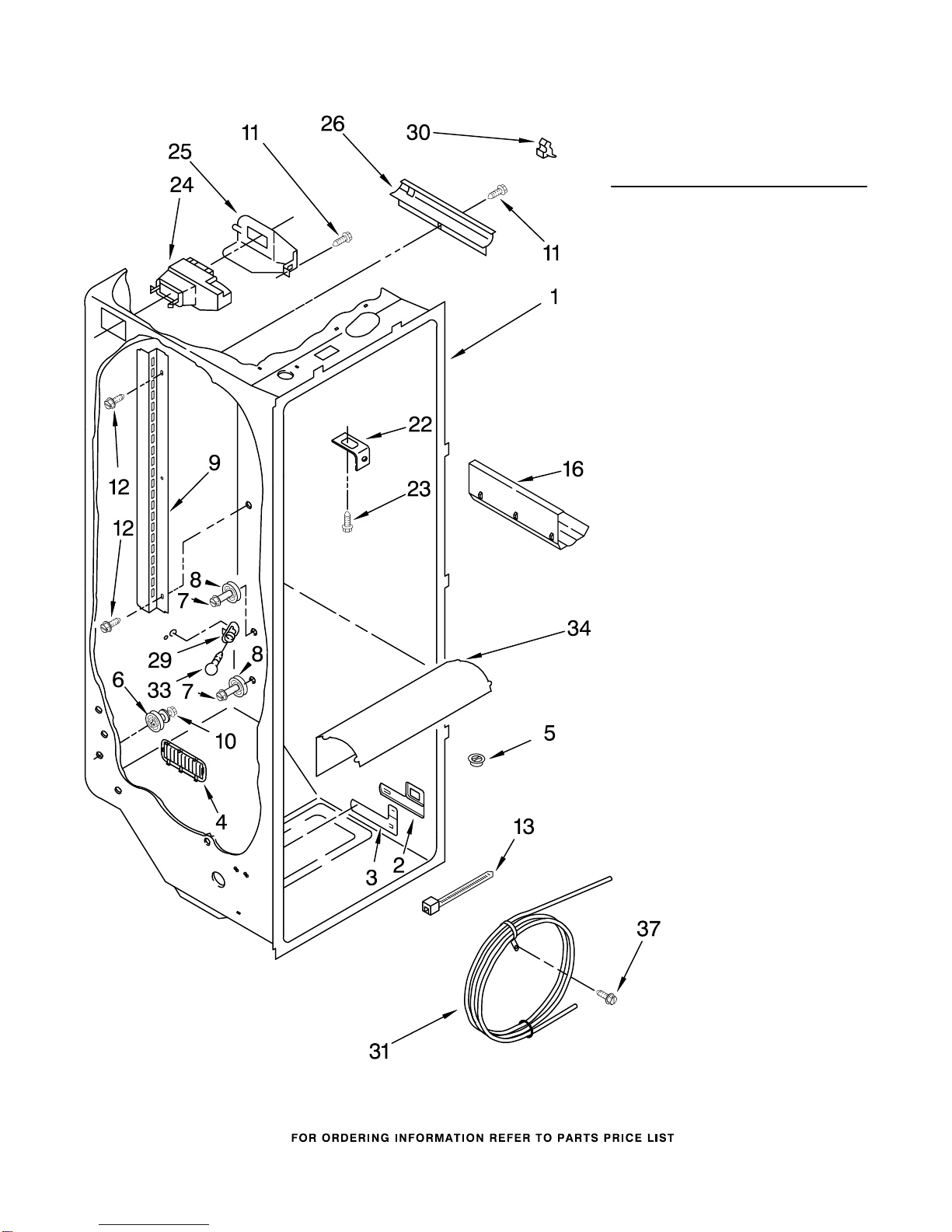

REFRIGERATOR LINER PARTS
3
For Model: KSRS25FGSS14
(Stainless Steel)
4398870
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2194744 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2182147 Louver
5 2171846 Release Valve
6 2196485 Stud Assembly
7 3400894 Screw
8 2196483 Stud Assembly
9 2206273 Ladder, Shelf (2)
10 8281158 Screw
11 486298 Screw (2)
12 487539 Screw
13 2205813 Strap
16 2179404 Rack, Wine & Egg
22 1123919 Bracket Retainer
23 489290 Screw (2)
24 2209751 Air Diffuser
Assembly
25 2161470 Air Diffuser
Cover
26 2150331 Cover, Conduit
29 2162085 Socket
30 842534 Clip, Air Duct
31 2209687 Reservoir
33 527949 Light Bulb
34 2206269 Light Lens
37 488280 Screw

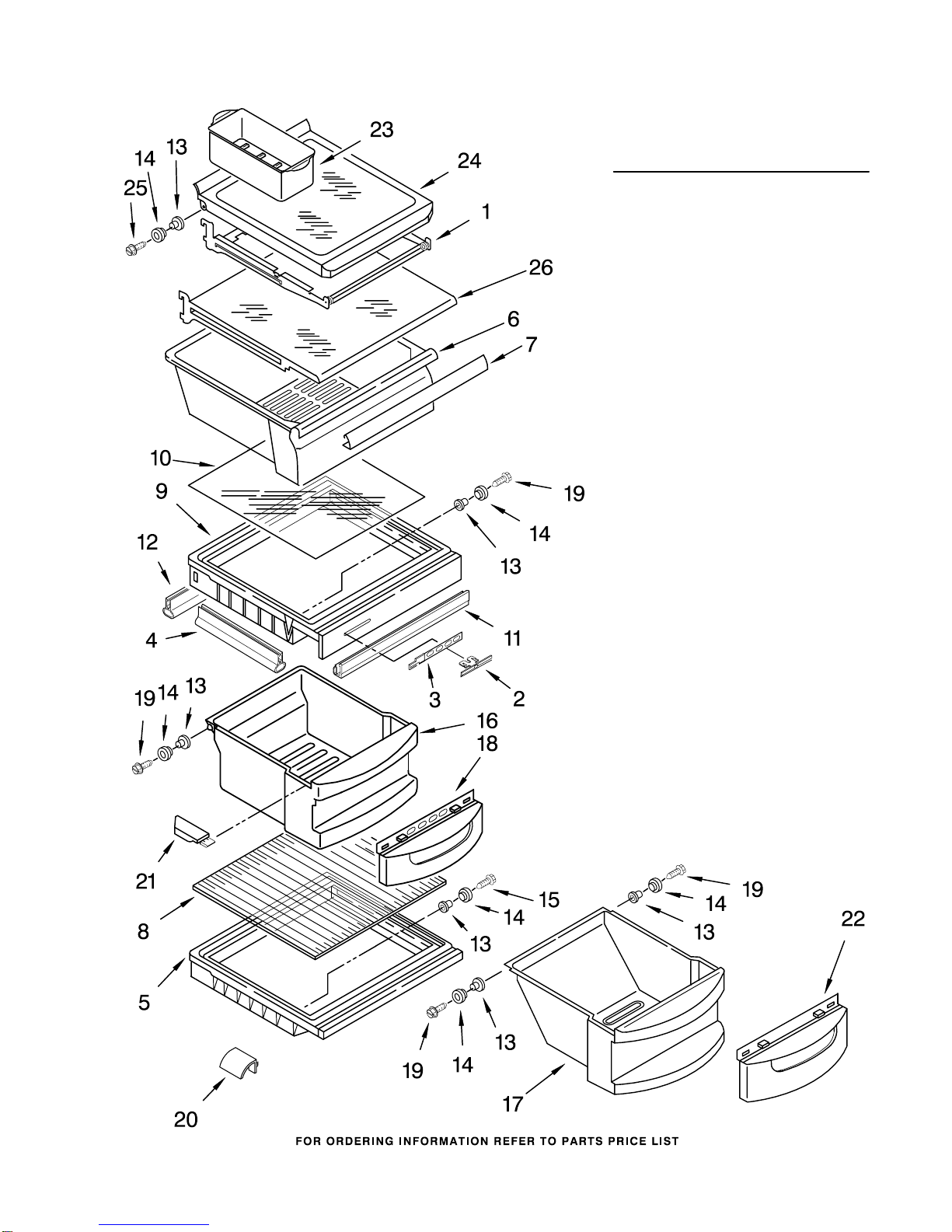

REFRIGERATOR SHELF PARTS
4
For Model: KSRS25FGSS14
(Stainless Steel)
4398870
Illus. Part
No. No. DESCRIPTION
1 2195978 Shelf Assembly,
Cantilever (2)
2 2174253 Button, Humidity
3 2174252 Slide, Humidity
4 2174273 Gasket, Side (2)
5 2161491 Cover, Meat Pan
(Includes Items
13, 14 & 15)
6 2209677 Snack Pan
7 2179243 Trim, Handle
8 2189526 Glass, Cover
9 2174250 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14 & 19)
10 2174148 Glass, Cover
11 2174272 Gasket (Front)
12 2174274 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 2179227 Crisper Pan
(Includes 13,
14, 18, 19 & 21)
17 2179231 Meat Pan
(Includes 13,
14, 19 & 22)
18 2174076 Window, Crisper
19 489261 Screw
20 2176095 Deflector
21 Cap, Crisper Pan
2174259 Right Side
2174258 Left Side
22 2174362 Window, Meat Pan
23 2182730 Egg Bin
24 2174021 Shelf & Roller
Assembly
25 489439 Screw
26 2206346 Shelf, Snack Pan

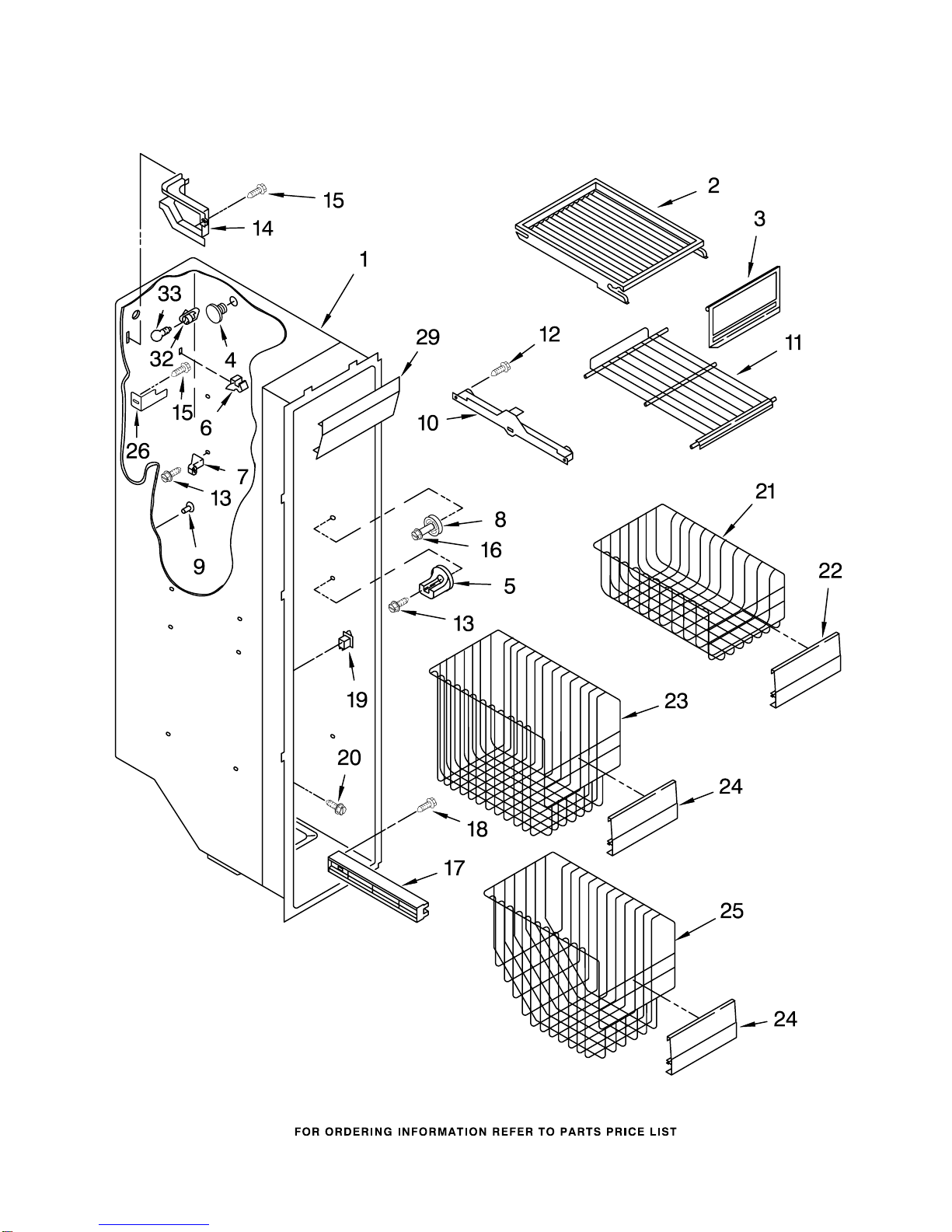

FREEZER LINER PARTS
5
For Model: KSRS25FGSS14
(Stainless Steel)
4398870
FREEZER LINER PARTS
6
For Model: KSRS25FGSS14
(Stainless Steel)
4398870
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2174493 Shelf, Top
Compartment
3 2171713 Door, Ice
Compartment
4 940014 Hole Plug
5 2196207 Stud, Rear
6 842534 Clip, Air Duct (2)
7 2196206 Support, Stud
8 2196483 Stud Assembly
9 2176134 Grommet (2)
10 Slide, Container
1119237 Left Side
1119293 Right Side
11 2174267 Shelf
12 489100 Screw (4)
13 3400893 Screw
14 2155572 Cover, Wiring
15 489355 Screw
16 8281158 Screw
17 Shelf Track
2181760 Right Side (3)
2181759 Left Side (3)
18 486298 Screw
19 1115373 Switch, Rocker Arm
20 489478 Screw
21 2181763 Basket, Shallow
22 2171767 Front, Basket
23 2181765 Basket, Square
24 2171766 Front, Basket
25 2181764 Basket, Sloped
26 2209674 Bracket, Fill Tube
29 2171705 Light Lens
32 2162085 Socket, Light
33 527949 Bulb, Light

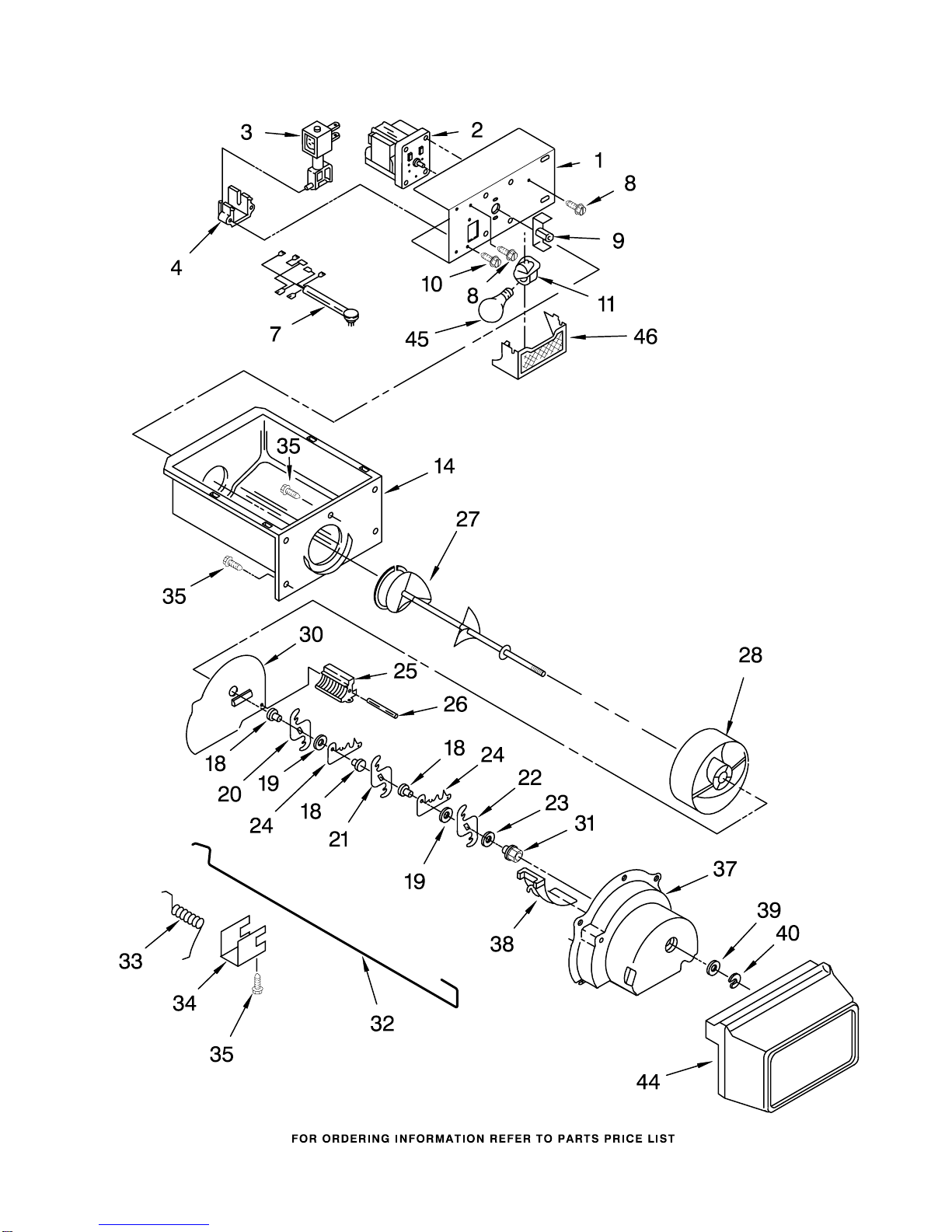

MOTOR AND ICE CONTAINER PARTS
7
For Model: KSRS25FGSS14
(Stainless Steel)
4398870
MOTOR AND ICE CONTAINER PARTS
8
For Model: KSRS25FGSS14
(Stainless Steel)
4398870
Illus. Part
No. No. DESCRIPTION
1 2183726 Bracket, Motor
2 2188385 Motor, Dispenser
3 2152713 Soleniod Assembly
4 2149100 Guide, Solenoid
7 2206501 Wiring Assembly,
Ice Dispenser
8 489399 Screw
9 2205716 Coupling, Motor
10 489478 Screw
11 2162085 Socket, Light
14 2196091 Ice Container
18 1119005 Spacer, Step (3)
19 1119007 Spacer, Flat (2)
20 1119006 Blade, Rotary
21 1119012 Blade, Rotary
22 1119013 Blade, Rotary
23 489235 Washer, Plain
24 1119009 Blade, Fixed (2)
25 2157405 Block, Blade
26 489229 Roll Pin
27 2196295 Auger
28 2209781 Drum
30 2171682 Floating Baffle
31 1119018 Nut, Bearing
32 2155231 Control Arm
33 1119020 Spring, Return
34 1119021 Retainer Clip, Rod
35 488886 Screw
37 2180348 Housing, Crusher
38 1119017 Deflector, Ice
39 489234 Washer, Plain
40 489236 Retainer Ring
44 2204321 Front Cover,
Ice Container
45 527949 Light Bulb
46 2171706 Light Lens,
Dispenser

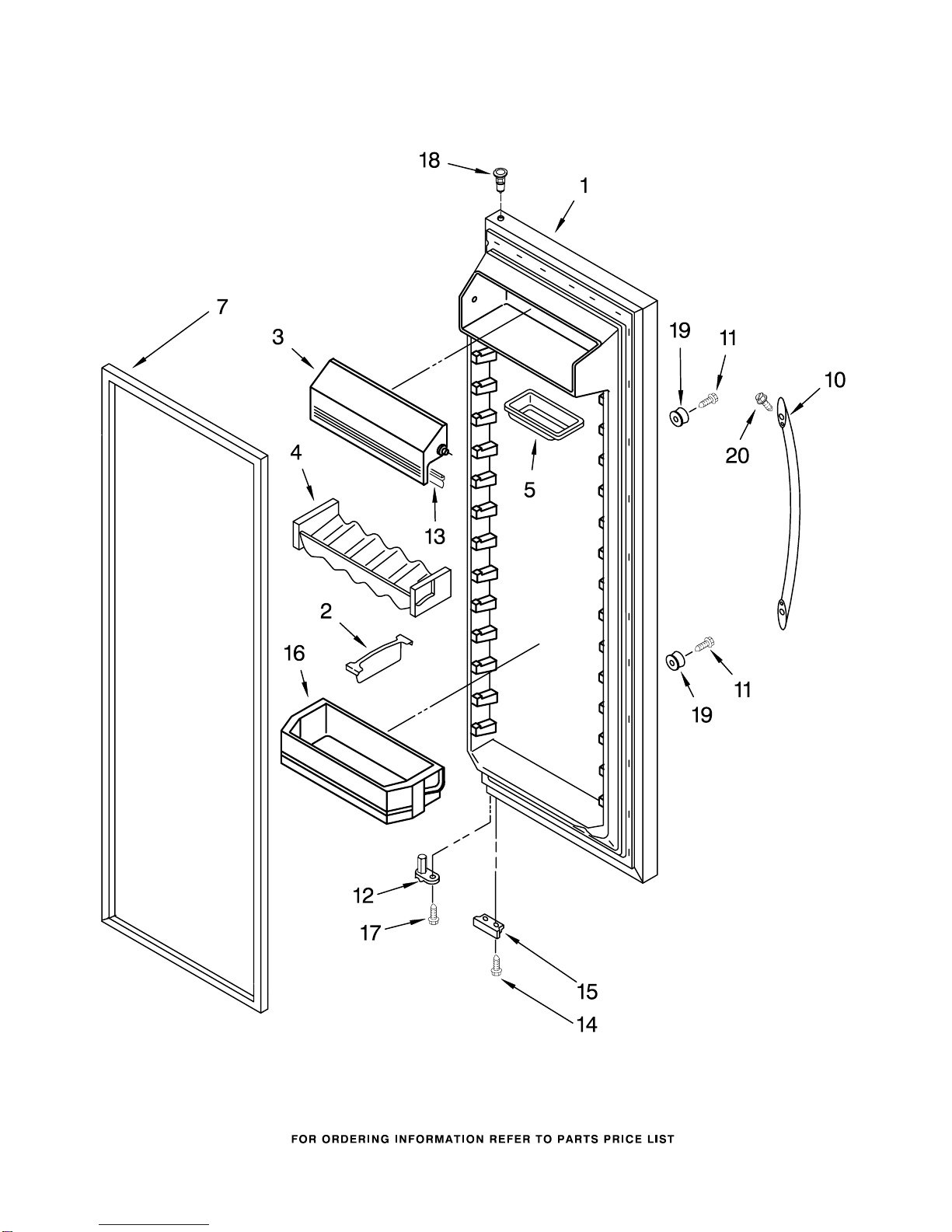

REFRIGERATOR DOOR PARTS
9
For Model: KSRS25FGSS14
(Stainless Steel)
4398870
REFRIGERATOR DOOR PARTS
10
For Model: KSRS25FGSS14
(Stainless Steel)
4398870
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
2203453 Stainless Steel
2 2195497 Load, Lock
3 2182399 Door, Compartment
4 2193409 Holder, Beverage
5 2165792 Butter Dish
7 Door Gasket,
Magnetic (Service)
2159083 Black
10 2204454 Handle
(Includes item 20)
11 489463 Screw
12 2182178 Door Closer,
Upper Cam
13 2159124 Gasket
14 489420 Screw
15 Bracket, Door Stop
2195950 Black
2195952 Chrome
16 2171063 Shelf Bin (4)
17 3400012 Screw
18 2182180 Thimble−Top
19 2203690 Stud, Handle
20 98654 Set Screw
