KitchenAid KSRS27QAWH10 Manuale utente

CABINET PARTS REFRIGERATOR

2−94 Printed In U.S.A. (RCG) Part No. 4379300

For Models: KSRS27QAWH10, KSRS27QAAL10

(White) (Almond)

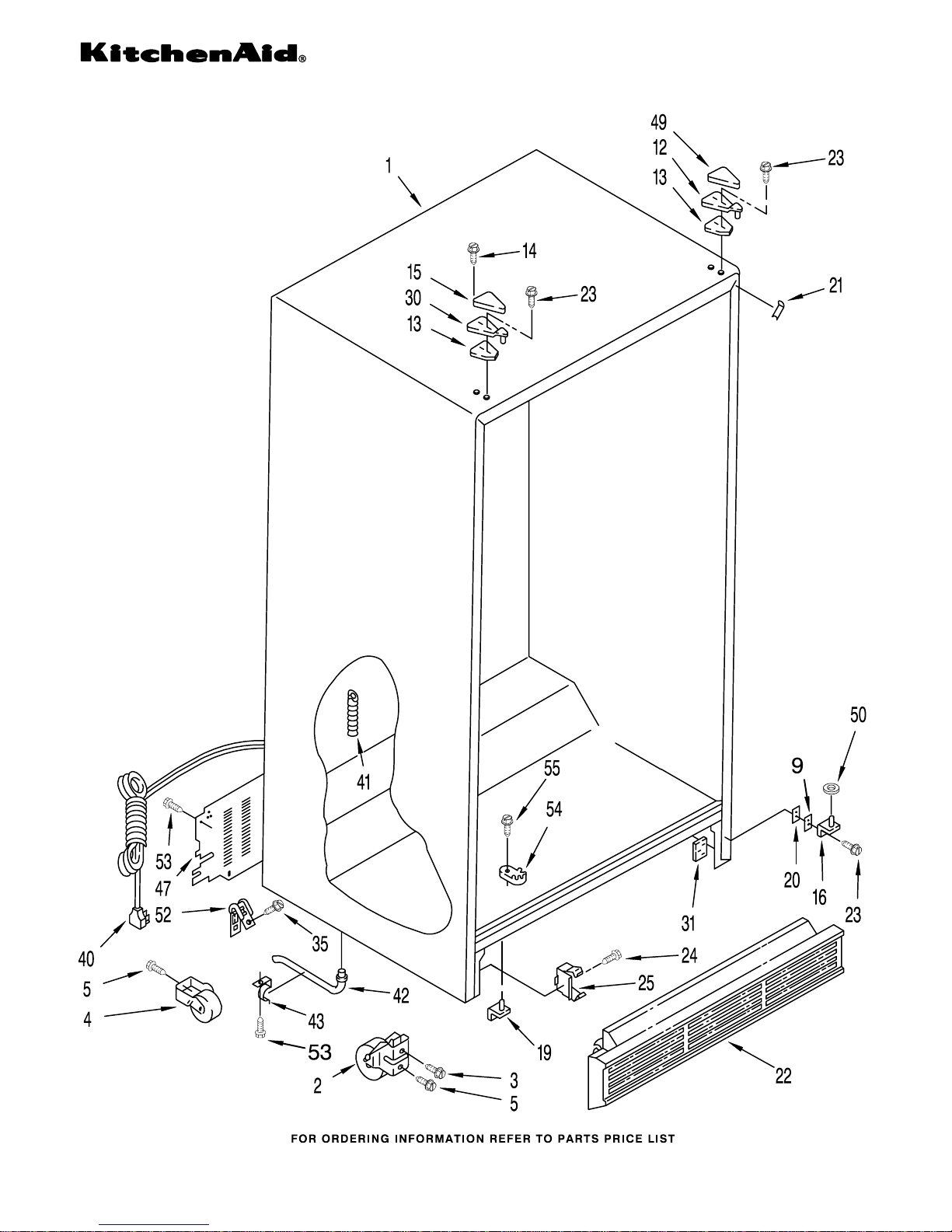

CABINET PARTS

Illus. Part

No. No. DESCRIPTION

For Models: KSRS27QAWH10, KSRS27QAAL10

(White) (Almond)

4379300

1 Cabinet (Not A

Serviceable Part)

2 2152011 Front Roller (2)

3 489393 Screw

4 981122 Roller (Rear) (2)

5 488454 Screw

9 836196 Shim

12 1117937 Hinge Top (R.H.)

13 1123515 Shim, Hinge Top

14 489284 Screw

15 Hinge Cover

1129262 White

2150343 Almond

16 2155321 Hinge Bottom (R.H)

19 2155323 Hinge Bottom (L.H)

20 1129868 Spacer, Hinge

21 Filler, Wrapper

1110708 White

1110709 Almond

22 Grille

2155486 White

2155487 Almond

23 489367 Screw

24 489242 Screw

25 2155013 Clip, Grille

30 2155449 Hinge, Top (L.H.)

31 2147310 Tap Plate (2)

35 489337 Screw

40 937360 Service Cord

41 940139 Drain Fitting

42 1108438 Tube, Extension

43 1108439 Clip, Drain Tube

47 2171576 Cover, Unit

49 Hinge Cover

1119787 White

1119789 Almond

50 489366 Washer

52 549193 Clamp, Service

Cord

53 489084 Screw

54 2155310 Door Closer,

Lower Cam

55 489420 Screw

Illus. Part

No. No. DESCRIPTION

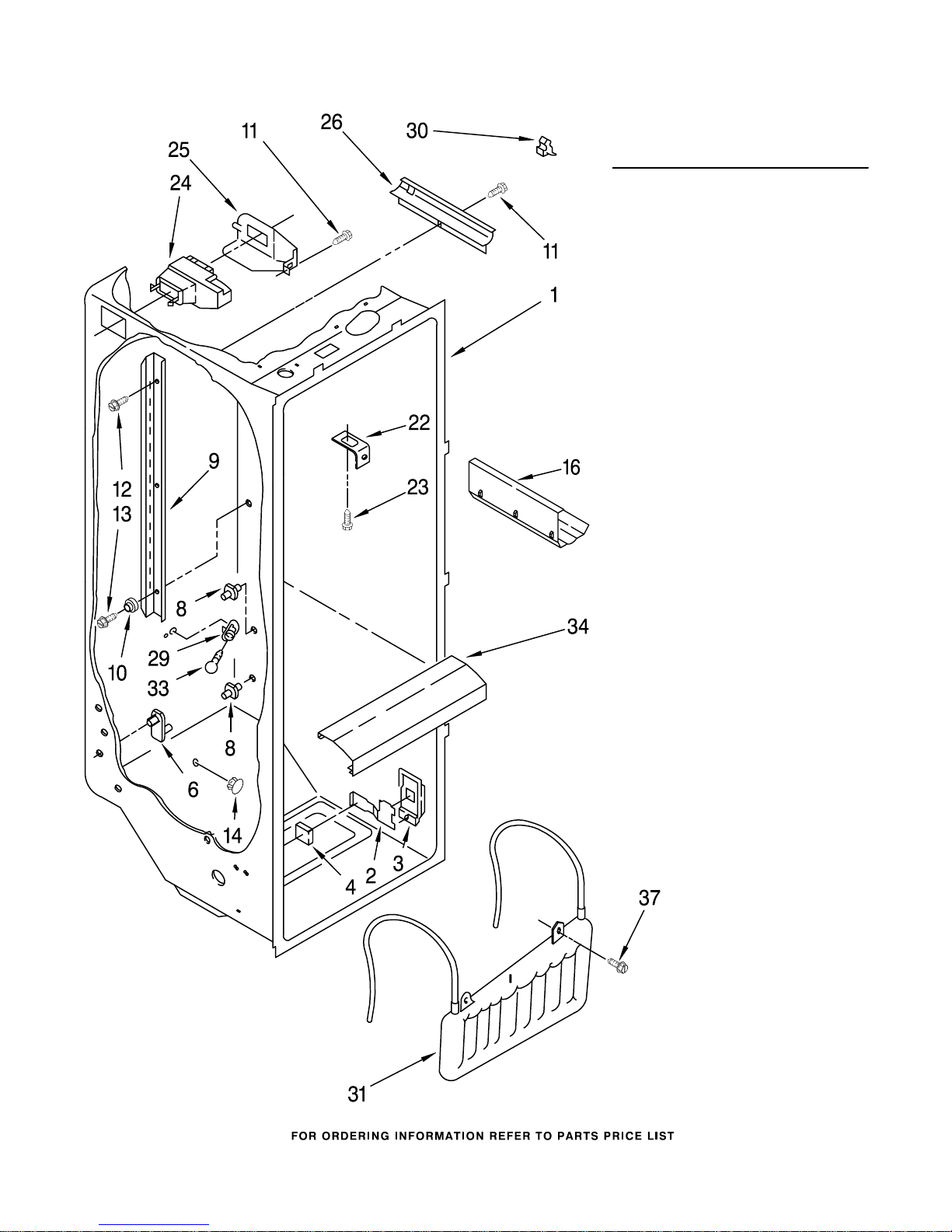

REFRIGERATOR LINER PARTS

For Models: KSRS27QAWH10, KSRS27QAAL10

(White) (Almond)

4379300

1 Liner (Not A

Serviceable Part)

2 985468 Escutcheon, Meat

Pan Control

3 984102 Slide Meat

Pan Control

4 992358 Foam Pad

6 1125675 Stud, Pan Cover

8 1110718 Stud (9)

9 1116794 Ladder, Shelf (2)

10 658944 Stud, Shelf (2)

11 486298 Screw (2)

12 487539 Screw

13 487559 Screw (2)

14 941839 Plug, Hole

16 1126137 Rack, Wine & Egg

22 1123919 Bracket Retainer

23 489290 Screw, (2)

24 2161251 Air Diffuser

Assembly

25 2152019 Air Diffuser

Cover

26 2150331 Cover, Conduit

29 851067 Socket, Light

30 842534 Clip, Air Duct

31 2155290 Reservoir

33 527949 Light Bulb

34 1125586 Light Lens

37 488280 Screw (2)

Illus. Part

No. No. DESCRIPTION

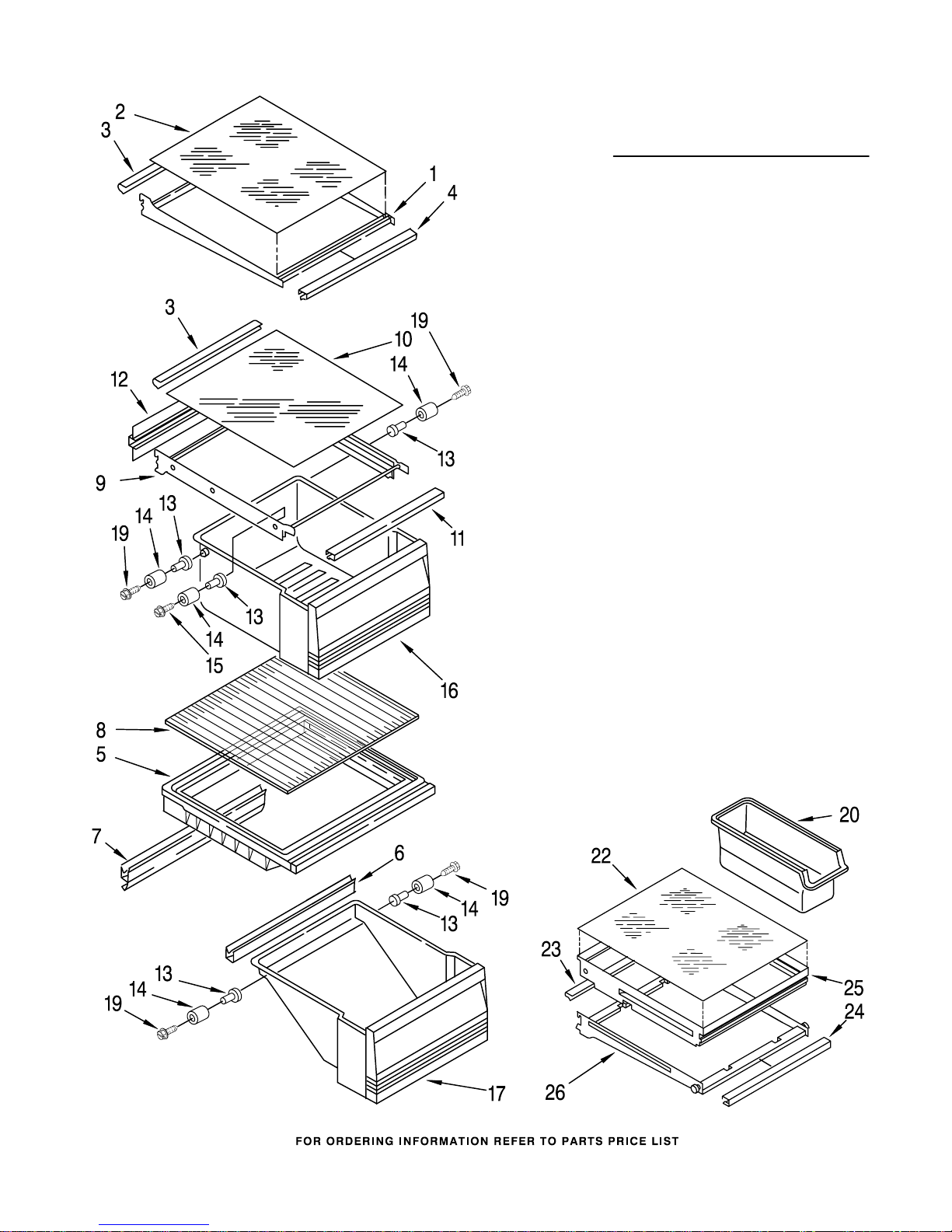

REFRIGERATOR SHELF PARTS

For Models: KSRS27QAWH10, KSRS27QAAL10

(White) (Almond)

4379300

1 1125597 Shelf Assembly,

Cantilever (2)

2 1125593 Glass, Shelf

3 1125594 Retainer, Glass

4 1125786 Gasket, Front

5 2161771 Cover, Pan

Assembly (2)

6 1125705 Gasket, Cover

(Front)

7 1125706 Gasket, Cover

(Rear)

8 1125822 Glass, Cover (2)

9 2161760 Pan Shelf & Slide

Assembly

10 1125595 Glass, Shelf

11 1125814 Gasket (Front)

12 1125817 Gasket (Rear)

13 1112308 Eyelet, Roller

14 2161749 Roller

15 489212 Screw

16 2161893 Crisper Pan (2)

17 2161892 Utility Pan

19 489261 Screw

20 1116917 Container

22 2161683 Glass, Shelf

23 2161809 Reflector

24 2161686 Gasket, Front

25 2161706 Frame And Roller

26 2161806 Frame And Roller

Asm (Cantilever)

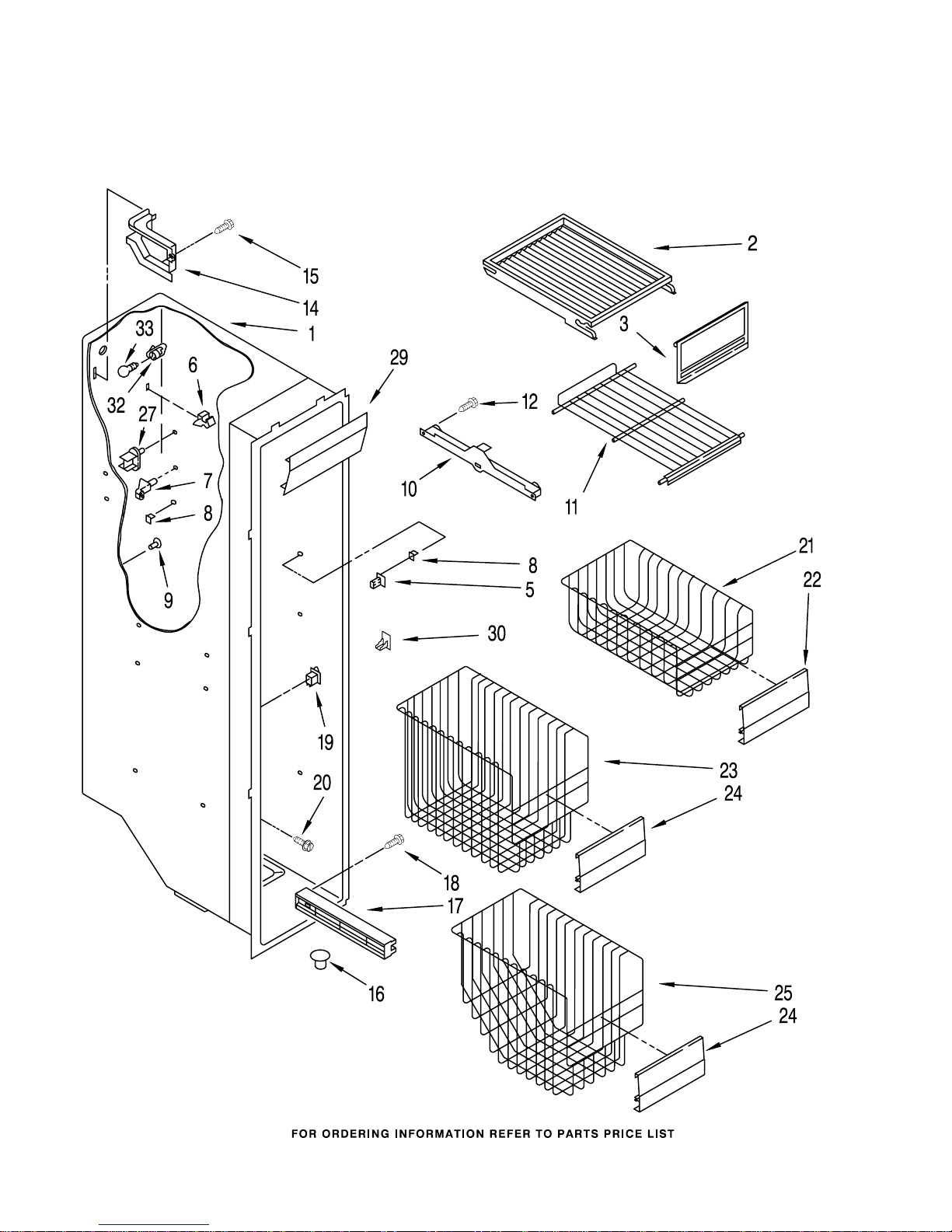

FREEZER LINER PARTS

For Models: KSRS27QAWH10, KSRS27QAAL10

(White) (Almond)

4379300

FREEZER LINER PARTS

Illus. Part

No. No. DESCRIPTION

For Models: KSRS27QAWH10, KSRS27QAAL10

(White) (Almond)

4379300

1 Liner (Not A

Seviceable Part)

2 1125824 Shelf, Top

Compartment

3 1125657 Door, Ice

Compartment

5 946356 Stud, R.S. Front

6 842534 Clip, Air Duct (2)

7 1115317 Support, Stud (4)

8 946355 Support, Stud (2)

9 1110779 Grommet (2)

10 Slide, Container

1119237 Left Side

1119293 Right Side

11 2155683 Shelf

12 489100 Screw (4)

14 2155572 Cover, Wiring

15 489176 Screw

16 2155556 Drain Fitting

17 Shelf Track

1126354 Right Side (3)

1126355 Left Side (3)

18 487042 Screw

19 1115373 Switch, Rocker Arm

20 489242 Screw

21 2155685 Basket, Middle

22 1125770 Front, Basket

23 2152093 Basket, Upper

24 1125612 Front, Basket

25 2152102 Basket, Lower

27 1115386 Stud, Shelf (4)

Compartment

29 1115389 Light Lens

30 1106982 Stud, R.S. Rear

32 851067 Socket, Light

33 527949 Bulb, Light

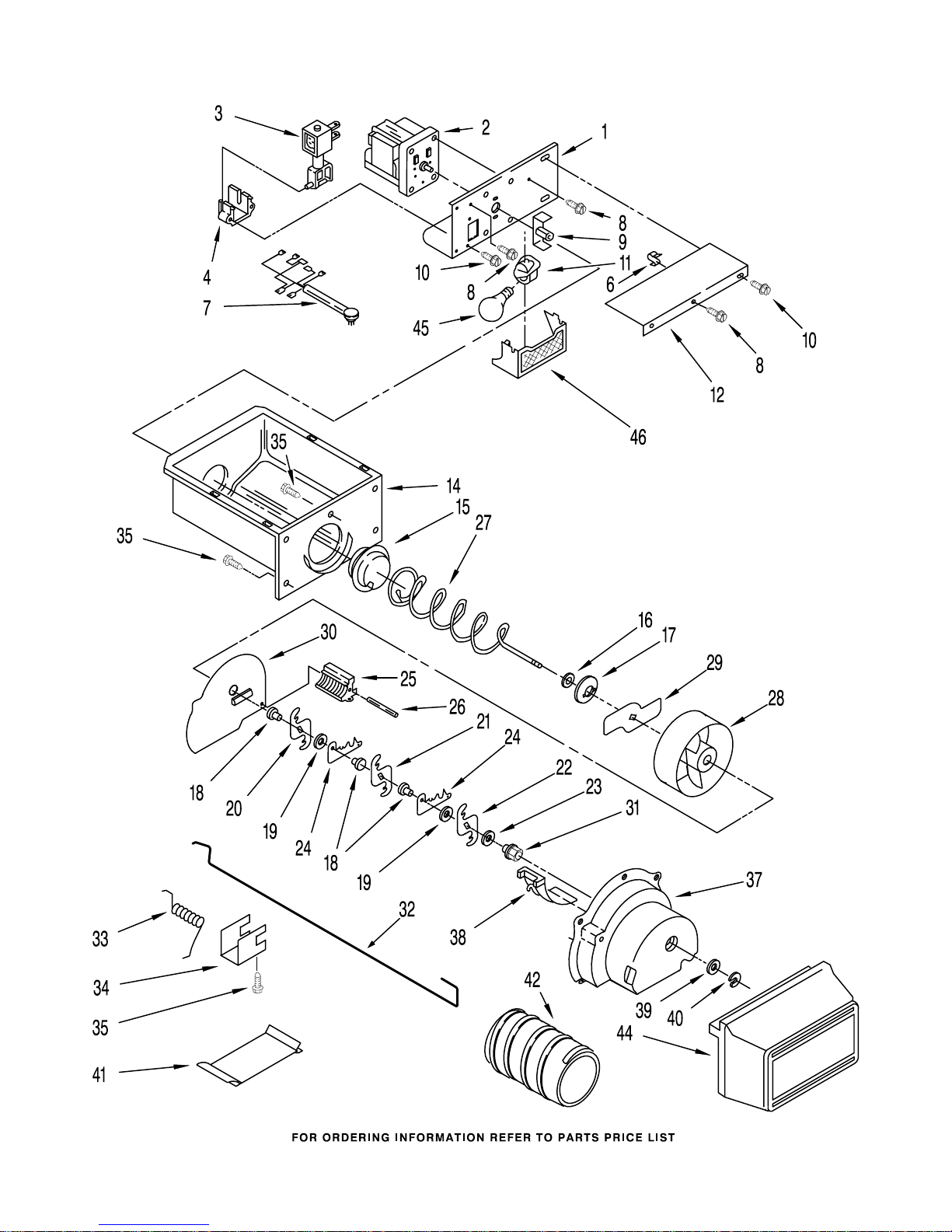

MOTOR AND ICE CONTAINER PARTS

For Models: KSRS27QAWH10, KSRS27QAAL10

(White) (Almond)

4379300

MOTOR AND ICE CONTAINER PARTS

Illus. Part

No. No. DESCRIPTION

For Models: KSRS27QAWH10, KSRS27QAAL10

(White) (Almond)

4379300

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

1 1118386 Bracket, Motor

2 2155263 Motor, Dispenser

3 2152713 Soleniod Assembly

4 2149100 Guide, Solenoid

6 1115374 Clip, Wiring

7 2149192 Wiring Assembly,

Ice Dispenser

8 489399 Screw

9 983663 Coupling, Motor

10 489242 Screw

11 851067 Socket, Light

12 1115339 Cover, Motor

14 2152702 Ice Container

15 983668 Coupling, Conveyor

16 1118480 Stop, Cone

17 1119074 Feeder Cone

18 1119005 Spacer, Step (3)

19 1119007 Spacer, Flat (2)

20 1119006 Blade, Rotary

21 1119012 Blade, Rotary

22 1119013 Blade, Rotary

23 489235 Washer, Plain

24 1119009 Blade, Fixed (2)

25 2157405 Block, Blade

26 489229 Roll Pin

27 1119003 Conveyor

28 2171681 Drum

29 1118470 Drive Bar

30 2171682 Floating Baffle

31 1119018 Nut, Bearing

32 2155231 Control Arm

33 1119020 Spring, Return

34 1119021 Retainer Clip, Rod

35 488886 Screw

37 2157407 Housing, Crusher

38 1119017 Deflector, Ice

39 489234 Washer, Plain

40 489236 Retainer Ring

41 2152700 Housing, Filler

42 2152021 Sleeve−Auger

43 1119043 Ice Deflector

44 1126036 Front Cover,

Ice Container

45 527949 Light Bulb

46 983359 Light Lens,

Dispenser

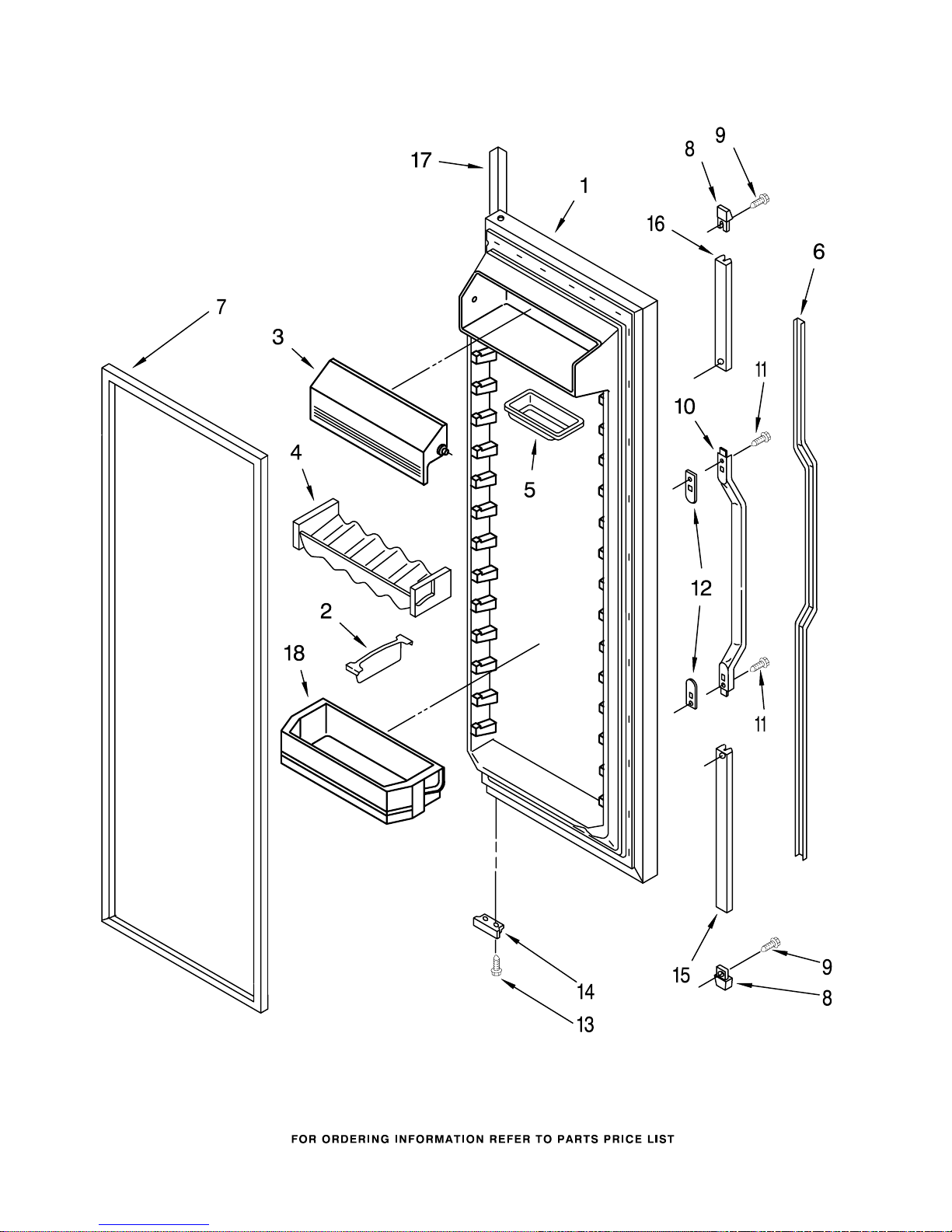

REFRIGERATOR DOOR PARTS

For Models: KSRS27QAWH10, KSRS27QAAL10

(White) (Almond)

4379300

REFRIGERATOR DOOR PARTS

Illus. Part

No. No. DESCRIPTION

For Models: KSRS27QAWH10, KSRS27QAAL10

(White) (Almond)

4379300

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes Item 7)

2171580 White

2171581 Almond

2 2161564 Load Lock

3 2159136 Door, Compartment

4 1125981 Holder, Beverage

5 1125936 Butter Dish

6 Insert, Handle

1117948 White

1117949 Almond

7 2159079 Door Gasket,

Magnetic (Service)

8 1107341 End Cap, Handle

9 489075 Screw (2)

10 1107215 Handle Assembly

11 489084 Screw

12 1107651 Spacer, Handle

13 489367 Screw

14 2155331 Bracket, Door Stop

15 1117952 Retainer, Insert

(Bottom)

16 1107243 Retainer, Insert

Hinge Side

17 1119062 Trim, Door

18 1126069 Shelf Bin (4)

BLACK GLASS PANEL KIT

(Optional Kit)

4318526 Trim Kit

Trim Kit Panels

4211148 White

4211147 Almond

4210348 Black

Handle Inserts

4318339 Black

4318340 Woodgrain

4318417 Black Grille Kit

PARTS NOT ILLUSTRATED

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

Customer Touch−Up Material

350942 Primer, White

(13 Oz. Spray Can)

350941 Leveler, Enamel

(13 Oz. Spray Can)

350939 Enamel, Black

(13 Oz. Spray Can)

350930 Enamel, White

(13 Oz. Spray Can)

350956 Enamel, Almond

(13 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

72107 Brush Touch−Up Kit

(Almond)

72032 Brush Touch−up kit

(Black)

Miscellaneous

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4 x 108")

876370 Kit, Insulation

(2 Pcs. x 3" x 24"

X 48")

876305 Kit, Insulation

(14 Pcs. x 3"

x 24" x 48")

978941 Insulation,

Fiberglass

(63−1/2" x 35−1/2"

X 2−5/8)

876029 Kit, Foam Slab

(30" x 32−1/2"

x 1−1/2")

505587 Sealer, Mastic

(1 Qt.)

503695 Cork, Sealer

(1/4 Pound)

511873 Touch−Up, White

Porcelain (2 Oz.)

542638 Grease, Silicone

(1/2 Oz.)

542639 Cement,

Alumilastic

(1−1/4 Oz.)

606755 Bag, Insulation

(36−5/8" x 46")

799833 Kit, Evaporator

Repair

(Aluminum Epoxy)

833938 Kit, Terminal

Connector

515393 Transformer

(115−230 Volts)

2152710 Ice Container Asm

2149072 Ice Crusher Asm

Refinishing Material

799340 Enamel, Black

(1 Qt. Uncut)

799344 Enamel, White

(1 Qt. Uncut)

978883 Enamel, Almond

(1 Qt. Uncut)

LITERATURE PARTS

LIT2155734 Use And Care Guide

LIT2169394 Service & Wiring

Sheet

LIT2168863 Energy Label

LIT628370 Modular Icemaker

Service Sheet

TORX SCREW WRENCH

1117510 Torx Key
