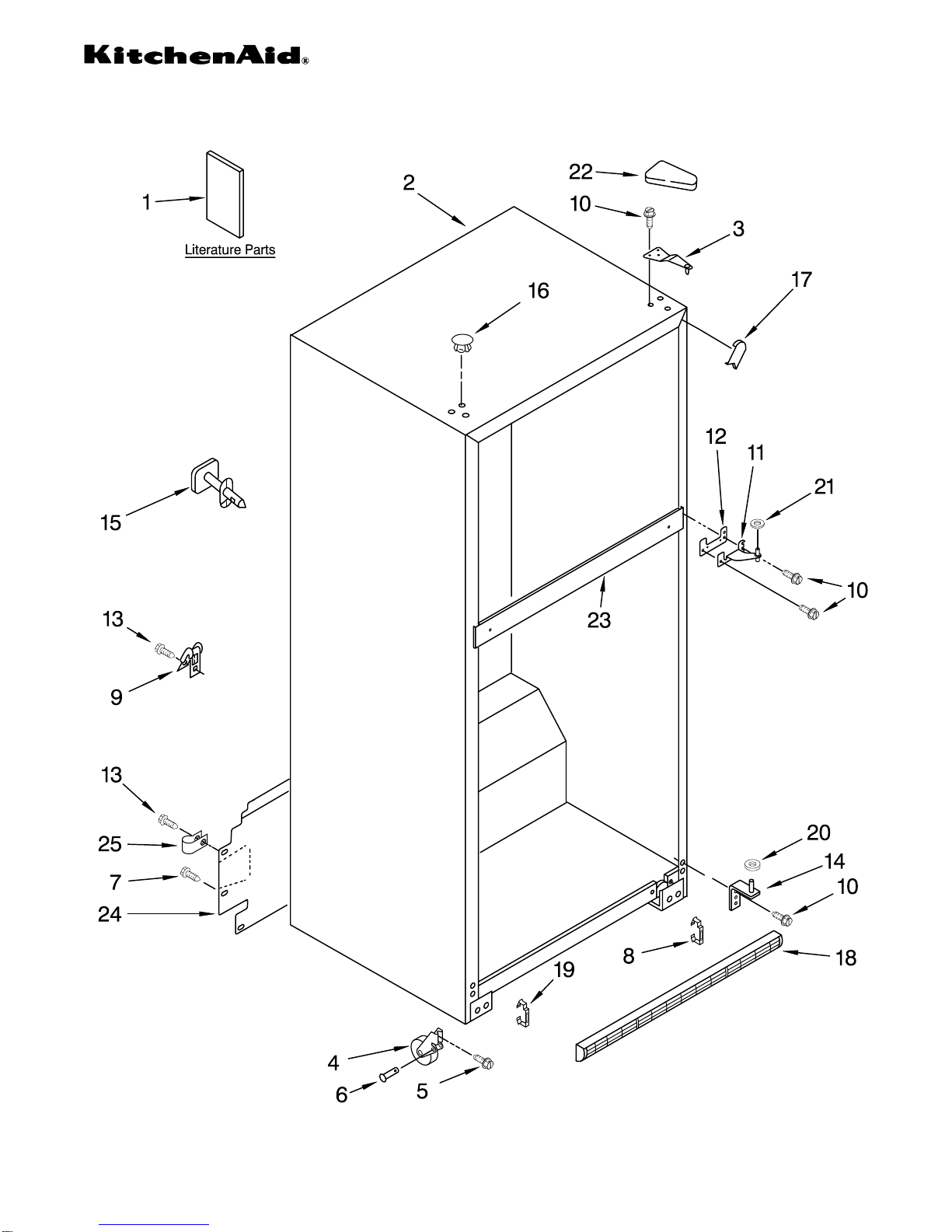

CABINET PARTS

For Models: K9TREFFWWH00, K9TREFFWBL00, K9TREFFWMS00

(WHITE) (BLACK) (STAINLESS STEEL)

07−09 Litho In U.S.A. (mjb)(bay) Part No. W10287658 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: K9TREFFWWH00, K9TREFFWBL00, K9TREFFWMS00

(WHITE) (BLACK) (STAINLESS STEEL)

W10287658

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10142143

Service & Wiring

Sheet

Energy Label

W10249210

English

W10279307

Use & Care Guide

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

787316 Do−It−Yourself

Manual, Icemaker

2 Cabinet (Not A

Serviceable Part)

3 2189410 Hinge (Top)

4 2166108 Roller, Front (2)

5 3400504 Screw

6 2179826 Rivet

7 489427 Screw

8 2254385 Clip−Grille

(Right Side)

9 549193 Clamp, Cord

10 489497 Screw

11 2254618 Hinge, Center

12 2183852 Shim, Hinge

Center

13 8281265 Screw

14 2254473 Hinge Butt

15 Fitting, Water Tube

(NOT SERVICED)

16 Hole Plug (6)

2201012 White

2254506 Apollo Grey

2183998 Black

17 Corner Filler (2)

2201014 White

2254507 Apollo Grey

2201017 Black

18 Grille

(Includes

Items 8 & 19)

2254386 White

2254531 Apollo Grey

2254388 Black

19 2189356 Clip, Grille

(Left Side)

20 487576 Washer

21 489341 Washer

22 Cover, Hinge

2213360 White

2254510 Apollo Grey

2213363 Black

23 Rail, Center

(NOT SERVICED)

24 2254578 Cover, Unit

25 489385 Clamp−Tube

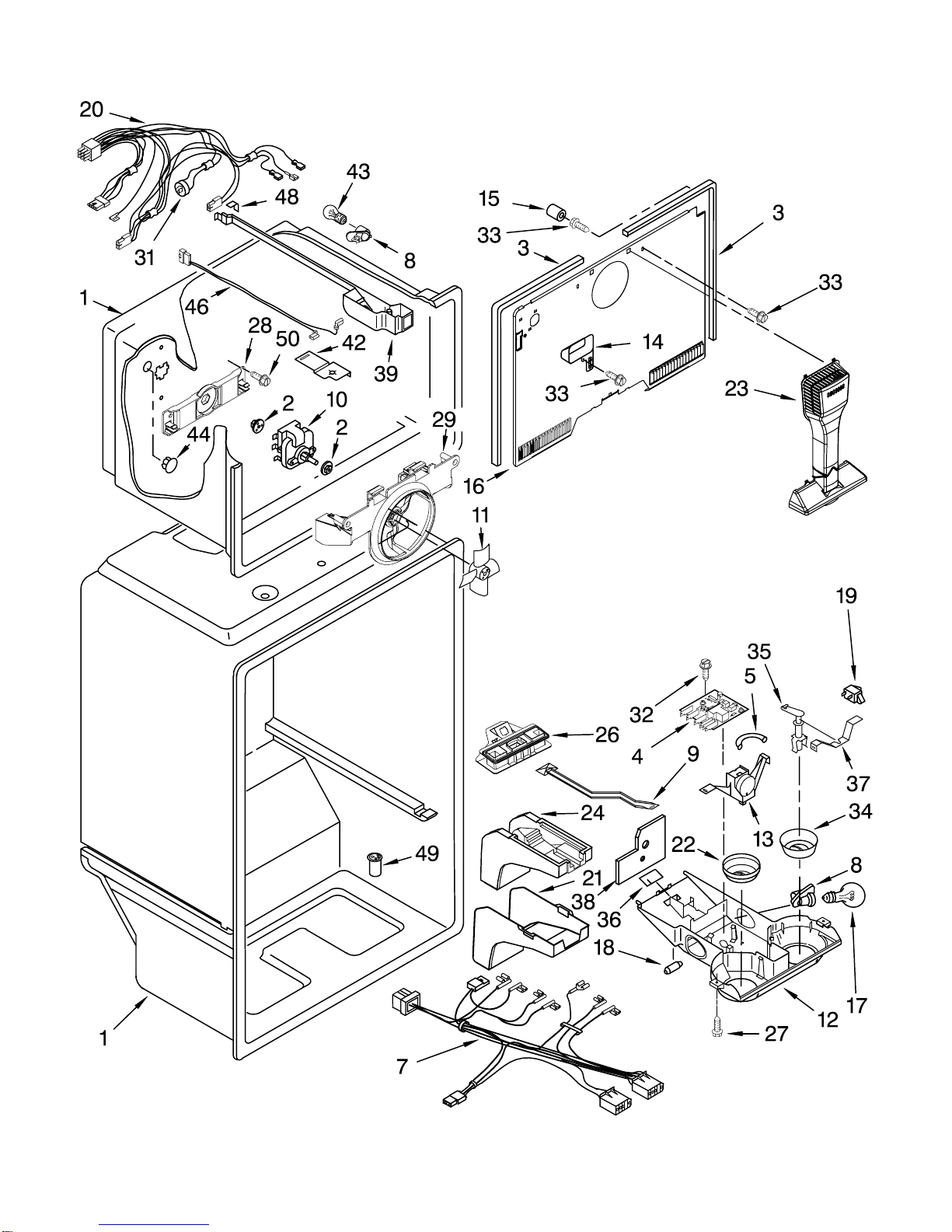

LINER PARTS

For Models: K9TREFFWWH00, K9TREFFWBL00, K9TREFFWMS00

(WHITE) (BLACK) (STAINLESS STEEL)

W10287658

LINER PARTS

For Models: K9TREFFWWH00, K9TREFFWBL00, K9TREFFWMS00

(WHITE) (BLACK) (STAINLESS STEEL)

W10287658

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2197380 Grommet (2)

3 2254359 Gasket, Evaporator

Cover (2)

4 2304099 Adaptive, Defrost

Control

5 2212485 Thermostat Tube

Barrier

7 2310057 Wire Assy.

Control Box

8 2162085 Socket, Light

9 2179858 Damper, Air

W10189703

Fan Motor

11 2163777 Fan Blade

12 2212982 Control Box

13 2200830 Thermostat Assembly

(Includes Illus. 5 & 18)

14 2205003 Cover−Inlet Tube

15 487996 Plastic Closure

16 2320191 Cover, Evaporator

17 527949 Light Bulb

18 2200831 Weight, Thermal

19 1118894 Rocker Arm

Switch

W10129799

Wire Assembly,

Freezer Compartment

(Includes

Illus. 31)

21 2176281 Cover, Air

Diffuser

22 2200863 Knob, Thermostat

23 2254354 Air Tower

24 2189452 Air Diffuser,

Bottom

26 2179877 Air Separator

Assembly

27 489442 Screw

28 2254454 Bracket

Evap. Fan, Rear

29 2254453 Bracket,

Fan Motor

31 2321800 Defrost, BI−Metal

32 8534009 Screw

33 489478 Screw

34 2302536 Knob, Damper

35 2179859 Post, Damper

36 2205079 Seal, Rear

Thermostat

37 2163810 Bracket,

Damper Knob

38 2204639 Shield, Heat

39 2300417 Housing Base

Floor Assembly

Pullout Fzr.Floor

42 2193491 Electrical Shield,

Freezer Light

43 850166 Light Bulb

44 941839 Hole Plug

46 2187601 Wiring Harness,

Freezer Light

48 2166284 Gasket, Rear

49 2171931 Valve−Tube, Body

50 488208 Screw

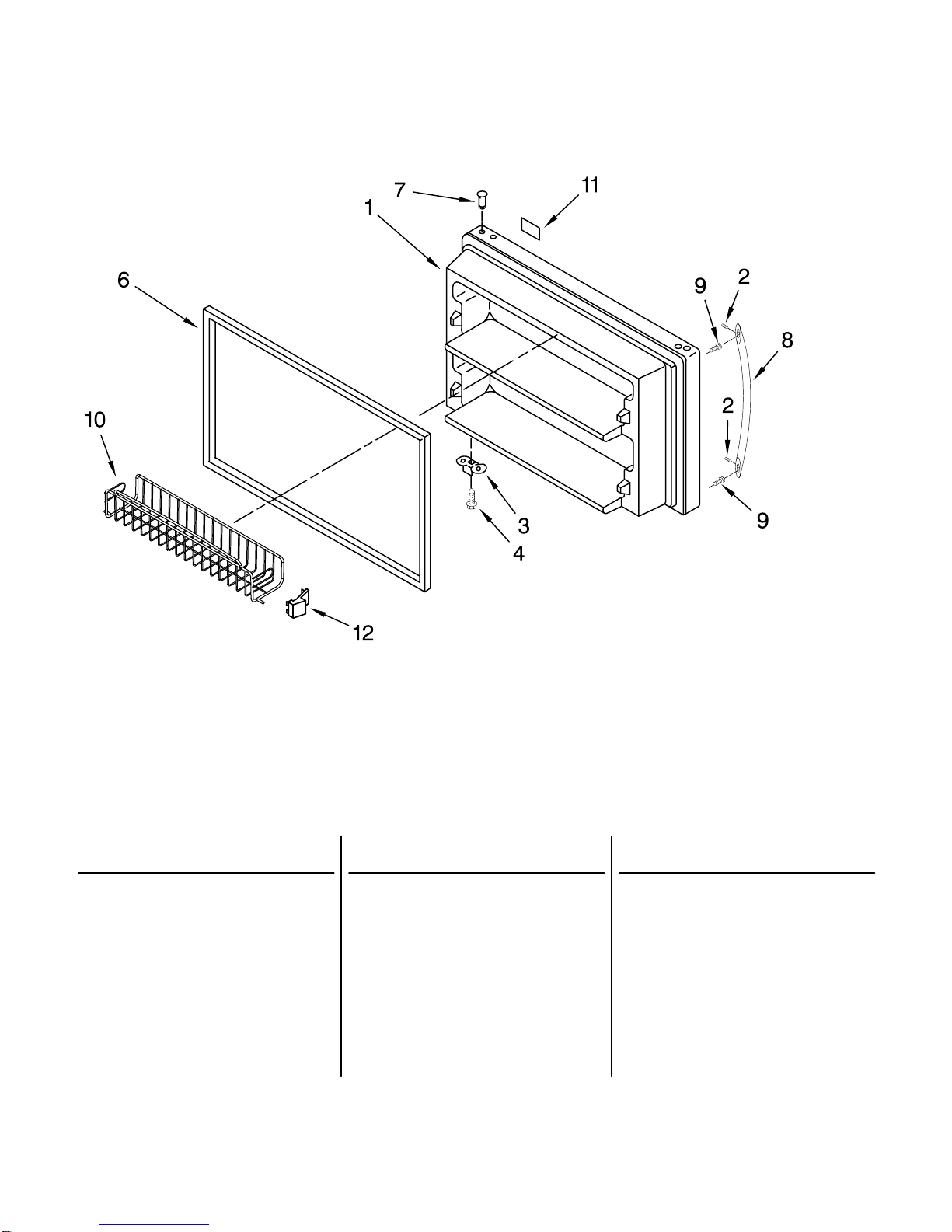

FREEZER DOOR PARTS

For Models: K9TREFFWWH00, K9TREFFWBL00, K9TREFFWMS00

(WHITE) (BLACK) (STAINLESS STEEL)

W10287658

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Freezer Door

(Includes

Illus. 6 & 7)

W10279778

White

W10279784

Stainless Steel

W10279779

Black

W10278738

Set Screw

3 2189202 Bracket, Door

Stop

4 488921 Screw, 8 x 1/2

6 Door Gasket,

Magnetic

2214966 Mist Beige

2214968 Black

W10279559

Apollo Grey

7 2314293 Thimble

8 Handle, Door

(Includes

Illus. 2)

W10274654

White

W10274656

Arch Grip

W10274655

Black

W10170540

Screw

10 2300797 Door Basket−(FC)

11 Nameplate

W10046670

White

W10046610

Grey

W10046640

Black

12 2300798 End Cap−Bskt.(LH)

2300799 End Cap−Bskt.(RH)

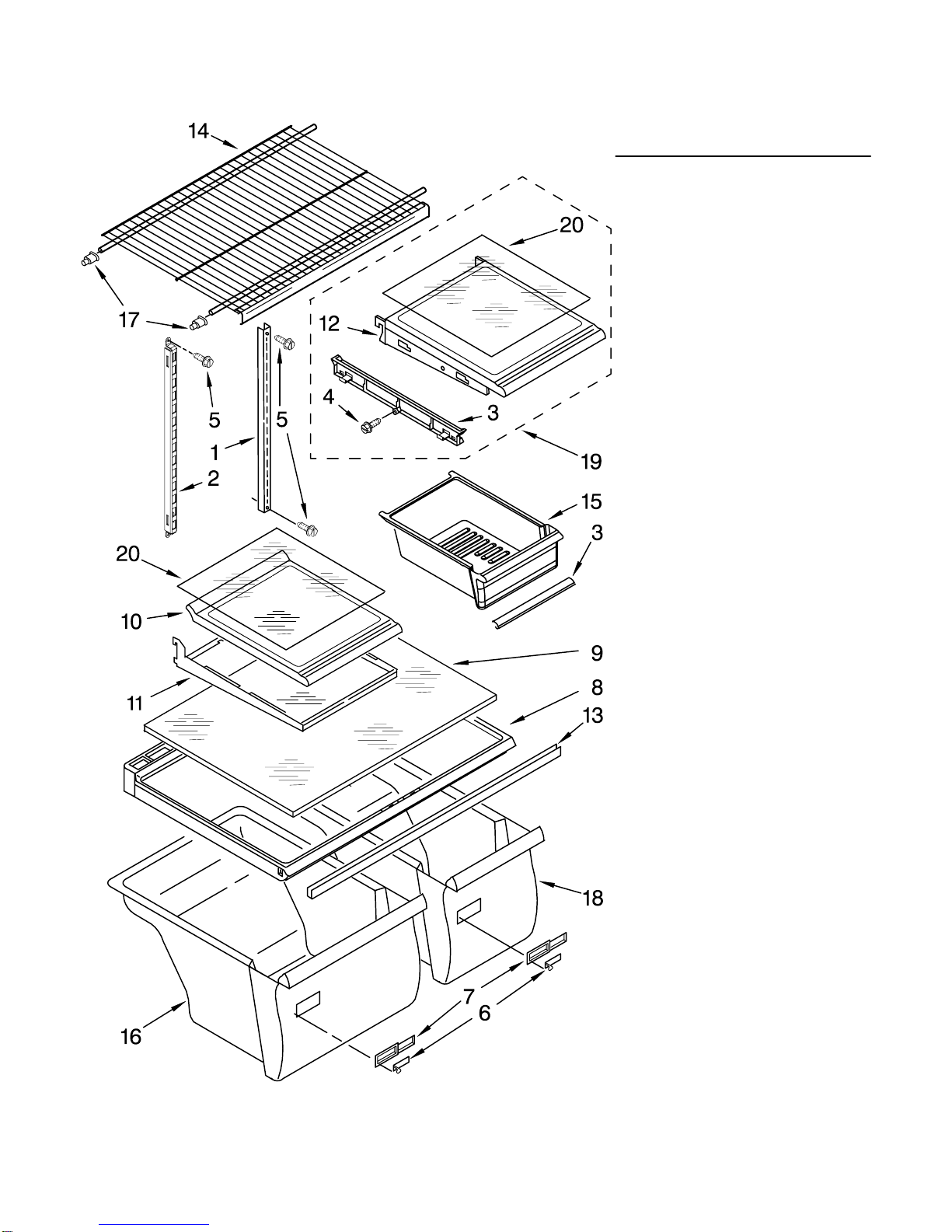

SHELF PARTS

For Models: K9TREFFWWH00, K9TREFFWBL00, K9TREFFWMS00

(WHITE) (BLACK) (STAINLESS STEEL)

W10287658

Illus. Part

No. No. DESCRIPTION

1 2210522 Shelf, Ladder (2)

2 2300520 Shelf, Ladder

Center

3 2214892 Slide, Pan

4 3400065 Screw

5 489478 Screw

6 2176222 Slide, Humidity

Control

7 2212446 Body, Humidity

Control

8 2314495 Crisper Cover

9 2221693 Glass, Crisper

Cover

10 2225713 Shelf, Spillgaurd

11 2225696 Frame Assembly,

Shelf

12 2214908 Frame Assembly,

Meat Shelf

13 2314477 Support, Crisper

Cover

14 2189453 Shelf, Freezer

15 2218127K Pan, Meat

16 2218130 Crisper Pan−13"

(Includes

Illus. 4,6 & 7)

17 2163762 Cup, Shelf mtg.

18 2218129 Crisper Pan−10"

(Includes

Illus. 6,7 & 19)

19 2214910 Shelf Assy

20 2214912 Shelf, Glass

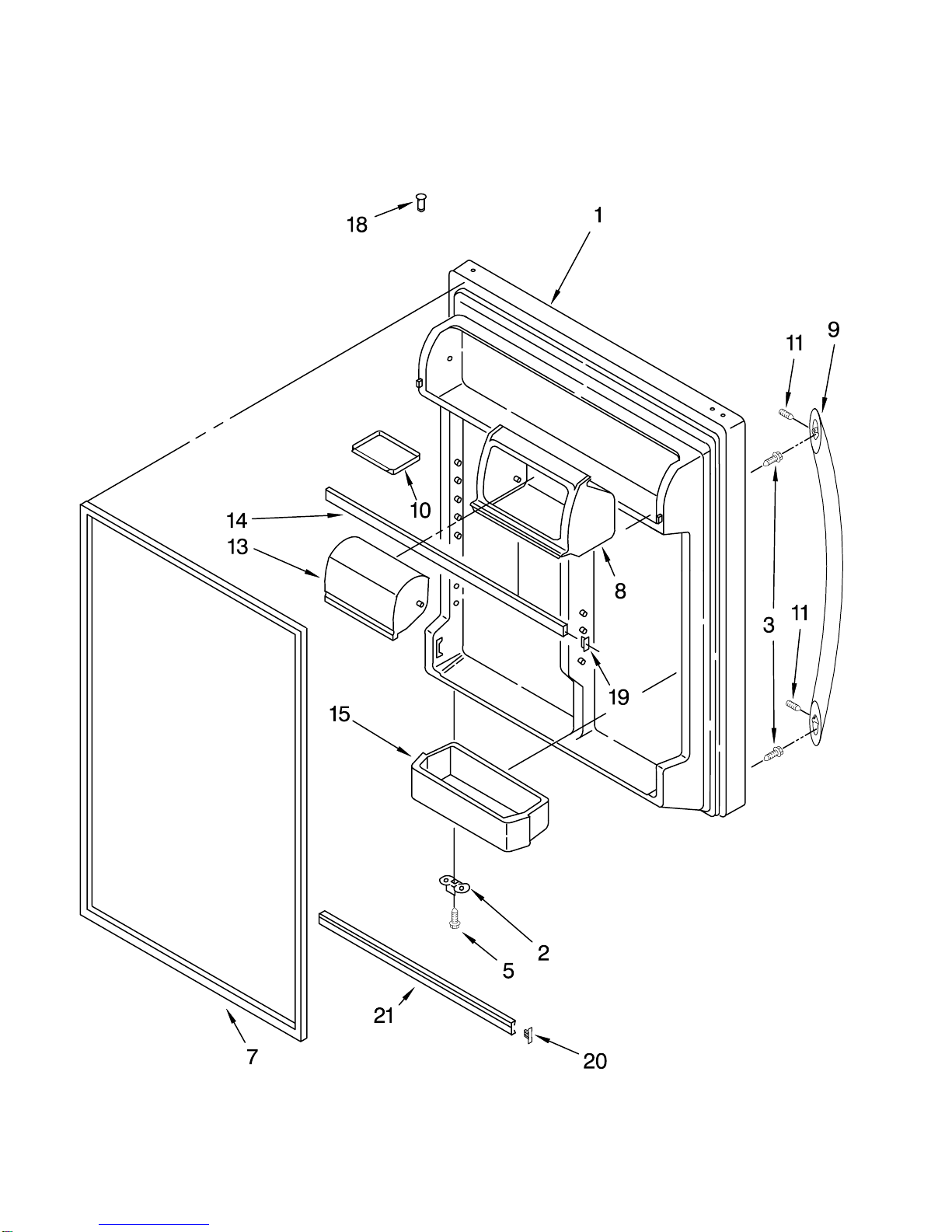

REFRIGERATOR DOOR PARTS

For Models: K9TREFFWWH00, K9TREFFWBL00, K9TREFFWMS00

(WHITE) (BLACK) (STAINLESS STEEL)

W10287658

REFRIGERATOR DOOR PARTS

For Models: K9TREFFWWH00, K9TREFFWBL00, K9TREFFWMS00

(WHITE) (BLACK) (STAINLESS STEEL)

W10287658

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes

Illus. 7 & 18)

W10280366

White

W10280373

Stainless Steel

W10280367

Black

2 2189202 Bracket, Door

Stop

W10170540

Screw

5 488921 Screw 8 x 1/2

7 Door Gasket,

Magnetic

2202874 Mist Beige

2202881 Black

W10279664

Apollo Grey

8 2210566 Compartment Door

9 Handle, Door

W10274654

White

W10274656

Arch Grip

W10274655

Black

10 2159302 Tray, Door

W10278738

Set Screw

13 2218109 Door Compartment

14 2159312 Trim, Door Shelf

15 2179605 Bin, Door (3)

18 2314293 Thimble

19 2177340 Plug, Trim (2)

20 2156006 Plug, Trim

21 2195949 Trim, Door Shelf

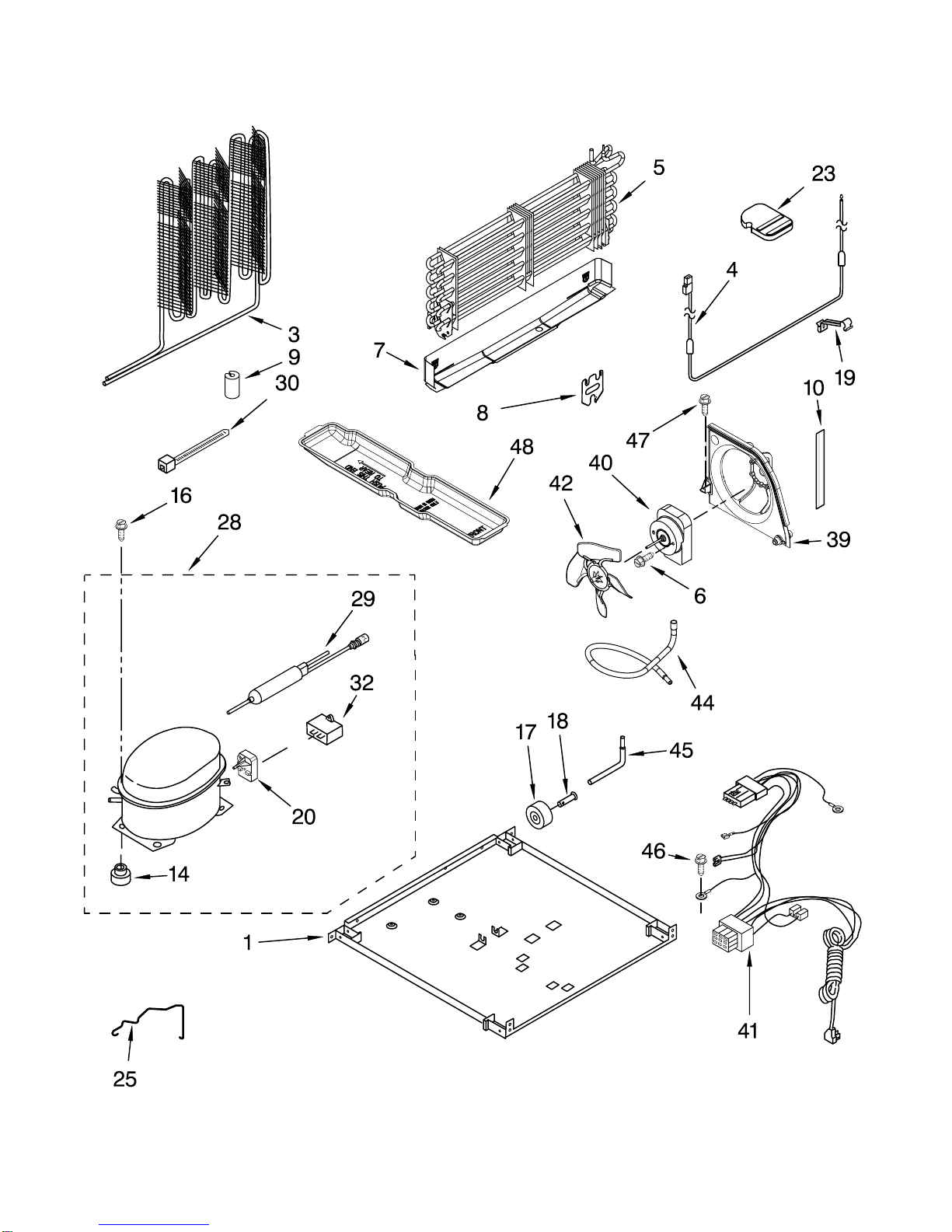

UNIT PARTS

For Models: K9TREFFWWH00, K9TREFFWBL00, K9TREFFWMS00

(WHITE) (BLACK) (STAINLESS STEEL)

W10287658

UNIT PARTS

For Models: K9TREFFWWH00, K9TREFFWBL00, K9TREFFWMS00

(WHITE) (BLACK) (STAINLESS STEEL)

W10287658

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2320188 Plate, Unit

Mounting

Sound Dampening

W10159808

Condenser

4 2315531 Heater, Defrost

5 2254250 Evaporator Assy.

6 8533961 Screw

7 2254294 Drain Pan

8 2176301 Bracket, Heater

9 2319835 Grommet−Cond(4)

10 2300638 Extension, Air

Baffle

14 Grommet (4)

1100826 Production

4387558 Service

16 489373 Screw

17 2150304 Roller (2)

18 2221797 Rivet

19 2182338 Clip, Heater

W10249964

Start−Device

Combination

(Start Relay and

Overload for

Production

Compressor Only)

23 2201184 Support Block

25 2255113 Strap

W10252075

Compressor

(Includes

Illus.14,29 & 32)

(Also Order

482801

Installation Kit

& 876765

Tube Kit)

29 Drier

W10177049

Service

30 2155774 Clamp

32 Capacitor

2264017 Production

1118576 Service

39 2315541 Air Baffle

40 2188874 Motor, Condenser

41 2187382 Wire Assembly,

Unit

42 2225834 Fan Blade

44 2225237 Tube, Suction

45 2154109 Tube, Process

46 488500 Screw

47 3400518 Screw

48 2254574 Evaporator Tray

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

4.0 Ozs.

(R134A)
