KitchenAid KSRS25QWH11 Manuale utente

1 Cabinet (Not A Serviceable Part

2 981128 Front Roller (2)

3 488681 Screw, 5/16-24 x 1-1/4

4 981122 Roller (Rear) (2)

5 488454 Screw, (4) 1/4-28 x 1/2

6 1118355 Mullion Rail

7 1110606 Heater Mullion

8 Front Mullion Rail

1123972 White

1123975 Almond

10 Filler Bottom Mullion

1118361 White

1118362 Almond

11 1110607 Clip Ground

12 1123514 Hinge, Top

13 1123515 Shim, Hinge Top

14 489284 Screw, Bind

15 Hinge Cover

987191 White

989887 Almond

16 986763 Hinge Bottom (R.H)

17 986759 Door Closer Lower Cam (2)

18 489296 Screw, (2)

19 986764 Hinge Bottom (L.H)

20 1129868 Spacer, Hinge

21 Filler, Wrapper

1110708 White

1110709 Almond

22 Grille

1125715 White

1125717 Almond

23 489327 Screw,

489297 Screw (Repair)

27 1114789 Clip, Grille Retainer (2)

29 1129178 Grommet

30 1123510 Hinge, Top (L.H.)

31 2147310 Tap Plate (2)

32 1129190 Cabinet Harness

33 489048 Screw, Ground

34 937357 Clamp

35 489242 Screw

489254 Screw (Repair)

36 1129193 Cover, Wiring

37 1108440 Wiring Shield, Short

38 1119063 Wiring Shield, Long

39 1105607 Tube Clamp (2)

40 937360 Service Cord

41 842258 Drain Ferrule

42 1108438 Extension Tube

43 1108439 Clip, Drain Tube

44 488978 Screw

45 1110626 Cover, Plug

46 1115322 Sealing Gasket

47 2147323 Cover, Unit

48 489084 Screw, 8 x 1/2 (6)

49 Hinge Cover

1119787 White

1119789 Almond

51 1118237 Insulation

52 549193 Clamp, Service Cord

53 548745 Clip, Wire

54 1129188 Wiring Assembly (Icemaker)

56 836472 Clamp, Water Line (2)

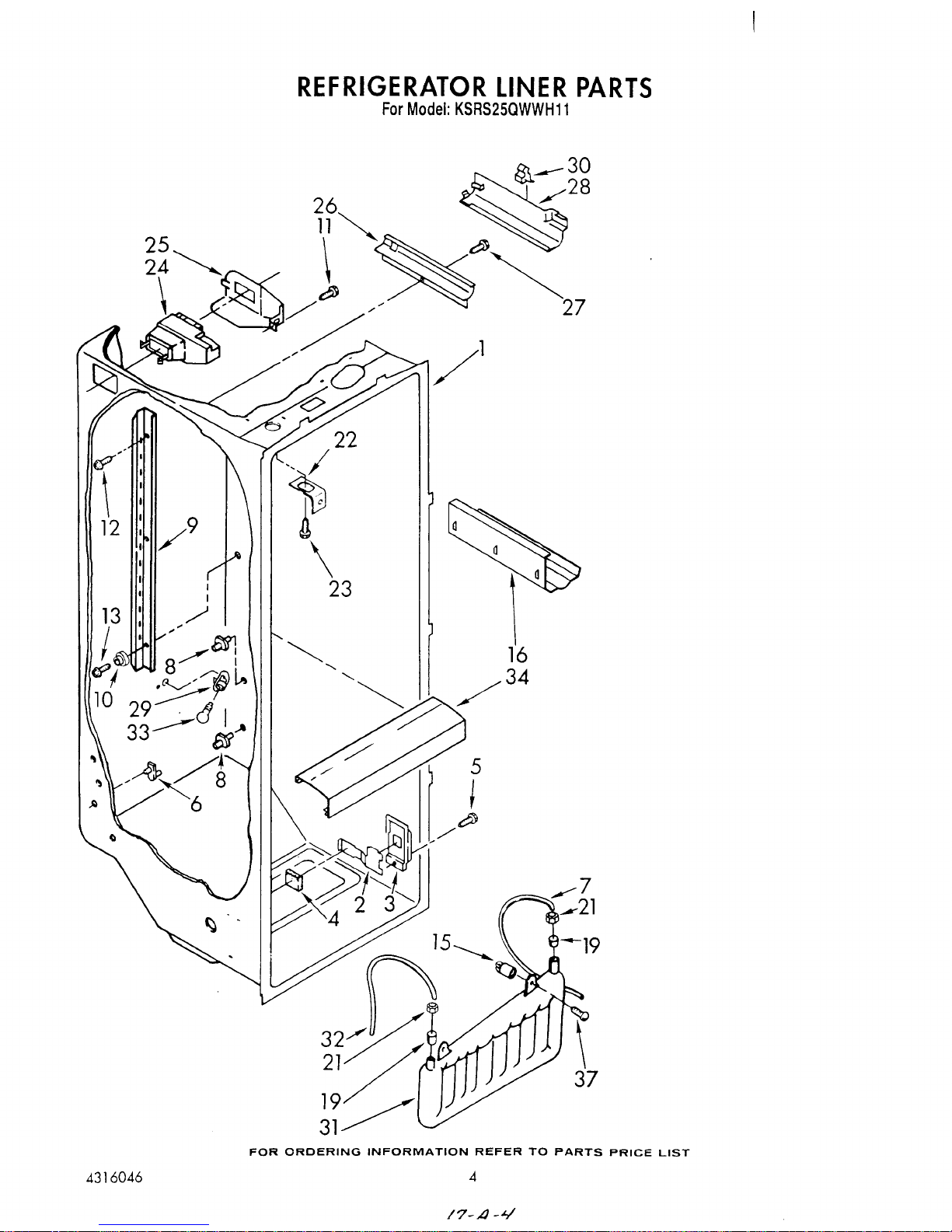

1 Liner (Not A Serviceable Part)

2 985468 Escutcheon, Meat Pan Control

3 984102 Slide Meat Pan Control

4 992358 Foam Pad

5 486214 Screw, 8-15 x 1/2

6 1125675 Stud, Pan Cover

7 1119096 Tube, Water

8 1110718 Stud (9)

9 1116794 Ladder, Shelf (2)

10 658944 Stud, Shelf (2)

11 489242 Screw (2)

12 487539 Screw, 8 x 1/2 (4)

13 487559 Screw (2)

15 1115399 Stud, Spacer (2)

16 1125913 Rack, Wine & Egg

19 1129177 Insert, Plastic Tube

21 1129179 Nut, Compression

22 1123919 Bracket Retainer

23 489290 Screw, (2)

24 1121327 Air Diffuser Assembly

25 1118430 Air Diffuser Cover

26 1123926 Cover, Conduit

27 488248 Screw,8x3/4

28 1123921 Cover, Wiring

29 851067 Socket

30 842534 Clip, Air Duct

31 1129170 Reservoir

32 1129176 Tube

33 527949 Light Bulb

34 1125586 Light Lens

37 488280 Screw (2)

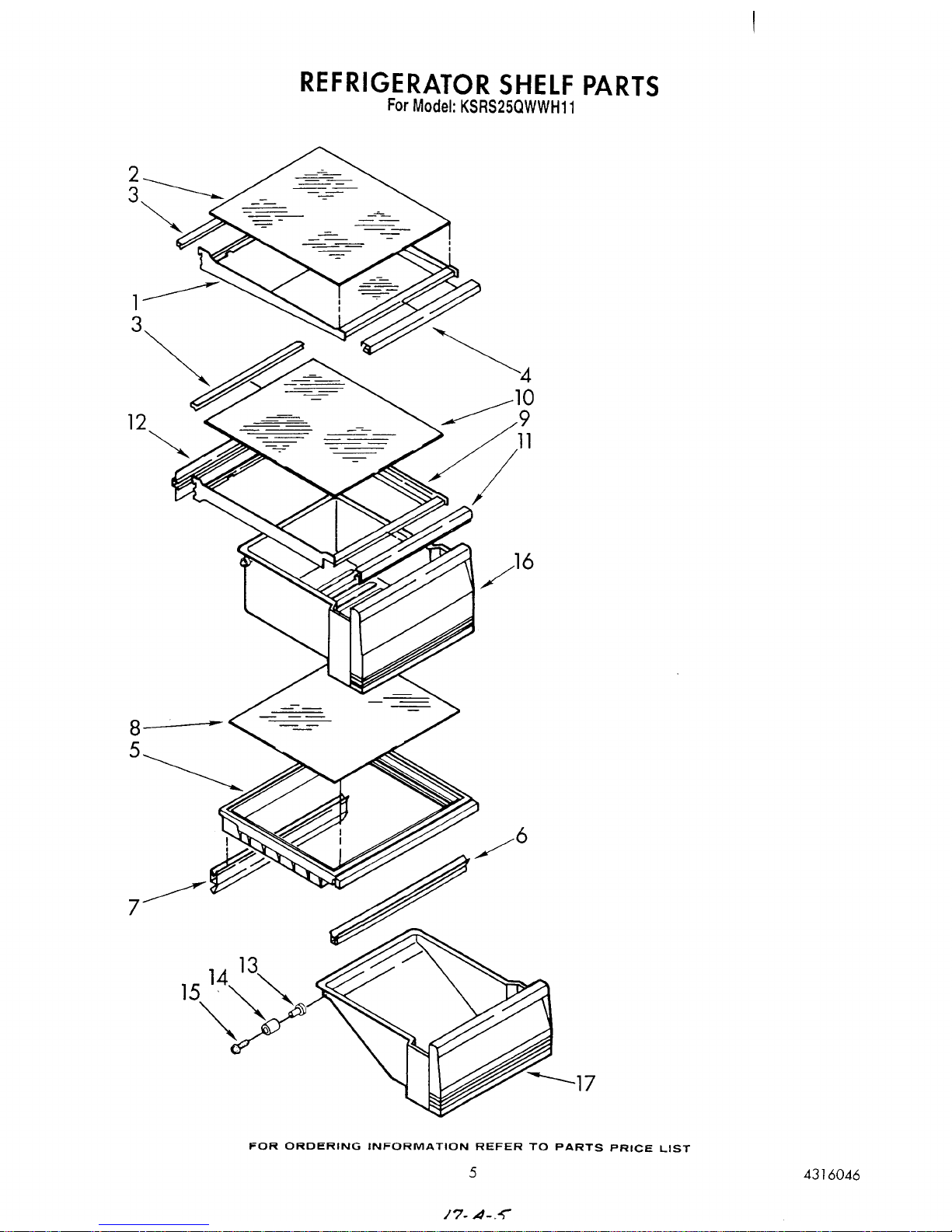

1 1125597 Shelf Assembly, Cantilever (3)

2 1125593 Glass, Shelf

3 1125594 Retainer, Glass

4 1125786 Gasket, Front

5 1125655 Pan Cover Assembly (2)

6 1125705 Gasket, Cover (Front)

7 1125706 Gasket, Cover (Rear)

8 1125822 Glass, Cover (2)

9 1125599 Pan Shelf & Slide Assembly

10 1125595 Glass, Shelf

11 1125814 Gasket (Front)

12 1125817 Gasket (Rear)

13 1112308 Eyelet, Roller

14 1112303 Roller

15 489261 Screw

16 1125602 Crisper Pan (2)

17 1125603 Utility Pan

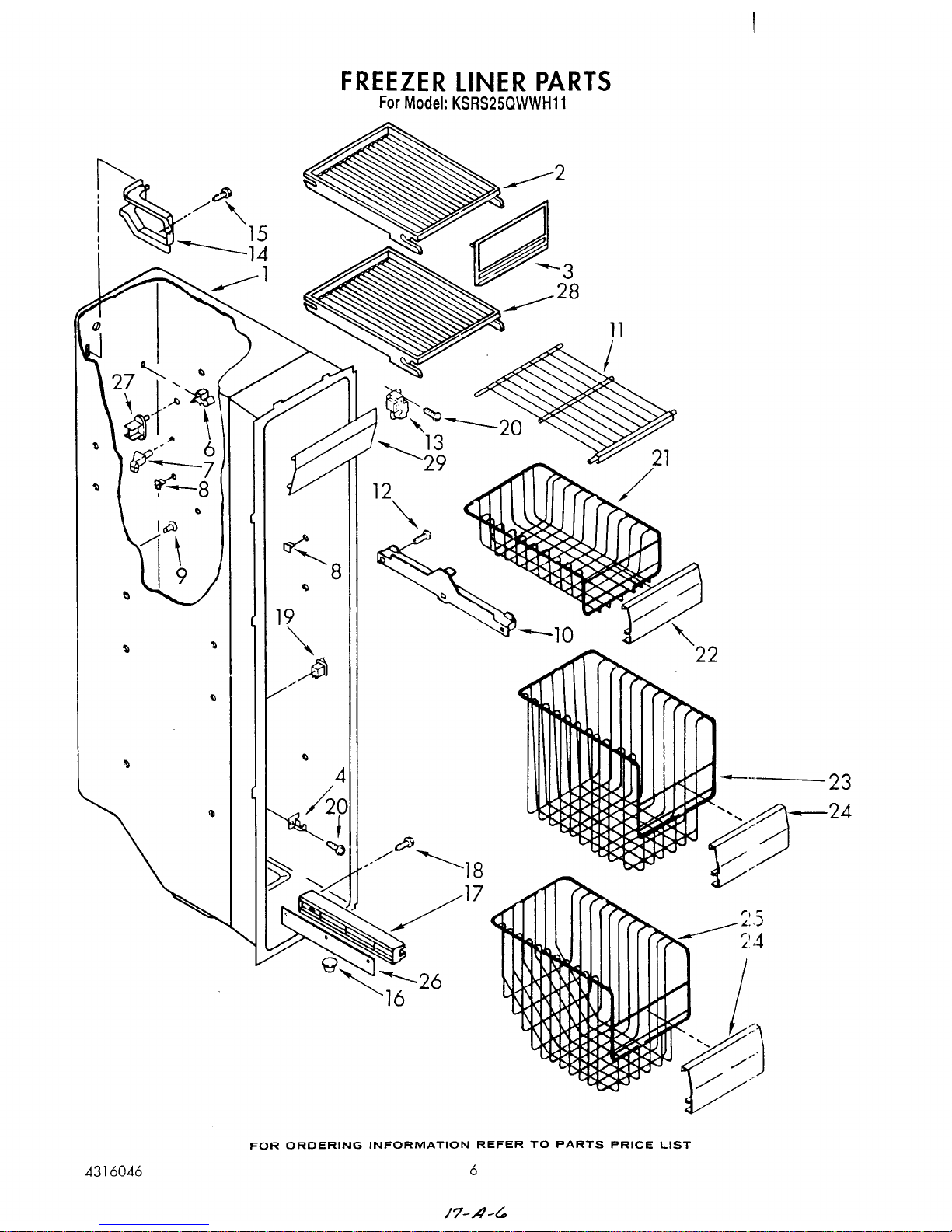

1 Liner (Not A Seviceable Part)

2 1125824 Shelf, Top Compartment

3 1125657 Door, Ice Compartment

4 1108436 Evaporator, Support

6 842534 Clip, Air Duct (2)

7 1115317 Support, Stud (4)

8 946355 Support, Stud (2)

9 1110779 Grommet (2)

10 Slide, Container

1119237 Left Side

1119293 Right Side

11 1125609 Shelf

12 489100 Screw (4)

13 942842 Terminal Block

14 1114607 Wiring Cover

15 489176 Screw

16 942768 Drain Fitting

17 Shelf Track

1114679 Right Side (3)

1114680 Left Side (3)

18 487042 Screw

19 1115373 Switch, Rocker Arm

20 489242 Screw

489254 Screw (Repair)

21 1125772 Basket, Small

22 1125770 Front, Basket

23 1125658 Basket, Upper

24 1125612 Front, Basket

25 1125659 Basket, Lower

26 1129195 Shim, Track

27 1115386 Stud, Shelf (4)

28 1115256 Shelf, Top Compartment

29 1115389 Light Lens
