KitchenAid KSRS25KGBL02 Guida alla risoluzione dei problemi

CABINET PARTS

For Models: KSRS25KGWH02, KSRS25KGBT02, KSRS25KGBL02

(White) (Biscuit) (Black)

REFRIGERATOR

5−00 Printed In U.S.A. (cre) Part No. 4398691 Rev.A

CABINET PARTS

For Models: KSRS25KGWH02, KSRS25KGBT02, KSRS25KGBL02

(White) (Biscuit) (Black)

4398691

Illus. Part

No. No. DESCRIPTION

1 LITERATURE PARTS

LIT2206106

Use & Care Guide

LIT2186638

Service & Wiring

Sheet

LIT2206418

Energy Label

2 2174748 Front Roller (2)

3 3400517 Screw

4 2196236 Roller (Rear) (2)

5 489427 Screw

6 2155013 Clip, Grille

7 489478 Screw

8 2156056 Shim

9 2196048 Shim, Hinge Top

10 489284 Screw

11 Hinge Cover

1129262 White

2186858 Biscuit

2151694 Black

12 2171851 Hinge Bottom (2)

13 Filler, Wrapper

2196094 White

2196150 Biscuit

2196097 Black

14 Grille

2198470W White

2198470T Biscuit

2198470B Black

15 489497 Screw

16 2196046 Hinge, Top (2)

17 489464 Screw

18 940139 Drain Fitting

19 1108438 Tube, Extension

20 1108439 Clip, Drain Tube

21 2186995 Cover, Unit

22 Hinge Cover

1119787 White

2186857 Biscuit

2155938 Black

23 549193 Clamp, Service

Cord

24 489084 Screw

25 2155311 Door Closer,

Lower Cam (2)

26 489483 Screw

27 Cabinet (Not A

Serviceable Part

28 489436 Screw, 8−18 X 1/2

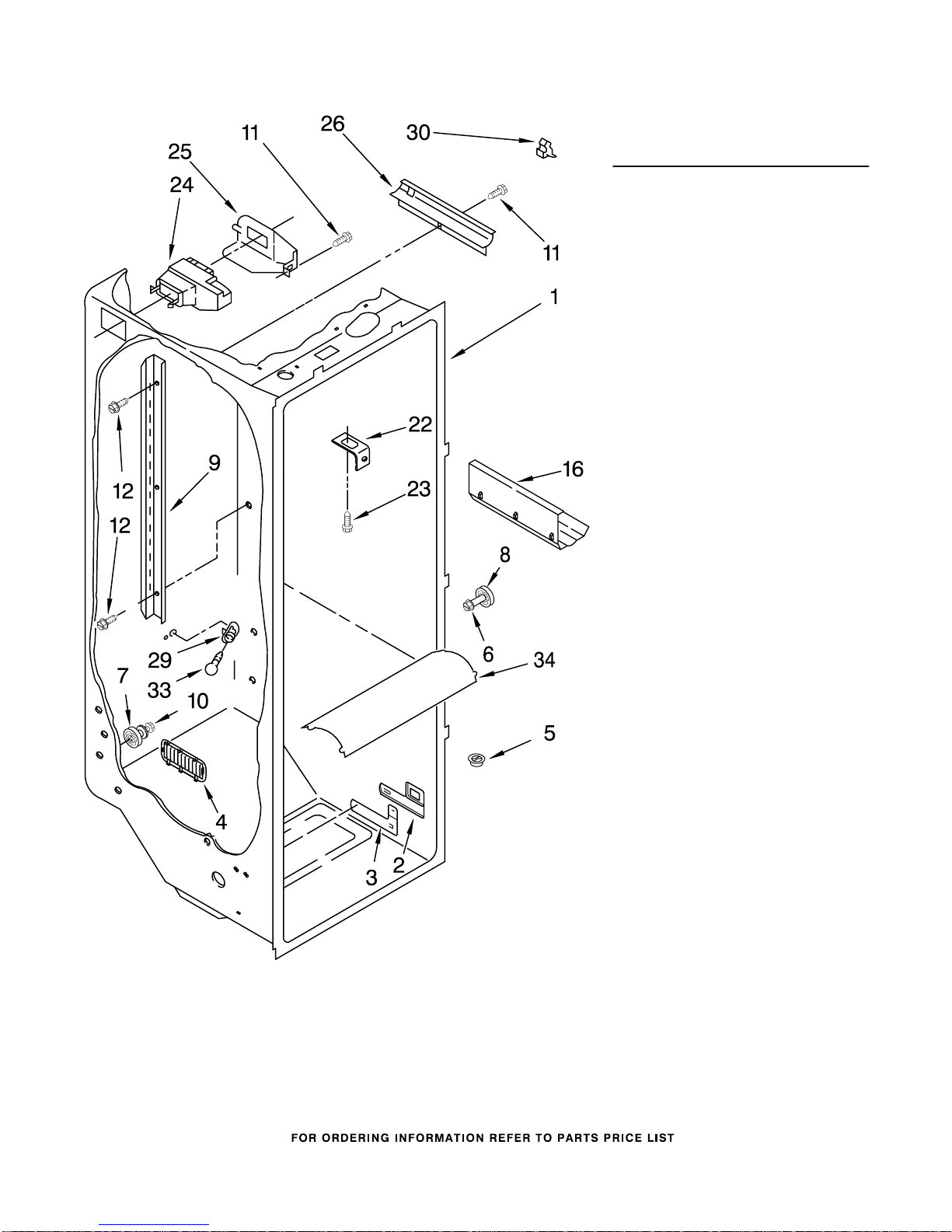

REFRIGERATOR LINER PARTS

For Models: KSRS25KGWH02, KSRS25KGBT02, KSRS25KGBL02

(White) (Biscuit) (Black)

4398691

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2194744 Escutcheon, Meat

Pan Control

3 2182757 Slide Meat

Pan Control

4 2182147 Louver

5 2171846 Release Valve

6 8281158 Screw (2)

7 2196485 Stud Assy

8 2196483 Stud Assy

9 2181796 Ladder, Shelf (2)

10 3400894 Screw

11 486298 Screw (2)

12 487539 Screw

16 2179404 Rack, Wine & Egg

22 1123919 Bracket Retainer

23 489290 Screw (2)

24 2161467 Air Diffuser

Assembly

25 2161470 Air Diffuser

Cover

26 2150331 Cover, Conduit

29 2162085 Socket

30 842534 Clip, Air Duct

33 527949 Light Bulb

34 2203266 Light Lens

REFRIGERATOR SHELF PARTS

For Models: KSRS25KGWH02, KSRS25KGBT02, KSRS25KGBL02

(White) (Biscuit) (Black)

4398691

Illus. Part

No. No. DESCRIPTION

1 2195978 Shelf Assembly,

Cantilever (3)

2 2174253 Button, Humidity

3 2174252 Slide, Humidity

4 2174273 Gasket, Side (2)

5 2161491 Cover, Meat Pan

(Includes Items

13, 14 & 15)

7 2174148 Glass Cover

8 2189526 Glass, Cover

9 2174250 Cover, Crisper

(Includes 2,

3, 4, 11, 12,

13, 14 & 19)

10 2209677 Snack Pan

11 2174272 Gasket (Front)

12 2174274 Gasket (Rear)

13 2174478 Eyelet, Roller

14 2188212 Roller

15 489211 Screw

16 2179227 Crisper Pan

(Includes 13,

14, 18, 19 & 21)

17 2179231 Meat Pan

(Includes 13,

14, 19 & 22)

18 2174076 Window, Crisper

19 489261 Screw

20 2176095 Deflector

21 Cap, Crisper Pan

2174259 Right Side

2174258 Left Side

22 2174362 Window, Meat Pan

23 2182730 Egg Bin

24 2174021 Shelf & Roller

Assembly

25 489439 Screw

26 2179243 Trim, Handle

27 2208298 Shelf, Snack Pan

FREEZER LINER PARTS

For Models: KSRS25KGWH02, KSRS25KGBT02, KSRS25KGBL02

(White) (Biscuit) (Black)

4398691

FREEZER LINER PARTS

For Models: KSRS25KGWH02, KSRS25KGBT02, KSRS25KGBL02

(White) (Biscuit) (Black)

4398691

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2174493 Shelf, Top

Compartment

3 941839 Hole Plug

4 940014 Hole Plug

5 2196483 Stud Assy

6 842534 Clip, Air Duct (2)

7 2196207 Stud, Rear

8 8281158 Screw

9 2176134 Grommet (2)

10 2164333 Bin, Ice

11 2174267 Shelf

12 841180 Ice Tray (2)

13 3400893 Screw

14 2161915 Cover, Wiring

15 489355 Screw

16 2198478 Shelf

17 Shelf Track

2181760 Right Side (3)

2181759 Left Side (3)

18 489478 Screw

19 1118894 Switch, Rocker Arm

20 2198479 Light Lens

21 2181763 Basket, Shallow

22 2171767 Front, Basket

23 2181765 Basket, Square

24 2171766 Front, Basket

25 2181764 Basket, Sloped

26 2155597 Socket, Light

29 2171705 Light Lens

32 2162085 Socket, Light

33 527949 Bulb, Light

REFRIGERATOR DOOR PARTS

For Models: KSRS25KGWH02, KSRS25KGBT02, KSRS25KGBL02

(White) (Biscuit) (Black)

4398691

REFRIGERATOR DOOR PARTS

For Models: KSRS25KGWH02, KSRS25KGBT02, KSRS25KGBL02

(White) (Biscuit) (Black)

4398691

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes #7)

2194233W White

2194233T Biscuit

2194233B Black

2 2195497 Load, Lock

3 2182399 Door, Compartment

4 2193409 Holder, Beverage

5 2165792 Butter Dish

6 Insert, Handle

2173825 White

2186863T Biscuit

2173829 Black

7 Door Gasket,

Magnetic (Service)

2159075 Mist Beige

2159083 Black

8 End Cap, Handle

2194778W White

2194778T Biscuit

2194778B Black

9 3400852 Screw

10 Retainer, Insert

2194777W White

2194777T Biscuit

2194777B Black

11 489463 Screw

12 2182178 Door Closer,

Upper Cam

13 2159124 Gasket

14 489420 Screw

15 Bracket, Door Stop

2195950 Chrome

2195952 Black

16 2171063 Shelf Bin (4)

17 3400012 Screw

18 Nameplate

2188149 White

2200935 Biscuit

2188151 Black

19 2182180 Thimble−Top

FREEZER DOOR PARTS

For Models: KSRS25KGWH02, KSRS25KGBT02, KSRS25KGBL02

(White) (Biscuit) (Black)

4398691

FREEZER DOOR PARTS

For Models: KSRS25KGWH02, KSRS25KGBT02, KSRS25KGBL02

(White) (Biscuit) (Black)

4398691

Illus. Part

No. No. DESCRIPTION

1 Freezer Door

(Includes #8

And Dispenser

Front Parts)

2186422W White

2186422T Biscuit

2186422B Black

2 Retainer, Insert

2194777W White

2194777T Biscuit

2194777B Black

3 End Cap (2)

2194778W White

2194778T Biscuit

2194778B Black

4 489463 Screw

5 3400012 Screw

6 3400852 Screw

7 2171070 Shelf Bin (4)

8 Door Gasket,

Magnetic (Service)

2159074 Mist Beige

2159082 Black

9 Insert, Handle

2173825 White

2186863T Biscuit

2173829 Black

11 2182180 Thimble−Top

14 2182178 Door Closer,

Upper Cam

16 489420 Screw

17 Bracket, Door Stop

2195950 Chrome

2195952 Black
