CABINET PARTS
1
For Models: KSRS25IHWH00, KSRS25IHBT00, KSRS25IHBL00, KSRS25IHSS00
(White) (Biscuit) (Black) (Stainless Steel)
4−02 Printed In U.S.A. (dmz) Part No. 4398699 Rev. A
REFRIGERATOR
CABINET PARTS
2
For Models: KSRS25IHWH00, KSRS25IHBT00, KSRS25IHBL00, KSRS25IHSS00
(White) (Biscuit) (Black) (Stainless Steel)
4398699
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
LITERATURE PARTS
1 LIT2211899 Energy Guide
LIT2206106
Owner’s Manual
LIT2198683
Service & Wiring
Sheet
LIT628370
Modular Icemaker
Service Sheet
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
LIT787808
Refrigerator
LIT787316
Icemaker
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8 2156056 Shim
9 2203771 Hinge Top (RC)
10 2181911 Shim, Hinge Top
11 488500 Screw
12 Hinge Cover
2203407W White
2203407T Biscuit
2203407B Black
13 2171851 Hinge Bottom (2)
14 Filler, Wrapper
2196094 White
2196150 Biscuit
2196097 Black
15 Grille
2186881W White
2186881T Biscuit
2186881B Black
16 489497 Screw
17 489464 Screw
18 940139 Drain Fitting
19 1108438 Extension Tube
20 1108439 Clip, Drain Tube
21 2204203 Cover, Unit
22 Cabinet (Not A
Serviceable Part)
23 Hinge Cover
2203408W White
2203408T Biscuit
2203408B Black
24 549193 Clamp, Service
Cord
25 489084 Screw
26 2155311 Door Closer,
Lower Cam (2)
27 489483 Screw
28 2186443 Housing, Water
Filter
29 2203220 Water Filter
30 Cap, Water
Filter
2186884W White
2186884T Biscuit
2186884B Black
31 489500 Screw
36 2203770 Hinge Top (FC)
REFRIGERATOR LINER PARTS
3
For Models: KSRS25IHWH00, KSRS25IHBT00, KSRS25IHBL00, KSRS25IHSS00
(White) (Biscuit) (Black) (Stainless Steel)
4398699
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2194744 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2182147 Louver
5 2171846 Release Valve
6 8281158 Screw
7 2205813 Strap
8 2196483 Stud Assembly
9 2181796 Shelf Ladder
10 487539 Screw
11 486298 Screw (2)
13 1123919 Bracket Retainer
14 489290 Screw
15 2161467 Air Diffuser
Assembly
16 2161470 Air Diffuser
Cover
17 2150331 Cover, Wiring
18 2162085 Socket
19 2209687 Reservoir
20 527949 Light Bulb
21 2203266 Light Lens
22 488280 Screw
23 2179404 Rack, Wine & Egg
24 2196485 Stud Assembly
25 3400894 Screw

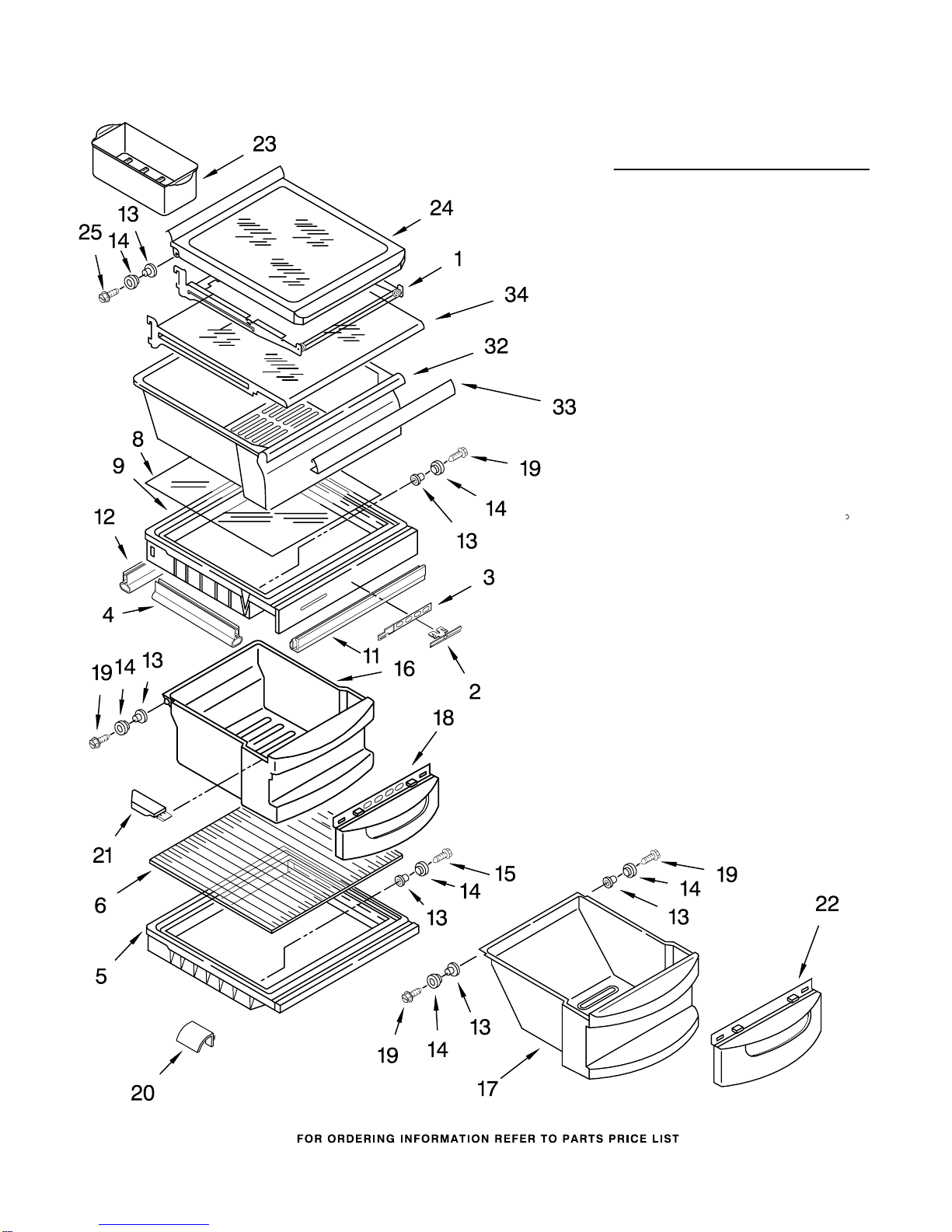

REFRIGERATOR SHELF PARTS
4
For Models: KSRS25IHWH00, KSRS25IHBT00, KSRS25IHBL00, KSRS25IHSS00
(White) (Biscuit) (Black) (Stainless Steel)
4398699
Illus. Part
No. No. DESCRIPTION
1 2195978 Shelf Assembly,
Cantilever (2)
2 2174253 Button, Humidity
3 2174252 Slide, Humidity
4 2174273 Gasket, Side (2)
5 2161491 Cover, Meat Pan
(Includes Items
13, 14, & 15)
6 2174148 Glass, Cover
8 2189526 Glass, Cover
9 2174250 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14, & 19)
11 2174272 Gasket, (Front)
12 2174274 Gasket, (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 2179227 Crisper Pan
(Includes 13,
14, 18, 19, & 21)
17 2179231 Meat Pan
(Includes 13,
14, 19, & 22)
18 2174076 Window, Crisper
19 489261 Screw
20 2176095 Deflector
21 Cap, Crisper Pan
2174259 Right Side
2174258 Left Side
22 2174362 Window, Meat Pan
23 2182730 Egg Bin
24 2174021 Shelf & Roller
Assembly
25 489439 Screw
32 2209677 Snack, Pan
33 2179243 Trim, Handle
34 2208298 Shelf, Snack Pan
FREEZER LINER PARTS
5
For Models: KSRS25IHWH00, KSRS25IHBT00, KSRS25IHBL00, KSRS25IHSS00
(White) (Biscuit) (Black) (Stainless Steel)
4398699
FREEZER LINER PARTS
6
For Models: KSRS25IHWH00, KSRS25IHBT00, KSRS25IHBL00, KSRS25IHSS00
(White) (Biscuit) (Black) (Stainless Steel)
4398699
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
4 2198697 Gasket
5 2205834 Basket, Top
6 2205833 Basket, Tall
12 2205826 Basket, Front
13 Shelf Track
2181760 Right Side
2181759 Left Side
14 2205837 Shelf
15 2205832 Basket, Sloped
16 486298 Screw (8)
17 842534 Clip, Air Duct (2)
19 2198587 Cover, Emitter
22 2198635 Spring
23 2198634 Pin
25 1115373 Switch, Rocker Arm
26 2198585 P.C. Board
Emitter
27 2198642 Cover, Ice Maker
28 2212321 Slide, Ice Maker
Mounting
29 489478 Screw
30 489214 Screw
31 2198665 Tube, P.C. Board
32 2162085 Light Socket
33 527949 Light Bulb
34 8281185 Screw
35 2198633 Flipper
36 2198588 Cover, Receiver
37 2198637 Slide, Ice Maker
Shut Off
38 2198586 P.C. Board,
Receiver
39 2198643 Lens
40 2198589 Light Shield
41 2211506 Light Lens
42 2198641 Bracket, Ice Maker
Cover
43 2155597 Socket, Light
44 527949 Light Bulb
45 Ladder
2198609 Left Side
2198610 Right Side
46 2198639 Shield, Wiring

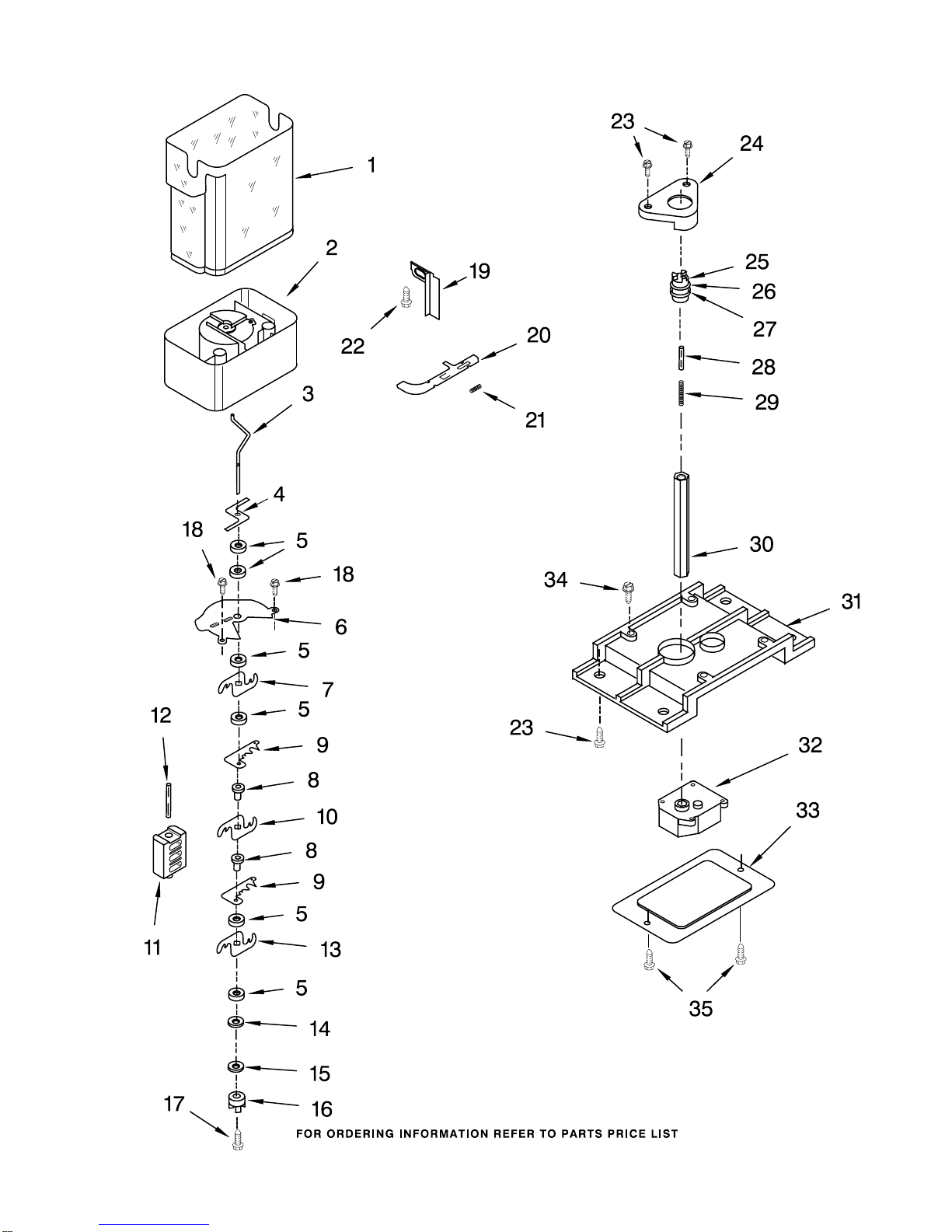

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSRS25IHWH00, KSRS25IHBT00, KSRS25IHBL00, KSRS25IHSS00
(White) (Biscuit) (Black) (Stainless Steel)
4398699
MOTOR AND ICE CONTAINER PARTS
8
For Models: KSRS25IHWH00, KSRS25IHBT00, KSRS25IHBL00, KSRS25IHSS00
(White) (Biscuit) (Black) (Stainless Steel)
4398699
Illus. Part
No. No. DESCRIPTION
1 2198573 Ice Bin
2 2198572 Crusher Bin
3 2211590 Auger
4 2198603 Blade, Stirring
5 1119007 Spacer, Flat (6)
6 2198591 Cover, Crusher
7 1119013 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2198601 Blade, Fixed
10 1119012 Blade, Rotary
11 2198602 Block, Blade
12 489229 Roll Pin
13 1119006 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2198604 Coupling
17 8281164 Screw
18 3400065 Screw
19 2198605 Button, Bin
20 2198606 Latch, Bin
21 2198608 Spring, Latch
22 2198671 Screw (2)
23 8281163 Screw
24 2198625 Holder
25 2198627 Coupling, Bottom
26 2198628 Seal
27 2198660 Washer
28 2198666 Pin
29 2198607 Spring
30 2198624 Drive Shaft
31 2198655 Bracket, Motor
32 2198594 Dispenser, Motor
33 2198626 Cover
34 8281162 Screw
35 489478 Screw
REFRIGERATOR DOOR PARTS
9
For Models: KSRS25IHWH00, KSRS25IHBT00, KSRS25IHBL00, KSRS25IHSS00
(White) (Biscuit) (Black) (Stainless Steel)
4398699
REFRIGERATOR DOOR PARTS
10
For Models: KSRS25IHWH00, KSRS25IHBT00, KSRS25IHBL00, KSRS25IHSS00
(White) (Biscuit) (Black) (Stainless Steel)
4398699
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item #6)
2207183W White
2207183T Biscuit
2207183B Black
2207183S Stainless
2 2182399 Compartment Door
3 2205821 Shelf Bin (4)
4 3400012 Screw
6 Door Gasket,
Magnetic (Service)
2159075 Mist Beige
2159083 Black
7 2193409 Beverage Holder
8 Handle
2207112W White
2207112T Biscuit
2207112B Black
10 2182178 Door Closer,
Upper Cam
11 489420 Screw
12 2200082 Bracket, Door Stop
13 3400898 Screw (4)
18 2165792 Butter, Dish
20 2159124 Gasket
21 Endcap
2207111W White
2207111T Biscuit
2207111B Black
2207112S Stainless
