CABINET PARTS
1
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
Part No. 8199002
REFRIGERATOR
04−04 Printed In U.S.A. (kdj)

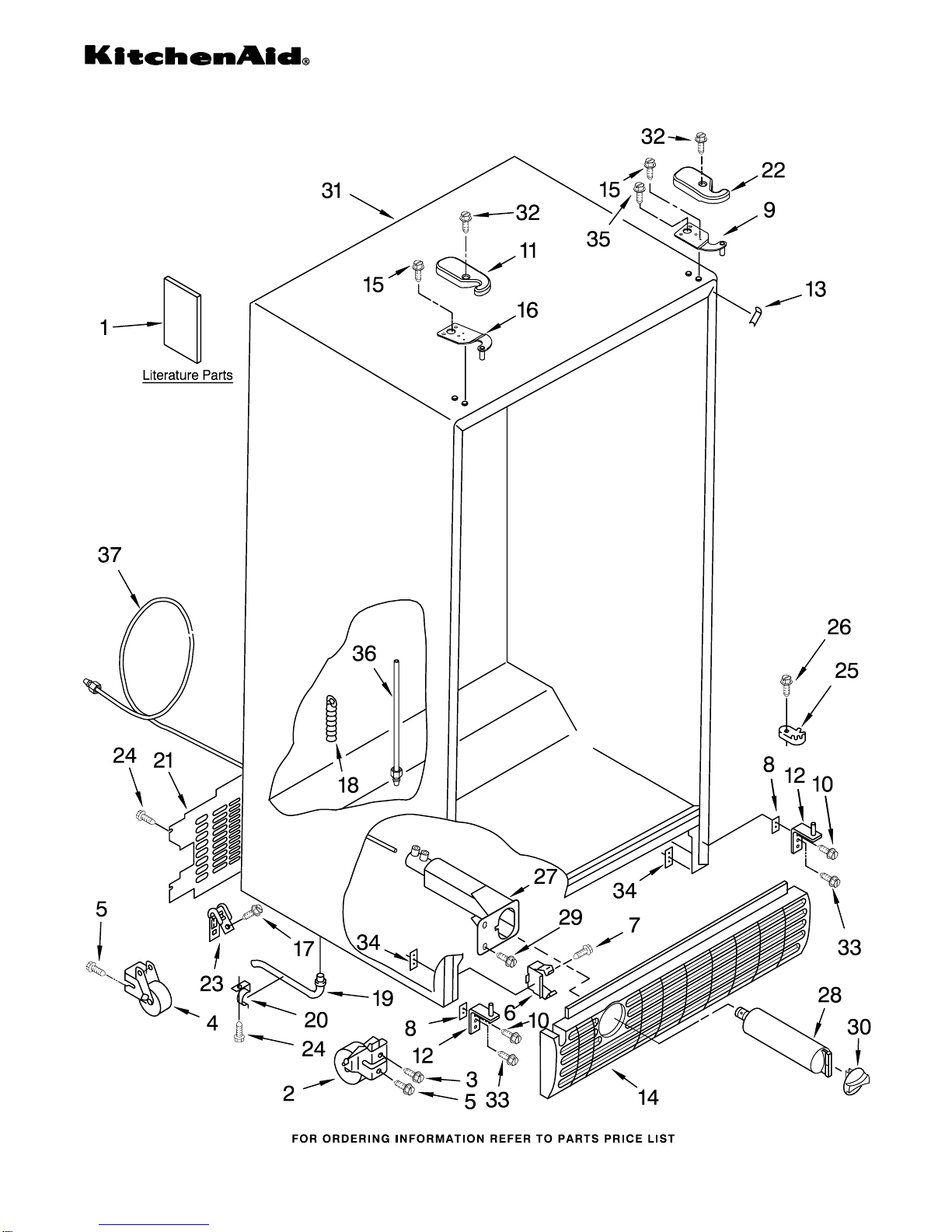

CABINET PARTS
2
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
LITERATURE PARTS
1 2261570 Use & Care Guide
2301270 Service & Wiring
Sheet
2305642 Energy Guide
2220407 Modular Icemaker
Service Sheet
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8 2156056 Shim
9 2203771 Hinge Top, RC
10 3400113 Screw
11 Hinge Cover, FC
2203407W White
2203407T Biscuit
2203407B Black
2203407ES
European Silver
12 2217075 Hinge Bottom (2)
13 Filler, Wrapper
2196094 White
2196150 Biscuit
2196097 Black
2301252 European Silver
14 Grille
2198468W White
2198468T Biscuit
2198468B Black
2198468ES
European Silver
15 489497 Screw
16 2203770 Hinge, Top FC
17 489464 Screw
18 940139 Drain Fitting
19 1108438 Tube, Extension
20 1108439 Clip, Drain Tube
21 2188739 Cover, Unit
22 Hinge Cover, RC
2203408W White
2203408T Biscuit
2203408B Black
2203408ES
European Silver
23 549193 Clamp, Service
Cord
24 489084 Screw
25 2155311 Door Closer,
Lower Cam (2)
26 489483 Screw
27 2186443 Housing, Water
Filter
28 2255519 Water Filter
29 489500 Screw
30 Cap, Water
Filter
2186494W White
2186494T Biscuit
2186494B Black
2186494ES
European Silver
31 Cabinet (Not A
Serviceable Part)
32 8281227 Screw
33 3400103 Screw
34 2203098 Plate, Screw
35 3400858 Screw
36 2255012 Tube, Filter
Outlet
37 2305536 Tube, Filter
Inlet

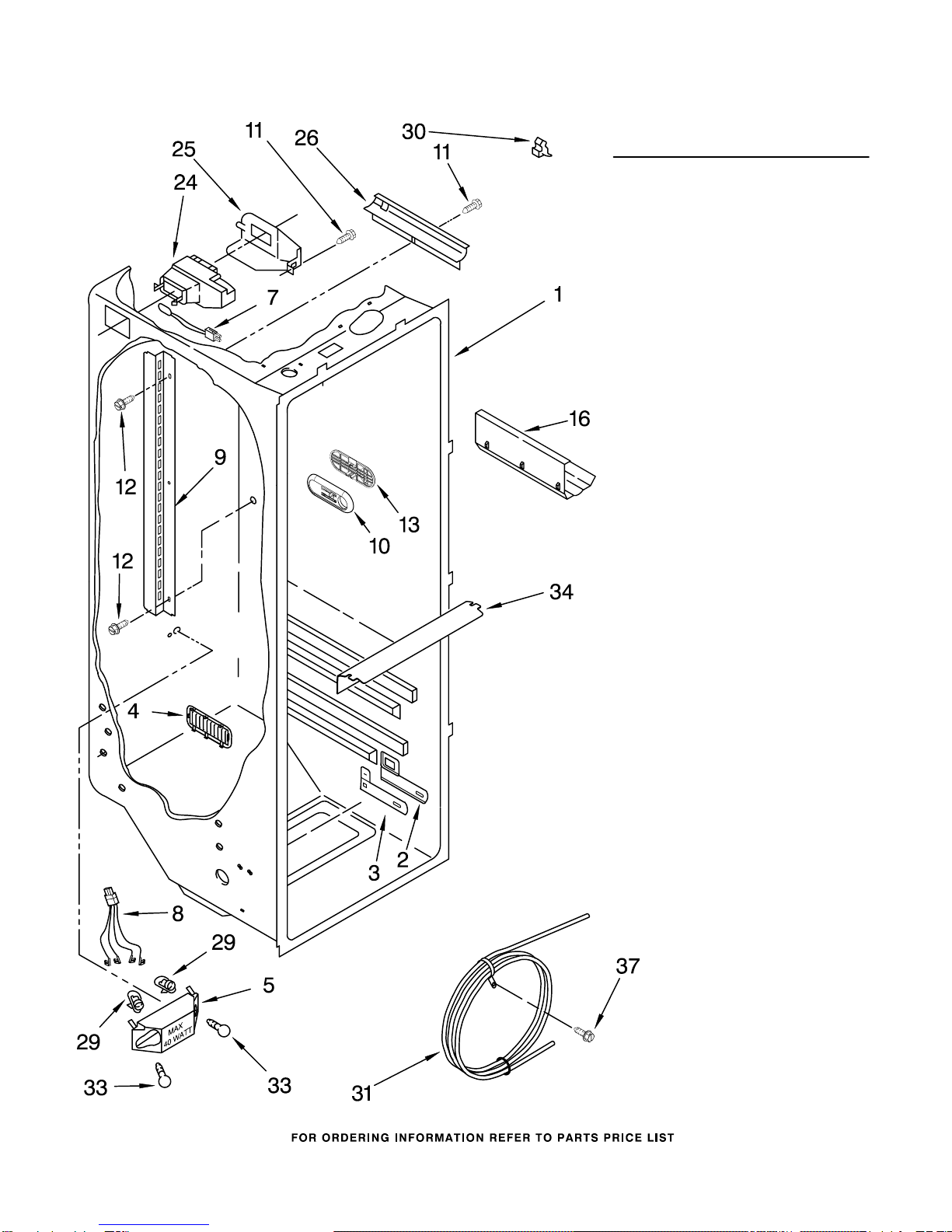

REFRIGERATOR LINER PARTS
3
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2255612 Escutcheon, Meat
Pan Control
3 2301339 Slide Meat
Pan Control
4 2257741 Louver
5 2256035 Bracket, Dual
Crisper Lights
7 2216113 Thermistor
8 2256037 Wire Harness,
Dual Crisper
Lights
9 2206273 Ladder, Shelf (2)
10 2301234 Housing, Door
Control
11 486298 Screw (2)
12 487539 Screw
13 2301235 Slide, Door
Control
16 2179404 Rack, Wine & Egg
24 2216112 Air Diffuser
Assembly
25 2212240 Cover, Air
Diffuser
26 2150331 Cover, Conduit
29 2162085 Socket
30 842534 Clip, Air Duct
31 2217199 Reservoir
33 2255743 Light Bulb
34 2209769 Light Lens
37 488280 Screw

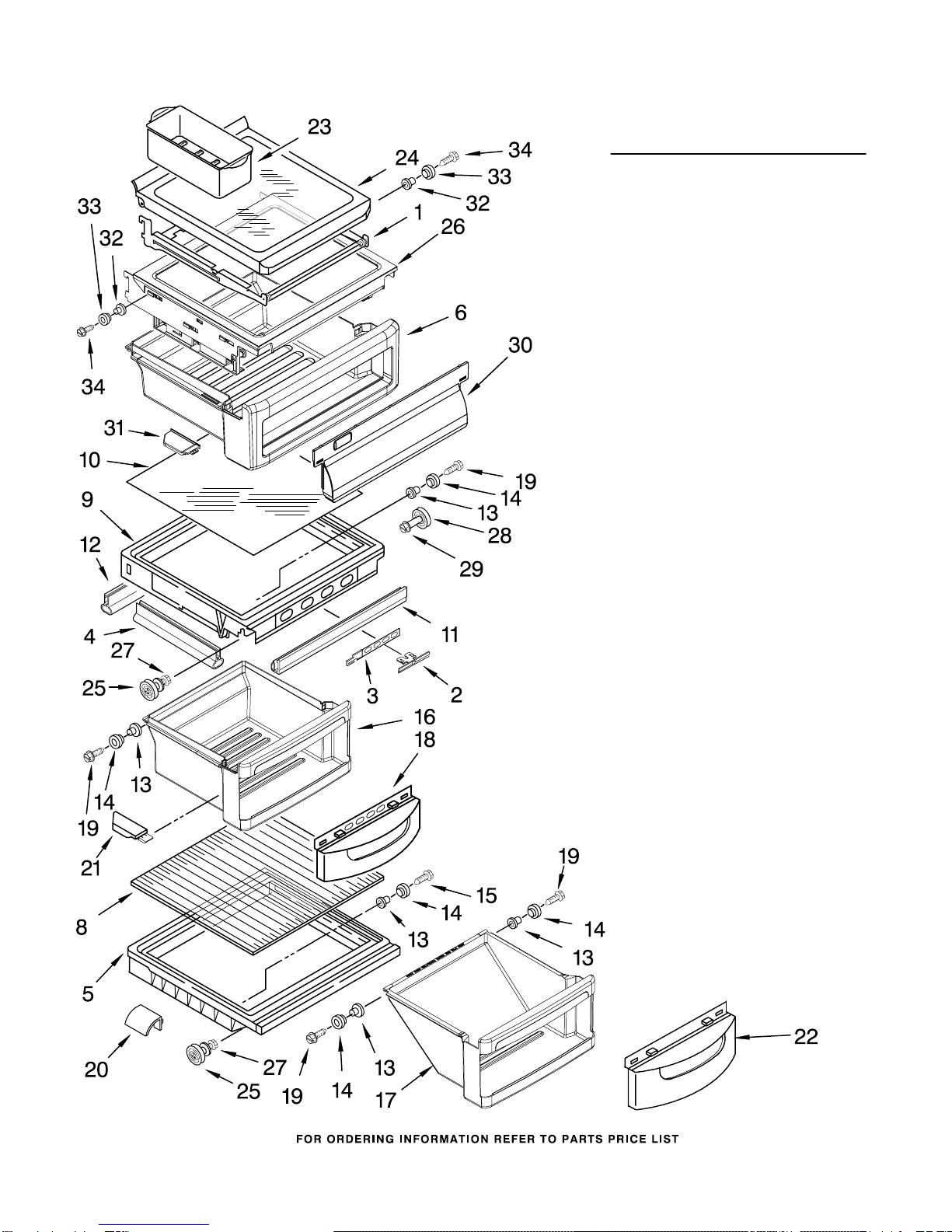

REFRIGERATOR SHELF PARTS
4
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002
Illus. Part
No. No. DESCRIPTION
1 2195975 Frame Assembly,
Cantilever (2)
2 2174253 Button, Humidity
3 2174252 Slide, Humidity
4 2174273 Gasket, Side (2)
5 2223357 Cover, Meat Pan
(Includes Items
13, 14 & 15)
6 2301120 Snack Pan
(Includes #30,
31, 32, 33, & 34)
8 2255144 Glass, Cover
9 2301484 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14 & 19)
10 2255143 Glass, Cover
11 2223361 Gasket (Front)
12 2223362 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 2301481 Crisper Pan
(Includes 13,
14, 18, 19 & 21)
17 2301482 Meat Pan
(Includes 13,
14, 19 & 22)
18 2174076 Window, Crisper
19 489261 Screw
20 2176095 Deflector
21 Cap, Crisper Pan
2223286 Right Side
2223285 Left Side
22 2174362 Window, Meat Pan
23 2216624 Egg Bin
24 2216102 Shelf & Roller
Assembly
25 2196485 Stud Assembly
26 2301034 Shelf, Snack Pan
27 3400894 Screw
28 2196483 Stud Assembly
29 8281158 Screw
30 2301006 Window, Snack Pan
31 Cap, Snack Pan
2301016 Right Side
2301017 Left Side
32 2301153 Eyelet, Roller
33 2301152 Roller
34 8533983 Screw

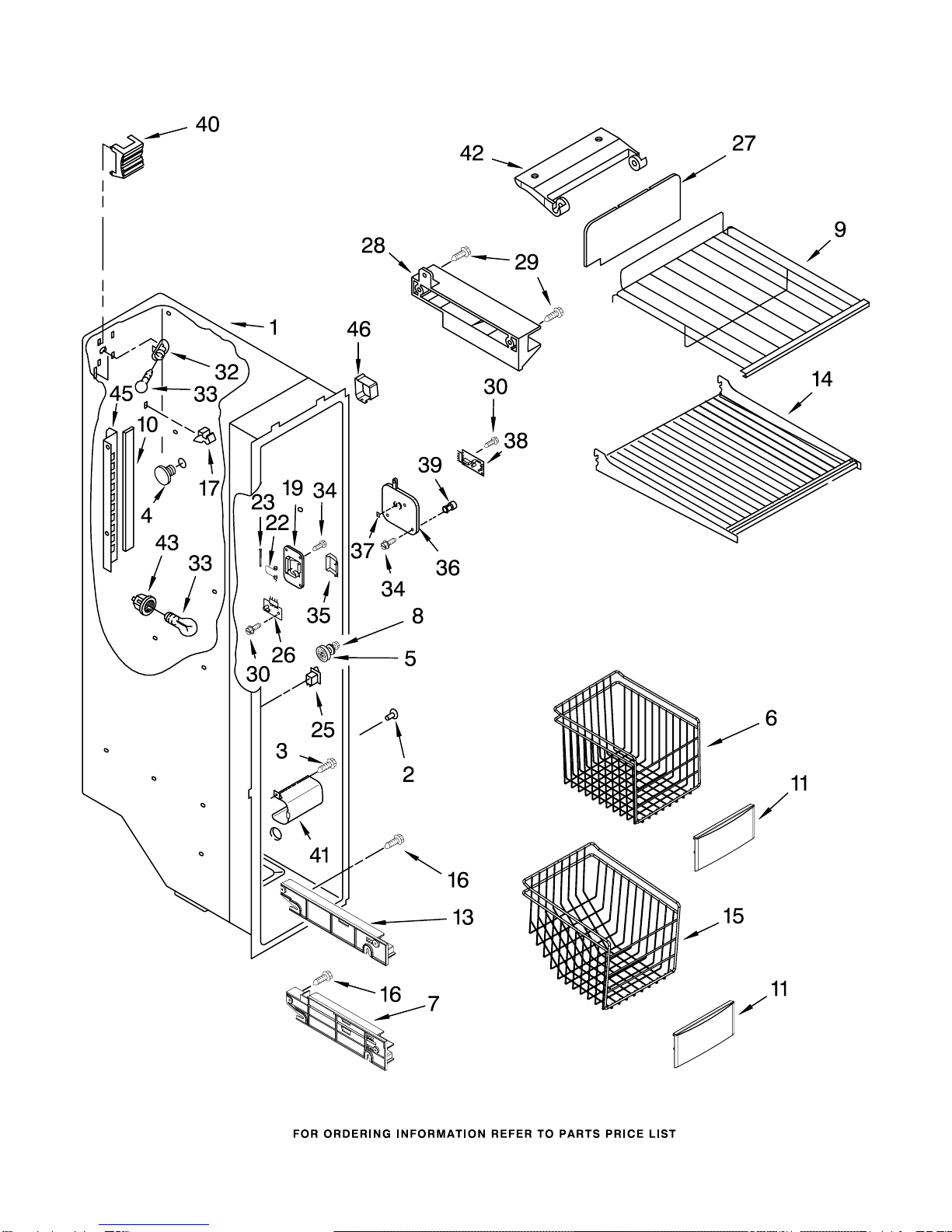

FREEZER LINER PARTS
5
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002
FREEZER LINER PARTS
6
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 941839 Hole Plug
3 3400893 Screw
4 940014 Hole Plug
5 2196483 Stud Assembly
6 2305583 Basket, Tall
(Includes #11)
7 Track, Basket−Dual
2301293 Right Side
2301294 Left Side
8 8281158 Screw
9 2211746 Shelf, Slide Out
Upper
10 2198697 Gasket for
(RH Ladder)
11 2305580 Basket Front
13 Shelf Track
2301289 Right Side
2301290 Left Side
14 2205837 Shelf
15 2305584 Basket, Sloped
(Includes #11)
16 486298 Screw
17 842534 Clip, Air Duct
19 2198587 Cover, Emitter
22 2198635 Spring
23 2198634 Pin
25 1115373 Switch, Rocker Arm
26 2220398 P.C. Board
Emitter
27 2255590 Cover, Ice Maker
28 2212321 Slide, Ice Maker
Mounting
29 489478 Screw
30 489214 Screw
32 2162085 Light Socket
33 2255743 Light Bulb
34 8281185 Screw
35 2198633 Flipper
36 2255561 Cover, Receiver
37 2301340 Slide, Ice Maker
Shut Off
38 2255114 P.C. Board,
Receiver
39 2198643 Lens
40 2198589 Light Shield
41 2212340 Light Lens
42 2198641 Bracket, Ice Maker
Cover
43 2155597 Socket, Light
45 Ladder
2198609 Left Side
2198610 Right Side
46 2219878 Shield, Wiring

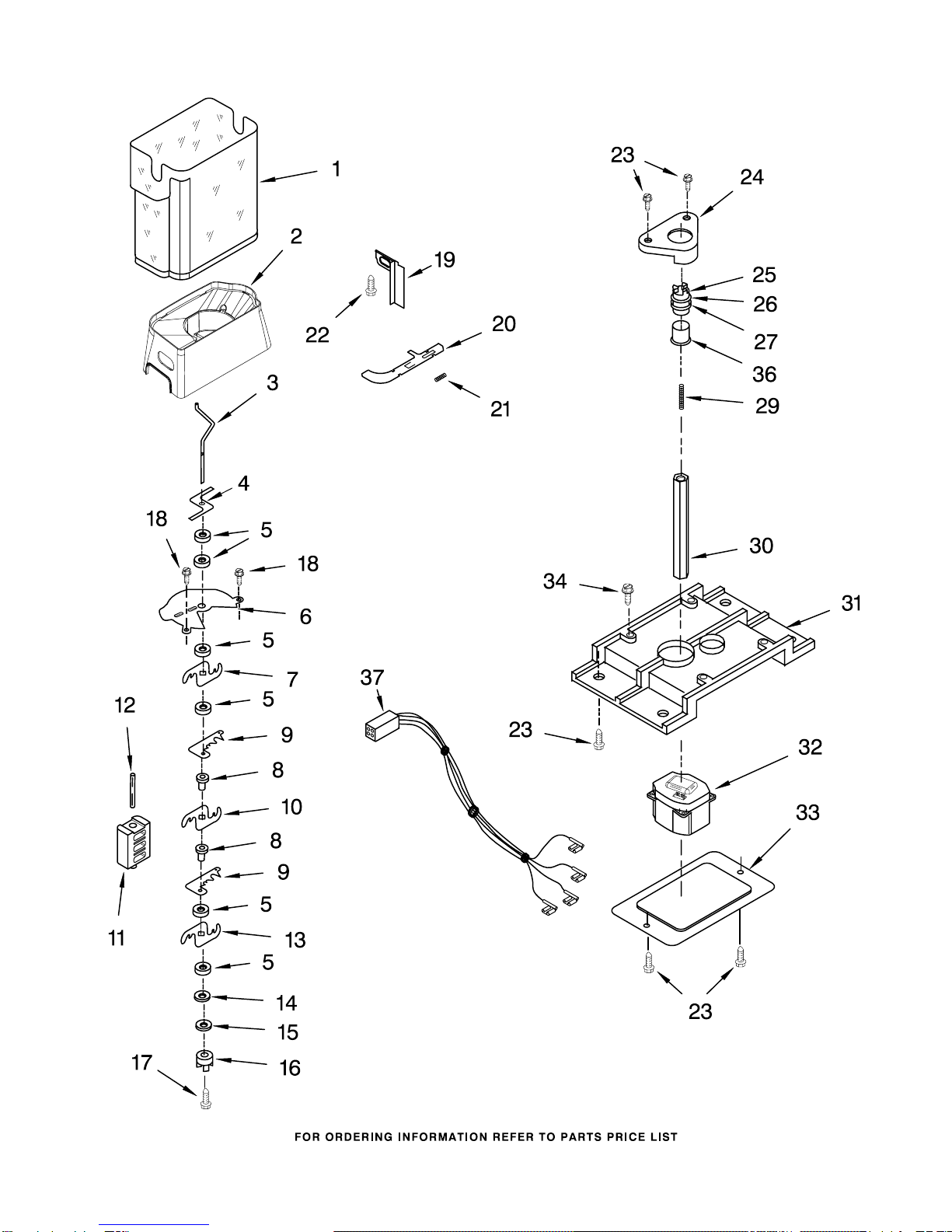

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002
MOTOR AND ICE CONTAINER PARTS
8
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002
Illus. Part
No. No. DESCRIPTION
1 2198573 Ice Bin
2 2255580 Crusher Bin
3 2211590 Auger
4 2257021 Blade, Stirring
5 1119007 Spacer, Flat (6)
6 2255460 Cover, Crusher
7 1119013 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 1119012 Blade, Rotary
11 2198602 Block, Blade
12 489229 Roll Pin
13 1119006 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2220457 Coupling
17 8281164 Screw
18 3400065 Screw
19 2301345 Button, Bin
20 2212371 Latch, Bin
21 2198608 Spring, Latch
22 2198671 Screw
23 8281163 Screw
24 2212369 Holder
25 2220458 Coupling, Bottom
26 2198628 Seal
27 2212370 Washer
29 2198607 Spring
30 999536 Drive Shaft
31 2198655 Bracket, Motor
32 2252129 Dispenser, Motor
33 2198626 Cover
34 8281162 Screw
36 2212365 Sleeve, Coupling
37 2187725 Wire Harness,
IDI Motor

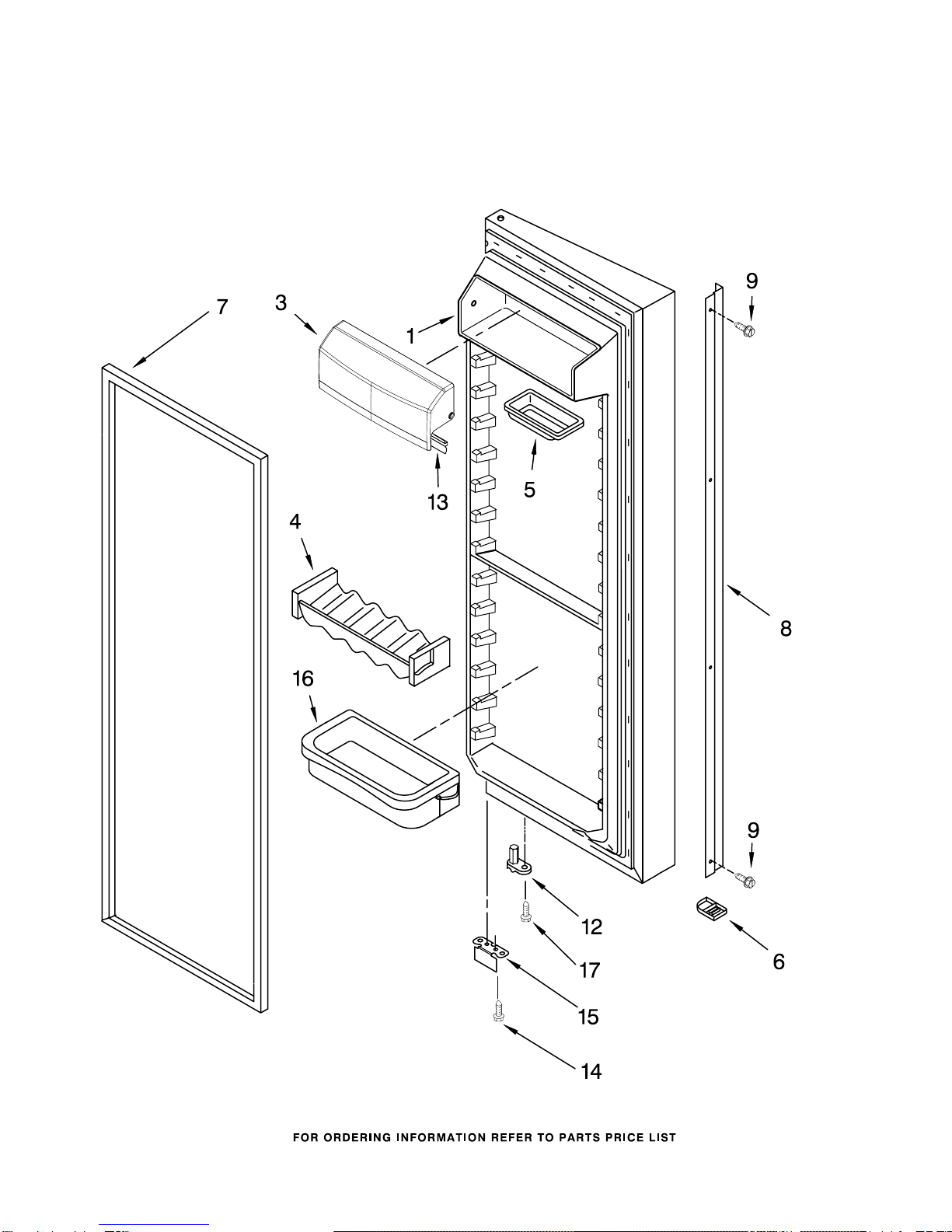

REFRIGERATOR DOOR PARTS
9
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002
REFRIGERATOR DOOR PARTS
10
For Models: KSRS25PNWH00, KSRS25PNBT00, KSRS25PNBL00, KSRS25PNSS00, KSRS25PNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199002
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
2207183W White
2207183T Biscuit
2207183B Black
2207183S Stainless Steel
2207183LK
Lake Blue
3 2301486 Door, Compartment
(Includes #13)
4 2193409 Holder, Beverage
5 2165792 Butter Dish
6 Endcap, Bottom
2207111W White
2207111T Biscuit
2207111B Black
2207111ES
European Silver
7 Door Gasket,
Magnetic
2221302 Mist Beige
2221313 Black
8 Handle
2220238W White
2220238T Biscuit
2220238B Black
2220238ES
European Silver
9 3400898 Screw (4)
12 2182178 Door Closer,
Upper Cam
13 2159124 Gasket
14 489420 Screw
15 Bracket, Door Stop
2200082B Black
2200082 Chrome
16 2205821 Shelf Bin (4)
17 3400012 Screw
