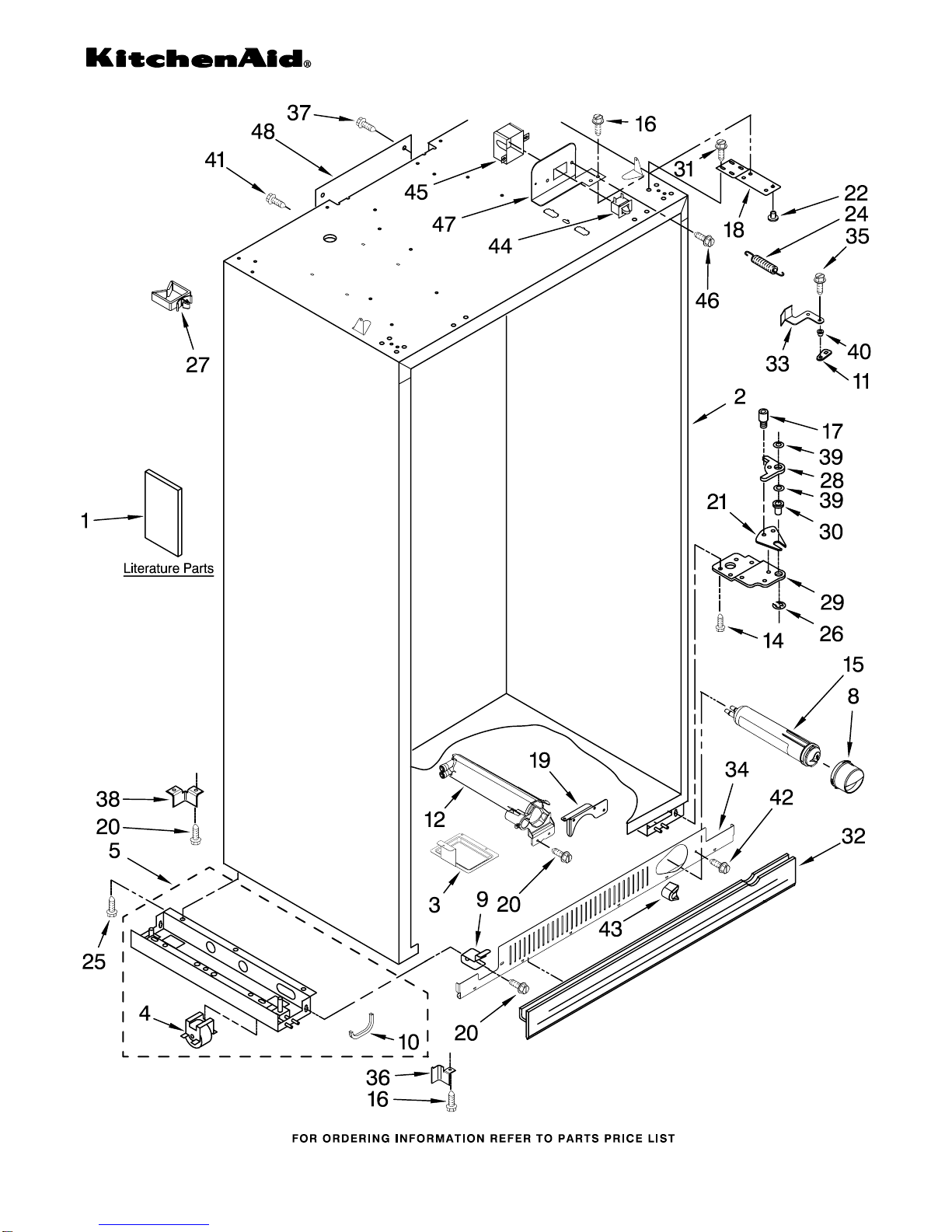

CABINET PARTS

For Model: KSSC48FTS02

(Stainless Steel)

11−07 Litho In U.S.A. (mat) Part No. W10178090 Rev. A

48" BUILT IN

REFRIGERATOR

CABINET PARTS

For Model: KSSC48FTS02

(Stainless Steel)

W10178090

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10161714

Use & Care Guide

W10164076

Energy Guide

W10159831

Service & Wiring

Sheet

2306337 Icemaker and

Ingredient Care

Center

Service Sheet

2318069 Main Control

Service Sheet

2316565 Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2318189 Tray, Drip Filter

W10138054

Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

2318194 Refrigerator Side

2318193 Freezer Side

8 Cap, Water Filter

2260518B Black

9 2307640 Mounting Stud,

Grille

10 2307584 Grommet, Crossover

Tube

11 2005783 Cam, Door Closer

12 2260526 Housing, Water

Filter

14 3400525 Screw

15 4396841 Filter, Water

16 489399 Screw

17 3400230 Screw, Door Stop

18 2257644 Hinge (Top)

19 2318190 Bracket, Mount

(Water Filter)

20 489464 Screw

21 2004994 Lock, Adjustable

Bushing

22 2300082 Bushing

24 Spring, Door

Closure

2221242 Right Side

2004517 Left Side

25 486194 Screw

26 2005008 Retaining Ring,

Adjustable Bushing

W10129069

Wire Clip (5)

28 2006342 Gap, Cover

Assembly (Bottom)

29 Hinge (Bottom)

2006780 Freezer Side

2006779 Refrigerator Side

30 2302876 Bushing,

Adjustable

31 8533913 Screw 1/4−20 x 5/8

32 Skirt−Grille,

Bottom

2209026B Black

33 Extension Arm,

Door Closer

2266882 Right

2266881 Left

34 Grille Bottom,

Front

2325186B Black

35 2005921 Screw

36 Bracket, Support

Base (Front)

2006616 Left

2006556 Right

37 1157158 Screw

38 2006617 Bracket, Support

Base (Rear) (2)

39 2006346 Washer

40 2266880 Bushing,

Extension Arm

41 1163283 Screw

42 8281163 Screw

43 2260503B Button, Filter

44 Switch, Rocker Arm

1118894 Refrigerator Door

Side

1115373 Freezer Door Side

45 2215938 Cover, Switch (2)

46 487415 Screw (2)

47 Bracket, Switch

2221097 Right

2221096 Left

48 2215612 Cover, Rear

CABINET TRIM PARTS

For Model: KSSC48FTS02

(Stainless Steel)

W10178090

Illus. Part

No. No. DESCRIPTION

W10132472

Cabinet, Trim

(Right Side)

3 1163283 Screw

4 2316688 Cabinet, Trim

(Bottom)

5 486194 Screw

6 2314018 Cabinet, Trim Top

W10132541

Cabinet Trim

(Left Side)

W10121451

Nutsert (4)

9 2005925 Seal−Trim, Side

10 489464 Screw

FREEZER SHELF PARTS

For Model: KSSC48FTS02

(Stainless Steel)

W10178090

Illus. Part

No. No. DESCRIPTION

1 2302869 Wire, Shelf (2)

2 2302872 Cover, Shelf

3 2302884 Shelf, Fixed (2)

4 2259086 Basket

5 2256271 Front, Basket

6 Slide, Basket

2259317 Right Side

2259318 Left Side

7 8533928 Screw

8 2266935 Door, Ice

9 2266932 Bucket, Ice

10 2266955 Spacer

REFRIGERATOR LINER PARTS

For Model: KSSC48FTS02

(Stainless Steel)

W10178090

REFRIGERATOR LINER PARTS

For Model: KSSC48FTS02

(Stainless Steel)

W10178090

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2306010 Thermistor

3 2208970 Air Duct

5 2259077 Ladder, Shelf (2)

6 520965 Screw Support,

Ladder (8)

7 2006475 Screw

8 487539 Screw

9 2302937 Thermistor

10 2302986 Lid, Air Baffle

W10169528

Baffle, Control

Assembly

12 2171846 Release Valve

13 2310205 Jumper, Air Baffle

14 488357 Screw

15 486194 Screw

16 2003577 Guard, Air Return

17 2221296 Air Baffle

Assembly

21 2309222 Diffuser Assembly

22 2317105 Cover, Thermistor

23 2188820 Thermistor

24 2302992 Spacer, Air−

Baffle

25 2309087 Cover, Diffuser

27 2259412 Seal, Air Duct

(Round Hole)

28 2259398 Seal, Air Duct

(Square Hole)

CONTROL PANEL PARTS

For Model: KSSC48FTS02

(Stainless Steel)

W10178090

Illus. Part

No. No. DESCRIPTION

1 2307587 Control Box Assy

4 2310164 Wire, Jumper

5 2324973 Bracket,

Control Box

6 2307596 Shield, Light

7 487539 Screw

8 2317000 Clip, Control Box

9 2306086 Display Board,

Ingredient

Care Center

11 2223857 Socket, Light

12 2326255 Light Bulb

14 8281185 Screw

TOP GRILLE AND UNIT COVER PARTS

For Model: KSSC48FTS02

(Stainless Steel)

W10178090

Illus. Part

No. No. DESCRIPTION

1 2316738S Panel, Decorative

W10161693

Cover, Unit

3 486194 Screw

4 2256466 Back Panel

W10121229

Cover, Unit Front

6 487415 Screw

7 2310194 Wire Assembly

RC/FC Light Switch

8 2317923S Nameplate

9 489348 Clamp

10 489399 Screw (5)

11 2004333 Nut

REFRIGERATOR SHELF PARTS

For Model: KSSC48FTS02

(Stainless Steel)

W10178090

REFRIGERATOR SHELF PARTS

For Model: KSSC48FTS02

(Stainless Steel)

W10178090

Illus. Part

No. No. DESCRIPTION

1 2222593 Shelf Assy (4)

2 2256250 Trim, Glass Side

Meat Pan

3 2179404 Rack, Wine

4 2302843 Meat Pan Cover

Assembly

5 2302836 Crisper Cover

Assembly

6 2257583 Trim, Glass Rear

7 2252413 Crisper Pan (2)

8 Slide, Meat Pan

2302954 Left Side

2302955 Right Side

10 2256255 Trim, Glass Rear

11 2256249 Front, Crisper

Pan

12 2252255 Trim, Glass Side

13 Spacer, Crisper

2256222 Right Side (2)

2256223 Left Side (2)

14 Slide, Crisper

2302957 Right Side (2)

2302956 Left Side (2)

15 Spacer, Meat Pan

2256243 Left Side

2256244 Right Side

16 8533929 Screw

17 2256370 Pan Assembly

Meat

18 2256367 Front, Meat Pan
