KitchenAid KSSS36DBX01 Manuale utente

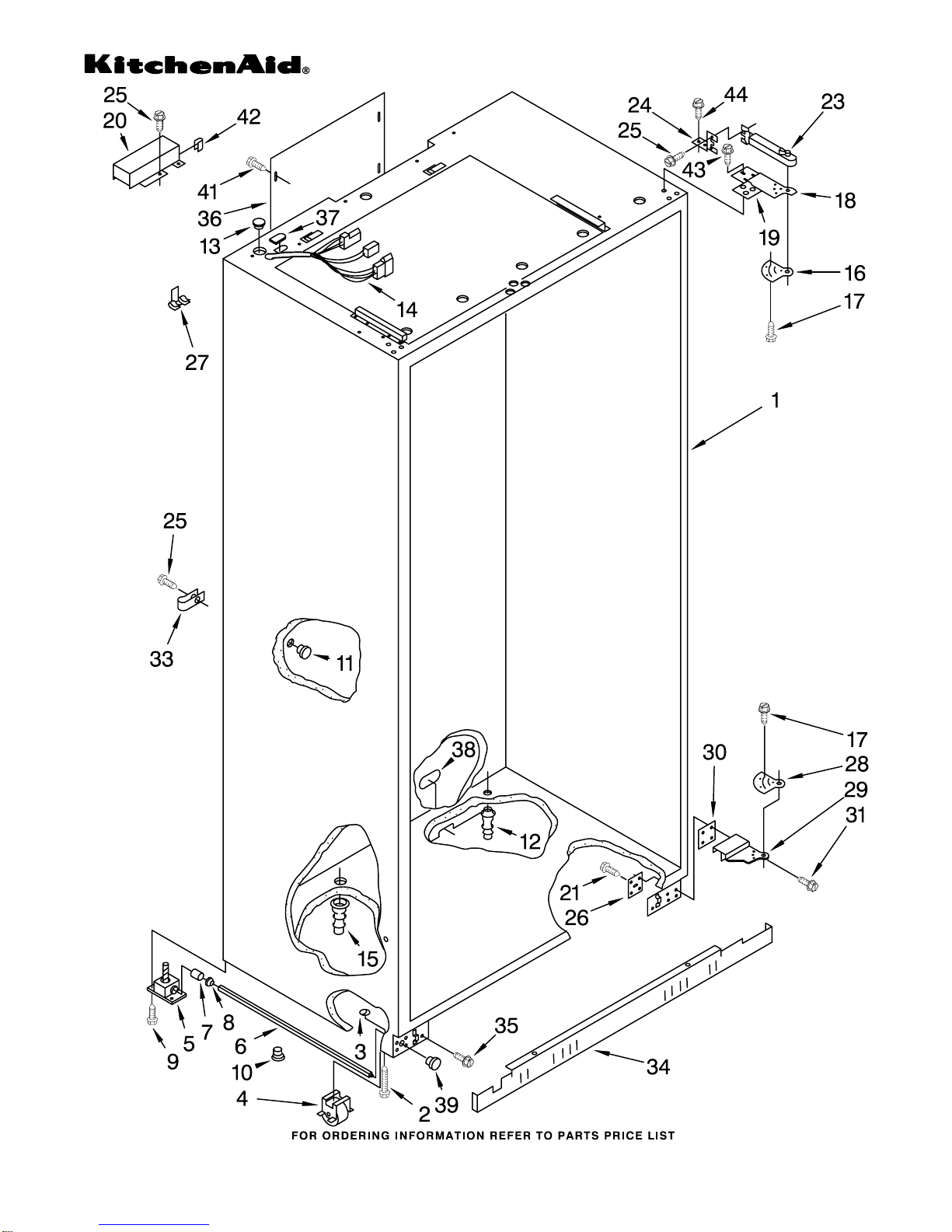

CABINET PARTS

For Model: KSSS36DBX01

10−94 Litho In U.S.A. (RCG) Part No. 4379647

REFRIGERATOR

CABINET PARTS

For Model: KSSS36DBX01

4379647

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Cabinet (Not A

Serviceable Part)

2 1112019 Leveler, Front (2)

3 1113249 Retainer (2)

4 1112023 Roller, Front &

Rear (4)

5 1112695 Leveler,

Adjustable (2)

6 2000670 Adjusting Rod (2)

7 1113250 Sleeve,

Retainer (2)

8 1112937 Bushing, Rod (2)

9 489359 Screw

10 1112939 Hole Plug, Leveler

11 1112849 Cap, Grommet

12 1112970 Grommet, Water

Tube

13 1113122 Grommet, Wiring

14 2000830 Wiring Harness,

Cabinet

15 1112848 Drain Fitting

16 Gap, Cover

Assembly (Top)

2000305 Left Side

2000304 Right Side

17 2001295 Shoulder Screw

18 Hinge (Top)

2000306 Left Side

2000307 Right Side

19 2000770 Shim, Hinge

Top

20 1112805 Guard, Wiring

21 487534 Screw (2)

23 1112992 Door Closer

Assembly (2)

24 2000333 Bracket, Door

Closer

25 486194 Screw, 8 x 1/2

26 1112973 Tap Plate,

Hinge Butt (2)

27 1113227 Fastener (3)

28 Gap, Cover

Assembly (Bottom)

2001200 Left Side

2001199 Right Side

29 Hinge (Bottom)

2001733 Left Side

2001732 Right Side

30 1112942 Shim, Hinge (1)

1112943 Shim, Hinge (2)

31 2000490 Screw

33 2001266 Tube clamp

34 2001962 Grille Base,

Front

35 489238 Screw (6)

36 2000727 Cover, Rear

37 1113123 Grommet, Wiring

38 1113079 Grommet, Flexible

39 1112926 Grommet, Tube

41 2001377 Screw

42 2000530 Grommet

43 2001415 Screw (8)

44 489359 Screw

CABINET TRIM PARTS

For Model: KSSS36DBX01

4379647

Illus. Part

No. No. DESCRIPTION

1 2000321 Cabinet, Trim R.S

2 2000322 Cabinet, Trim L.S

3 2001297 Screw

4 1112800 Cabinet, Trim

(Bottom)

5 488649 Screw (8)

6 2001309 Cabinet, Trim Top

7 2000007 Retainer, Unit

Base (2)

8 487944 Washer (2)

TOP GRILLE AND UNIT COVER PARTS

For Model: KSSS36DBX01

4379647

Illus. Part

No. No. DESCRIPTION

1 2001315 Decorative

Panel Assembly

2 1113313 Back Up Panel

3 2002115 Top Grille

Assembly

4 2002511 Cover, Unit

5 486194 Screw

6 2001874 Cover, Component

Assembly

7 1113317 Brace

REFRIGERATOR LINER PARTS

For Model: KSSS36DBX01

4379647

REFRIGERATOR LINER PARTS

For Model: KSSS36DBX01

4379647

Illus. Part

No. No. DESCRIPTION

1 LINER (Not A

Serviceable Part)

2 1112591 Spacer, Control

Panel (3)

3 502037 Grommet, Screw

5 2001117 Ladder, Shelf (2)

6 520965 Screw Support,

Ladder (8)

7 488357 Screw (8)

8 486194 Screw

9 1112257 Hole Plug

10 2000740 Meat Pan, Air

Duct Cover

(Also Order 12)

11 2000337 Meat Pan, Air Duct

12 2001302 Inlay, Control

Meat Pan

13 2001326 Seal, Air Duct

14 1112218 Damper Control,

Meat Pan

15 2001735 Control Knob,

Meat Pan

16 837444 Retainer, Knob

17 2000343 Air Baffle

Assembly

20 2001073 Wiring Harness,

Air Baffle

21 2001146 Seal

22 1116793 Cover, Thermistor

23 1116959 Thermistor

25 2000736 Air Baffle Cover

26 2000527 Guard, Air Return

Illus. Part

No. No. DESCRIPTION

1 LINER (Not A

Serviceable Part)

2 1112591 Spacer, Control

Panel (3)

3 502037 Grommet, Screw

5 2001117 Ladder, Shelf (2)

6 520965 Screw Support,

Ladder (8)

7 488357 Screw (8)

8 486194 Screw

9 1112257 Hole Plug

10 2000740 Meat Pan, Air

Duct Cover

(Also Order 12)

11 2000337 Meat Pan, Air Duct

12 2001302 Inlay, Control

Meat Pan

13 2001326 Seal, Air Duct

14 1112218 Damper Control,

Meat Pan

15 2001735 Control Knob,

Meat Pan

16 837444 Retainer, Knob

17 2000343 Air Baffle

Assembly

20 2001073 Wiring Harness,

Air Baffle

21 2001146 Seal

22 1116793 Cover, Thermistor

23 1116959 Thermistor

25 2000736 Air Baffle Cover

26 2000527 Guard, Air Return

FREEZER LINER PARTS

For Model: KSSS36DBX01

4379647

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

6 538533 Support Clip,

Icemaker (2)

7 2000193 Grommet, Screw (2)

8 488552 Screw (2)

9 992720 Stud, Support (4)

12 486194 Screw

13 1112591 Spacer, Control

Panel (3)

14 842534 Clip, Air Duct (4)

16 1112260 Support,

Evaporator

17 658944 Stud, Shelf (8)

18 487559 Screw (8)

FREEZER SHELF PARTS

For Model: KSSS36DBX01

4379647

Illus. Part

No. No. DESCRIPTION

1 1112365 Solid Shelf

2 2000885 Front, Ice

Compartment

3 1113564 Shelf, Fixed (2)

1113636 Shelf, Deep

4 2001551 Basket

5 1113642 Trim, Basket

15 1113870 Roller

16 1113871 Eyelet, Roller

17 489211 Screw

18 488307 Washer

22 2000061 Slide, Basket R.S.

2000062 Slide, Basket L.S.

24 1113169 Stop, Roller

25 486194 Screw

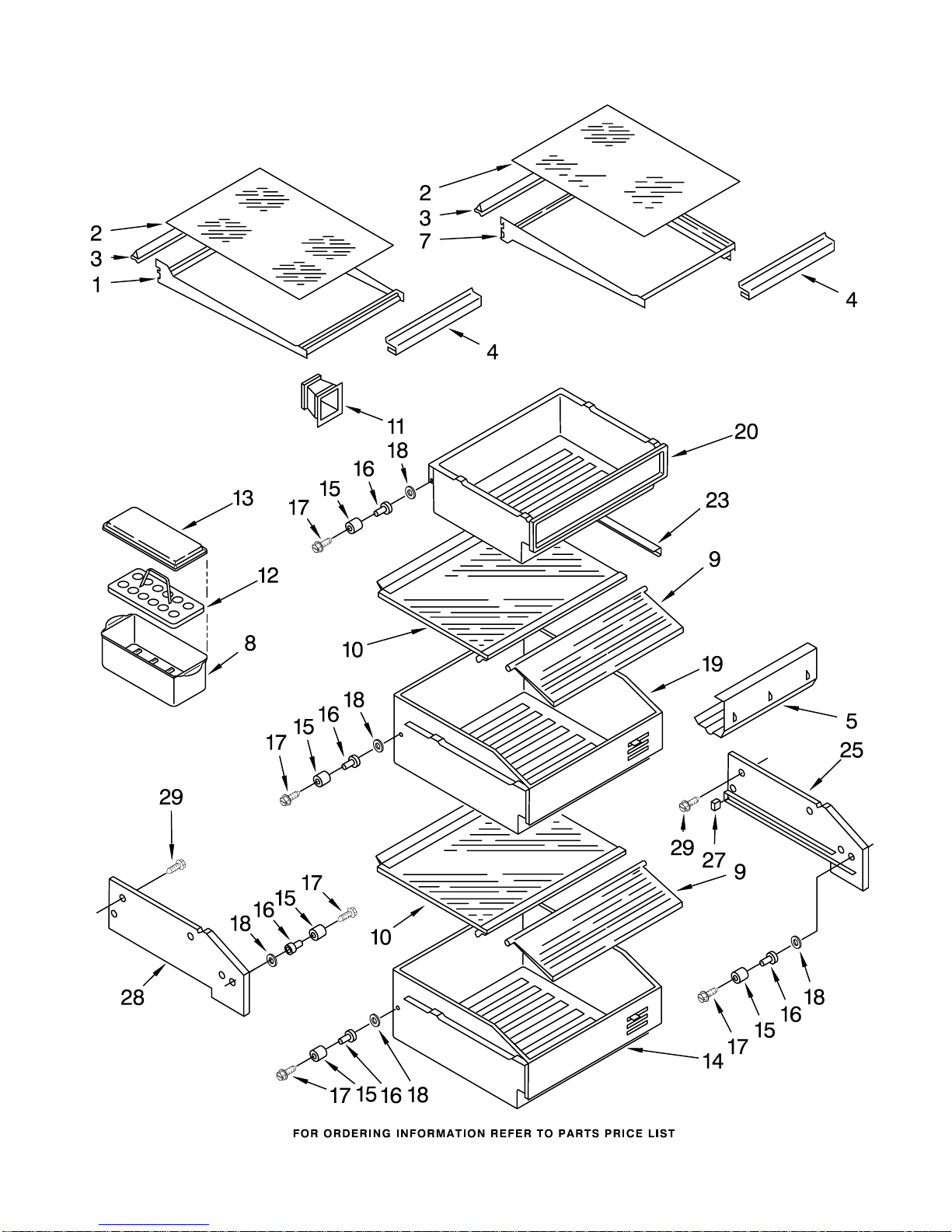

REFRIGERATOR SHELF PARTS

For Model: KSSS36DBX01

4379647

REFRIGERATOR SHELF PARTS

For Model: KSSS36DBX01

4379647

Illus. Part

No. No. DESCRIPTION

1 1113542 Frame, Shelf

2 1112297 Glass, Shelf

3 1113546 Reflector, Shelf

4 1113790 Gasket, Glass (2)

5 1125913 Rack, Wine

7 1113550 Frame, Assembly

8 2164372 Egg Bin

9 1113893 Cover, Crisper

10 2000154 Glass, Crisper

11 2000742 Meat Pan,

Connector

12 2164373 Egg Carrier

13 2164374 Cover

14 2000887 Crisper Pan

15 1113870 Roller

16 1113871 Eyelet, Roller

17 489211 Screw

18 488307 Washer

19 2000891 Utility Pan

20 2000815 Meat Pan

23 1112324 Retainer, Glass

25 1112165 Crisper Spacer,

Right Side (2)

27 1113169 Stop, Roller

28 1113890 Crisper Spacer,

Left Side (2)

29 486194 Screw
