CABINET PARTS

For Models: KSSS48QHW00, KSSS48QHB00, KSSS48QHT00

(White) (Black) (Biscuit)

10−99 Litho In U.S.A. (mek) Part No. 4398477

48" BUILT IN

REFRIGERATOR

CABINET PARTS

For Models: KSSS48QHW00, KSSS48QHB00, KSSS48QHT00

(White) (Black) (Biscuit)

4398477

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 LITERATURE PARTS

LIT2006136

Use & Care Guide

LIT2006653

Energy Label

LIT2005930

Service & Wiring

Sheet

LIT628370

Modular Icemaker

Service Sheet

LIT2006137

Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2005004 Grommet, Tube

Crossover

4 1112023 Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

2004506 Refrigerator Side

2004505 Freezer Side

6 2005006 Grommet, Wiring

7 2005007 Grommet,

Flexible

9 2006442 Mounting Stud,

Grill

10 2005237 Clip, Wire

11 1112849 Cap, Grommet

13 1113122 Grommet, Wiring

14 2006754 Wiring Harness,

Cabinet

16 488946 Tube, Clamp

17 2005378 Screw, Door Stop

18 2005295 Hinge (Top)

20 1112805 Guard, Wiring

21 2004994 Lock, Adjustable

Bushing

22 2002903 Bushing

24 Spring, Door

Closure

2004566 Refrigerator Side

2004567 Freezer Side

25 486194 Screw

26 2005008 Retaining Ring,

Adjustable Bushing

27 1113227 Fastener (3)

28 2006342 Gap, Cover

Assembly (Bottom)

29 Hinge (Bottom)

2006732 Freezer Side

2006733 Refrigerator Side

30 2004992 Bushing,

Adjustable

31 2001415 Screw

33 2004516 Linkage, Door

Closure

34 Grille Base,

Front

2004535 White

2004532 Black

35 489238 Screw

36 2004512 Cover, Rear

37 2207518 Grommet, Wiring

39 2006346 Washer

40 2004565 Bushing, Door

Closure

41 1163283 Screw

42 2150347 Union

43 2001415 Screw (4)

44 489464 Screw

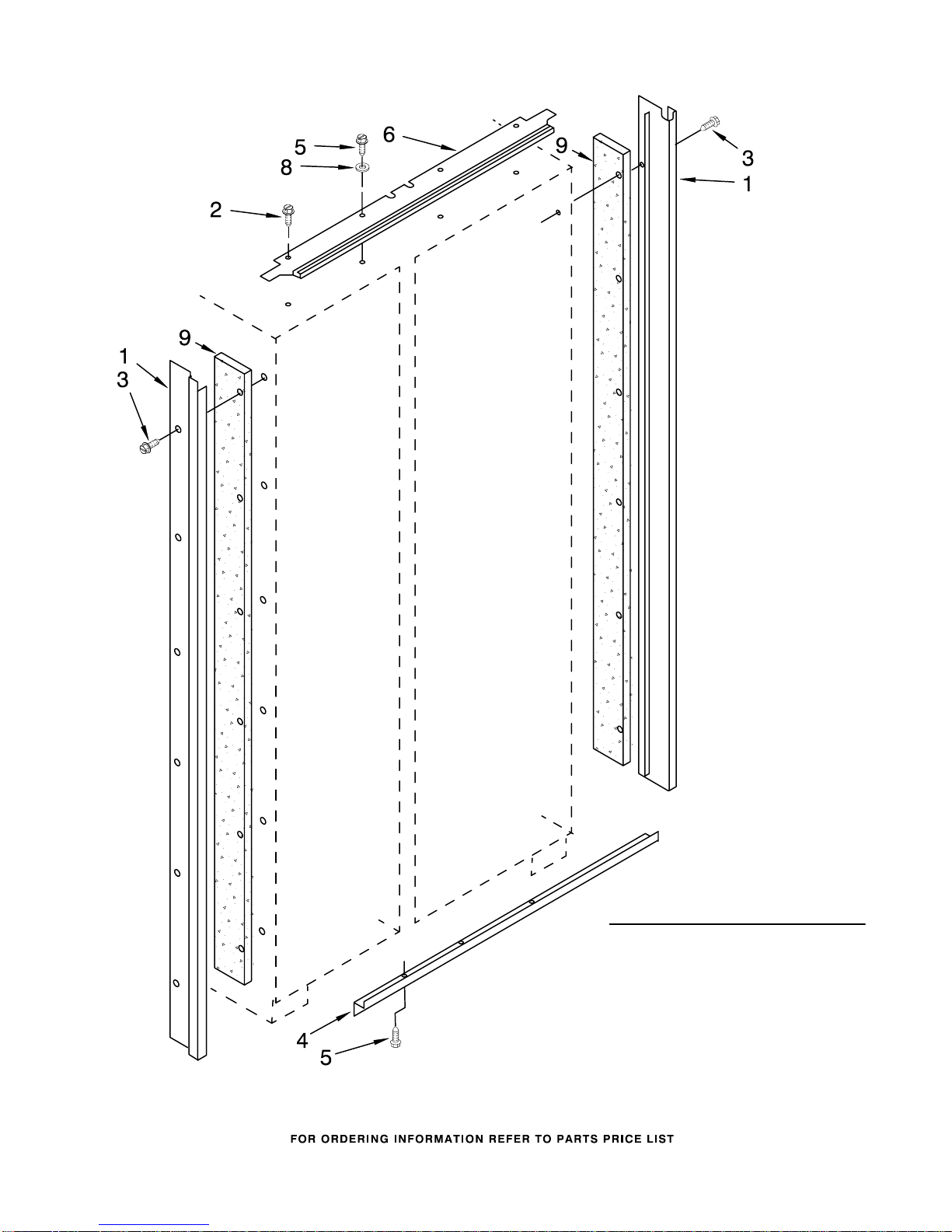

CABINET TRIM PARTS

For Models: KSSS48QHW00, KSSS48QHB00, KSSS48QHT00

(White) (Black) (Biscuit)

4398477

Illus. Part

No. No. DESCRIPTION

1 Cabinet, Trim (2)

2004668 White

2005820 Black

2005730 Biscuit

2 2003857 Screw

3 1163283 Screw

4 2004538 Cabinet, Trim

(Bottom)

5 486194 Screw

6 2003647 Cabinet, Trim Top

8 487944 Washer (2)

9 2005925 Seal−Trim, Side

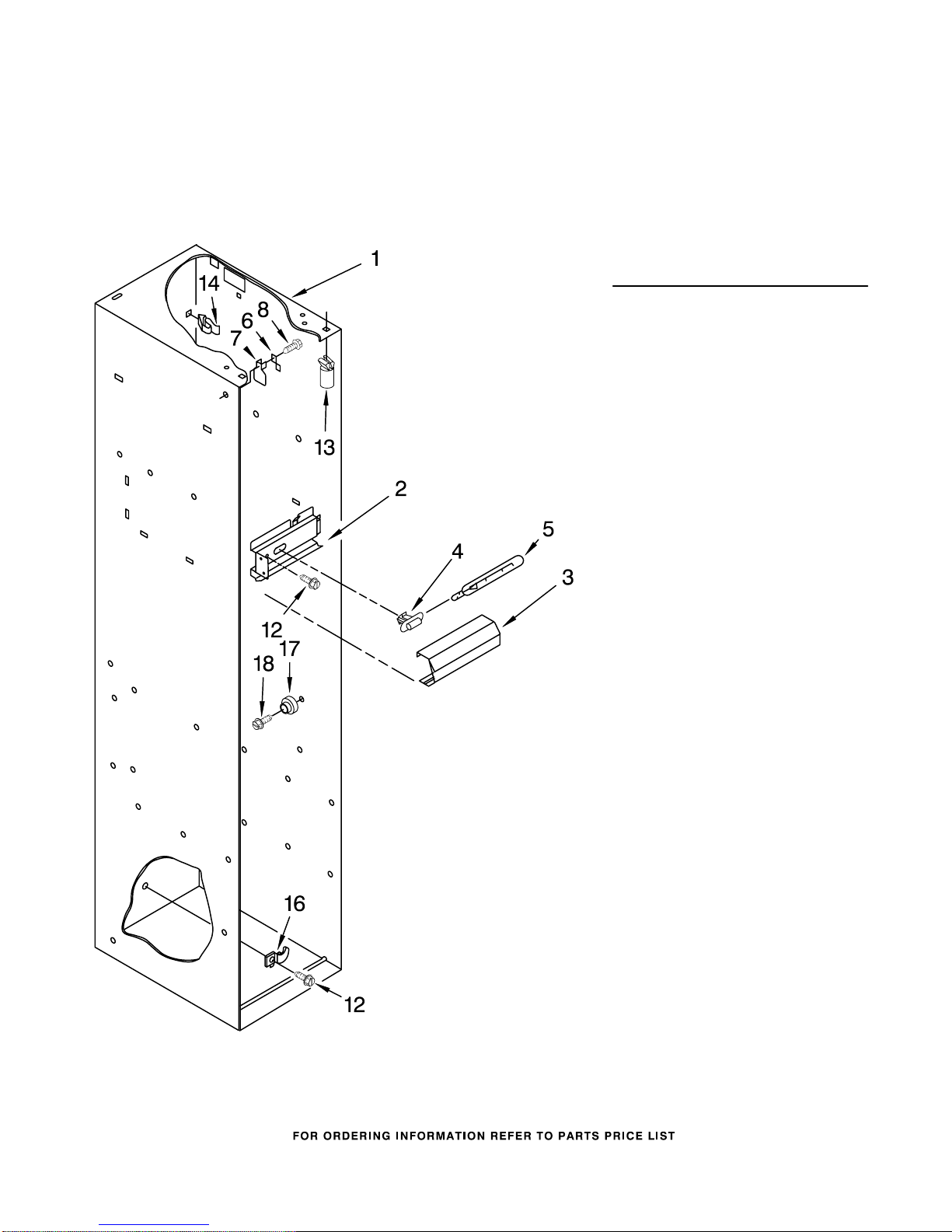

FREEZER LINER PARTS

For Models: KSSS48QHW00, KSSS48QHB00, KSSS48QHT00

(White) (Black) (Biscuit)

4398477

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2005567 Bracket, Light

3 1113650 Lens

4 2005042 Light, Socket

5 548049 Light, Bulb

6 538533 Support Clip,

Icemaker (2)

7 2000193 Grommet, Screw (2)

8 488552 Screw

12 486194 Screw

13 1112591 Spacer, Control

Panel (3)

14 842534 Clip, Air Duct (4)

16 1112260 Support,

Evaporator

17 2004068 Stud, Shelf (20)

18 487559 Screw

REFRIGERATOR LINER PARTS

For Models: KSSS48QHW00, KSSS48QHB00, KSSS48QHT00

(White) (Black) (Biscuit)

4398477

REFRIGERATOR LINER PARTS

For Models: KSSS48QHW00, KSSS48QHB00, KSSS48QHT00

(White) (Black) (Biscuit)

4398477

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 1112591 Spacer, Control

Panel (3)

5 2001117 Ladder, Shelf (2)

6 520965 Screw Support,

Ladder (8)

7 488357 Screw

8 486194 Screw

9 1112257 Hole Plug

10 2003579 Meat Pan, Air

Duct Cover

11 2000337 Meat Pan, Air Duct

12 2003299 Inlay, Control

Meat Pan

13 2001326 Seal, Air Duct

14 1112218 Damper Control,

Meat Pan

15 2003811 Control Knob,

Meat Pan

16 2003841 Retainer, Knob

17 2004484 Air Baffle

Assembly

21 2001146 Seal

22 1116793 Cover, Thermistor

23 1116959 Thermistor

25 2003578 Air Baffle Cover

26 2003577 Guard, Air Return

REFRIGERATOR CONTROL PANEL PARTS

For Models: KSSS48QHW00, KSSS48QHB00, KSSS48QHT00

(White) (Black) (Biscuit)

4398477

Illus. Part

No. No. DESCRIPTION

1 1112642 Control Panel

2 2003303 Inlay, Control

Panel

3 2004005 Circuit Board

4 2003842 Control Knob

5 2003841 Retainer, Knob

6 1118894 Switch, Rocker Arm

7 1113137 Seal, Control

Panel

8 489260 Screw (3)

9 2000153 Hole Plug (3)

10 2005566 Shield, Control

Panel

11 2005043 Socket, Light

12 548049 Light Bulb (2)

13 486194 Screw

14 2006223 Wire, Light

15 2001141 Channel, Wiring

16 1115375 Clip, Wiring (2)

FREEZER CONTROL PANEL PARTS

For Models: KSSS48QHW00, KSSS48QHB00, KSSS48QHT00

(White) (Black) (Biscuit)

4398477

Illus. Part

No. No. DESCRIPTION

1 1113627 Control Panel

2 2003309 Inlay, Control

Panel

3 1113466 Thermostat &

Barrier Assembly

4 488974 Screw (2)

5 1115373 Switch, Rocker Arm

6 1113136 Seal, Control

Panel

8 489260 Screw (3)

9 2000153 Hole Plug (3)

10 2005563 Shield, Control

Panel

11 2005042 Socket, Light

12 486194 Screw

13 548049 Light Bulb

14 2001974 Channel, Wiring

16 2182112 Knob, Thermostat

17 1115375 Clip, Wiring

REFRIGERATOR SHELF PARTS

For Models: KSSS48QHW00, KSSS48QHB00, KSSS48QHT00

(White) (Black) (Biscuit)

4398477

REFRIGERATOR SHELF PARTS

For Models: KSSS48QHW00, KSSS48QHB00, KSSS48QHT00

(White) (Black) (Biscuit)

4398477

Illus. Part

No. No. DESCRIPTION

1 2174404 Frame, Shelf

2 2003377 Glass, Shelf

3 1112006 Reflector, Shelf

4 1113792 Gasket, Glass (2)

5 2179375 Rack, Wine

6 2169933 Egg Bin

7 2006525 Frame, Assembly

Meat Pan

8 2164373 Egg Carrier

9 1112247 Cover, Crisper

10 2003380 Glass, Crisper

(Includes #9)

11 2000742 Meat Pan,

Connector

12 2169935 Cover

14 2006546 Crisper Pan (2)

15 2188212 Roller

16 2174478 Eyelet, Roller

17 2003478 Screw

20 2006531 Meat Pan

23 2002181 Retainer, Glass

25 2003411 Crisper Spacer,

Right Side (2)

27 1113169 Stop, Roller

28 2003410 Crisper Spacer,

Left Side (2)

29 486194 Screw
