Instruction

Manual

For Professionals...Since 1857

MM1300

•

BACKLIGHT

•

BAR GRAPH

•

LEAD HOLDER

•

MAX /MIN

•

3-5/6 DIGIT

6000 COUNT LCD

•

AUTO /MANUAL

RANGE

•

AUTO HOLD

HOLD

Apo

AUTO

A-HOLD

RANGE

All manuals and user guides at all-guides.com

all-guides.com

ENGLISH

MM1300

Instruction Manual

GENERAL SPECIFICATIONS

The Klein Tools MM1300 is an auto-ranging multimeter. It measures AC/DC

voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, and

temperature. It can also test diodes and continuity.

•

Operating Altitude: 6572 ft / 2000m

•

Relative Humidity: <75%

•

Operating Temperature: O°C/32°F to 50°C/122°F

•

Storage temperature: -20°C/ -4°F to 60°C/140°F<80% R.H.

•

Accuracy Temperature: 18°C/64°F to 28°C/82°F

•

Temperature Coefﬁcient: 0.1*(speciﬁed accuracy)/ °C

•

Sampling Frequency: 3 samples per second

•

Dimensions: 7” x 3.5” x 1.875”

•

Weight: 14 oz.

•

Calibration: Accurate for one year

•

CAT Rating: CAT III 1000V, CAT IV 600V

•

Accuracy: ± (% of reading + # of least signiﬁcant digits)

WARNINGS

To ensure safe operation and service of the tester, follow these instructions.

Failure to observe theses warnings can result in severe injury or death.

•

Before each use, verify meter operation by measuring a known

voltage or current.

•

Never use the meter on a circuit with voltages that exceed the

category based rating of this meter.

•

Do not use the meter during electrical storms, or in wet weather.

•

Do not use the meter or test leads if they appear to be damaged.

•

Ensure meter leads are fully seated, and keep ﬁngers away from the

metal probe contacts when making measurements.

•

Do not open the meter to replace batteries or fuses while the probes

are connected.

•

Use caution when working with voltages above 60V DC, or 25V AC

RMS. Such voltages pose a shock hazard.

•

To avoid false readings that can lead to electrical shock, replace

batteries if a low battery indicator appears.

•

Unless measuring voltage or current, shut off and lock out power

before measuring resistance or capacitance.

•

Always adhere to local and national safety codes. Use individual

protective equipment to prevent shock and arc blast injury where

hazardous live conductors are exposed.

SYMBOLS

AC Alternating Current Warning or Caution

DC Direct Current Dangerous levels

DC/AC Voltage or Current Double Insulated Class II

Ground AC Source

All manuals and user guides at all-guides.com

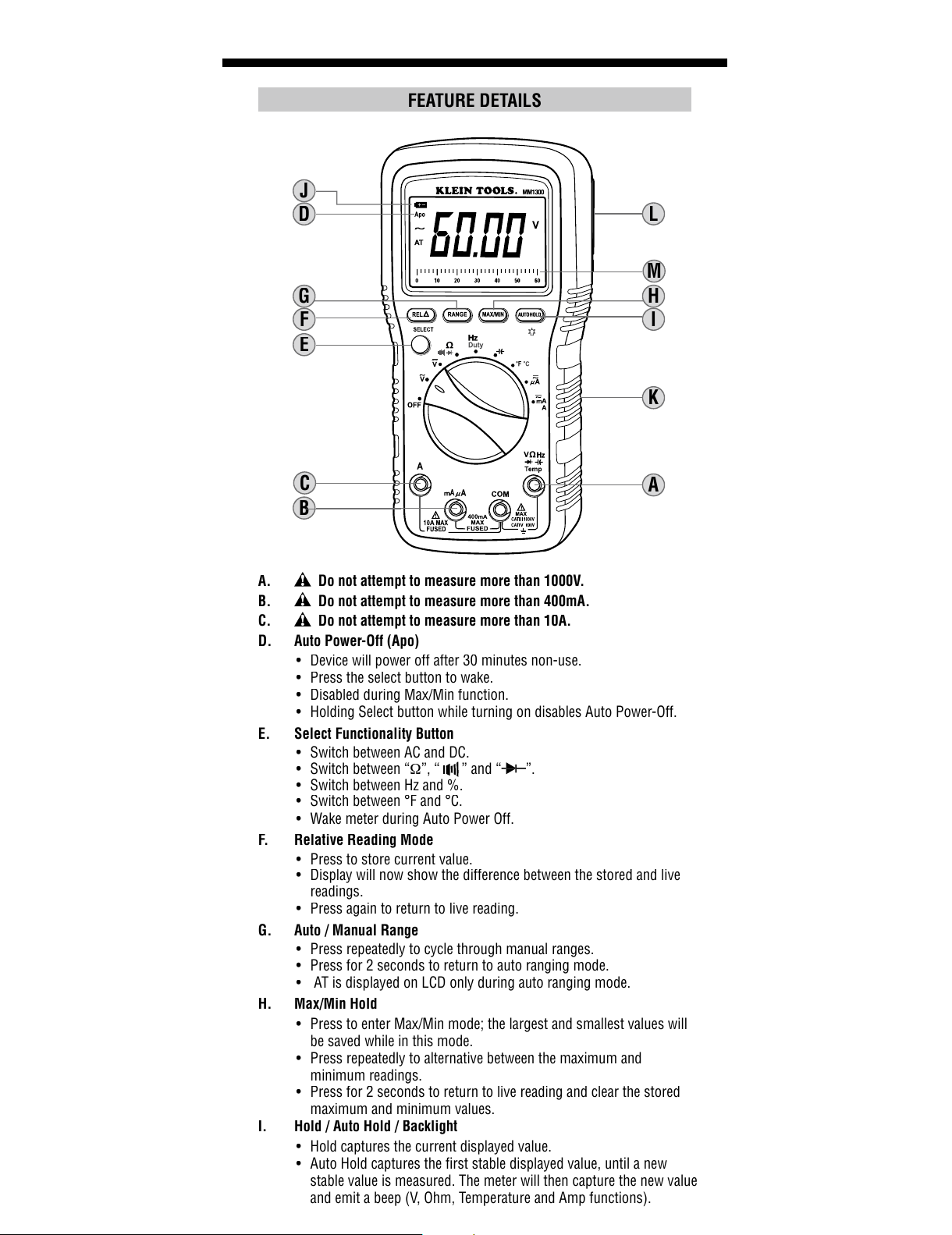

FEATURE DETAILS

Do not attempt to measure more than 1000V.

Do not attempt to measure more than 400mA.

Do not attempt to measure more than 10A.

D. Auto Power-Off (Apo)

•

Device will power off after 30 minutes non-use.

•

Press the select button to wake.

•

Disabled during Max/Min function.

•

Holding Select button while turning on disables Auto Power-Off.

E. Select Functionality Button

•

Switch between AC and DC.

•

Switch between “

”, “

” and “

”.

•

Switch between Hz and %.

•

Switch between °F and °C.

•

Wake meter during Auto Power Off.

F. Relative Reading Mode

•

Press to store current value.

•

Display will now show the difference between the stored and live

readings.

•

Press again to return to live reading.

G. Auto / Manual Range

•

Press repeatedly to cycle through manual ranges.

•

Press for 2 seconds to return to auto ranging mode.

•

AT is displayed on LCD only during auto ranging mode.

H. Max/Min Hold

•

Press to enter Max/Min mode; the largest and smallest values will

be saved while in this mode.

•

Press repeatedly to alternative between the maximum and

minimum readings.

•

Press for 2 seconds to return to live reading and clear the stored

maximum and minimum values.

I. Hold / Auto Hold / Backlight

•

Hold captures the current displayed value.

•

Auto Hold captures the ﬁrst stable displayed value, until a new

stable value is measured. The meter will then capture the new value

and emit a beep (V, Ohm, Temperature and Amp functions).

All manuals and user guides at all-guides.com

•

Press to hold current input on the display.

•

Press again to enter Auto-Hold to capture stable values.

•

Press again to return to normal operation.

•

Press and hold to activate display backlight.

•

Using lights drains the battery signiﬁcantly.

J. K. Battery/Fuse Replacement

•

When

indicator is displayed on the LCD, batteries must be

replaced.

•

Remove rubber boot, back screw and replace 2 x AAA batteries.

•

This meter uses 440mA/1000V (69192) and 11A/1000V (69191)

fast blow fuses.

L. Magnetic Hanger Accessory (Optional, Sold Separately)

•

Slide magnetic adapter into protective rubber boot.

•

Attach instruments to metal for hands-free use.

M. Bar Graph

•

The bar graph shows an approximate analog representation

of a measurement.

•

The bar graph responds much faster than the digital display.

•

The scale of the bar graph is zero to the maximum reading of

the selected range.

FUNCTION INSTRUCTIONS

1. AC Voltage: <1000V.

Features:

Do not attempt to measure more than 1000V

•

Rotate selector to "AC" Voltage position.

•

Attach red lead to “V” input.

MAX/MINRANGEHOLDREL AUTO HOLD

2. DC Voltage: <1000V.

Features:

Do not attempt to measure more than 1000V

•

Rotate selector to "DC" Voltage position.

•

Attach red lead to “V” input.

MAX/MIN

RANGEHOLDREL AUTO HOLD

All manuals and user guides at all-guides.com

3. AC/DC Current (large): <10A

Features:

Do not attempt to measure more than 10A

•

Start with this setting if current level is unknown.

•

Meter will automatically select "A" when red lead is connected to

"A" input. “

LEAd

” will show if connected but fuse is blown.

4. AC/DC Current (small): < 400mA

Features:

Do not attempt to measure more than 400mA

•

Rotate selector to "µA" or "mA" position

•

Attach red lead to “mAµA” input.

•

Select AC or DC current source.

5. Resistance/Diode/Continuity

Continuity Features:

MAX/MINHOLD

•

Display shows resistance.

•

Buzzer sounds if less than 40

Diode Features:

MAX/MINHOLD

Display shows:

•

Forward voltage drop if forward

biased.

•

“O.L” if reverse biased.

MAX/MINRANGEHOLDREL AUTO HOLD

Resistance Features:

•

Do not

measure resistance on a

live circuit.

•

= < 60M

AUTO HOLDHOLDREL

•

RANGE MAX/MIN

All manuals and user guides at all-guides.com

ENGLISH

ELECTRICAL SPECIFICATIONS

DC Voltage Measurement

Range Resolution Accuracy

600mV

600V

0.1mV

0.1V

± (0.5% + 4 digits)

1000V

± (0.8% + 10 digits)

Overload Protection:

1000V

Input Impedance (Nominal)

: 10M

, <100pF

AC Voltage Measurement

Range Resolution Accuracy

600mV

0.1mV

± (0.75% + 5 digits)

6V ~ 600V

1mV ~ 0.1V

1000V

± (1.0% + 8 digits)

Overload Protection:

1000V RMS

Input Impedance (Nominal)

: 10M

, <100pF

Frequency Response:

40 to 400 Hz

Response:

Averaging

7. Capacitance:

6000µF

Features:

HOLD

Safely discharge capacitor before measurement.

•

Reading may take up to 60 seconds for large capacitors.

Do Not

apply voltage to thermocouple.

•

Fahrenheit range: -58° to 1832°F

•

Celsius range: -50° to 1000° C

8. Temperature:

Features:

Testing Fuses:

•

When selecting µA or mA/A functions the meter will indicate

“

LEAd

” if the test leads are not properly connected to the meter.

•

Note: This message remaining on the screen after properly

connecting the test leads is an indication that the fuse is open.

MAX/MIN

HOLD

REL AUTO HOLD

6. Frequency (Hz) /Duty Cycle

<500kHz

Features:

HOLD

All manuals and user guides at all-guides.com

all-guides.com

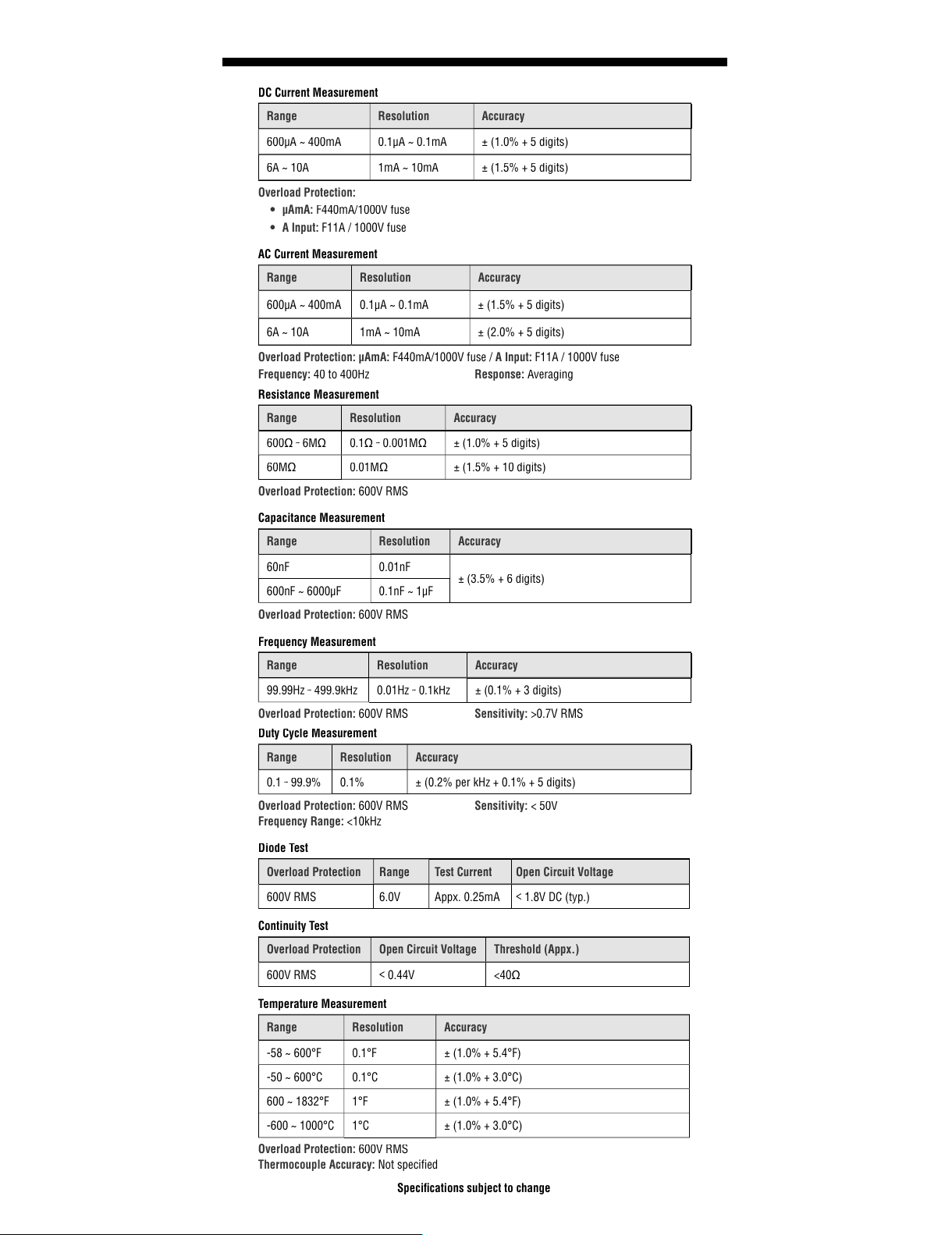

DC Current Measurement

Range Resolution Accuracy

600µA ~ 400mA

0.1µA ~ 0.1mA

± (1.0% + 5 digits)

6A ~ 10A

1mA ~ 10mA

± (1.5% + 5 digits)

Overload Protection:

• µAmA:

F440mA/1000V fuse

• A Input:

F11A / 1000V fuse

AC Current Measurement

Range Resolution Accuracy

600µA ~ 400mA

0.1µA ~ 0.1mA

± (1.5% + 5 digits)

6A ~ 10A

1mA ~ 10mA

± (2.0% + 5 digits)

Overload Protection: µAmA:

F440mA/1000V fuse /

A Input:

F11A / 1000V fuse

Frequency:

40 to 400Hz

Response:

Averaging

Resistance Measurement

Range Resolution Accuracy

600

˜6M

0.1

0.001M

˜0.001M

± (1.0% + 5 digits)

60M

0.01M

± (1.5% + 10 digits)

Overload Protection:

600V RMS

Capacitance Measurement

Range Resolution Accuracy

60nF

0.01nF

± (3.5% + 6 digits)

600nF ~ 6000µF

0.1nF ~ 1µF

Overload Protection:

600V RMS

Frequency Measurement

Range Resolution Accuracy

99.99Hz

499.9kHz

˜499.9kHz

0.01Hz

0.1kHz

˜0.1kHz

± (0.1% + 3 digits)

Overload Protection:

600V RMS

Sensitivity:

>0.7V RMS

Duty Cycle Measurement

Range Resolution Accuracy

0.1

99.9%

˜99.9%

0.1%

± (0.2% per kHz + 0.1% + 5 digits)

Overload Protection:

600V RMS

Sensitivity:

< 50V

Frequency Range:

<10kHz

Diode Test

Overload Protection Range Test Current Open Circuit Voltage

600V RMS

6.0V

Appx. 0.25mA

1.8V DC (typ.)

Continuity Test

Overload Protection Open Circuit Voltage Threshold (Appx.)

600V RMS

0.44V

<40

Temperature Measurement

Range Resolution Accuracy

-58 ~ 600°F

0.1°F

± (1.0% + 5.4°F)

-50 ~ 600°C

0.1°C

± (1.0% + 3.0°C)

600 ~ 1832°F

1°F

± (1.0% + 5.4°F)

-600 ~ 1000°C

1°C

± (1.0% + 3.0°C)

Overload Protection:

600V RMS

Thermocouple Accuracy:

Not speciﬁed

Speciﬁcations subject to change

All manuals and user guides at all-guides.com

SYMBOLS USED ON LCD

AC Measurement DC Measurement

Negative DC Value

Auto Range Active

.L.

Overload: Range Exceeded

Apo

Auto Power-Off Active

Low Battery

HOLD

Hold Active

MIN

Minimum Reading

Maximum Reading

Duty Cycle Mode Frequency Mode

Voltage Measurement

Current in Amps

Resistance in Ohms Diode Test

Capacitance in Farads Continuity Test

Relative / Zero Mode

Nano 10

-9

Micro 10

-6

Milli 10

-3

Kilo 10

Mega 10

°F

Degrees Fahrenheit

°C

Degrees Celsius

A-HOLD

Auto-Hold Active



WARRANTY

See www.kleintools.com, contact Klein Tools at 1-877-775-5346, or visit a

distributor for warranty information.

CLEANING

Turn instrument off and disconnect test leads. Clean the instrument by using

a damp cloth. Do not use abrasive cleaners or solvents.

STORAGE

Remove the batteries when instrument is not in use for a prolonged period of

time. Do not expose to high temperatures or humidity. After a period of storage

in extreme conditions exceeding the limits mentioned in the Speciﬁcations

section, allow the instrument to return to normal operating conditions before

using it.

DISPOSAL /RECYCLE

Caution:

This symbol indicates that equipment and its accessories

shall be subject to a separate collection and correct disposal.

CUSTOMER SERVICE

KLEIN TOOLS, INC.

450 Bond Street

Lincolnshire, IL 60069

1-877-775-5346

www.kleintools.com

Rev A 01/27/12 139713

All manuals and user guides at all-guides.com

www.kleintools.com

Manual de

Instrucciones

For Professionals...Since 1857

MM1300

•

LUZ DE FONDO

•

GRÁFICO DE

BARRAS

•

SOPORTE

PARA LOS

CONDUCTORES

DE PRUEBA

•

MAX /MIN

•

PANTALLA LED DE

6000 CONTEOS

CON DÍGITOS DE

3-5/6

•

INTERVALO

AUTOMÁTICO /

MANUAL

HOLD

Apo

AUTO

A-HOLD

RANGE

ESPAÑOL

All manuals and user guides at all-guides.com

ESPAÑOL

MM1300

Manual de Instrucciones

ESPACIFICACIONES GENERALES

El MM1300 de Klein Tools es un multímetro con determinación automatica del

intervalo. Mide tensión de CA/CC, corriente CA/CC, resistencia, capacitancia,

frecuencia, ciclo de servicio y temperatura. También puede comprobar diodos y

continuidad.

•

Altitud de operación: 2000m

•

Humidad relativa: <75%

•

Temperatura de funcionamiento: O°C / 32°F a 50°C / 122°F

•

Temperatura de almacenamiento: -20°C / -4°F to 60°C / 140°F <80%

•

Temperatura de precisión: 18°C / 64°F a 28°C / 82°F

•

Coeﬁciente de temperatura: 0.1*(precisión especiﬁcada)/ °C

•

Frecuencia de muestreo: 3 muestras por segundo

•

Dimensiones: 7 x 3.5 x 1.875 pulgadas

•

Peso: 14 onzas

•

Calibración: Precisa durante un año

•

Clasiﬁcación CAT: CAT III 1000V, CAT IV 600V

•

Precisión: ± (% de la lectura + No. de dígitos menos signiﬁcativos)

ADVERTENCIAS

Para asugurar un funcionamiento y servicio seguros del probador, siga estas

instrucciones. Si no se hace caso de estas advertencias, el resultado puede ser

lesiones graves o muerte.

•

Antes de cada uso, veriﬁque el funcionamiento del multímetro midiendo

una tensión o una corriente conocida.

•

No utilice nunca el multímetro en un ciruito con tensiones que excedan la

capacidad nominal basada en la categoría de este multímetro.

•

No utilice el multímetro durante tormentas eléctricas ni en tiempo mojado.

•

No utilice el multímetro ni los conductores de prueba si parecen estar

dañados.

•

Asegúrese de que los conductores de prueba del multímetro estén

comletamente asentados y mantenga los dedos alejados de los contactos

metálicos de los conductores de prueba cuando haga mediciones.

•

No abra el multímetro para reemplazar las pilas mientras los conductores

de prueba estén conectados.

•

Tenga precaución cuando trabaje con tensiones superiores a 60 V CC, o

25 V CA de valor eﬁcas (RMS). Dichas tensiones presentan un peligro de

descarga.

•

Para evitar lecturas falsas que pueded llevar a descargas eléctricas,

reemplace las pilas si aparece un indicador de pila baja.

•

A menos que mida tensión o corriente, apague y bloquee el suministro

eléctrico antes de medir resistencia o capacitancia.

•

Cumpla siempre con los códigos de seguridad locales y nacionales.

Utilice equipo protector individual para evitar las descargas eléctricas y

las lesiones por intensas corrientes de arco donde los conductores con

corriente peligrosos estén al descubierto.

SÍMBOLOS

CA Corriente alterna Advertencia y precaución

CC Corriente continua Niveles Peligrosos

Tensión o corriente CC/CA Con aislamiento doble de

Clase II

Conexión a tierra Fuente de CA

All manuals and user guides at all-guides.com

Altri manuali per MM1300

Indice

Lingue:

Altri manuali Klein Tools Multimetro

Klein Tools

Klein Tools CL3100 Manuale utente

Klein Tools

Klein Tools MM2000 Manuale utente

Klein Tools

Klein Tools CL1000 Manuale utente

Klein Tools

Klein Tools MM325 Manuale utente

Klein Tools

Klein Tools MM400 Manuale utente

Klein Tools

Klein Tools MM600 Manuale utente

Klein Tools

Klein Tools MM2000 Manuale utente

Klein Tools

Klein Tools MM2000 Manuale utente

Klein Tools

Klein Tools MM1000 Manuale utente

Klein Tools

Klein Tools MM420 Manuale utente

Klein Tools

Klein Tools MM300 Manuale utente

Klein Tools

Klein Tools MM420 Manuale utente

Klein Tools

Klein Tools CL100 Manuale utente

Klein Tools

Klein Tools MM320 Manuale utente

Klein Tools

Klein Tools MM500A Manuale utente

Klein Tools

Klein Tools MM400 Manuale utente

Klein Tools

Klein Tools MM300 Manuale utente

Klein Tools

Klein Tools CL110 Manuale utente

Klein Tools

Klein Tools MM2000 Manuale utente

Klein Tools

Klein Tools MM5000 Manuale utente

Klein Tools

Klein Tools CAT III Manuale utente

Klein Tools

Klein Tools MM2300A Manuale utente

Klein Tools

Klein Tools MM200 Manuale utente

Klein Tools

Klein Tools CL200 Manuale utente

Manuali Multimetro popolari di altre marche

Agilent Technologies

Agilent Technologies 34420A Manuale utente

Fluke

Fluke 83 Manuale utente

Hameg

Hameg HM 8012 Manuale utente

Mastech

Mastech MY70 Manuale utente

Steren

Steren MUL-300 Manuale utente

Somogyi Elektronic

Somogyi Elektronic home SMA 92 Manuale utente

Gossen MetraWatt

Gossen MetraWatt METRAmax 6 Manuale utente

PeakTech

PeakTech 4000 Manuale per l'uso e la cura

YOKOGAWA

YOKOGAWA 90050B Manuale utente

Gossen MetraWatt

Gossen MetraWatt METRALINE DMM16 Manuale utente

Fluke

Fluke 8846A Manuale operativo e di manutenzione

Tempo Communications

Tempo Communications MM200 Manuale utente

Elenco Electronics

Elenco Electronics CM-1555 Manuale utente

Mastech

Mastech MS8238C Manuale utente

SDAR

SDAR 830A, 830B, 830D, 830C Manuale utente

RS PRO

RS PRO RS-9519BT Manuale utente

BGS technic

BGS technic 8890 Manuale utente

Amprobe

Amprobe Hexagon 60 Manuale utente
