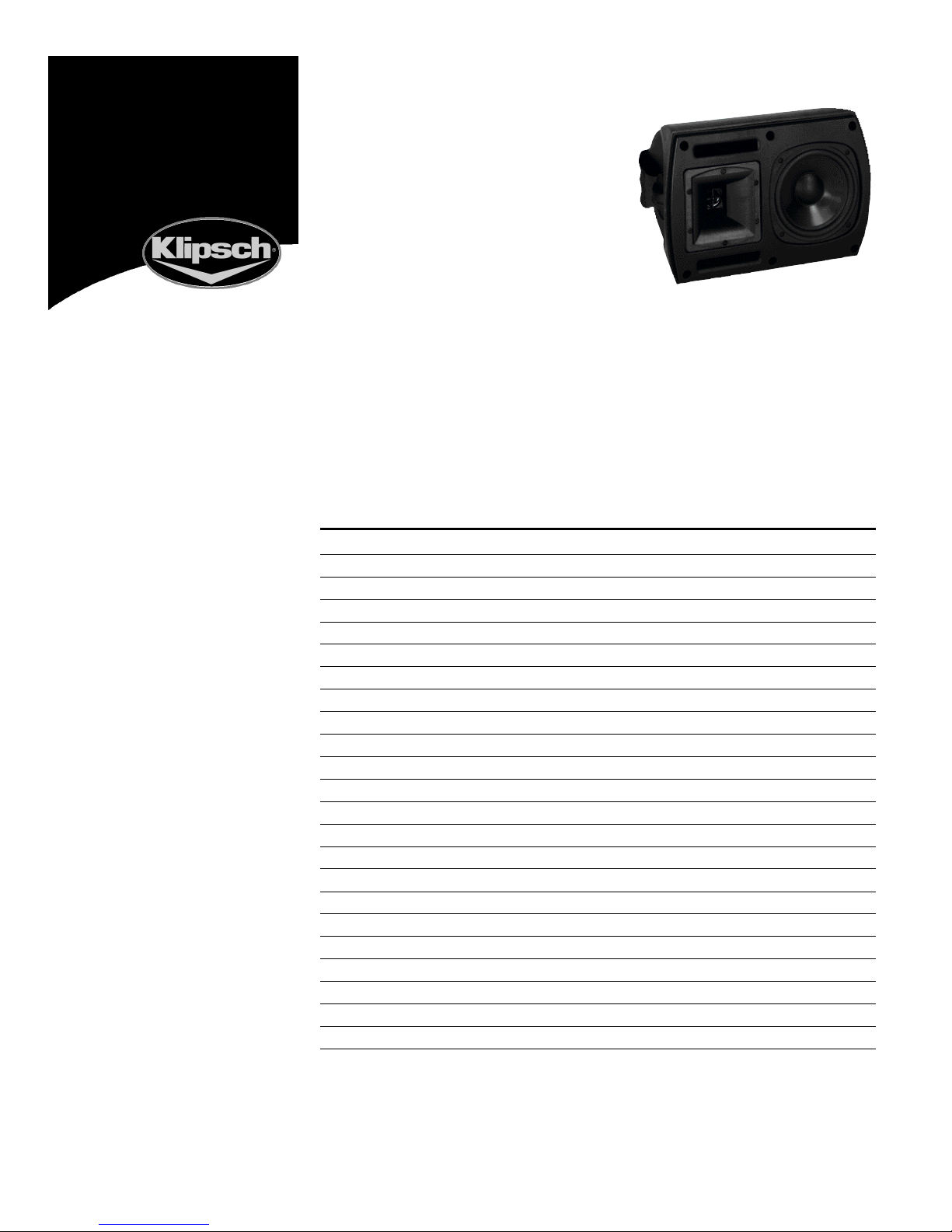

Klipsch CA-5T Manuale utente

ALL-PURPOSE 5.25"

TWO-WAY COMPACT

LOUDSPEAKER

SYSTEM

The little speaker with the big sound!

Ideal for applications where "tight

space" under-eave, wall or ceiling

mounting is required. The CA-5T full

range loudspeaker includes every-

thing you need for fast and easy

installation. The durable UV-resistant

all-weather enclosure includes an

internal multi-tap transformer to

simplify hookup to any system. The

C-bracket assembly attaches to the

enclosure’s integral "center-of-gravity

balanced" threaded studs and over-

sized knobs, ensuring a positive posi-

tion-lock. Asecurity retainer allows

for wiring to a second mounting

point, guarding against

dislodging or tampering.

Designed for distributed audio appli-

cations, the compact high-fidelity sys-

tem is equally at home in outdoor or

indoor background music and paging

applications, in both commercial and

recreational environments. For appli-

cation flexibility, the internal multi-tap

transformer includes an easily adjust-

ed bypass switch, allowing direct full

range connection for 8 ohm operation.

Enclosure signal connections are

accomplished through a

5-way binding post.

For efficiency and reliability, the

CA-5T consist of a high power 5.25"

weather-resistant woofer and a 1"

polymer diaphragm compression

driver on a molded Tractrix Horn. A

unique feature of the 90º x 60º horn

assembly is its ability to be reposi-

tioned 90º, providing selectable

pattern control.

Power handling and performance

efficiency are superb at 75 watts

continuous and 94dB sensitivity,

with a maximum output of 109dB.

The paintable ABS enclosure is avail-

able in black or white finishes, and fea-

tures all stainless steel hardware and

a removable aluminum powder-

coated grille for years of maintenance-

free duty, no matter the climate

or environment.

C A - 5 T

FREQUENCYRESPONSE1

POWER HANDLING

MAXIMUM CONTINUOUS OUTPUT

SENSITIVITY

TRANSFORMER TAPS

HORIZONTALCOVERAGE

VERTICALCOVERAGE

DIRECTIVITY

NOMINALIMPEDANCE

CROSSOVER FREQUENCY

COMPONENTS

INPUT CONNECTORS

ENCLOSURE MATERIAL

HEIGHT

WIDTH

DEPTH

NET WEIGHT

SHIPPING WEIGHT

FINISHES

ACCESSORIES

70Hz-20kHz±4dB

75 W (17V)

109dB

94dB

70V: 30W, 15W, 7.5W

100V: 30W, 15W

Thru Position: 8 ohms

60º±40 3000Hz-20kHz

80º±40 1600Hz-20kHz

8±3dB 900Hz-20kHz

8 ohms nominal (3.8 min @ 260Hz)

2.7kHz

One K-1109-A5.25" woofer

One K-117-A1" polymer diaphragm compression driver

5-way binding posts

All-weather ABS plastic

8.625" (21.9cm)

12" (30.48cm)

8.875" (22.54cm)

10 lbs. (4.54kg)

24 lbs. (10.89kg)

White or Black

C-Bracket (included), CASecurity Kit

13M, Half-space anechoic

2AES Standard, continuous pink noise 50Hz-10kHz, 6dB peaks

3Calculated at 1M at power handling power input

4SPLat 1M, half-space anechoic with 2.83V input

Specifications

●

Compact UV- and weather-resistant full range design

●

Adjustable 90º x 60º Tractrix®Horn for flexible pattern control

●

Internal 30 W multi-tap transformer with 8 ohm bypass

●

Stainless steel hardware and aluminum powder-coated grille

●

White or black enclosure paintable to match decor

●

94dB sensitivity, 109dB maximum output (1 meter)

●

Only 8.625" x 12" x 8.875" and 10 lbs.

CA-5T

HorizontalOff-AxisTransferFunction

HorizontalCoverage(-6dB) VerticalCoverage(-6dB)

Impedance

DirectivityIndex

FrequencyResponse

VerticalOff-AxisTransferFunctionUP VerticalOff-AxisFunctionDOWN

COMPACT 5.25"TWO-WAY SPEAKER SYSTEM

Horizontal 1

/3Octave Polars

Vertical 1

/3Octave Polars

3502 Woodview Trace, Suite 200 • Indianapolis, IN 46268

137 County Road 278 • Hope, AR USA71801

1-888-600-5776 • www.klipsch.com

Architectural Specifications

The CA-5T all-purpose two-way compact loudspeaker

system shall include a 5.25" (13.34cm) K-1109-A woofer

and a 1" (2.54cm) K-117-A polymer diaphragm com-

pression driver mounted on a Tractrix Horn. Signal

shall be provided to the transducers via a passive inter-

nal frequency dividing network, with a 2.7kHz

crossover frequency. The enclosure tuning shall be dual

port bass reflex.

Frequency response shall be 70Hz to 20kHz, ±4dB, with

the -10dB down point at 60Hz, measured at one meter,

half space anechoic. The dispersion angle shall be 90º

by 60º nominal (refer to graph). Sensitivity shall be

94dB SPL, measured at one meter, half space anechoic,

with a 2.83V input. Power handling shall be 75 watts

(17volts), to AES standards, continuous pink noise,

50Hz to 10kHz, 6dB peaks. Calculated maximum con-

tinuous output at one meter shall be 109dB SPL.

Nominal impedance shall be 8 ohms, with a 3.8 ohm

minimum at 260Hz. Full-range connections shall be

made via 5-way binding posts.

A removable powder-coated aluminum grille shall be

provided for protection of the transducers from tamper-

ing or damage. The enclosure shall be UV- and

weather-resistant ABS plastic, available in black or

white, with dimensions of 8.625" (21.9cm) high by 12"

(30.48cm) wide, by 8.875" (22.54cm) deep. Net weight

shall be 10 lbs. (4.54kg).

Mounting shall be via protruding stainless steel thread-

ed studs on the side enclosure panels, mating to large

external knobs for positive attachment to the C-shaped

mounting bracket (included).

The system shall be a Klipsch CA-5T loudspeaker.

1M0901

195062

Specifications subject to engineering changes.

Front View

1/4-20 UNC Stud

Left Side View

Back View Without Bracket

1/4-20 UNC Stud

Front Side View

1/4-20 UNC Stud

Back View

4.214

2.483

8.000 Ref

4.214

Top View

Safety Point 1/4-20 UNC

Threaded Hole

Bottom View
