Klipsch SB 120 Manuale utente

SB 120

OWNER’S MANUAL

$ TRIM LINE $ $ TRIM LINE $

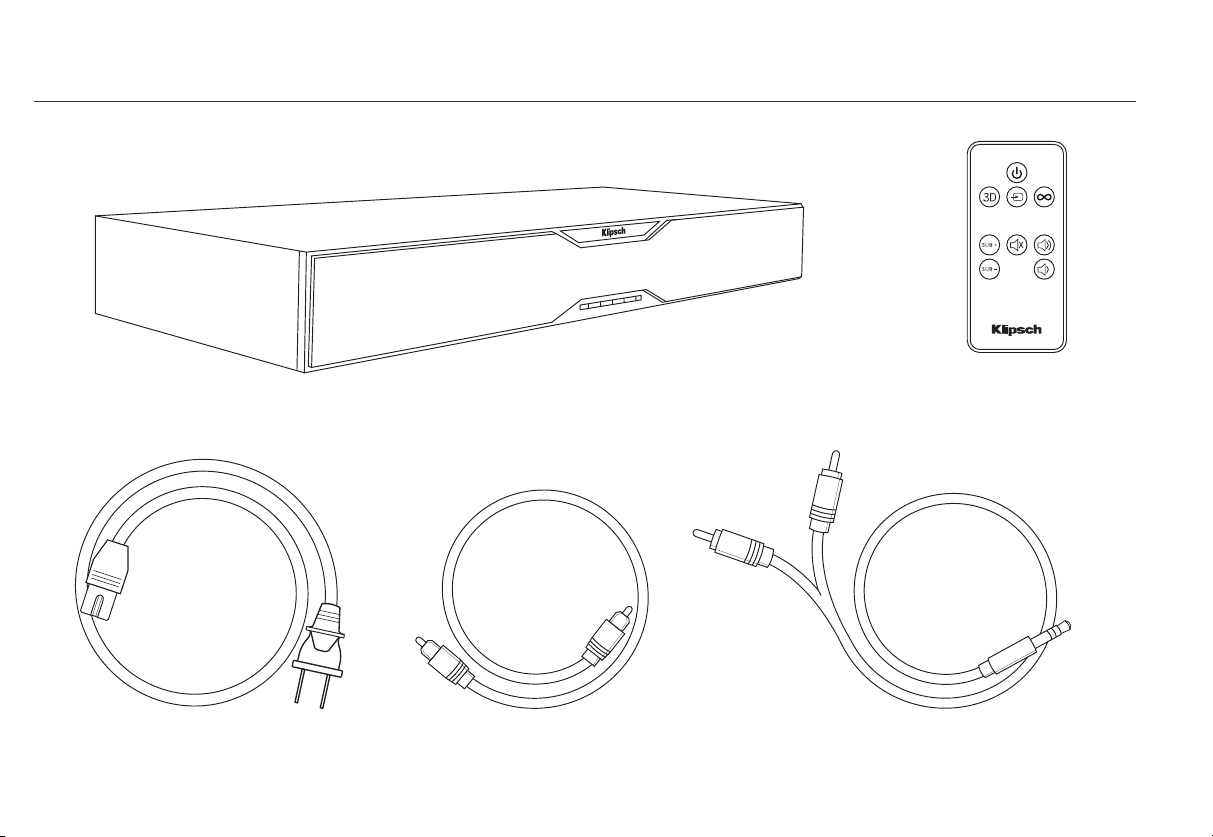

WHAT’S INSIDE

Klipsch SB 120 Remote

AC Power Cord Digital Optical Cable 3.5mm to Dual RCA Cable

$ TRIM LINE $ $ TRIM LINE $

POWER

OFF

OPTICAL L

AC~100-240V

50/60Hz

80W

145

Optical

Digital Audio Out

POWER

OFF

OPTICAL L

Audio Out

Klipsch SB 120

POWER

OFF

OPTICAL L

Headphone

AC~100-240V

50/60Hz

80W

AC~100-240V

50/60Hz

80W

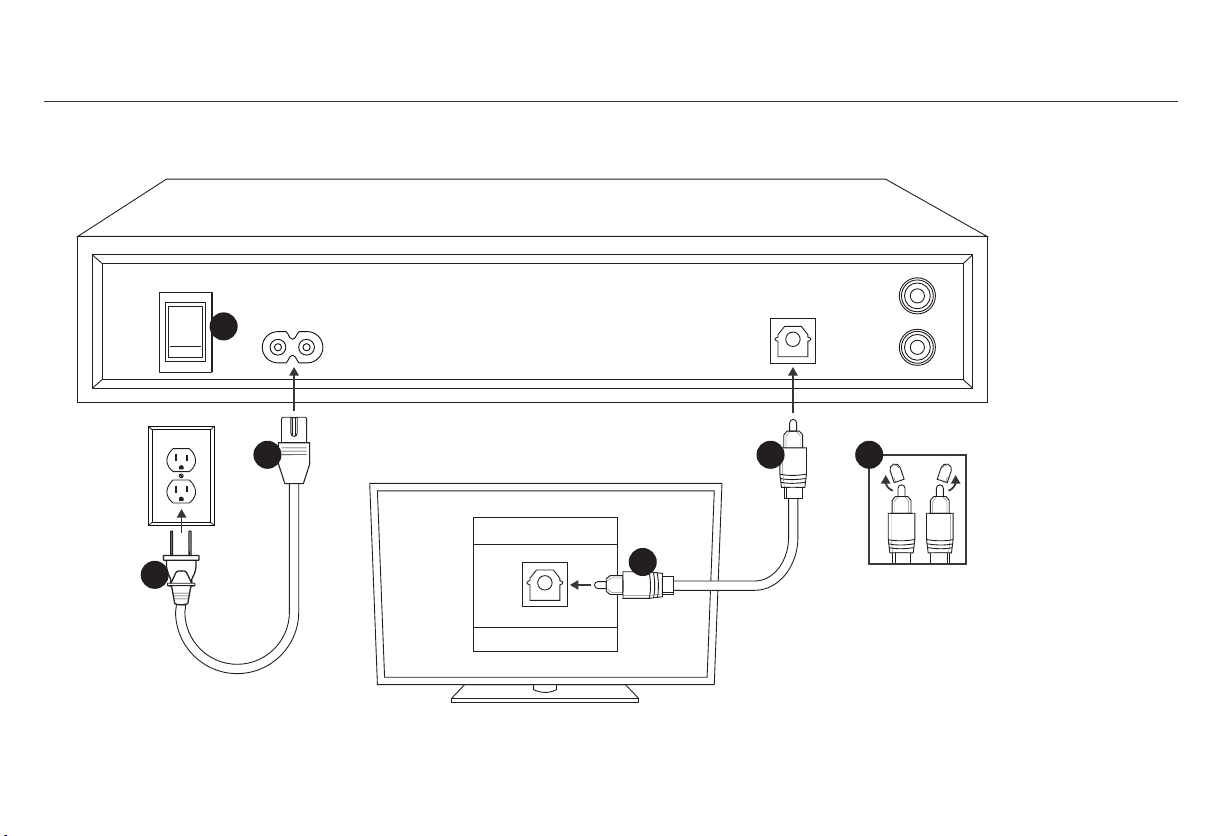

DIGITAL OPTICAL CONNECTION (PREFERRED - IF TV HAS NO OPTICAL OUT SEE NEXT PAGE)

$ TRIM LINE $ $ TRIM LINE $

POWER

OFF

OPTICAL L

AC~100-240V

50/60Hz

80W

145

Optical

Digital Audio Out

POWER

OFF

OPTICAL L

Audio Out

Klipsch SB 120Klipsch SB 120

Klipsch SB 120

POWER

OFF

OPTICAL L

Headphone

AC~100-240V

50/60Hz

80W

AC~100-240V

50/60Hz

80W

3.5mm TO DUAL RCA ANALOG CONNECTION (IF TV HAS NO HEADPHONE OUT SEE NEXT PAGE)

QUICK START

POWER

OFF

OPTICAL L

AC~100-240V

50/60Hz

80W

145

Optical

Digital Audio Out

POWER

OFF

OPTICAL L

Audio Out

Klipsch SB 120

Klipsch SB 120 Klipsch SB 120

POWER

OFF

OPTICAL L

Headphone

AC~100-240V

50/60Hz

80W

AC~100-240V

50/60Hz

80W

DUAL RCA TO DUAL RCA ANALOG CONNECTION (CABLES NOT INCLUDED)

RCA Cables not included.

1Solid Green

2Press and Hold

Solid Orange

One Foot

1 2 3

4 5 6

7 8

Mute

ChVol

Press Slowly x4

3Flashes Orange

5Flashing

Green to

Solid Green

Press Once x1

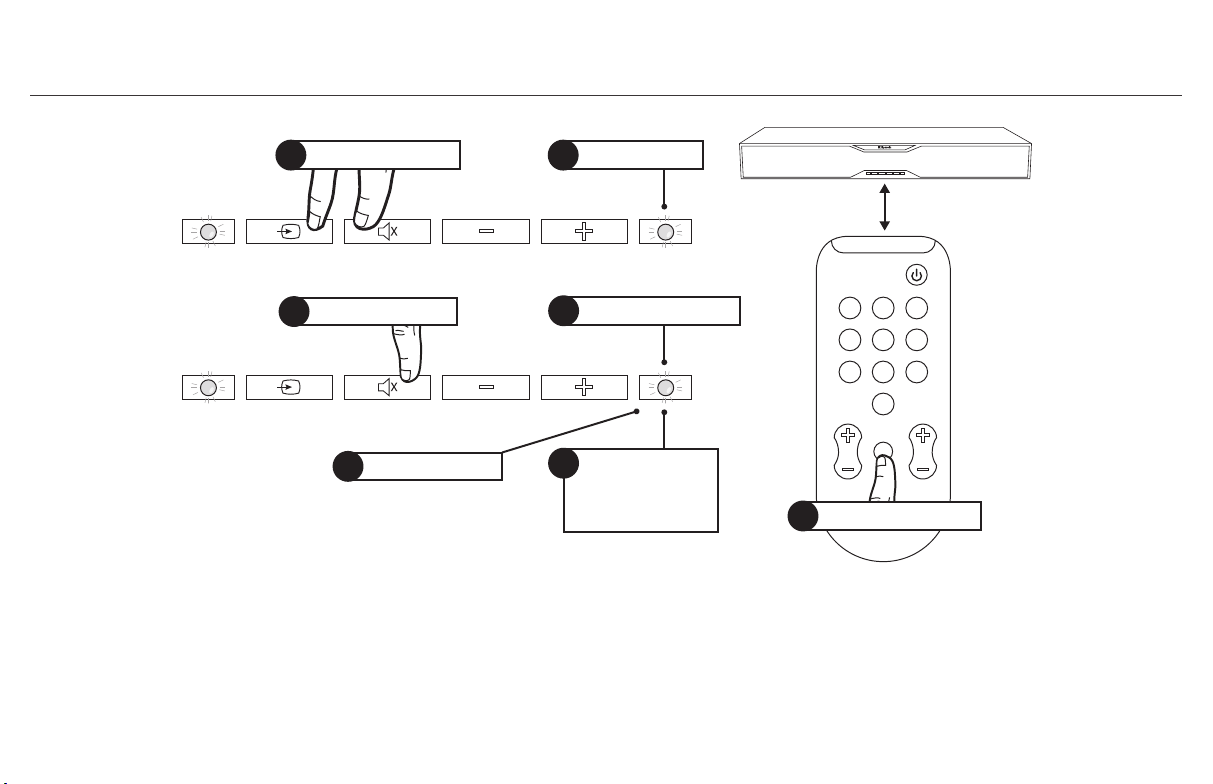

TV REMOTE PROGRAMMING

To program Volume Up and Volume Down buttons repeat the

steps shown and replace steps 4 and 6 with the button you

want to program.

If you are trying to program a cable/satellite box remote or

other universal remote without success, please try program-

ming your TV or Cable Box

remote instead.

BLUETOOTH®

WIRELESS TECHNOLOGY

Bluetooth

SB 120

Devices

Connected

Settings

Bluetooth

SB 120 SB 120

Devices

Not Connected

Settings

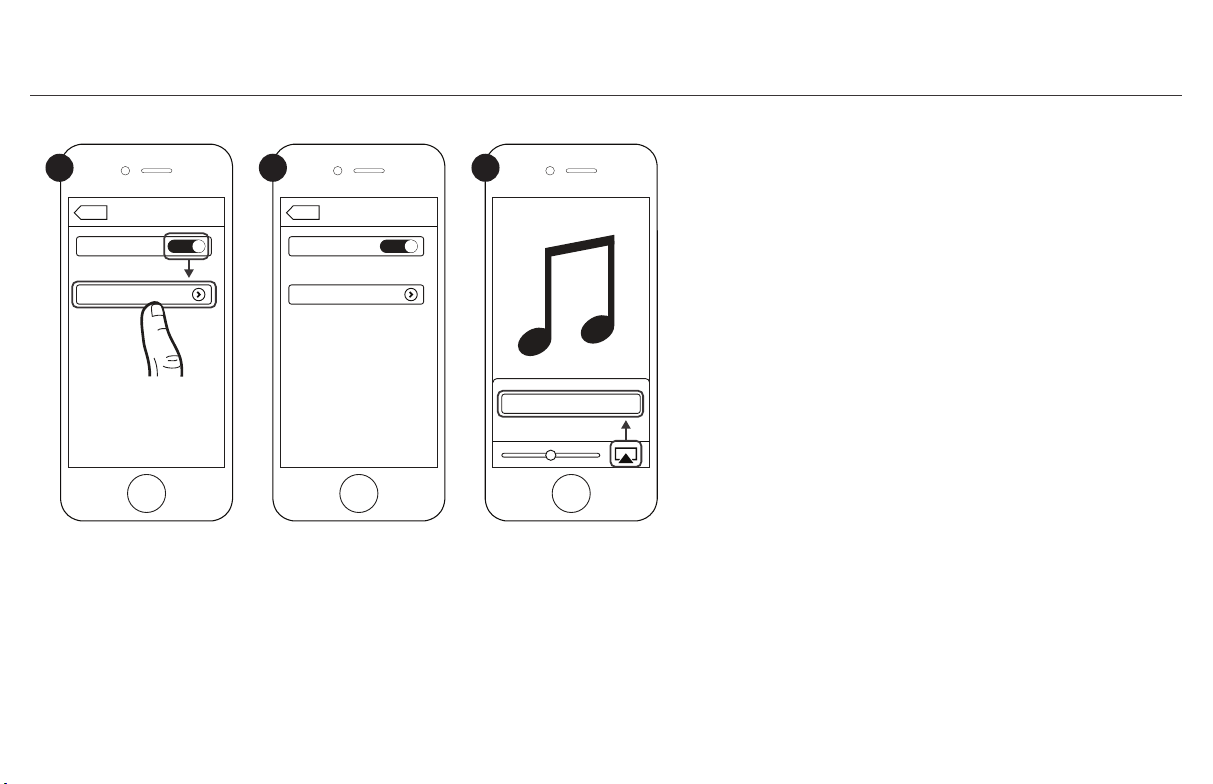

1 2 3 You can pair a device equipped with

Bluetooth

at any time by activating it on your device.

Once your device equipped with

Bluetooth

is paired, the SB 120 will automatically switch to

the

Bluetooth

input (SOLID BLUE LIGHT)

and you can stream your music. If you switch

inputs on the SB 120, the

Bluetooth

connection

will automatically be terminated.

You must disconnect your device before pairing

another device equipped with

Bluetooth

by either:

• Pressing and holding the SOURCE button on

the SB 120 control panel 3 seconds

• Turning off

Bluetooth

on the paired device

• Pressing the

Bluetooth

button (∞) on the

SB 120 remote

*Example only. Your device may differ.

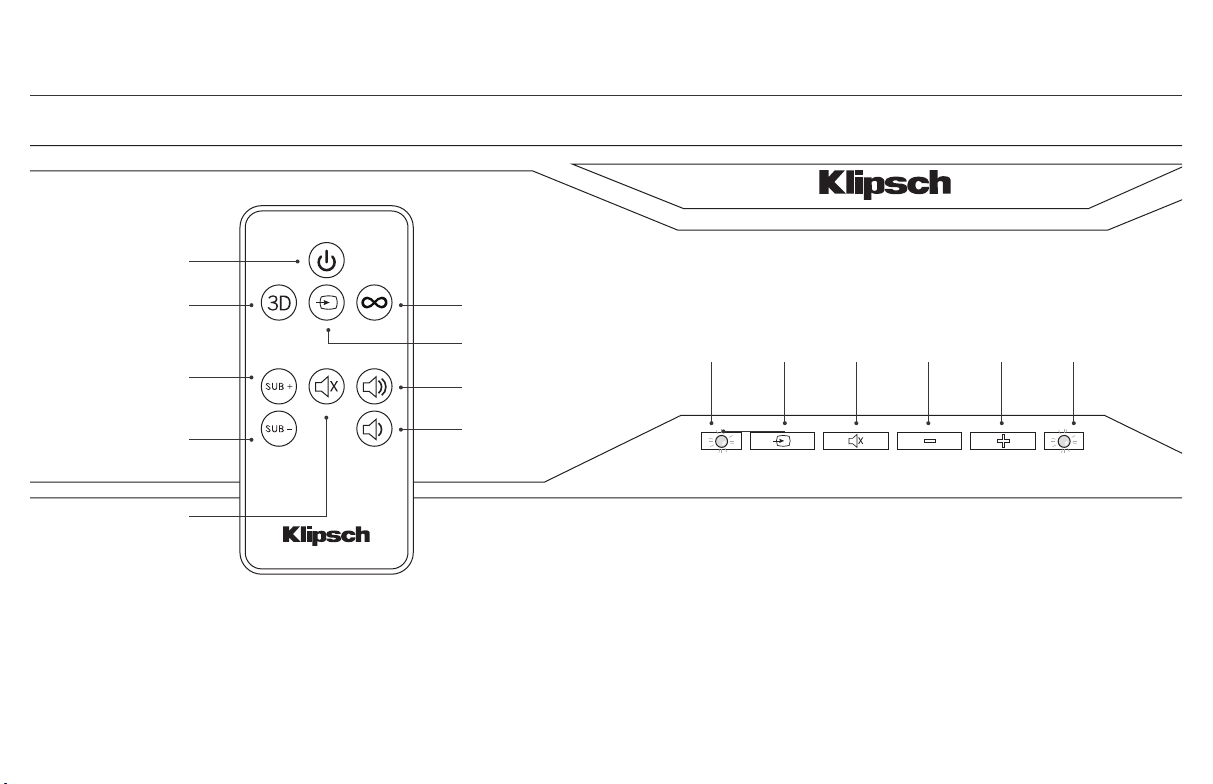

BUTTONS

On / Off

3D Surround

Bluetooth

Status

Light

Status

Light

Source Mute

Volume

Down

Volume

Source

Volume Up

Volume Down

Mute

Subwoofer

Volume Up

Subwoofer

Volume Down

STATUS LIGHTS (RIGHT STATUS LIGHT, UNLESS STATED)

STANDBY MODE

S O L I D R E D Power Off (Standby Mode) FLASHES BLUE QUICKLY Waiting to pair with

Bluetooth

device

SOLID GREEN Power On, Source is Optical Input FLASHES PURPLE SLOWLY SB 120 decoding Dolby Digital

SOLID ORANGE Power On, Source is Analog Input SOLID WHITE 3D Surround Mode On

(Left Status Light)

SOLID BLUE Power On, Source is Paired

Bluetooth

device

FLASHES GREEN /

ORANGE / BLUE

Volume Up, Volume Down, Subwoofer Volume

Up or Subwoofer Volume

Down is pushed

You do not need to turn off the SB 120, just turn off your TV

(or Satellite / Cable Box) and the SB 120 will automatically go

into standby mode in approximately 10 minutes.

Standby mode is indicated by a red status light on the front

panel. When your TV (or Satellite / Cable Box) is turned back

on the SB 120 will automatically turn on again.

31” (78cm)

11” (28cm)

CRT

31” (78cm)

11” (28cm)

CRT

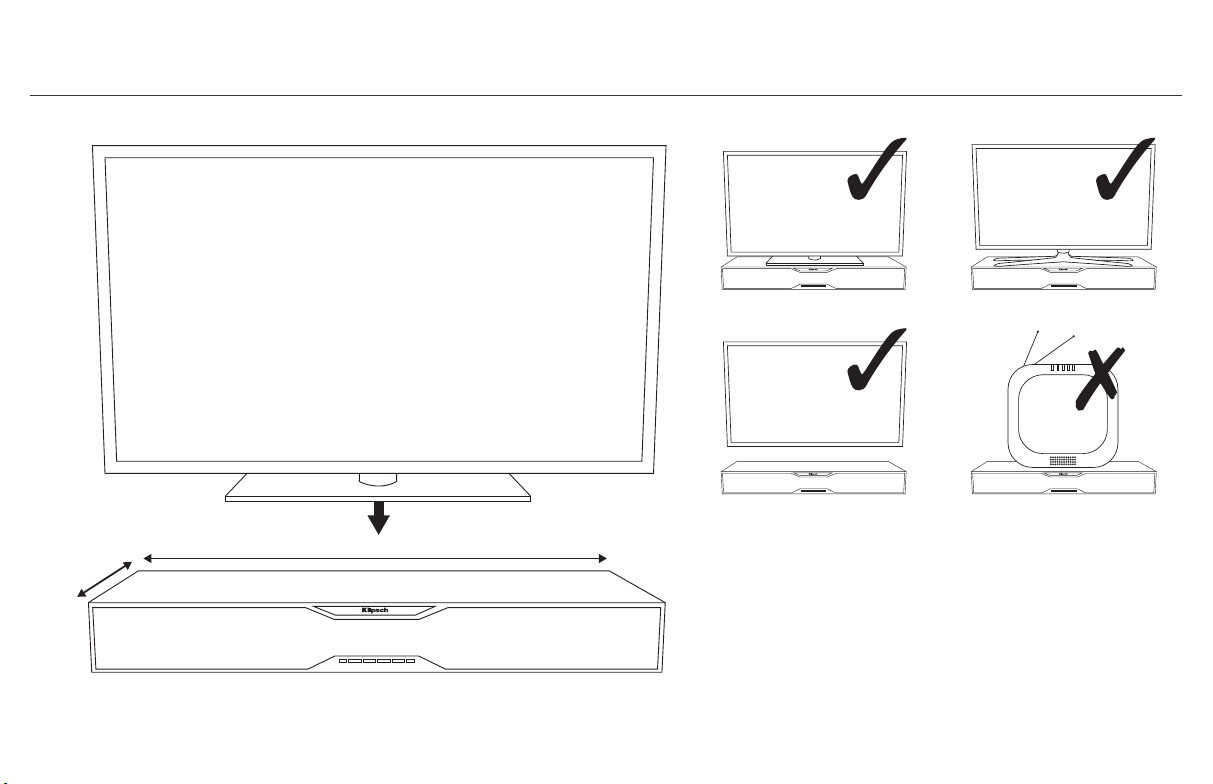

PLACEMENT

TV must weigh less than 100 lbs (45kg)

TV base must be smaller than

31” x 11” (78cm x 28cm)

Make sure the rear of the SB 120 is at least one inch away

from a back wall and there is at least one inch clearance

around the top and sides of the SB 120 for ventilation.

Make sure to center your TV on the SB 120.
