KOBE ISX2136SQB-1 Guida alla risoluzione dei problemi

KOBE Range Hoods

Brillia Series

Model No.

ISX2136SQB-1 (36”)

ISX2142SQB-1 (42”)

INSTALLATIONINSTRUCTIONS

ANDOPERATION MANUAL

READ BEFORE INSTALLATION

1. Carefully check all contents of packages;

2. Thoroughly inspect the unit for any cosmetic damages or

defects;

3. Test the unit before installation;

4. Have a certified contractor/electrician do the installation.

IF THERE IS ANY PROBLEM:

1. DO NOT INSTALL THE UNIT AND KEEP ALL

ORIGINAL PACKAGING MATERIAL.

2. Have your original invoice as proof of purchase and

product serial number ready.

3. Call 1-877-BUY-KOBE (289-5623); or e-mail to

[email protected]to report the problem.

NO RETURN, NO REFUND, NO EXCHANGE IF:

PRODUCT HAS BEEN INSTALLED

KNOCK-OUT HOLES HAVE BEEN

PUNCTURED

MISSING ORIGINAL PACKAGING MATERIAL

AND/OR PARTS

IMPORTANT

READ THIS FIRST

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS..................................................................3

COMPONENTS OF PACKAGE................................................................................5

INSTALLATION........................................................................................................6

OPERATION INSTRUCTIONS...............................................................................10

MAINTENANCE .....................................................................................................11

SPECIFICATIONS..................................................................................................12

MEASUREMENTS & DIAGRAMS..........................................................................13

PARTS LIST...........................................................................................................14

TROUBLE SHOOTING ..........................................................................................17

WARRANTY...........................................................................................................18

WARRANTY INFORMATION FORM .....................................................................20

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL W I R I N G MU ST B E D O N E B Y A P ROF E SS I ON AL A ND I N

A C C O R D AN C E W IT H N A TI ON AL A N D LOC AL E LE C TRI C AL C O DES

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air

properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl

spaces or garages.

NOTE - This warranty is void without an authorized agent's receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried out without the

supervision of KOBE RANGE HOODS authorized agents will

automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

•

Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

•

Always turn hood ON when cooking.

•

Use high settings on cooking range ONLY when necessary.

•

Do not leave cooking range unattended when cooking.

•

Always use cookware and utensils appropriate for the type and amount of food prepared.

•

Use this unit only in the manner intended by the manufacturer.

•

Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

•

Clean ventilating fan frequently.

What to Do In The Event Of a Range TopGrease Fire

• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not

go out immediately, EVACUATETHE AREAAND CALL THE FIRE DEPARTMENT or 911.

•

NEVERPICKUPABURNINGPAN-YouMayGetBurned.

•

DONOTUSEWATER,includingwetdishclothsortowels- asteamblastwillresult.

• Use an extinguisher ONLY if:

a) Youhave a ClassA, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) Youcan fight the fire with your back to an exit.

What to Do If You Smell Gas

Extinguish any open flame.

Do not try to turn on the lights or any type of appliance.

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and

vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion

and exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer's guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, installation by 2 persons is recommended.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If equipped,

the fluorescent light bulb contains small amounts of mercury, which

must be recycled or disposed of according to Local, State, and Federal

Codes.

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

Range Hood Box (Box 1 of 2) Duct Cover Box ( Box 2 of 2)

{A} BRILLIA Range Hood

{B} Warranty Registration Card

{C} Baffle Filters – 3

{D} Instruction Manual (WEBSITE)

{A}

{B}

{C}

{D}

{E} Telescopic Stack

{F} Two-Piece Duct Cover

{G} Screws Package

{E}

{F}

{G}

4x 8mm (14PCS)

FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE

www.KOBERangeHoods.com

CONTACT KOBE RANGE HOODS AT (626) 775-8880.

For the operation manual,

please refer to our

website:

KOBERangehoods.com

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installation

To calculate installation, please refer to TABLE 1. (All calculation in inches.)

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE:

BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD

MAY OCCUR.

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard:36”)

C = Preferred Height of Counter Top to Hood

Bottom (Recommended 30” to 36”)

D = Height of Hood

E = Height of the Hood Installation

[A – (B+C)]

F = Height of Duct Cover

[E – D]

NOTE: TO AVOID DAMAGE TO YOUR HOOD,

PREVENT DEBRIS FROM ENTERING THE

VENT OPENING.

•

Decide the location of the venting pipe from the

hood to the outside (

Figure 1

•

A straight, short vent run will allow the hood to

perform more efficiently.

•

Try to avoid as many transitions, elbows, and long

runs as possible. Transitions, elbows and/or long

runs may reduce the performance of the hood.

•

Temporarily wire the hood to test for proper

operation before installing.

•

Important: Peel protective film off the hood

and duct covers, if any.

Use duct tape to seal the joints between pipe

sections.

CAUTION:

USE HAND TOOLS ONLY. DO NOT

OVER TIGHTEN SCREWS. IT MAY CAUSE DAMAGE TO

THE HOOD.

CAUTION

: If moving the cooking range is

necessary to install the hood, turn off the power in

an electric range at the main electrical box. SHUT

OFF THE GAS BEFORE MOVING A GAS RANGE.

And use a protective covering to protect cooktop

and/or countertop from damage.

1. Mark centerlines of cook top or range on ceiling.

Use centerlines marked on ceiling to position the

range hood as shown in

Figure 2

2. Cut and remove ceiling drywall. Install 2” x 4”

cross framing lumber (not provided) between

ceiling joists.

3. Framing should be 11-2/16” (O.C. =on center)

between front and back, and 10-3/16” (O.C.)

between both sides of the 2” X 4” cross framing

lumber. Refer to

Figure 3.

4. Finish the ceiling surface. Be sure to mark the

location of the ceiling joists and cross framing

lumber.

5. Cut a 6-1/2” duct opening and approximately a 1”

wire access hole.

Figure 1

Figure 2

Figure 3

Island Installation

Preparation before Installation

Telescopic Stack Installation

Figure 4

6. Adjust the telescopic stack with the screws

provided to the desired height. Refer to Table 1

and

Figure 4

. (Lower screws must be drilled into

the metal motor housing).

7. Place only the inner duct cover over the top of the

telescopic stack prior to mounting to the ceiling

and let it rest on the bottom flanges.

8. Align the telescopic stack to the mounting surface

and secure ten hood mounting screws (not

provided) into the ceiling joist and cross framing

lumber. Make sure screws are driven into the

ceiling at the middle of joists and cross framing

lumber for maximum support and stability.

CAUTION

: MAKE SURE THE TELESCOPIC

STACK IS SECURE BEFORE RELEASING.

Figure 5

THIS RANGE HOOD MUST BE PROPERLY

GROUNDED. MAKE SURE THIS IS DONE BY

QUALIFIED ELECTRICIAN IN ACCORDANCE WITH

ALL APPLICABLE NATIONAL AND LOCAL

ELECTRICAL CODES. BEFORE CONNECTING

WIRES, SWITCH POWER OFF AT SERVICE PANEL

AND LOCK SERVICE PANEL TO PREVENT POWER

FROM BEING SWITCHED ON ACCIDENTALLY.

9. Route house wiring into the ceiling as close to the

installation location as possible. Allow additional

length of wiring to drop down from the ceiling to the

electric box.

10. Connect the electrical wires according to color

(green to green, white to white, and black to black)

and cap with wire connectors. Green wire must be

grounded to reduce risk of electric shock.

11. Use 6” round aluminum or steel pipe (not provided)

to connect to the plastic collar.

12. Slide the outer duct cover downward so that it sits

properly on the hood.

13. Fasten the inner duct cover in place with 4 screws

(provided). Refer to

Figure 5

14. Slide the outer duct cover up the telescopic stack,

and temporarily hold or fasten in place.

Ductwork Installation

Wiring to Power Supply

Hood Installation

Final Assembly

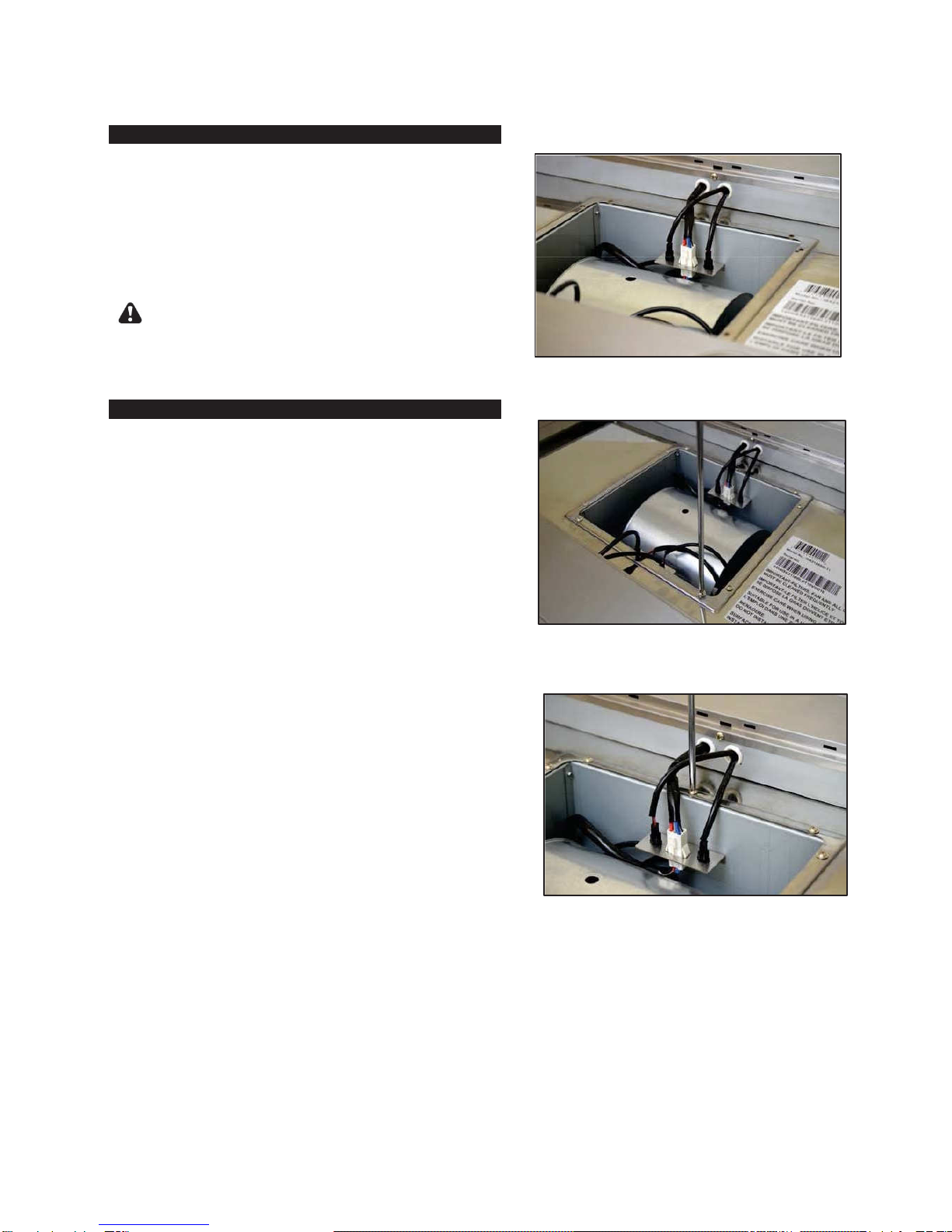

Figure 6

15. Align the hood with the telescopic stack so that the

motor harness is on the same side as the control

unit harness. Refer to

Figure 6

16. Fasten the hood body to the telescopic stack using

8 screws (provided). Refer to

Figure 7

17. Use 2 screws (provided) to secure the outer duct

cover to the hood body. Refer to

Figure 8

CAUTION

: MAKE SURE THE HOOD

SECURE BEFORE RELEASING.

Figure 7

18. Install the Baffle Filters.

19. Turn power ON in control panel. Check all lights

and fan operation.

20. Make sure to leave this manual for the homeowner.

Figure 8

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali KOBE Cappa di ventilazione

KOBE

KOBE CH2230SQ Guida alla risoluzione dei problemi

KOBE

KOBE OVS-CHX9130SQB-40 Guida alla risoluzione dei problemi

KOBE

KOBE CH7930SQ Guida alla risoluzione dei problemi

KOBE

KOBE IN2636SQB-1200 Guida alla risoluzione dei problemi

KOBE

KOBE RA3830SQB-WM-1 Guida alla risoluzione dei problemi

KOBE

KOBE RAX21 SQB-X Series Guida alla risoluzione dei problemi

KOBE

KOBE RA3830SQ Guida alla risoluzione dei problemi

KOBE

KOBE CH9630SQB Guida alla risoluzione dei problemi

KOBE

KOBE RA3830SQ Guida alla risoluzione dei problemi

KOBE

KOBE IS22 SQB-5 Series Guida alla risoluzione dei problemi

KOBE

KOBE RA3830SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE Brillia CHX9130SQB-2 Guida alla risoluzione dei problemi

KOBE

KOBE IS2136SQB Guida alla risoluzione dei problemi

KOBE

KOBE PREMIUM IN2630SQB-700 Guida alla risoluzione dei problemi

KOBE

KOBE INX2730SQB-700-1Brillia Series Guida alla risoluzione dei problemi

KOBE

KOBE IN2730SF-1 Guida alla risoluzione dei problemi

KOBE

KOBE CH7936SQB Manuale utente

KOBE

KOBE IN26 SQB-650-5A Series Guida alla risoluzione dei problemi

KOBE

KOBE CH0030SQB (30") Manuale utente

KOBE

KOBE IS2336SQ Guida alla risoluzione dei problemi

KOBE

KOBE CH0030SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE RA9236SQ Guida alla risoluzione dei problemi

KOBE

KOBE CH77 SQB-5 Series Guida alla risoluzione dei problemi

KOBE

KOBE IN2630SQB-700-2 Guida alla risoluzione dei problemi

Manuali Cappa di ventilazione popolari di altre marche

emmeti

emmeti RECUPA MED A-140 Guida

Nibe

Nibe F135 Manuale utente

Kuppersberg

Kuppersberg INTRO 60 Istruzioni di installazione e manutenzione

Zephyr

Zephyr Spruce AK9834BS Guida all'installazione

Hisense

Hisense MH6INBG Manuale utente

Miele

Miele DA 1255 Manuale utente

Broan

Broan 46000 Manuale utente

GE Profile PV977 Istruzioni originali

FALMEC

FALMEC FFRIA24W5FS Manuale utente

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuale utente

Küppersbusch

Küppersbusch DX ISLA Manuale utente

ETNA

ETNA AV360RVS Manuale utente

JUNO

JUNO JDF603E6 Manuale utente

Miele

Miele DA 6708 D Manuale utente

Tricity Bendix

Tricity Bendix LE 150 Manuale

AEG

AEG X68163BV1 Manuale utente

AEG

AEG 125 D Manuale utente

Smeg

Smeg KSEV97X Manuale utente
