KOBE Range Hoods

Deluxe Series

IN26 SQB-650-5A Series

Model No.: IN2630SQB-650-5A (30”)

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

IMPORTANT

READ THIS FIRST

READ BEFORE INSTALLATION

1. Carefully check all contents of package(s).

2. Thoroughly inspect the unit for any shipping damages, cosmetic

damages or defects.

3. Have a certified contractor/electrician test the unit before installation.

IF THERE IS ANY PROBLEM:

1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL

PACKAGING MATERIAL.

2. Have your original invoice as proof of purchase and product serial

number ready.

3. Contact your merchant for product replacement due to shipping

damages, cosmetic damages or defects.

4. For all other issues, email [email protected].

NO RETURN, NO REFUND, NO EXCHANGE IF:

1. PRODUCT HAS BEEN INSTALLED

2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED

3.MISSING ORIGINAL PACKAGING MATERIAL

AND/OR PARTS

[ENGLISH]

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS.................................................................................... 1

COMPONENTS OF PACKAGE................................................................................................. 3

INSTALLATION ......................................................................................................................... 4

OPERATING INSTRUCTIONS.................................................................................................. 9

MAINTENANCE........................................................................................................................11

SPECIFICATIONS....................................................................................................................12

MEASUREMENTS & DIAGRAMS.............................................................................................13

PARTS LIST.............................................................................................................................14

CIRCUIT DIAGRAM..................................................................................................................16

TROUBLE SHOOTING.............................................................................................................17

WARRANTY.............................................................................................................................18

WARRANTY INFORMATION FORM........................................................................................20

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

A L L W I RI NG M U S T B E D O N E B Y A P R O F E S S I O N A L A N D I N

A C C O R D A N C E W IT H N A T I O N A L A N D L O C A L E L E C T R I C A L C O D E S

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING

: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air properly,

make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or

garages.

NOTE - This warranty is void without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried out without the

supervision of KOBE RANGE HOODS’ authorized agents will

automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.

WARNING

: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

2. Always turn hood ON when cooking.

3. Use high settings on cooking range ONLY when necessary.

4. Do not leave cooking range unattended when cooking.

5. Always use cookware and utensils appropriate for the type and amount of food prepared.

6. Use this unit only in the manner intended by the manufacturer.

7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

8. Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIALAWAY FROM FLAMES. If the flames do not go

out immediately, EVACUATE THE AREAAND CALL THE FIRE DEPARTMENT or 911.

• NEVER PICK UP A BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a steam blast will result.

• Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

Extinguish any open flame.

Do not try to turn on the lights or any type of appliance.

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.

CAUTION

1. For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.

2. To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion and

exhausting of gases through the flue (chimney) to prevent back drafting.

3. Follow the heating equipment manufacturer’s guideline and safety standards such as thosepublished

by the National Fire Protection Association (NFPA), and the American Society for Heating,

Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4. Activating any switch on may cause ignition or an explosion.

5. Due to the size and weight of this hood, installation by 2 persons is recommended.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If equipped,

the fluorescent light bulb contains small amounts of mercury, which must

be recycled or disposed of according to Local, State, and Federal Codes.

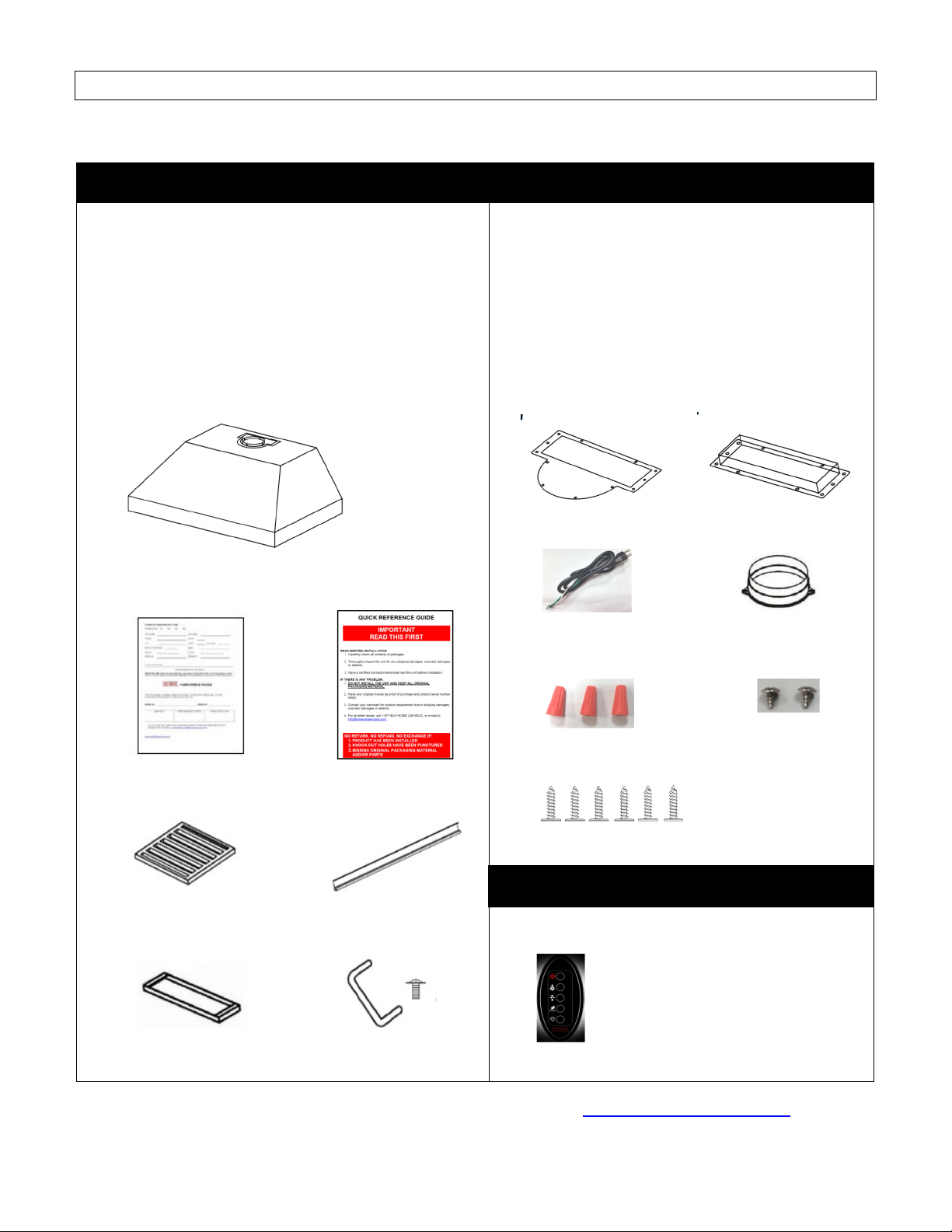

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com.

Range Hood Box

{A} KOBE Range Hood

{B} Warranty Registration Card

{C} Quick Ref Guide

{D} Baffle Filters x 2

{E} Oil Tunnel

{F} Spacer x 2

{G} Baffle Handle Package

{A}

{B} {C}

{D} {E}

{F} {G}

{H} Rectangular Exhaust Plate

{I} Rectangular Exhaust Adapter

{J} Power cord

{K} 6” round Plastic Exhaust

{L} Twist-on wire connector

{M} Screws

{N} Screws Package

{H} {I}

{J} {K}

{L} {M}

{N}

{O} Remote Control

{O}

4 x 6mm (2PCS)

M4 x 1/2" (6)

Optional Accessories (Sold Separately)

*Batteries included

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

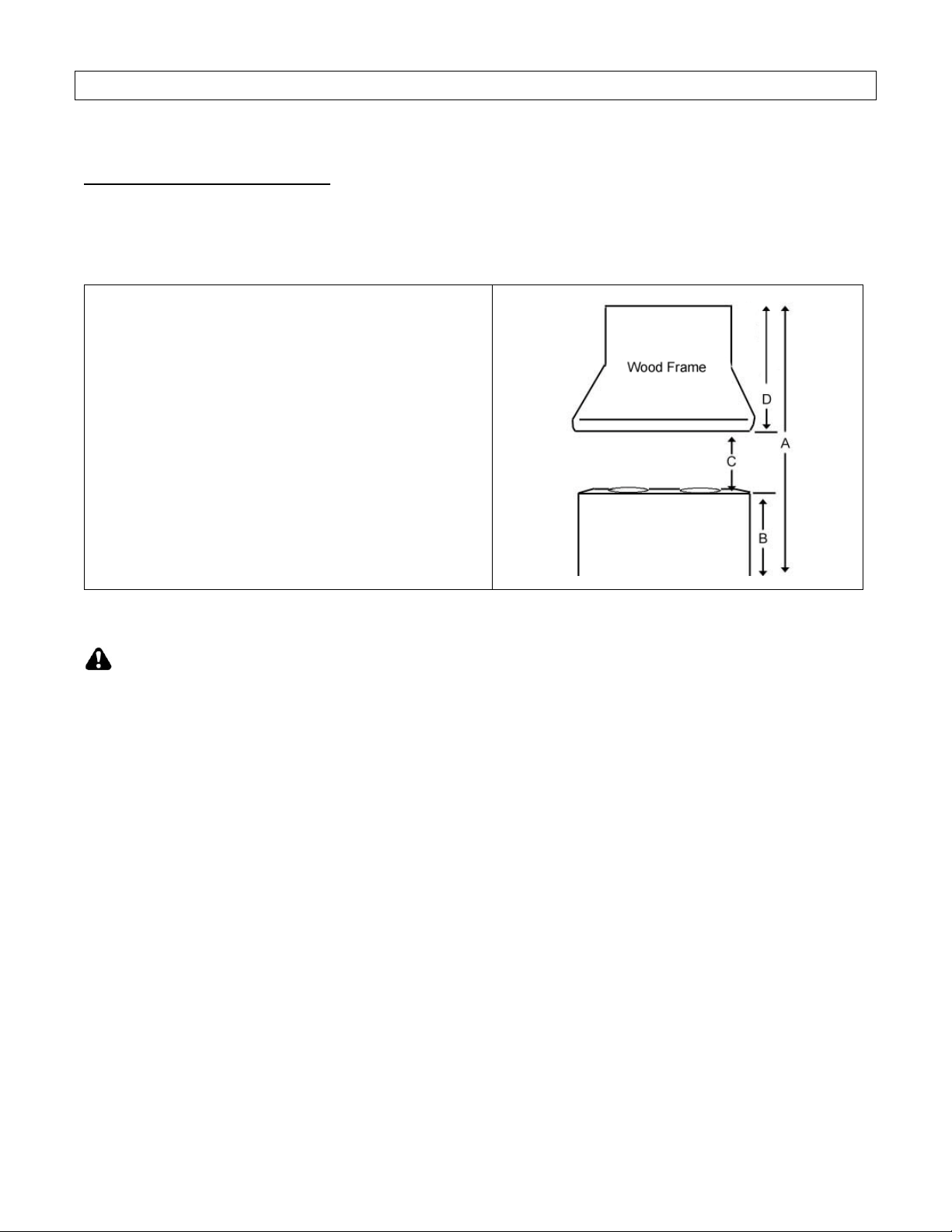

Calculation Before Installation

To calculate installation, please refer to TABLE 1. (All calculation in inches.)

- FOR BUILT-IN / INSERT -

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36")

C = Height of Counter Top to Wood Frame

Bottom (Minimum 26"to 30")

D = Height of Wood Frame

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY

OCCUR.

NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT

DEBRIS FROM ENTERING THE VENT OPENING.

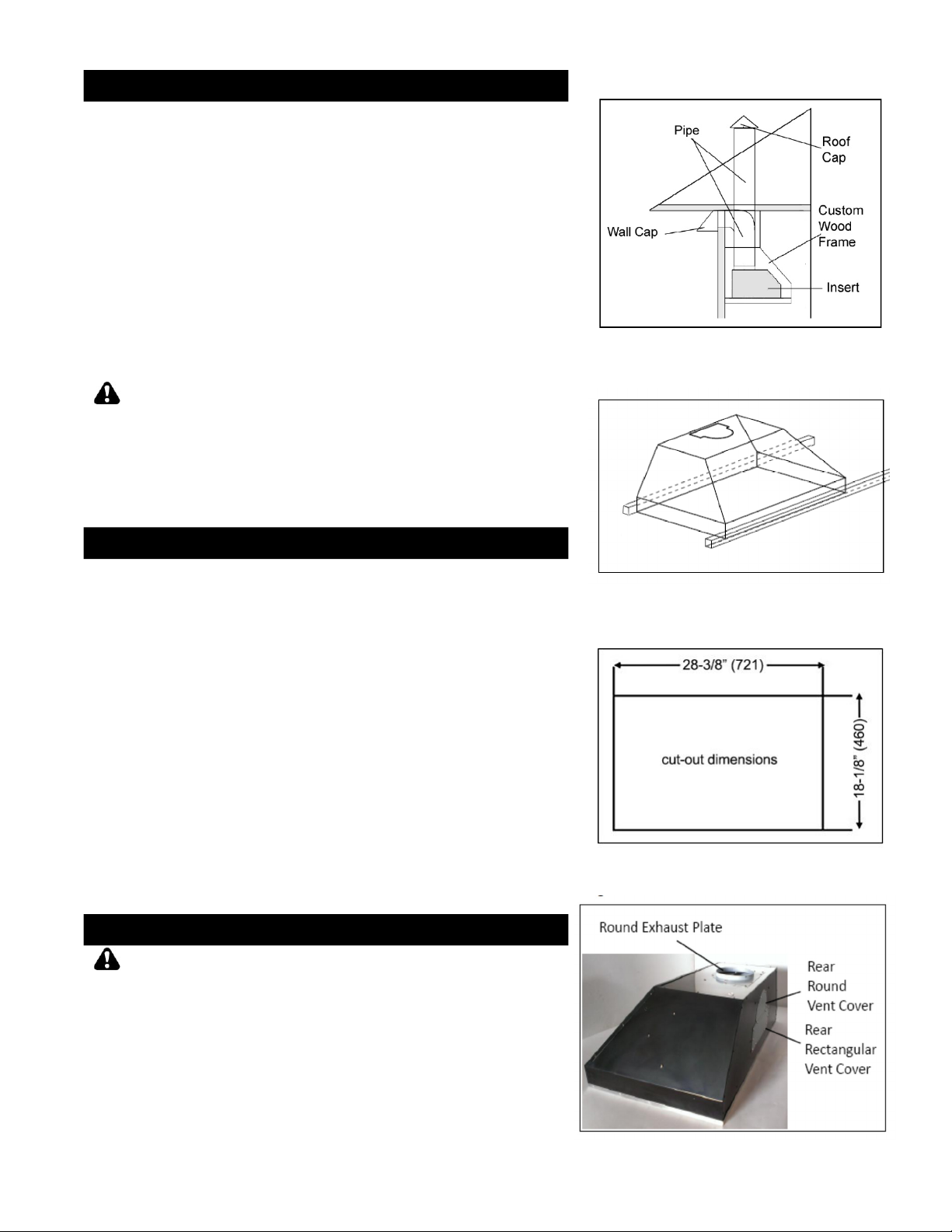

Decide the location of the venting pipe from the hood to the

outside. Refer to Figure 1.

A straight, short vent run will allow the hood to perform more

efficiently.

Try to avoid as many transitions, elbows, and long run as

possible. This may reduce the performance of the hood.

Temporarily wire the hood to test for proper operation

before installing.

Important: Peel protective film off the hood, if any.

Use duct tape to seal joints between pipe sections.

CAUTION: If moving the cooking range is

necessary to install the hood, turn off the power in

an electric range at the main electrical box. SHUT

OFF THE GAS BEFORE MOVING A GAS RANGE.

And use a protective covering to protect cooktop

and/or countertop from damage.

1. The custom hood frame must be designed according to the

shape and the weight of the hood. Refer to Measurements

and Diagram on Page 13.

2. A sturdy base (3/4 inch thick plywood recommended) is

needed to sustain the weight of hood.

3. It is recommended to install front & rear stud support (not

included). Refer to Figure 2. For safety purposes, extra

installation holes on the side of the hood are provided.

Prepare the side stud support if needed.

4. Determine and mark thecenterlines on the base of the wood

frame where the hood will be installed.

Location the proper location for the Power Supply Cable.

Make a wiring access hole using a drill bit. Install the wire

cable and seal the gap around hole.

Cut out the opening where the hood will be installed.

(Figure 3)

CAUTION: If moving the cooking range is necessary

to install the hood, turn off the power in an electric

range at the main electrical box. SHUT OFF THE GAS

BEFORE MOVING A GAS RANGE.

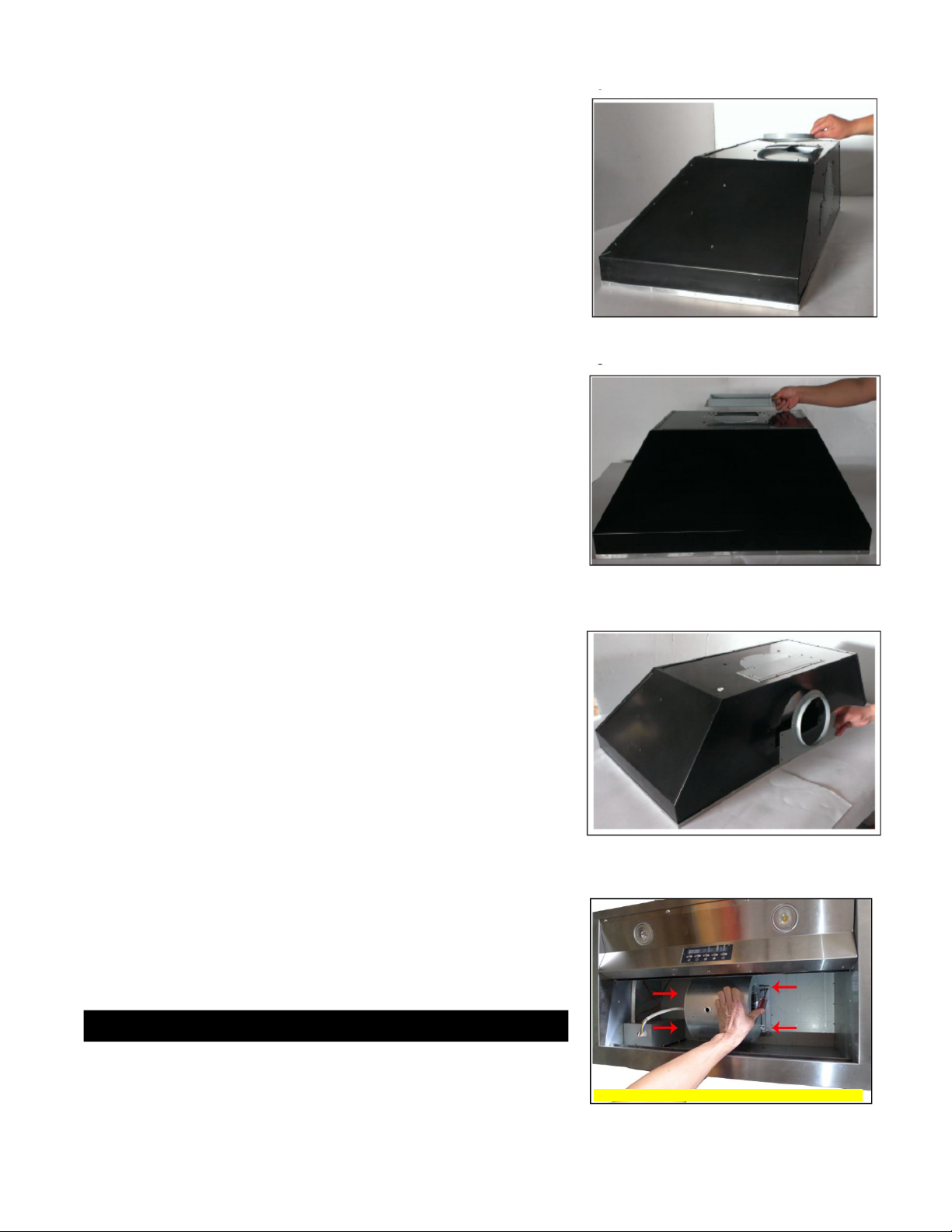

7. Choose the required vent option. The Round Exhaust

Plate is pre-installed for top vent.

8. For Top 3-1/4” x 10” rectangular installation only:

- Remove the pre-installed Round Exhaust Plate (Refer

to Figure 5). Keep screws to attach Rectangular

Exhaust Plate and Rectangular Exhaust Adapter.

Figure 1

Figure 2

Figure 3

Figure 4

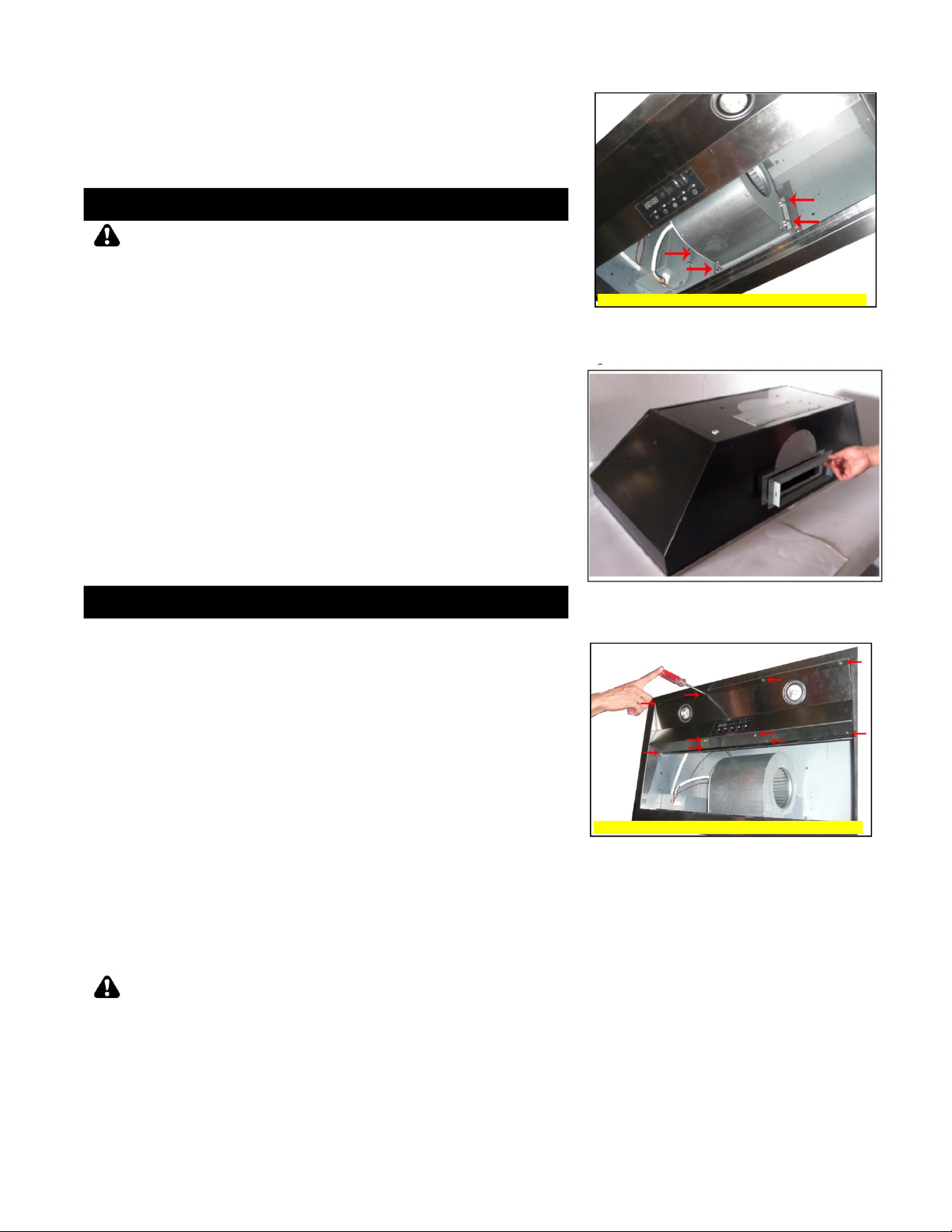

Hood Preparing Before Installation

Custom Hood Preparing

Preparation

Before Installation

- Place Rectangular Exhaust Plate over vent and

secure with 2 screws (Refer to Figure 6). Place

Rectangular Exhaust Adapter over the Rectangular

Exhaust plate and secure with 10 screws (Refer to

Figure 6).

- Use remaining screws to secure exhaust plate.

For Rear Vent Options only:

NOTE: The blower is pre-installed for top vent. If

installing as rear vent, follow the steps below:

9. For Rear 6” round installation only:

- Remove the Rear Round Vent Cover and Rear

Rectangular Vent Cover (Refer to Figure 4). Keep

screws to attach Round Exhaust Plate to rear vent.

- Remove the pre-installed Round Exhaust Plate from

top vent (Refer to Figure 5). Attach it to the rear vent

(Refer to Figure 7) using the screws removed from

vent covers.

- Use the Round and Rectangular vent covers removed

from rear vent to seal top vent.

- Remove the 4 screws that secure the blower system

(Refer to Figure 8). Hold the blower to keep it from

dropping as you remove screws. Keep screws to

reattached blower. Slowly rotate blower system to

align with mounting holes at the back of the hood.

Secure blower using 4 screws (Refer to Figure 9).

10. For Rear 3-1/4” x 10” rectangular installation only:

- Remove the Rear Round Vent cover and Rear

Rectangular Vent Cover (Refer to Figure 5). Keep

screws to attach Rectangular Exhaust Plate and

Rectangular Exhaust Adapter.

- Place the Rectangular Exhaust Plate over vent and

secure with 2 screws (Refer to Figure 10). Place

Rectangular Exhaust Adapter over the Rectangular

Exhaust Plate and secure with 10 screws (Refer to

Figure 10).

- Use remaining screws to secure exhaust plate.

- Remove the pre-installed Round Exhaust Plate from

top vent and keep screws (Refer to Figure 4). Use the

Round and Rectangular vent covers removed from

rear to seal top vent.

- Remove the 4 screws that secure the blower system

(Refer to Figure 8). Hold the blower to keep it from

dropping as you remove screws. Keep screws to

reattach blower. Slowly rotate blower system to align

with mounting holes at the back of the hood. Secure

the blower using 4 screws (Refer to Figure 9).

11.Determine and make all necessary cuts in the wall or

ceiling for the ductwork. Note: Install the ductwork before

installing the hood

Figure 5

Figure 6

Figure 7

Figure 8

Duct Work Installation

*Note: Sample image only. May not be actual model.

12.Use steel pipe to connect the exhaust on the hood to the

ductwork above. Use duct tape to make all joints secure

and air tight.

13.Please refer to local building codes for the usage of a

damper (not included).

SAFETY WARNING

RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD

MUST BE PROPERLY GROUNDED. MAKE SURE

THIS IS DONE BY QUALIFIED ELECTRICIAN IN

ACCORDANCE WITH ALL APPLICABLE NATIONAL

AND LOCAL ELECTRICAL CODES. BEFORE

CONNECTING WIRES, SWITCH POWER OFF AT

SERVICE PANEL AND LOCK SERVICE PANEL TO

PREVENT POWER FROM BEING SWITCHED ON

ACCIDENTALLY.

14.Connect electrical wires.

15.Connect three wires (black, white, and green) to house

wires and cap with wire connectors. Connect wires

corresponding to their colors (i.e. black to black, white to

white, and green to green).

16.Store wires in a wiring box.

NOTE: USE HAND TOOLS ONLY. DO NOT OVER

TIGHTEN SCREWS AS IT MAY CAUSE DAMAGE

TO THE HOOD.

17.Remove the light panel by removing 10 screws located at

the bottom of the hood (Refer to Figure 11). Carefully

remove the light support panel.

18.Position the hood inside the custom wood frame, and

secure the hood to the front and rear stud support (Refer

to Figure 2) by using the front and rear mounting holes

(Screws included).

19.For a more secure installation, use the mounting holes

located on the side of the hood.

20.Make sure hood is secure before releasing.

21.Re-install the light support panel. (Do not over tighten

screws.)

CAUTION: MAKE SURE HOOD IS SECURE

BEFORE RELEASING

Figure 9

Figure 10

Figure 11

Hood Installation

Wiring to Power Supply

*Note: Sample image only. May not be actual model.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali KOBE Cappa di ventilazione

KOBE

KOBE CH00 SQB-1 Manuale utente

KOBE

KOBE CH0036SQB Guida alla risoluzione dei problemi

KOBE

KOBE CH8136SQ Guida alla risoluzione dei problemi

KOBE

KOBE IN2630SQB-650-5A Guida alla risoluzione dei problemi

KOBE

KOBE CH22 SQB-5 Series Guida alla risoluzione dei problemi

KOBE

KOBE IN2636SQB Guida alla risoluzione dei problemi

KOBE

KOBE RA-094 Guida alla risoluzione dei problemi

KOBE

KOBE Brillia RAX9430SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE CH2730SQ3 Series Guida alla risoluzione dei problemi

KOBE

KOBE CX1842GS-8 Guida alla risoluzione dei problemi

KOBE

KOBE CXX8130QF-GBK-1 Manuale utente

KOBE

KOBE CHX8130SQB-1 Manuale utente

KOBE

KOBE IS2336SQ Guida alla risoluzione dei problemi

KOBE

KOBE CH0042SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE CH7936SQB Manuale utente

KOBE

KOBE CH0036SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE RA3830S Guida alla risoluzione dei problemi

KOBE

KOBE CH9130SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE RA2830SB Guida alla risoluzione dei problemi

KOBE

KOBE AMZ-CHX2030SQB-40 Guida alla risoluzione dei problemi

KOBE

KOBE CH77 SQB-5 Series Guida alla risoluzione dei problemi

KOBE

KOBE CHX91 SQB-1 Manuale utente

KOBE

KOBE ISX2136SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE CH2730SQB Guida alla risoluzione dei problemi

Manuali Cappa di ventilazione popolari di altre marche

emmeti

emmeti RECUPA MED A-140 Guida

Nibe

Nibe F135 Manuale utente

Kuppersberg

Kuppersberg INTRO 60 Istruzioni di installazione e manutenzione

Zephyr

Zephyr Spruce AK9834BS Guida all'installazione

Hisense

Hisense MH6INBG Manuale utente

Miele

Miele DA 1255 Manuale utente

Broan

Broan 46000 Manuale utente

GE Profile PV977 Istruzioni originali

FALMEC

FALMEC FFRIA24W5FS Manuale utente

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuale utente

Küppersbusch

Küppersbusch DX ISLA Manuale utente

ETNA

ETNA AV360RVS Manuale utente

JUNO

JUNO JDF603E6 Manuale utente

Miele

Miele DA 6708 D Manuale utente

Tricity Bendix

Tricity Bendix LE 150 Manuale

AEG

AEG X68163BV1 Manuale utente

AEG

AEG 125 D Manuale utente

Smeg

Smeg KSEV97X Manuale utente
