KODAK ESP 7200 Series All-in-One Printer

Your KODAK All-in-One Printer combines ease-of-use and affordable inks to provide

high-quality pictures and documents.

Resources

Support is available! Go to www.kodak.com/go/aiosupport, and select your printer model for:

• Frequently Asked Questions (FAQs)

• software or firmware upgrades

• Extended User Guide

•andmore!

If you prefer, you can chat online, send us an e-mail, or call for technical support. Go to

www.kodak.com/go/contact.

www.kodak.com/go/aiosupport i

Table of contents

1 Printer Overview

Control panel...........................................................................................................................................1

Components...........................................................................................................................................2

Home Center Software .......................................................................................................................3

Paper ........................................................................................................................................................3

Paper types.......................................................................................................................................3

Paper sizes........................................................................................................................................3

Loading plain paper....................................................................................................................... 4

Loading photo paper .....................................................................................................................6

2 Basic Functions

Printing ....................................................................................................................................................7

Printing documents........................................................................................................................7

Printing pictures..............................................................................................................................7

Copying ...................................................................................................................................................9

Scanning................................................................................................................................................10

Ordering supplies................................................................................................................................10

3 Troubleshooting

Basic troubleshooting .........................................................................................................................11

Getting help on the Web...................................................................................................................12

4 Safety and Warranty Information

Safety information .............................................................................................................................. 13

LCD screen safety............................................................................................................................... 13

Ink cartridge safety............................................................................................................................. 13

Warranty Information........................................................................................................................14

Declaration of Conformity................................................................................................................15

1www.kodak.com/go/aiosupport

Printer Overview

This printer lets you print, copy, and scan pictures and documents.

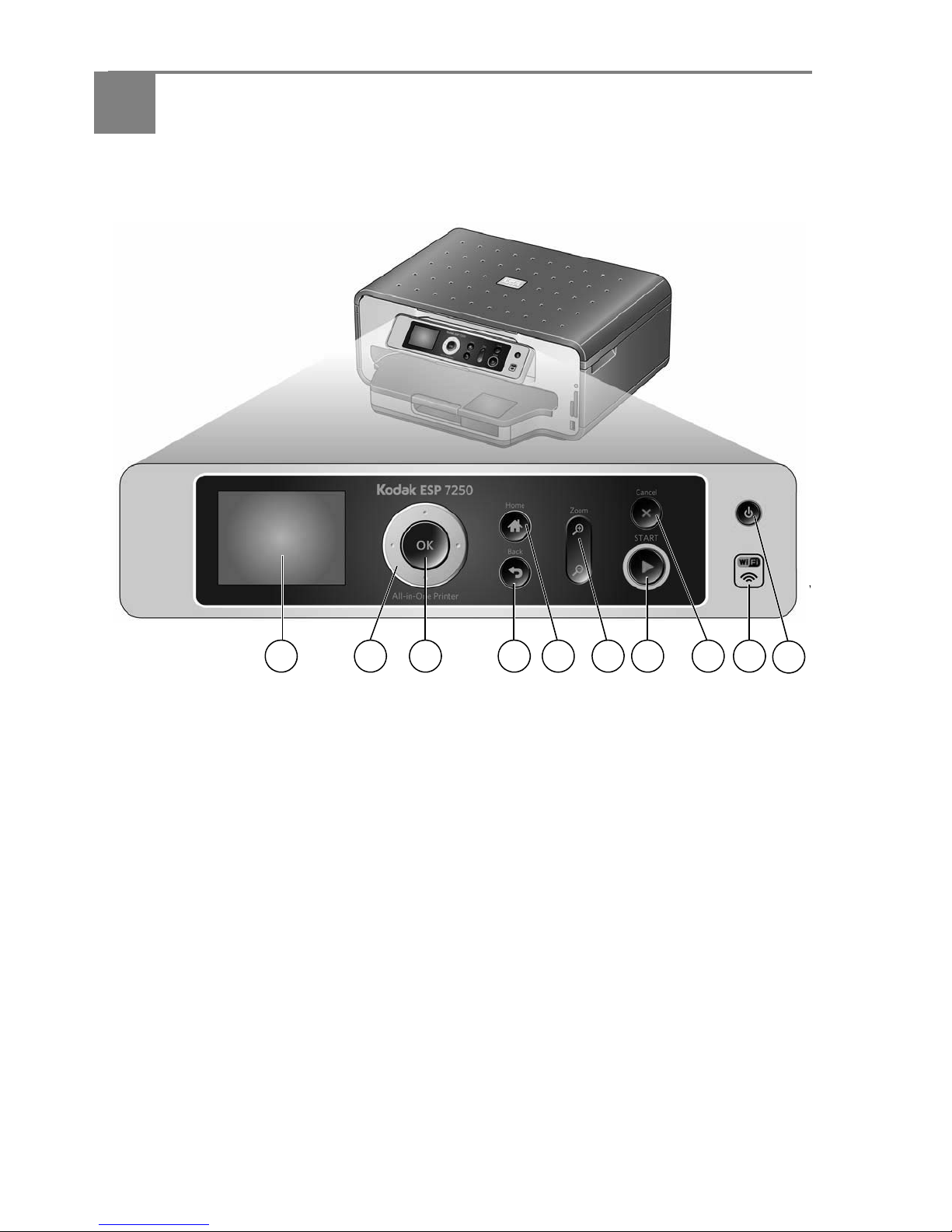

Control panel

Feature Description

1LCD Displays pictures, messages, and menus

2Navigation buttons Used to navigate menus; scroll through pictures

3OK button Selects a menu item, accepts a setting, and continues with the current

operation

4Back button Displays the previous screen

5Home button Displays the main menu; toggles between screens

6Zoom buttons Enlarge or reduce the size of the displayed picture

7Start button Begins copying, scanning, printing, maintenance task, and file transfer

8Cancel button Stops the current operation and returns to the previous menu

9Wi-Fi connectivity

LED

When lit, signals that the printer is connected to a wireless (Wi-Fi)

network; blinks when searching for an available Wi-Fi network

10 On/Off button Turns the printer on or off

731 2 10

984 5 6

www.kodak.com/go/aiosupport 2

KODAK ESP 7200 Series All-in-One Printer

Components

1Control panel 11 Output tray extender with paper stop

2Power cord port 12 Output tray

3USB port 13 Scanner glass

4Ethernet port 14 Scanner lid

5Duplexer/rear-access cleanout cover 15 Front paper-edge guides

6Printer access door 16 Main paper tray

7Printhead with ink cartridges installed 17 Paper tray extender

8CF Card slot 18 Photo paper tray

9Front USB port 19 Left paper-edge guides

10 MS/XD/SD Card slot

10 8

Printer Overview

3www.kodak.com/go/aiosupport

Home Center Software

KODAK Home Center Software is installed with your KODAK

All-in-One Printer Software. The Home Center icon will appear on

your desktop.

On a computer with WINDOWS Operating System (OS), you can use

Home Center Software to browse and edit pictures, print, copy, scan,

order supplies, access the Extended User Guide, and configure your

all-in-one printer from your computer.

On a computer with MAC OS, you can use Home Center Software to

scan, order supplies, and configure your printer from your computer.

Paper

For the best photo printing results, use KODAK Photo Papers, which

are optimized to work with KODAK All-in-One Printers.

For the best document printing results, use KODAK Document Papers

or a paper with the COLORLOK Technology logo on the package. Use

only paper that is designed for inkjet printers.

Paper types

You can use:

• Plain paper — 20 to 24 lb / 75 to 90 gsm

• Photo paper — 6.5 to 12 mils (up to 290 gsm)

• Card stock — 110 lb / 200 gsm, max

• Envelopes — 20 to 24 lb / 75 to 90 gsm

• Transparencies — inkjet variety with white stripe

• Labels — all commercially available inkjet varieties on 8.5 x 11-in.

or A4 sheets

Paper sizes

In the main paper tray:

4 x 6 in. / 10 x 15 cm to 8.5 x 14 in. / 22 x 36 cm

In the photo paper tray:

4 x 6 in. / 10 x 15 cm to 5 x 7 in. / 13 x 18 cm

www.kodak.com/go/aiosupport 4

KODAK ESP 7200 Series All-in-One Printer

Loading plain paper

The main paper tray capacity is 100 sheets of plain paper.

To load plain paper:

1. Raise the output tray, and pull out the main paper tray.

2. Make sure the left paper-edge guide is to the far left.

3. Move the front paper-edge guide forward.

NOTE: For paper longer than 11 in. / 28 cm, press and pull out the

paper tray extender.

Main paper tray

Output tray

Left paper-

edge guide

Front paper-edge guide

Paper tray

extender

Printer Overview

5www.kodak.com/go/aiosupport

4. Fan and stack the paper, then insert it into the tray.

5. Move the paper forward until it stops.

6. Move both the left and front paper-edge guides until they touch

the paper.

7. Push in the main paper tray until it clicks into place, and lower the

output tray.

8. Pull out the output tray extender until it is fully extended.

9. Lift the paper stop.

Output tray extender

Paper stop

www.kodak.com/go/aiosupport 6

KODAK ESP 7200 Series All-in-One Printer

Loading photo paper

The photo paper tray capacity is 40 sheets of photo paper.

To load photo paper:

1. Raise the output tray, and pull out the photo paper tray.

2. Move the left paper-edge guide to the far left and the front

paper-edge guide forward.

3. Fan and stack the photo paper, then insert the paper (short side

first) into the tray with the logo side facing up and the glossy side

down.

IMPORTANT: If the photo paper is loaded the wrong way, the ink on your

pictures will be wet and the image quality will be affected.

4. Move the paper forward until it stops.

5. Move both the left and front paper-edge guides until they touch

the paper.

6. Push in the photo tray, and lower the output tray.

7www.kodak.com/go/aiosupport

Basic Functions

This chapter describes how to print, copy, and scan using the factory

default settings on your printer.

NOTE: To reset your printer to the factory default settings:

1. Press Home.

2. Press to select Printer Settings, then press OK.

3. Press to select Reset All Settings, then press OK.

4. Press OK to reset the settings, then press OK to continue.

Printing

Printing documents

To print a document from your computer:

1. Open the document.

2. Select File > Print.

3. In the Print window, select your KODAK Printer.

4. Choose the pages to print, number of copies, etc, then click OK

(on a computer with WINDOWS OS) or Print (on a computer

with MAC OS).

Printing pictures

You can print pictures with your all-in-one printer from:

• A memory card inserted into a memory card slot

• A camera or storage device (such as a flash drive) connected to

the front USB port with a USB cable

•A BLUETOOTH Technology enabled device (with the optional

KODAK Wireless 2.0 USB BLUETOOTH Adapter plugged into the

front USB port)

•An iPhone / iPod Touch or BLACKBERRY Device1(for information,

go to www.kodak.com/go/picflick)

You can also print pictures using Home Center Software from your

computer with WINDOWS OS. Home Center Software lets you edit

and enhance your pictures quickly.

On a computer with either MAC OS or WINDOWS OS, you can print

pictures from KODAK EASYSHARE Software or any picture-editing or

photo-management software.

For more information , see the Extended User Guide at

www.kodak.com/go/esp7250support.

1. May not be available with all models.
