Kogan KAMN32F16LB Manuale utente

32" CURVED GAMING MONITOR

1920 x 1080, 165Hz

KAMN32F16LB

Safety & Warnings 3

Components 4

Overview 5

Stand Assembly 6

VESA Mount 8

Connectivity 9

Operation 11

Cleaning & Care 17

Specifications 17

Notes 19

Ensure to read all instructions and warnings in this user guide prior to first use. Retain this

user guide for future reference.

•Do not position the monitor on unstable surfaces. If the monitor falls, it may lead to

damage and injuries to people around its vicinity.

•Do not place the monitor near heat sources (for example, heaters, stoves, fireplaces).

•Do not use the monitor in areas lacking adequate ventilation.

•Do not open the back panel of the monitor as it contains a high-voltage current even

when unplugged.

•Do not place heavy objects on the monitor, its power cord, or any other connected

cable.

•The back of this monitor is designed with ventilation holes. Do not cover or block them

as this may cause overheating and damage.

•Do not insert or spray anything into the vents of this monitor.

•Unplug the monitor if it will not be used for an extended period.

•Ensure the monitor is unplugged before cleaning.

•Do not use cleaning alcohol, ammonia-based liquids, or other harsh cleaners when

cleaning the monitor.

The terms HDMI and HDMI High-Definition Multimedia Interface,

and the HDMI Logo are trademarks or registered trademarks of

HDMI Licensing Administrator, Inc. in the United States, and other

countries.

SAFETY & WARNINGS

A Monitor (x1) B Stand stem (x1) C Stand base (x1)

D Headset hook (x1) E Cable guide (x1) F Stand plate (x1)

G Screw (x4)

H VESA connector (x1) I DisplayPort cable (x1)

J Power cable (x1) K User guide (x1)

COMPONENTS

Ports

7 Power port

8 3.5mm headphone jack

9 HDMI port

10 DVI port

11 DisplayPort port

1 Menu/enter button

2 Down button

3 Up button

4 Exit button

5 Power button

6 LED indicator

OVERVIEW

1. Open the packaging and remove the stand stem (B) and stand base (C). Using a

screwdriver (not supplied), secure the stand stem (B) to the stand base (C) with one

screw. Ensure all components are present before disposing of any packaging.

2.Slide and attach the cable guide (E) onto the bottom of the stand stem (B). Clip the

headset hook (D) onto the top of the stand stem (B).

3.Press the release button to remove the stand plate (F) from the packaging.

STAND ASSEMBLY

Stand stem

Screw

Stand base

Headset hook

Cable guide

Release button

Foam

Stand plate

4.Using a screwdriver, secure the stand plate (F) onto the stand stem (B) with two

screws.

5.Take out the monitor (A) and lay it on a flat surface.

6.Pull the release button on the stand plate (F) upwards and clamp the monitor (A)

onto the stand stem (B) and stand plate (F).

Note:

If this assembly needs to be removed, use a screwdriver to loosen the screws and

separate the components.

Release button

1. Open the packaging, and with the foam attached, take out the monitor (A) and place

it gently on a flat surface. Remove the foam covering the back of the monitor. If the

monitor is attached to the stand stem (B) or stand base (C), detach it.

2.Take out the stand stem (B) and stand base (C) from the packaging. Press the release

button to remove the stand plate (D).

3.Using a screwdriver, loosen the four screws on the back of the monitor.

4.Mount the monitor with the steps provided with the VESA mount. Ensure to use the

loosened screws from the previous steps to secure the monitor to the mount.

VESA MOUNT

Notes:

•The mounting hole distance for this monitor is 75 x 75mm.

•VESA mount and mounting accessories are not included.

Release button

Foam

Stand plate

Mount

(not supplied)

Power cable

Connect one end of the power cable into the power port on the monitor. Connect the other

end into a power socket.

Earphones

Plug in earphones (not supplied) into the 3.5mm headphone jack on the monitor.

Note: If audio devices are plugged into the monitor and computer, there will be no sound.

HDMI

To allow the monitor to receive HDMI signals from the computer, plug one end of an HDMI

cable (not supplied) into the monitor. Plug the other end of the cable into the HDMI output

port on your computer.

CONNECTIVITY

Power cable

Earphones (not supplied)

HDMI cable (not supplied)

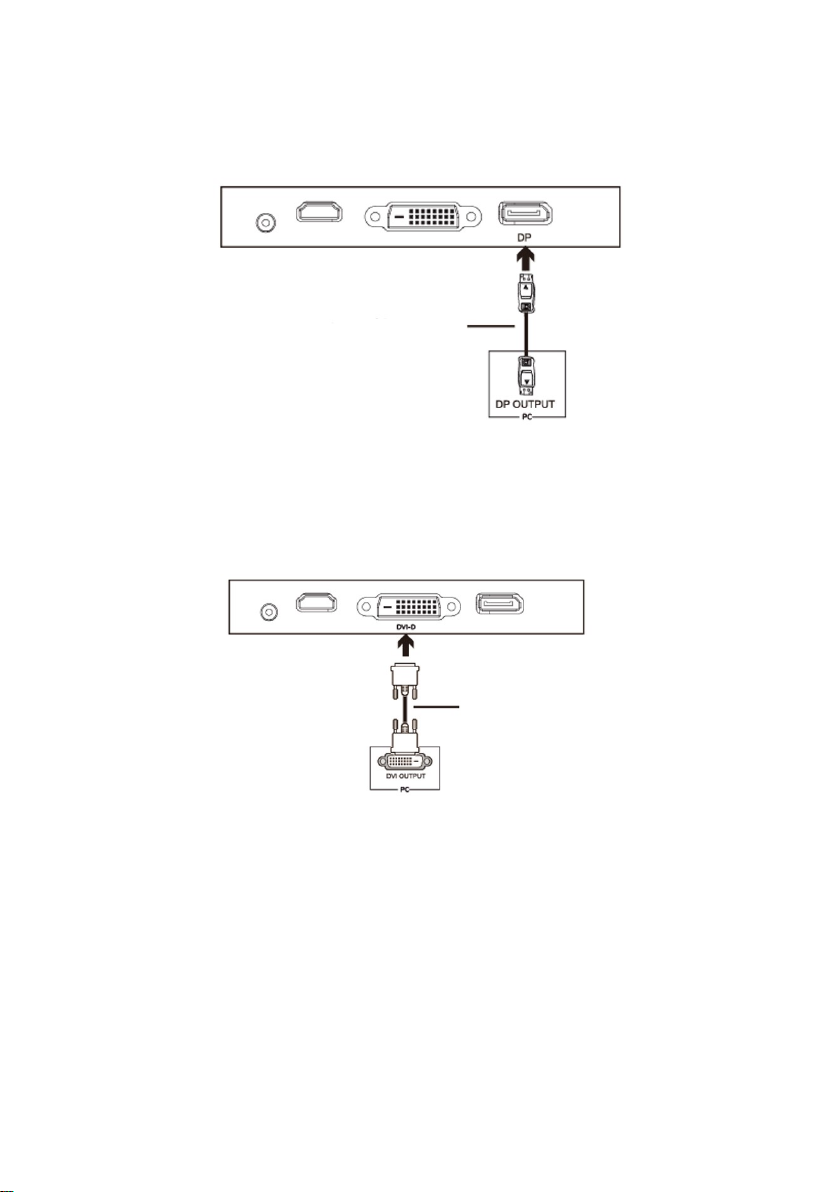

DisplayPort

To allow the monitor to receive DisplayPort signals from your computer, plug in one end of

the provided DisplayPort cable into the DisplayPort port on the monitor. Plug the other end

of the cable into the DisplayPort output on the computer.

DVI

To allow the monitor to receive DVI signals from the computer, connect one end of a DVI

cable (not supplied) into the DVI port on the monitor. Connect the other end into the DVI

output on your computer.

DisplayPort cable

DVI cable (not supplied)
