Kogan KAMN32F7CSA Manuale utente
32 FULL HD CURVED
FREESYNC GAMING MONITOR
(1920 x 1080, 75Hz)
KAMN32F7CSA
• Read all instructions before using the appliance and retain this user guide for future
reference.
• Unplug the monitor before cleaning it.
• Use a clean, slightly-dampened cloth to wipe the main monitor body.
• To c l e a n t h e s c r e e n : t u r n i t o f f , u n p l u g i t a n d w a i t f o r i t t o c o o l c o m p l e t e l y, t h e n w i p e i t
with a dry microfibre cloth.
• Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.
• This monitor is designed with ventilation holes on the back of the casing. Do not cover or
block them.
• Do not insert any object or spray any liquid into the vents.
• Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat, as
well as in rooms lacking adequate ventilation.
• Do not position the monitor in unsafe locations. If the monitor falls, it may be damaged
and may injure nearby people.
• Unplug the monitor if it is not going to be used for an extended period.
• Do not place heavy objects on the monitor, its power cord or any connected cable.
• Do not open the back panel of the monitor, as it contains a high-voltage current even
when not plugged in.
The terms HDMI and HDMI High-Definition Multimedia
Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing Administrator, Inc. in the
United States and other countries.
SAFETY & WARNINGS
Monitor
Stand arm
Stand base
Stand base screw
(M4 x 16mm)
VESA screws (x4)
HDMI cable
Power cable
User guide

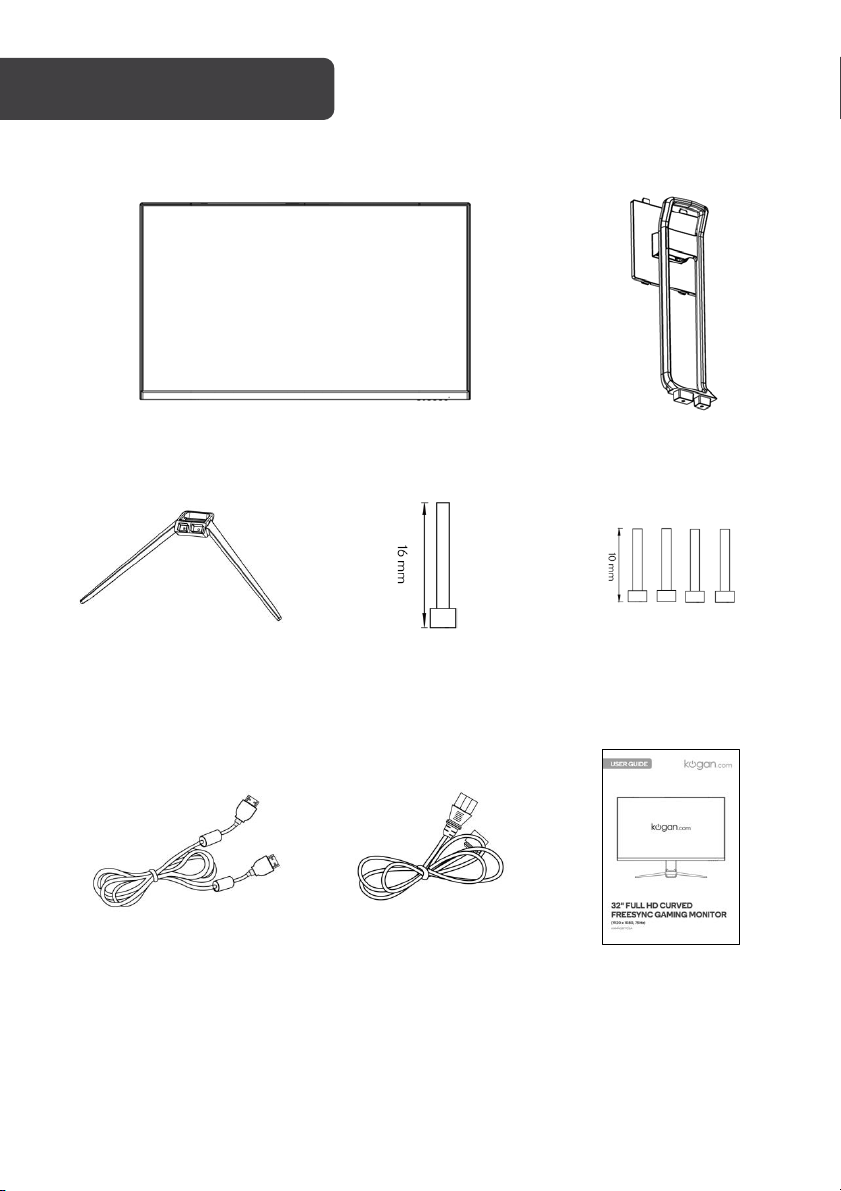

COMPONENTS
Monitor Controls
1
Backlight button
Press to turn the display backlight on/off.
2
Menu button
Press to display the OSD menu or enter sub-menus.
3
Down button
Press to move down in the menu.
4
Up button
Press to move up in the menu.
5
Exit button
Press to exit the menu.
6
Power button
Press to turn the monitor ON/OFF.
OVERVIEW
Monitor Ports
7
Audio in
8
VGA input
9
HDMI input
10
Power input
Before disposing of any packaging, place all items on a soft, clean and flat surface to
ensure all components are accounted for.
1. Carefully remove the monitor, stand
arm and stand base from the box.
2. Attach the stand base to the stand
arm using the M4x16 screw provided.
3. Insert the stand arm block into the
back cabinet and push down until
firmly connected.
4. Lift the monitor up straight and
remove the bottom foam. Stand the
monitor up on the installed base.
ASSEMBLY
WARNING: The panel of the monitor is fragile. Keep the foam
underneath the monitor screen while assembling the stand.
Open the box, take out the monitor with protection form attached and gently place it on a
desktop or table. Remove the extra parts and the foam covering the back of the monitor.
Press the release button to remove the stand plate. If the monitor was already attached to
the stand assembly, remove it.
Assemble the mount following the instructions provided with the mount.
VESA MOUNT
VESA mounting pattern 100 x 100mm, screw size M4.
Note:
VESA mount or mounting accessories are NOT included.
Stand base
Monitor
Stand
plate
Button
Stand arm
Mount (not included)
Power
Connect the included power cable to the monitor power port, then connect the other end to
a power outlet.
Audio In
Connect an audio cable to the 3.5mm audio port on the monitor (Audio In) and the 3.5mm
audio port on your computer.
CONNECTIVITY

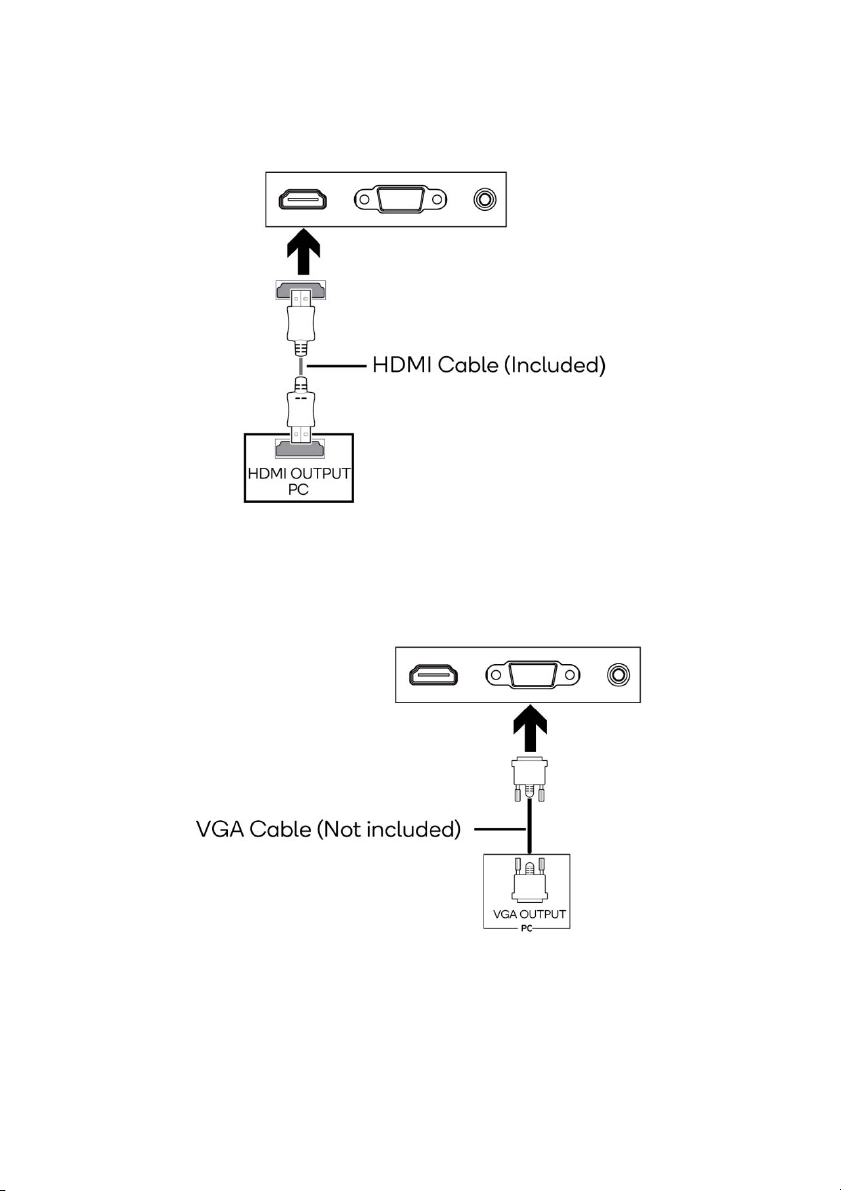

HDMI
Connect an HDMI cable from the computer’s display output to the monitor’s display input.
VGA
Connect a VGA cable from the computer’s display output to the monitor’s display input.
