Kogan KAMN34F1QULA Manuale utente
34" 21:9 CURVED GAMING
MONITOR
USER GUIDE
3440x1440 100Hz
KAMN34F1QULA
SAFETY & WARNINGS
Read all instructions before using the appliance and retain for reference.
This monitor is designed with ventilation holes on the back of the casing. Do not cover or
block them.
Do not insert any object or spray any liquid into the vents.
Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat, as
well as in rooms lacking adequate ventilation.
Do not position the monitor in unsafe locations. If the monitor falls, it may be damaged
and may injure nearby people.
Unplug the monitor if it is not going to be used for an extended period.
Do not place heavy objects on the monitor, its power cord or any connected cable.
Do not open the back panel of the monitor, as it contains a high-voltage current even
when not plugged in.
There is a polarizer layer (not a protective film) on the surface of the screen. Do not peel it
o, or the product may be damaged and the warranty will be invalid.
The terms HDMI and HDMI High-Definition Multimedia
Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing Administrator, Inc. in the
United States and other countries.
1
2
COMPONENTS
Stand screws
(PM5*11 x4)
Power cableHeadphone stand
Monitor
BaseStand arm
34" 21:9 CURVED GAMING
MONITOR
USER GUIDE
3440x1440100Hz
KAMN34F1QULA
VESA screws
(M4*12 x4)
User guideDP cable
3
OVERVIEW
Indicator
Solid Blue Power is on and the monitor operating normally.
Flashing Blue
Indicator Status
M
E
Button Function
Menu button: Confirm/call up the main menu.
Down button: Move down in the menu/quickly enter the GamePlus.
Up button: Move up in the menu/quickly enter the ECO.
Exit button: Exit/return to the previous menu/quickly enter the RGB Range.
Power button: Turn on/o the monitor.
M E
Indicator
No video input signal or the monitor is in standby.
Ensure your computer is turned on and operates normally and check
that all video cables are fully plugged in and/or connected to the
monitor.
4
1. Open the carton, remove the stand arm, base and headphone stand. Leave the monitor
in foam.
Secure the stand arm to the base using one of the screws.
Attach the headphone stand to the stand arm.
2. Remove the bottom half of the protective foam from the monitor.
Press the quick release button and remove the stand plate then attach it to the stand
assembly using two screws.
ASSEMBLY
Headphone stand
Headphone
stand
Screw
Screws
Stand Plate
Stand arm Stand
arm
Stand
base
Stand
base
Note:
When handling the monitor, do not pinch the screen with your hand to avoid
damaging the display.
5
3. Attach the stand plate and stand assembly back onto the rear of the monitor.
Remove the remaining protective foam and stand the monitor upright.
Note: To remove the stand from the monitor, slide the quick-release button up and
pull the stand assembly outwards.
Quick-
release
button
6
VESA mounting pattern 75x 75mm, screw size M4.
Note: VESA mount or mounting accessories are not included.
1. Open the box, take out the monitor with protection foam attached and gently place it
on a desktop or table. Ensure all components are removed from the foam covering.
Press the quick release button to remove the stand plate.
If the monitor is already attached to the stand, remove the stand before proceeding
with VESA mount assembly.
2. Remove the four screws from the rear case. Do not remove the monitor from the foam at
this stage.
VESA MOUNT
Quick release
button
Protective foam
Screws
7
3. Remove the four VESA screws from the accessory bag and attach them to the rear
casing.
4. During hanging of the product, do not pinch the screen with your hand to avoid
damaging the screen.
Instructions for attaching to the specific wall mount will be included with the mount.
Notes: To prevent the monitor on the mount from failing, please install it firmly and protect it
fully. Do not place or hang any object on the mount. Ensure the height of the mount is less
than 2 meters.
VESA screws
Mount (not supplied)
8

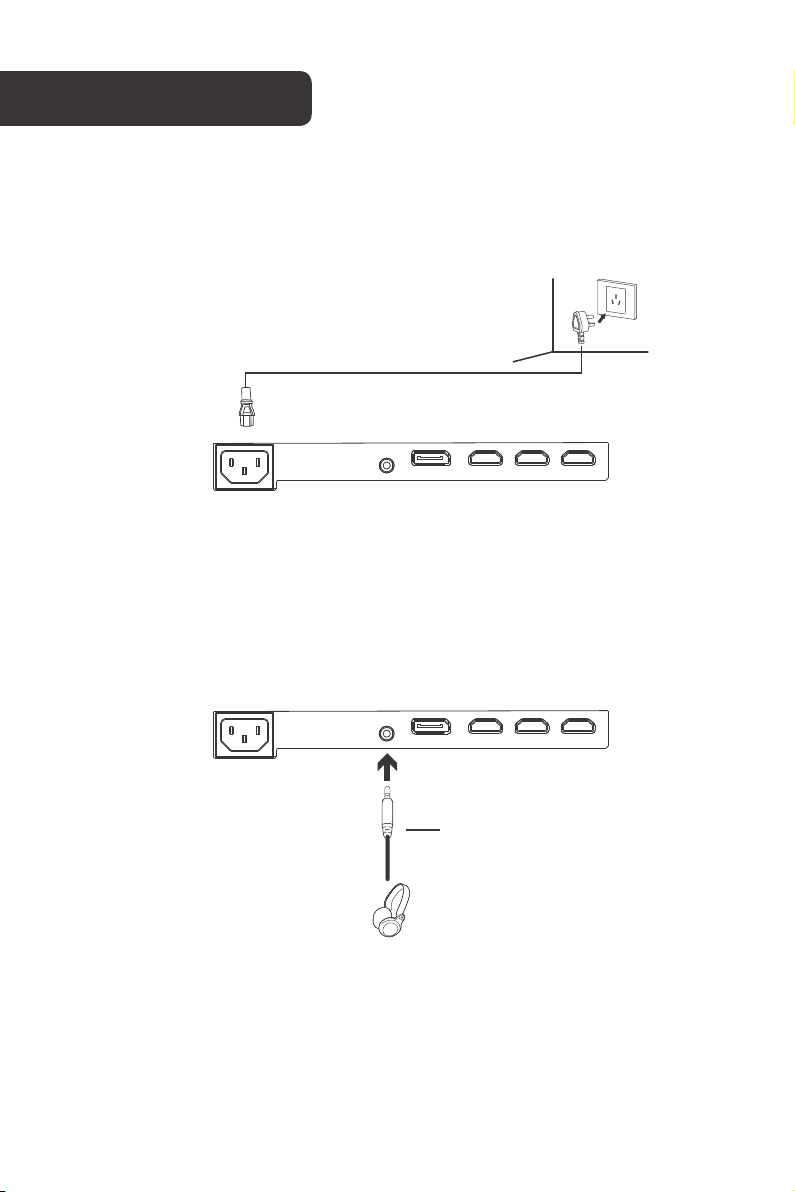

Power Cable
Connect the included power cable to the monitor power port and then connect the other
end to a power outlet.
Audio Out
Connect an audio output device (speakers, headphone etc.) to the 3.5mm audio port on the
monitor.
Earphones (not included)
Power cable
CONNECTIVITY
