PREMIUM RACING

SIMULATOR COCKPIT

MONITOR STAND

KASLSTMTSTA

• Closely follow the assembly instructions. Improper installation may result in

property damage or serious personal injury.

• A minimum of two people is recommended for this installation. Failure to use

safety gear and safe working methods may result in property damage, serious

injury or death.

• Be careful of sharp objects during assembly.

• Ensure that the supporting surface will safely support the combined weight of the

equipment and all attached hardware and components.

• Use the mounting screws provided and do not over tighten them.

• This product contains small items that could be a choking hazard if swallowed.

Keep small items away from children.

• Do not allow children to play near this stand.

• This product is intended for indoor use only. Using this product outdoors could lead

to product failure and personal injury.

IMPORTANT: Ensure that you have received all parts according to the component checklist

prior to installation. If any parts are missing or faulty, contact help.Kogan.com for support.

MAINTENANCE: Check that the product is secure and safe to use at regular intervals (at

least every three months).

SAFETY & WARNINGS

WARNING: Exceeding the maximum rated weights indicated may result

in instability causing possible property damage, serious injury or death.

Lay all components out on a clean floor and ensure all parts are included. If any pieces are

missing, check all packaging thoroughly, then contact help.Kogan.com for assistance.

Parts:

A(x2)

B

C

D

E(x4)

F(x2)

G(x4)

HAllen key

Mounting hardware:

M-A M5x14 (x4)

M-B M6x14 (x4)

M-C M6x30 (x4)

M-D M8x30 (x4)

M-E M8x50 (x4)

M-F (x4)

M-G (x8)

M-H (x8)

COMPONENTS

Step 1:

• Remove the existing fasteners and attach the arms (A) to the simulator cockpit.

• Secure the arms (A) in place using the previously removed fasteners.

Step 2: Optional holes are provided for different mounting heights.

ASSEMBLY

Step 3:

Using a combination of the supplied mounting hardware, securely attach the 2 mounting

brackets (C)(D) to the rear of your display.

Note: If you are unsure as to which hardware to use to safely mount your display, please

seek the advice of a professional tradesmen.

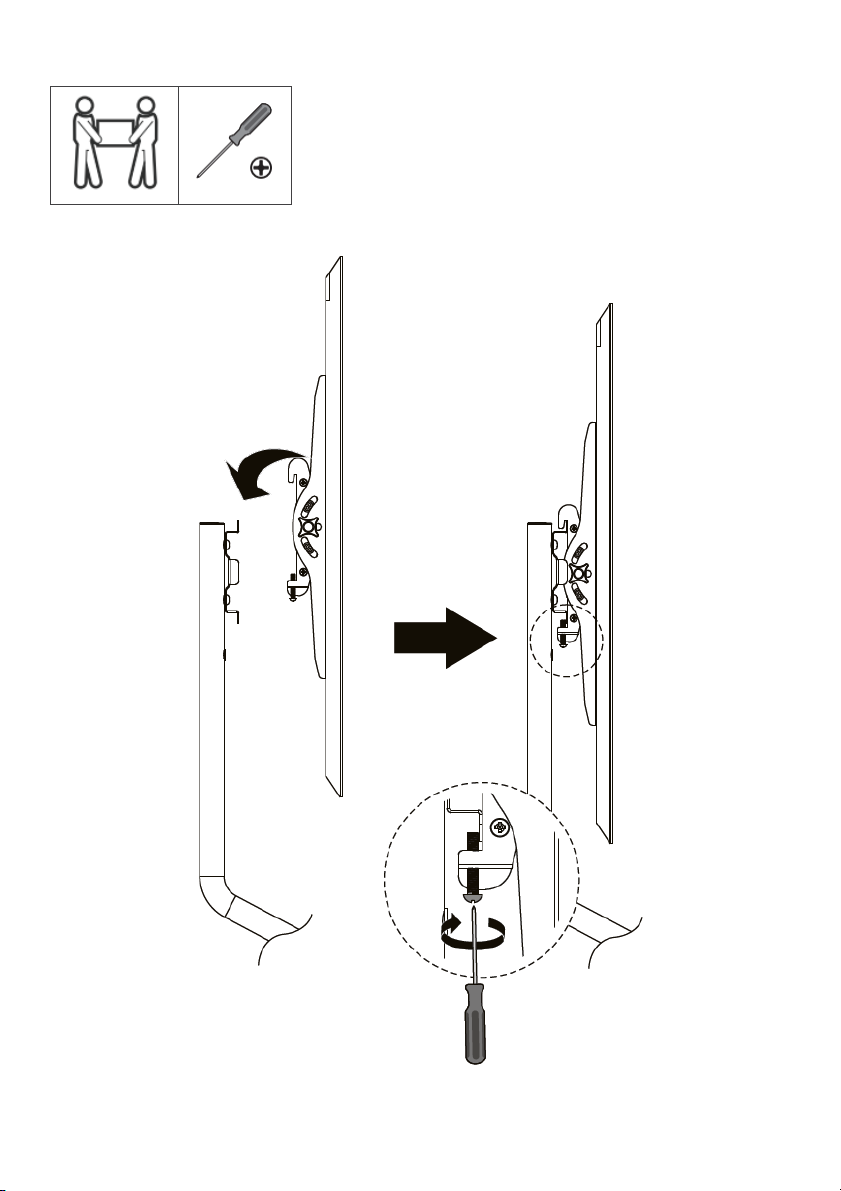

Step 4:

Step 5:

s

NOTES
