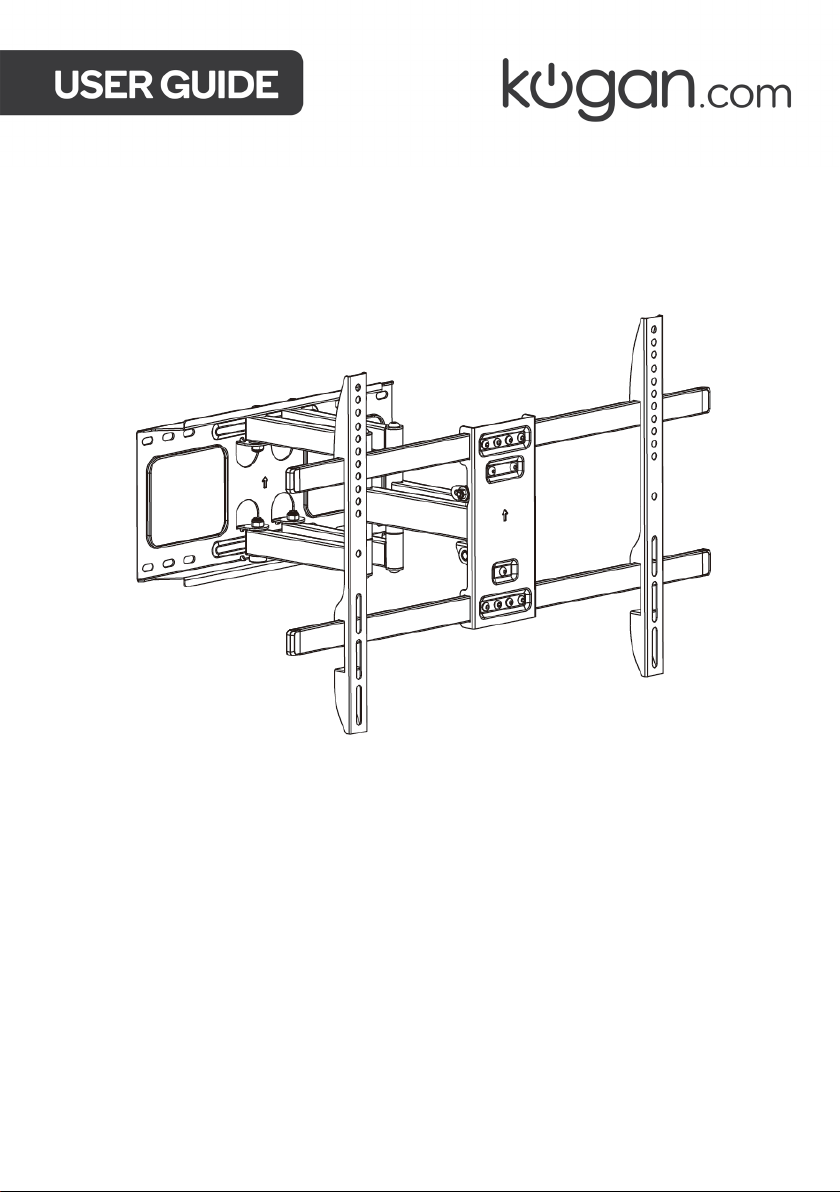

Kogan KAWLM82TEXA Manuale utente

TILT EXTENDABLE FULL

MOTION WALL MOUNT

(37" - 82”)

KAWLM82TEXA

•Please closely follow the assembly instructions. Improper installation may result in

damage or serious personal injury.

•Safety gear and quality tools must be used.

•This product is suitable for installation on solid concrete walls, masonry walls or

wood stud walls.

•Make sure that the supporting surface will safely support the combined weight of

the equipment and all attached hardware and components.

•Use the mounting screws provided and DO NOT OVER TIGHTEN mounting

screws.

•Do not allow children to play near this stand.

•This product contains small items that could be a choking hazard if swallowed.

Keep these items away from children.

•This product is intended for indoor use only. Using this product outdoors could lead

to product failure and personal injury.

•A minimum of two people are recommended for this installation. Failure to use

safety gear and safe working methods may result in property damage, serious

injury or death.

IMPORTANT: Ensure that you have received all parts according to the component checklist

prior to installation. If any parts are missing or faulty, contact your place of purchase for a

replacement.

MAINTENANCE: Check that the product is secure and safe to use at regular intervals (at

least every three months).

VESA compatibility:

200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400

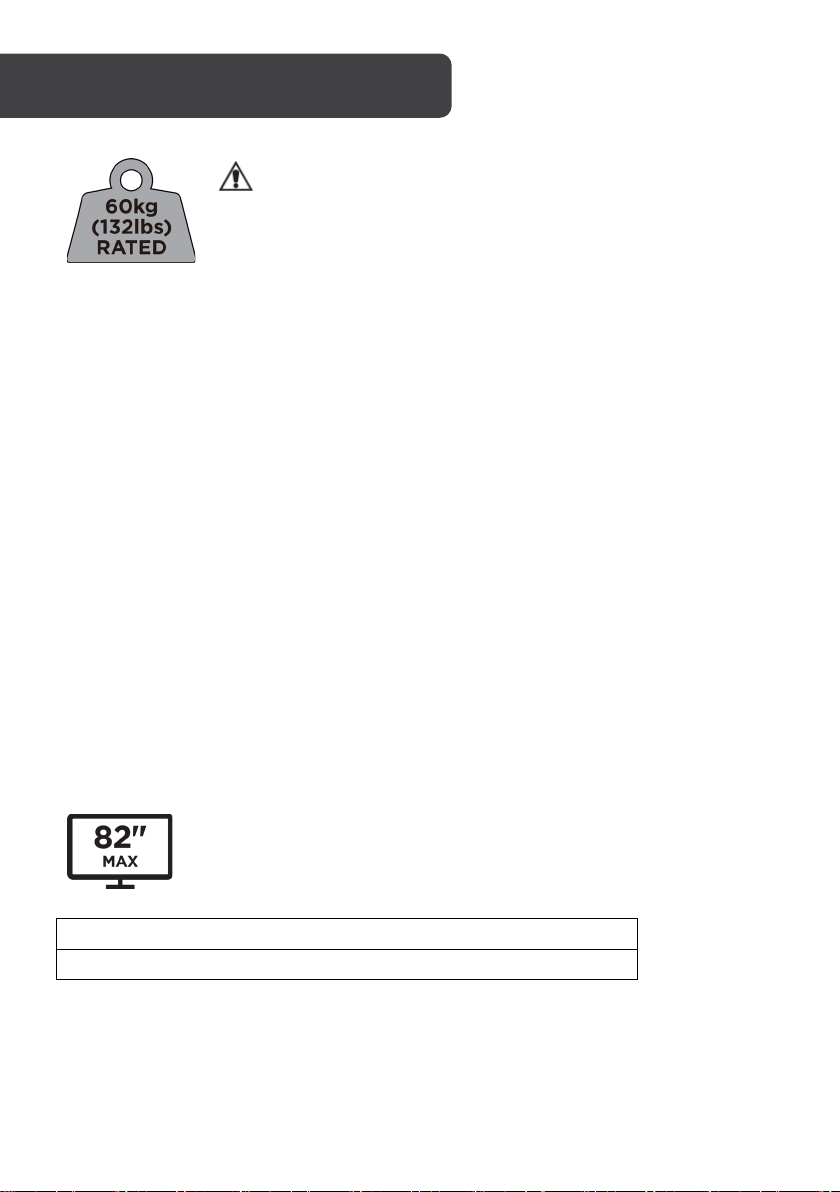

CAUTION:

Rated weight is 60kg (132 lbs).

Use with products heavier than the rated weights indicated may result

in instability causing possible injury.

Suitable for TVs 37” – 82” maximum

SAFETY & WARNINGS

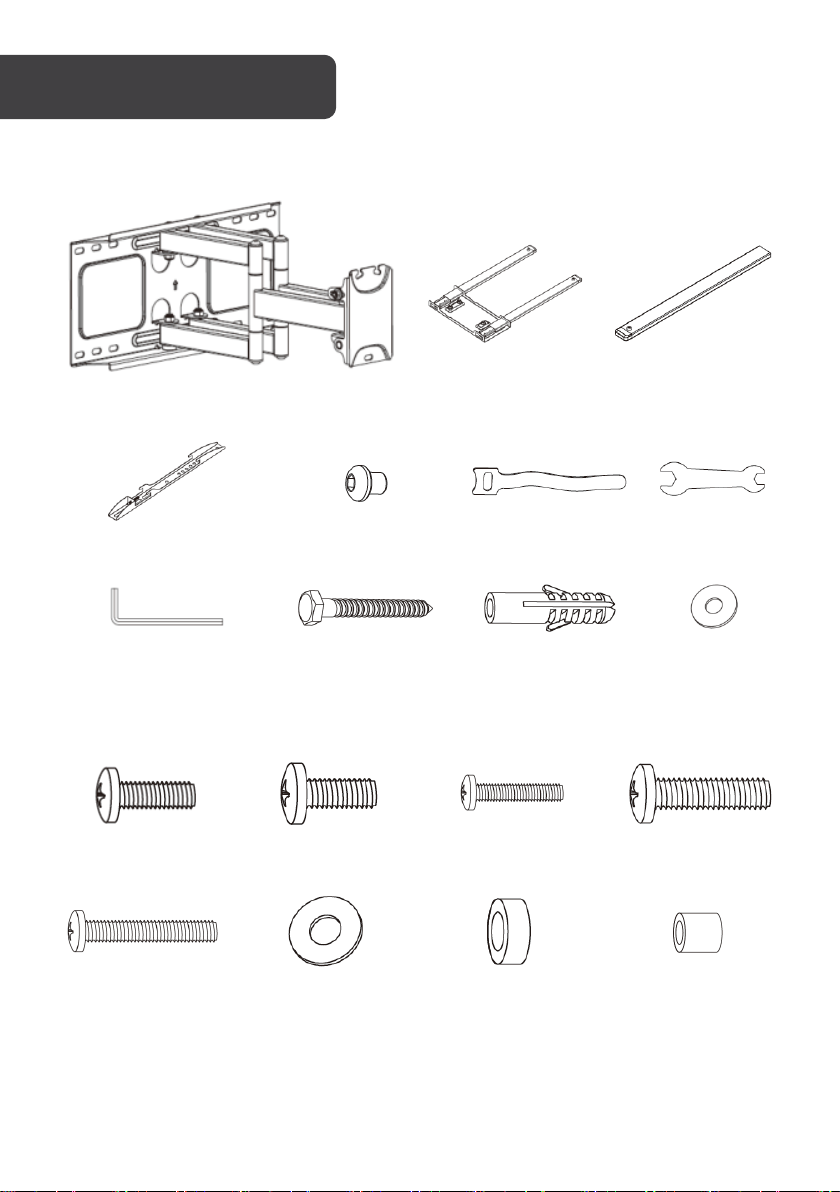

Wall mount assembly:

A(x1)

B(x1)

C(x2)

D(x2)

E(x4)

F(x5)

G(x1)

H(x1)

W-A ST8x60 (x4)

W-B Ø12x60 (x4)

W-C (x4)

Adapters (depends on TV):

M-A M5x14 (x4)

M-B M6x14 (x4)

M-C M6x25 (x4)

M-D M8x25 (x4)

M-E M8x45 (x4)

M-F (x4)

M-G (x4)

M-H (x4)

COMPONENTS

Additional Tools Required (Not Supplied):

Phllips head

screwdriver

Stud finder

Spirit level

Pencil

Electric drill

Socket wrench

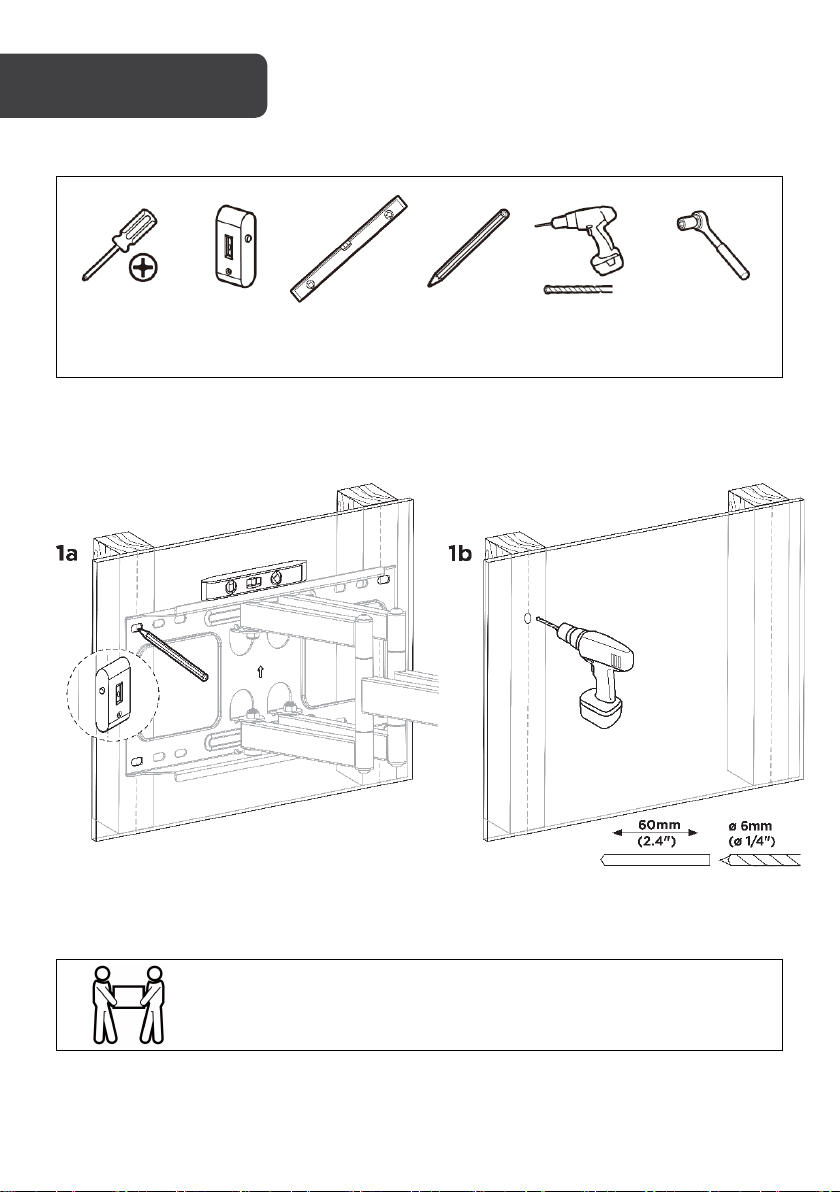

Step 1: Drywall, plaster or timber walls (with studs)

Use a stud finder to locate safe and suitable locations to install into wall. Use a spirit level to

double check the correct angle of the mount and mark the intended hole positions with a

pencil (1a). Drill holes in the desired locations (60mm deep, 6mm wide) (1b).

A minimum of two people are recommended for this installation. Failure

to use safety gear and safe working methods may result in property

damage, serious injury, or death.

ASSEMBLY

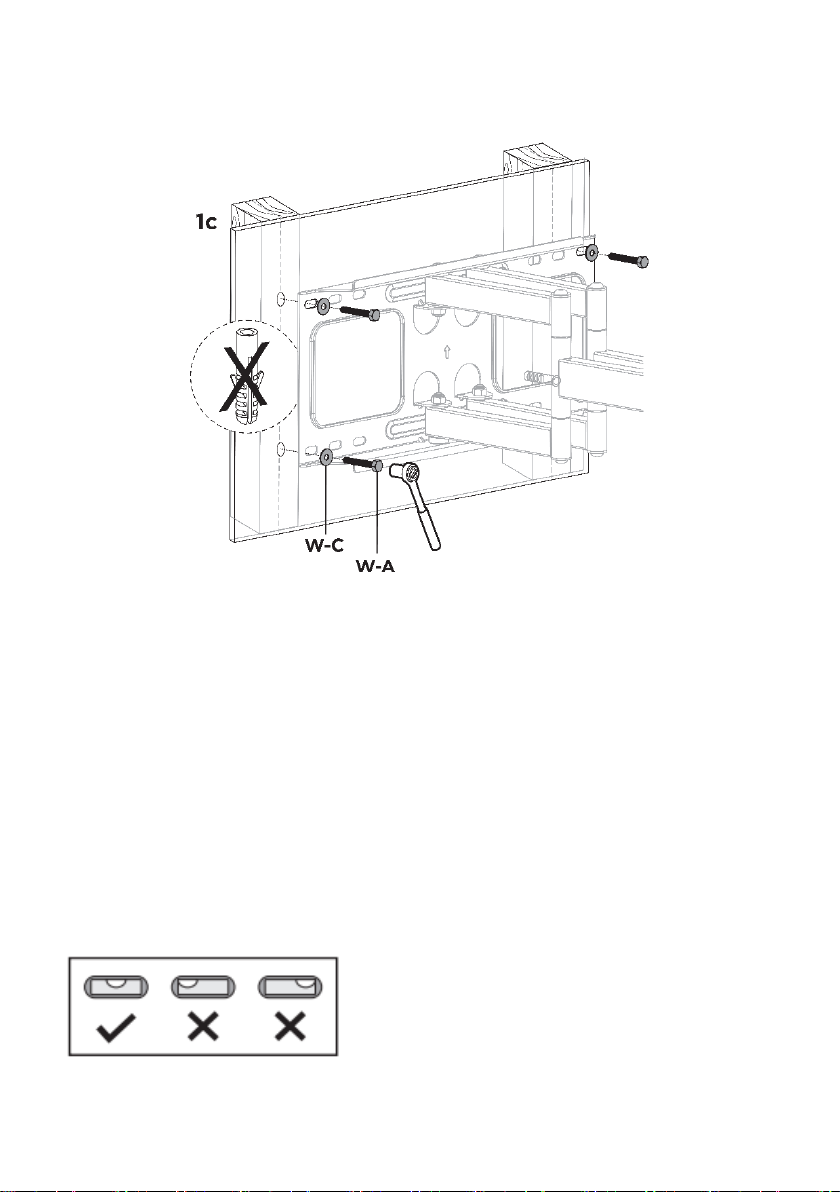

With the wall mount held in place, insert the washers and screws (W-C, W-A), tightening

with a socket wrench (1c). When installing on a drywall, plaster or timber wall, do not use the

screw anchors (W-B).

Ensure washers and screws are aligned in the

centre of opening. Do not install with washers and

screws off to either side.

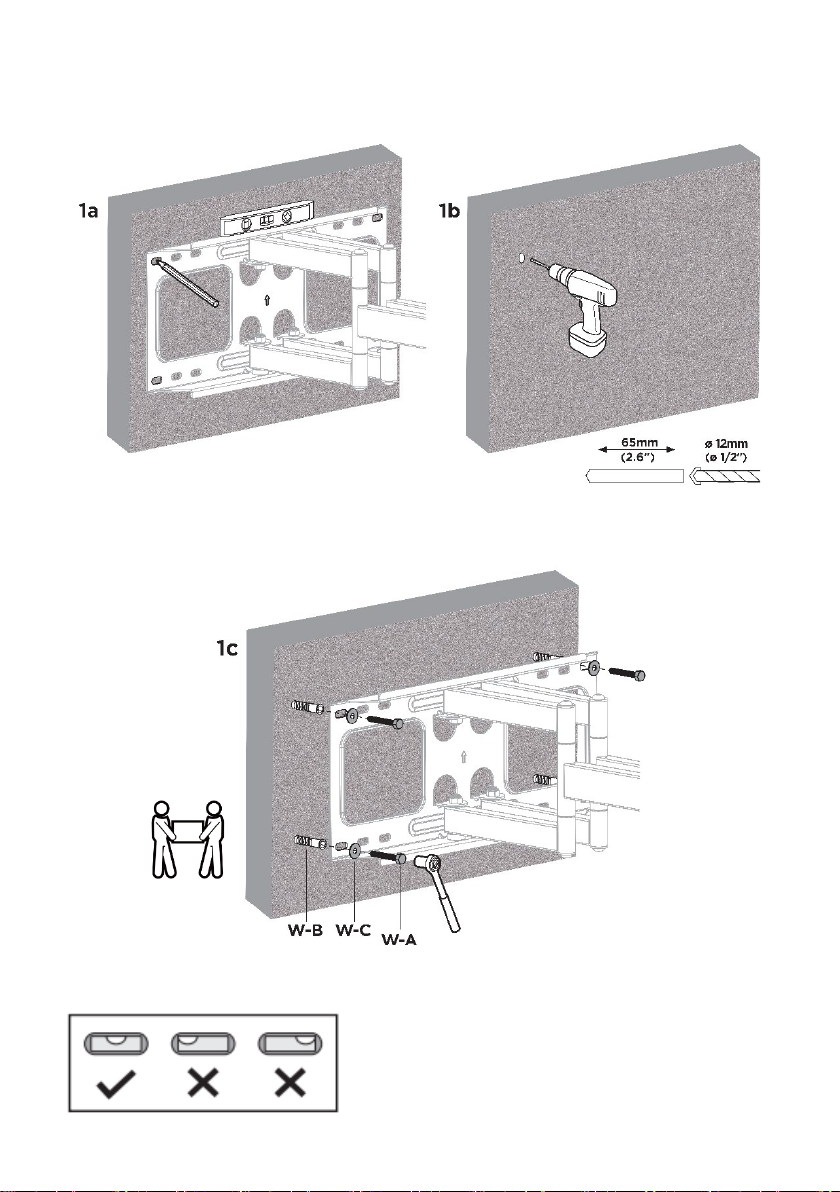

Step 1: Concrete and masonry walls

Use a spirit level to double check the correct angle of the mount and mark the intended hole

positions with a pencil. Drill holes in the desired locations (65mm deep, 12mm wide).

Insert the screw anchors (W-B) into each pre-drilled hole. With the wall mount held in place,

insert the washers and screws (W-C, W-A), tightening with a socket wrench.

Ensure washers and screws are aligned in the

centre of opening. Do not install with washers and

screws off to either side.

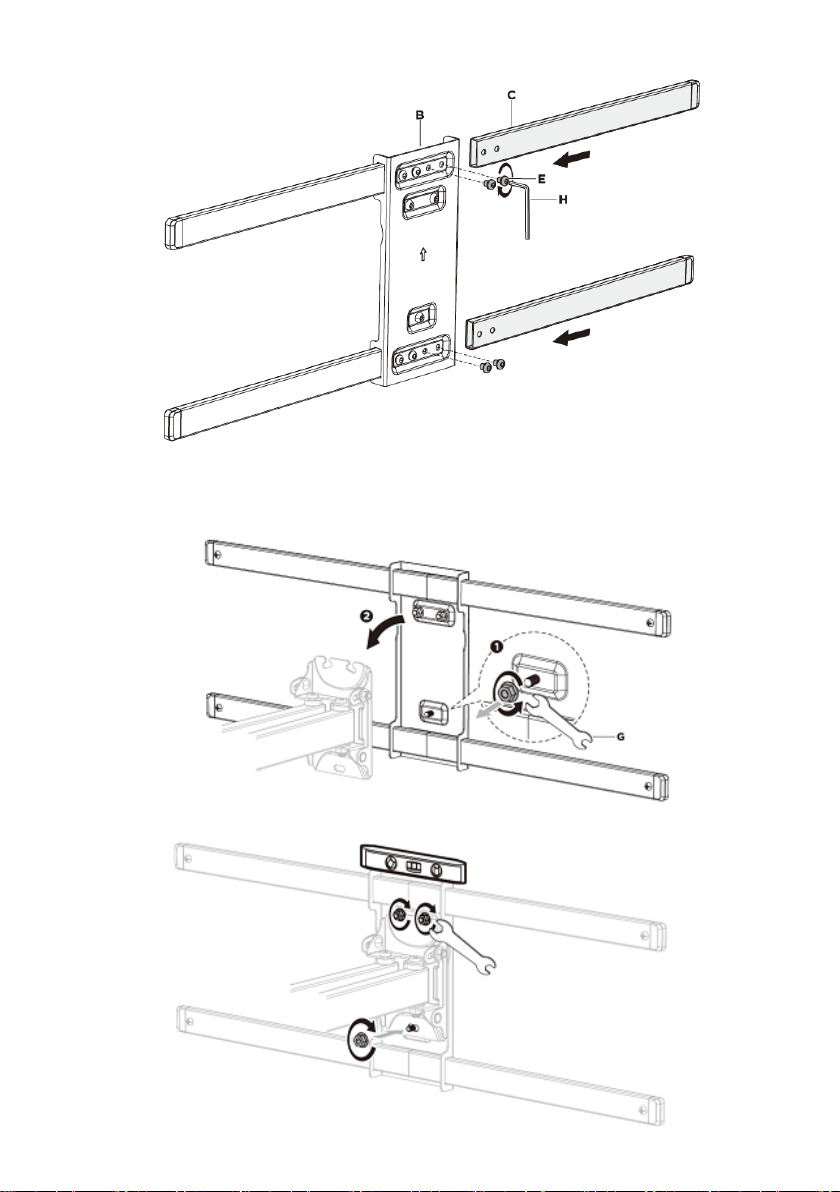

Step 2: Attach the rails (C) to the mount plate (B) with the screws (E).

Step 3: Attach the mounting plate to the wall mount.

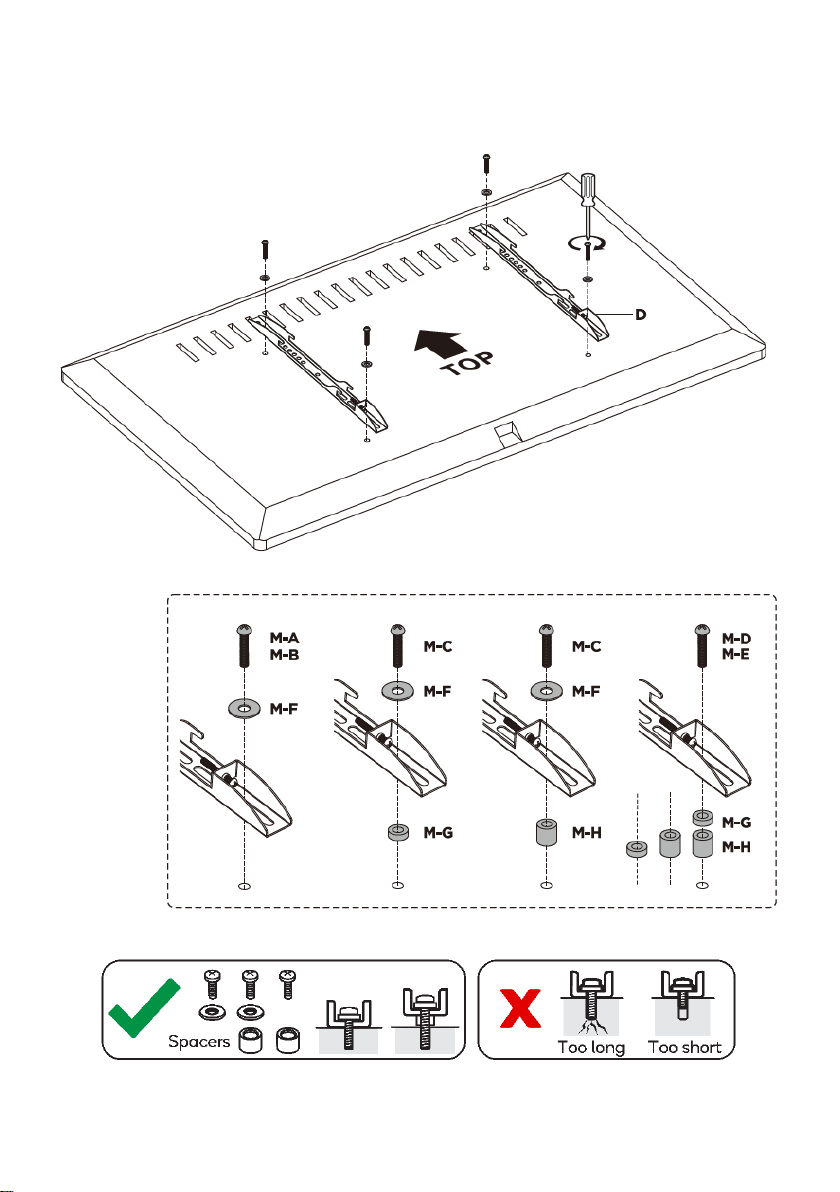

Step 4: Attaching the mounting brackets to your TV.

Depending on your TV, a combination of spacers (M-G, M-H) may be required to help create

the correct amount of space for the brackets. Ensure the screws are fitted correctly into your

TV’s VESA mount holes, and are not too long or too short in the back of the TV.

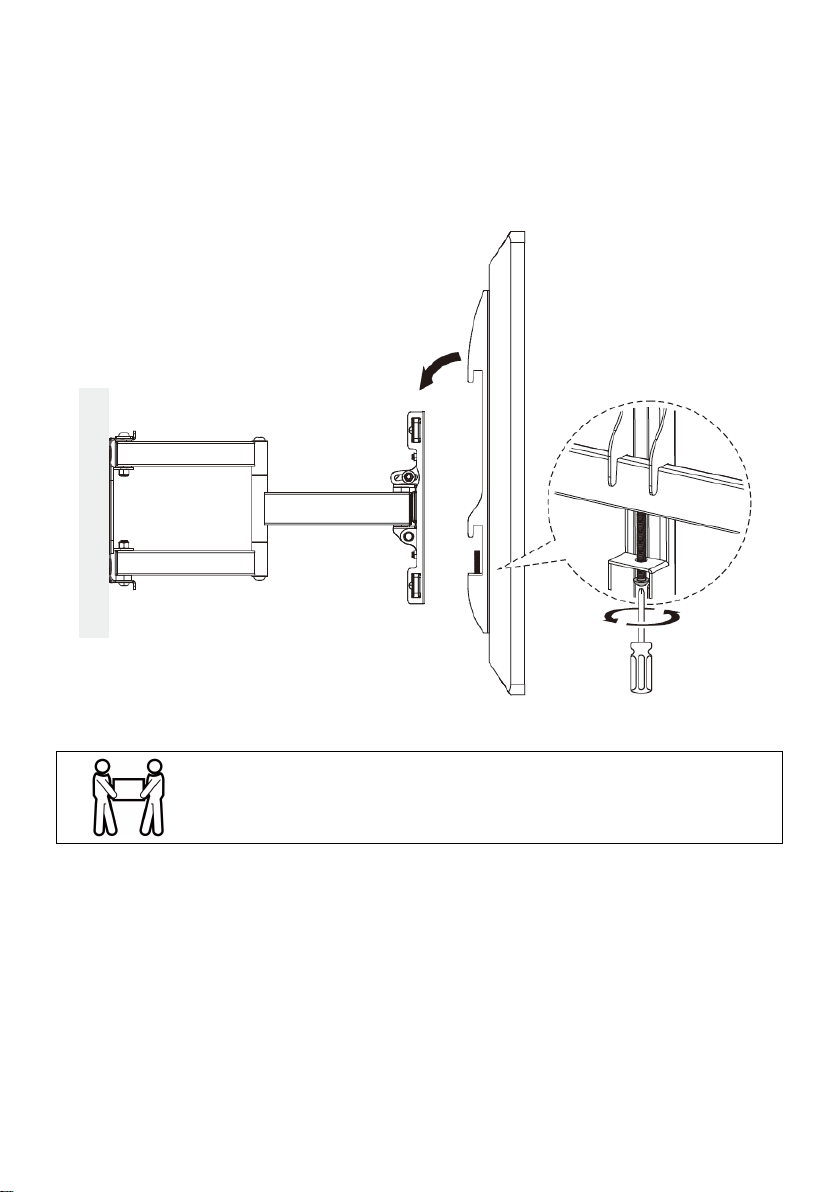

Step 5: Attaching the TV to the wall mount.

With two people, lift the TV up and above the installed wall mount and gently lower down

into place, ensuring the TV is positioned evenly in the middle of the mount.

The brackets each feature a vertical screw to secure to the bottom of the mount. Hook this

screw underneath the mount, and tighten to secure.

A minimum of two people are recommended for this installation. Failure

to use safety gear and safe working methods may result in property

damage, serious injury, or death.
