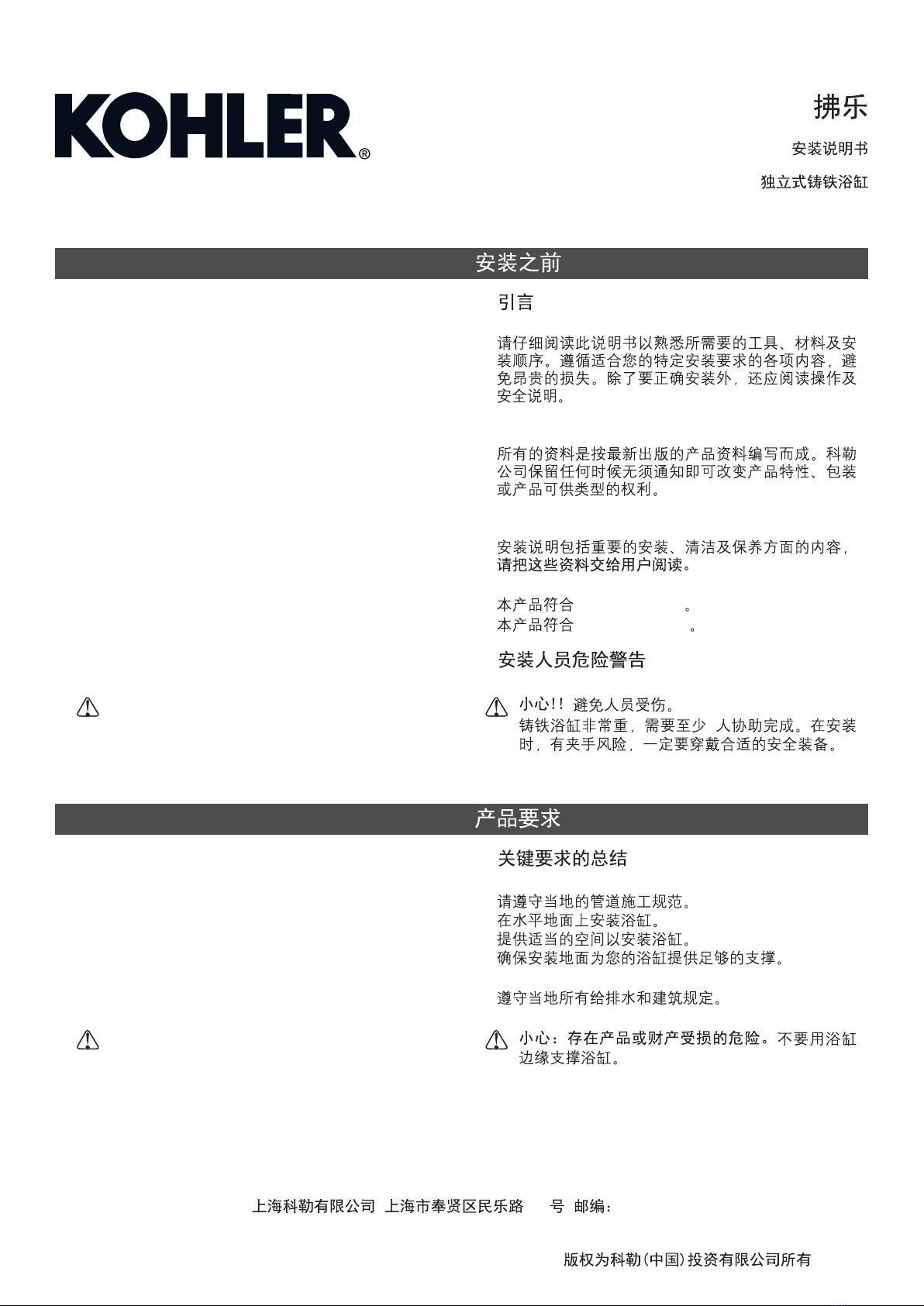

INSTALLATION INSTRUCTIONS
FREESTANDING BATH
K-20610T/K-20610T-GR/K-20379T/K-20379T-GR
K-23746T/K-23746T-GR/K-23747T/K-23747T-GR
BEFORE YOU BEGINBEFORE YOU BEGIN
PRODUCT REQUIREMENTSPRODUCT REQUIREMENTS
B. Installer Hazard Notification
CAUTION!! Risk of personal injury.
Cast iron baths are extremely heavy, and need
at least 5 persons for help. When installing these
products, please wear appropriate safety
equipment for the risk of clipping your fingers.
A. Introduction
!
!
!
!
!
Please read these instructions carefully to
familiarize yourself with the required tools, materials,
and installation sequences. Follow the sections that
pertain to your particular installation. This will help
you avoid costly mistakes. In addition to proper
installation, read all operating and safety instructions.
All information is based on the latest product
information available at the time of publication.
Kohler Co. reserves the right to make changes in
product characteristics, packaging, or availability at
any time without notice.
These instructions contain important care, cleaning,
and warranty information
This product complies with GB 24977-2010.
This product complies with QB/T 2664-2004.
-please leave these
instructions for the consumer.
A.
!
!
!
!
!
GB 24977-2010
QB/T 2664-2004
A.
!
!
!
!
!
B.
5
A. Summary Of Key Requirements
!
!
!
!
!
Observe all local plumbing codes.
Install the bath tub to a level floor.
Provide properly-dimensioned space.
Make sure the flooring offers adequate support for
your bath.
Observe all local plumbing and building codes.
Do not support the bath by the rim.
CAUTION: Risk of product or property
damage.
SHANGHAI KOHLER LTD., NO.368, MIN LE ROAD,
FENG XIAN DISTRICT, SHANGHAI, CHINA POST CODE 201419
368 201419
©
©
Copyright Kohler China Investment Co., Ltd. 2019
2019
1315528-T01-C
-2-

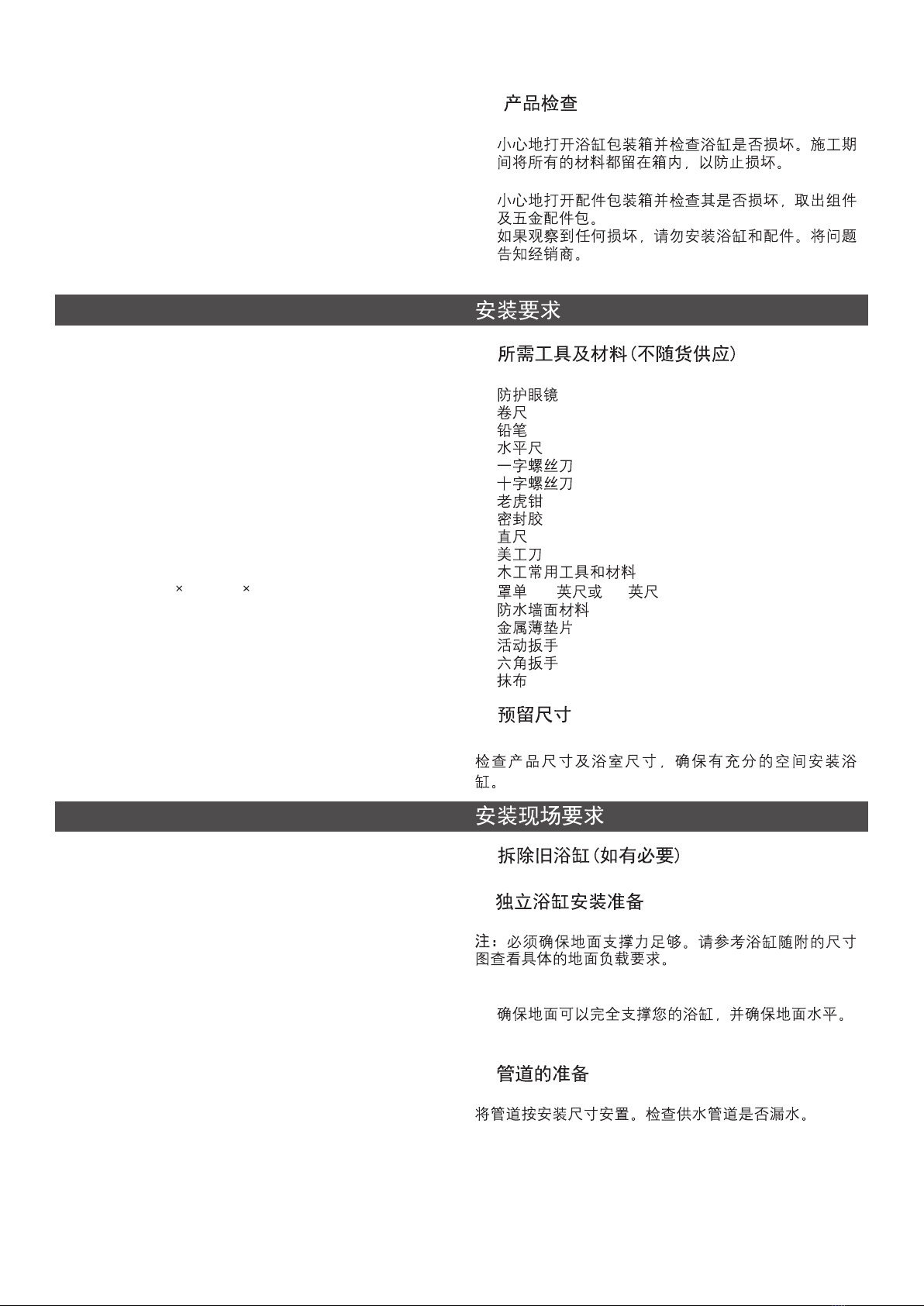

B.
!
!
!
B. Product Inspection
!
!
!
Uncrate and inspect bath for damage. Leave all
materials in the crate during construction to prevent
damage.
Carefully open the accessory cartons and remove
the components and hardware pack.
If you observe any damage, do not install the bath
or the accessory. Report the specific problem to
your dealer.
B. Clearance Requirements
Check the rough-in and room dimensions to provide
adequate available space for the bath unit.
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Safety glasses
Tape measure
Pencil
Level
Blade screwdriver
Phillips screwdriver
Pliers
Sealant
Square
Knife
Conventional woodworking tools and materials
Drop cloth 2 4,sor2 6
,s
Water-resistant wall material
Metal shims
Adjustable wrench
Hex wrench
Rags
A. Tools And Materials Required (Not Supplied)
INSTALLATION REQUIREMENTSINSTALLATION REQUIREMENTS
A.
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
2x4 2x6
B.
A.
B.
!
SITE REQUIREMENTSSITE REQUIREMENTS
B. Preparation
NOTE: Adequate floor support must be provided. Refer
to roughing-in sheet packed with your bath for specific
floor loading requirements.
Make sure the floor offers adequate support for your
bath and verify that the subfloor is flat and level.
!
A. Old Bath Removal (if necessary)
C.
C. Plumbing Preparation
Position the plumbing according to rough-in dimensions.
Check the supplies for leaks.
1315528-T01-C
105
Bath
Adjustable Feet
M8
M12
Go Down Go Up
Tighten
Tighten
-3-

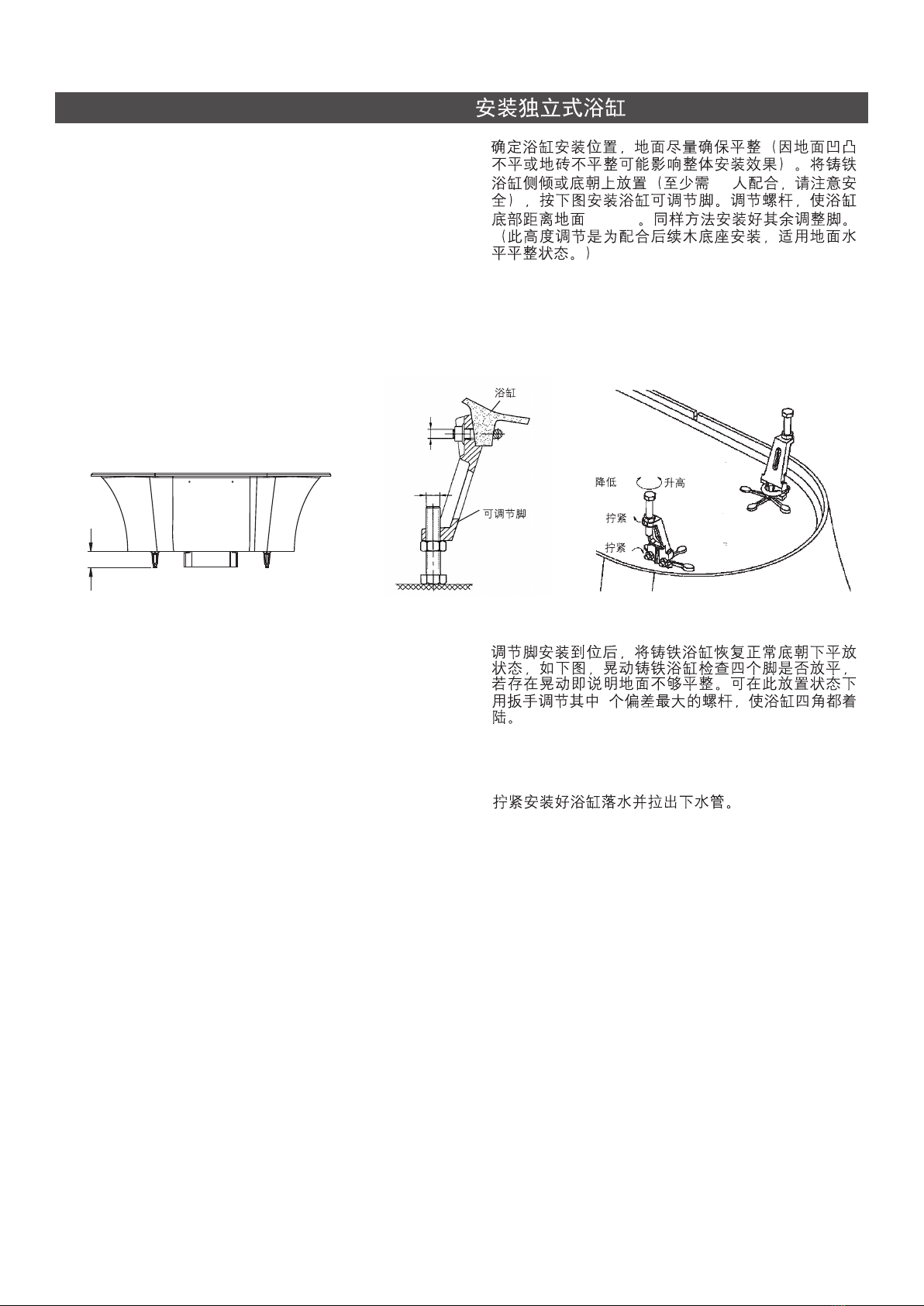

INSTALL THE FREESTANDING BATHINSTALL THE FREESTANDING BATH
1.
2-3
105mm
1. Make sure the floor is as flat as possible when
choosing the position for installing the bathtub
(uneven floor or tiles could affect the overall
installation). Place the cast iron bathtub at a tilt or
place the bottom on top (at least 2-3 people required;
please be careful) and following instructions in the
following figure to adjust the supports. Adjust the
screws so that the bottom of the bathtub is 105mm
from the floor. Use the same method to install other
adjustable supports. (The height adjustment is for
facilitating follow-on installation of the wood base and
it is suitable for flat surfaces.)
2.
1
2. After the supports are adjusted, return the cast iron
bathtub to its normal position with the bottom facing
down as illustrated in the following figure. Shake the
cast iron bathtub to verify whether the four supports
are even. If the bathtub is shakable, it means that the
floor is not sufficiently even. You can use a wrench to
adjust 1 screw with the highest deviation so that the
four supports are placed on the floor.
Install and tighten the bathtub water drain and pull
out the drainage pipe.
1315528-T01-C
-4-
1315528-T01-B
Lock Bracket on Bathtub with Screw
Screw Hole on Bathtub
Insert Pin Into Hole
5.
1329702 1329706
1329705 1329703
1329707
1148886 1329705
1329704
5. Handrail installation(only for bath with handrail):
Open the bathtub handrail installation screws pack
1329702. Insert the 1329706 rivet into the handrail
hole. Place the 1329705 spring washer on the
1329703 hexagon socket screw. Use the 1329707
hexagon socket wrench to fasten the countersunk
head screw onto handrail 1148886. (Make sure the
screw tightens the 1329705 spring washer to prevent
handrail from becoming loose). Finally, insert the
plastic lid 1329704 into the handrail.
(Attention: Please make sure the screw is tightened
and the handrail is not loose. If maintenance is
required after the plastic lid is inserted, please use a
spare plastic lid.
1329705
Spring Washers
See Detail A
A
1148886
Handail
1329706 Riveting
Detail
A
1329703
Hexagon Socxet Screws
1329704 Plastic Cover
3. 4
4
4. :4 U
M6

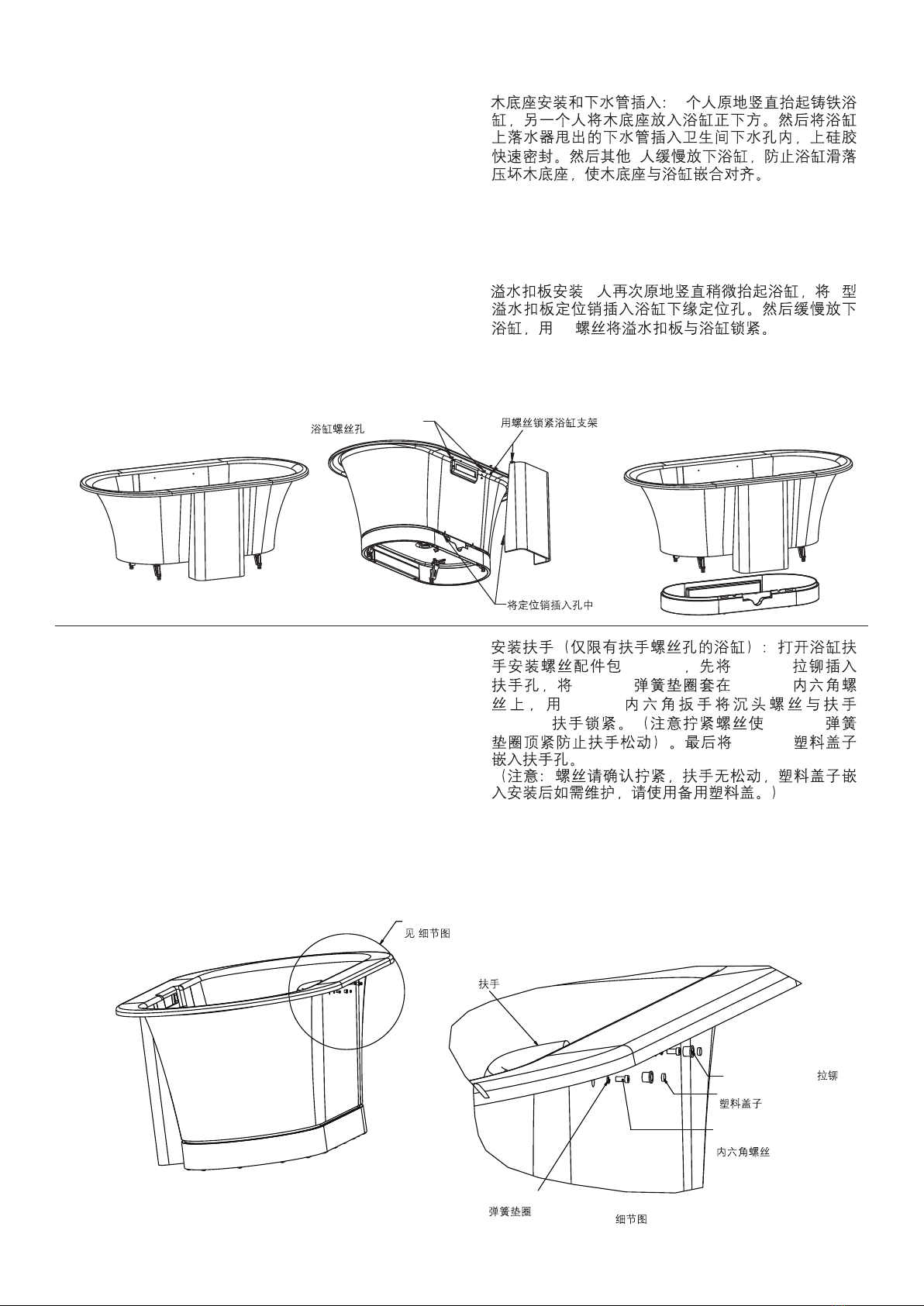

3. Wood base installation and drainage pipe insertion: 4
people should stand still and raise the cast iron while
another person places the wood base directly
beneath the bathtub. Insert the drainage pipe pulled
from the drainage into the drainage hole of the
bathroom and quickly seal it with silicone. The other
4 people should slowly put down the bathtub and
prevent the bathtub from falling and damaging the
wood base. Fit the bathtub on the wood base.
4. Overflow plate installation: The 4 people should
stand still and lift the bathtub slightly to place the
positioning pin of the U-shape overflow plate into the
positioning hole on the bottom of the bathtub. Lower
the bathtub gently and just an M6 screw to fasten the
overflow plate to the bathtub.
1315528-T01-C
-5-

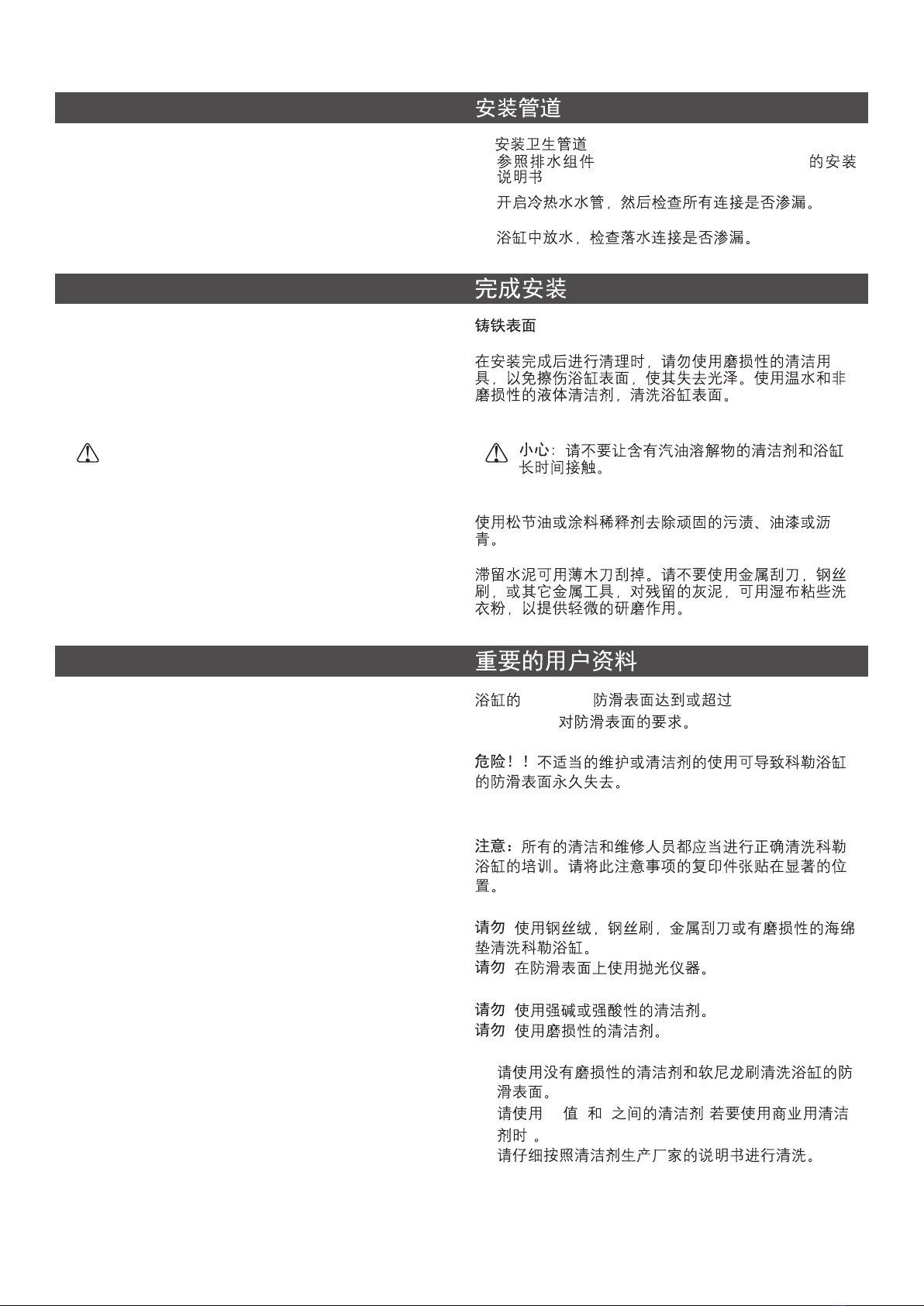

COMPLETE THE INSTALLATIONCOMPLETE THE INSTALLATION
Cast Iron Surfaces
CAUTION:
When cleaning up after installation, do not use abrasive
cleaners, as they may scratch and dull the bath
surface. Use warm water and a liquid, non-abrasive
detergent to clean the surface.
Do not allow cleaners containing
petroleum distillates to remain in contact with the
surfacer long periods of time.
Remove stubborn stains, paint, or tar with turpentine or
paint thinner.
Remove plaster by scraping with a wood edge. Do not
use metal scrapers, wire brushes, or other metal tools.
You can use a powder-type detergent on a damp cloth
to provide mild abrasive action to any residual plaster.
IMPORTANT CONSUMER INFORMATIONIMPORTANT CONSUMER INFORMATION
Safeguard ASME/ANSI
A112.19.1M
pH 3 8 (
)
!
!
!
The Safeguard slip resistant surface on this bathtub
meets or exceeds the requirements of ASME/ANSI for
A112.19.1M slip resistance.
Improper maintenance or cleansers may
permanently remove the slip resistant surface on
Kohler bathtubs.
All housekeeping and maintenance
employees must be trained in the proper cleaning of
Kohler bathtubs. Post a copy of this notice in a readily-
visible location.
use steel wool, wire brushes, metal scrapers
or abrasive sponge pads to clean a Kohler bath tub.
use buffing machines on the slip resistant
surface.
use high alkaline or strong acid cleansers.
use abrasive cleansers.
Use only non-abrasive cleansers and a soft nylon
brush to clean the slip resistant surface.
When using commercial cleansers, use cleansers
with a pH of between three and eight.
Follow cleanser manufacturer instructions very
carefully.
DANGER!!
NOTICE:
DO NOT
DO NOT
DO NOT
DO NOT
!
!
!
INSTALL THE PLUMBINGINSTALL THE PLUMBING
2.
3.
2. Open the hot and cold water supplies and check all
connections for leaks.
3. Run water into the bath and check the drain
connections for leaks.
1.
K-20608T/K-20609T/K-99314T
!
1.
!
Install the plumbing
Refer to the installation instructions of K-20608T/K-
20609T/K-99314T.
1315528-T01-C
