Kohler K-10956 Manuale operativo

Maintenance Guide

Exposed Electronic Valve

Mproduct numbers are for Mexico (i.e. K-12345M)

Los números de productos seguidos de

Mcorresponden a México (Ej.

K-12345M)

Français, page “Français-1”

Español, página “Español-1”

K-10956, K-10957, K-10962

1058866-5-D

Table of Contents

EC Declaration of Conformity ............................. 3

Important Information ................................... 4

Thank You For Choosing Kohler Company ................... 4

Your Kohler Electronic Valve .............................. 5

Care and Cleaning ..................................... 6

Control Stop Valve Operation ............................. 7

Remove the DC Sensor ................................. 8

Replace the Batteries ................................... 9

Install the DC Sensor .................................. 10

Remove the Solenoid .................................. 11

Install the Solenoid .................................... 12

Clean the Screen/Replace the Piston ...................... 13

Clean/Replace the Diaphragm ........................... 15

Replace the Vacuum Breaker ............................ 17

Replace the Flush Button Assembly ....................... 18

One-Year Limited Warranty .............................. 18

Troubleshooting ...................................... 19

Service Parts ........................................ 24

1058866-5-D 2 Kohler Co.

EC Declaration of Conformity

   



Kohler Company

      

! "# $%$&

' ( ( ) )*)+,- ,, ( *(',)  ./ 00/ 1)2

$& "34 $& "% $& "5 $& ""

$& "3 4 $& "3& $& "3# $& "3

$& "3 $& "3 $& "33

, 6' ,) ', ,)   '71,- 6, , 76 ),)2

Electromagnetic Compatibility Directive 89/336/EEC

7  - &"5" ) 1 +-

92/31/EEC

7 #5 * &""# 

93/68/EEC

 ,'  7 ## 8(- &"" +) 2

IEC 61000/ IEC 61000-3-:

:',1,' 1*,+,- ;<:=

!, 2 :1,):>

/', #> :1,) 7 1' '(, 1))) ;?(*1, *(, '(, (* ,  '(

&3 * *): ;# <>

/', > :1,, 7 , ') , 7(',(,)  7'@  *(+' 6$,

)(**- )-),1) 7 ?(*1, 6, , '(, A&3  * *)  , )(+B', ,

', '',: ;&"" C &2# &<>

E 61000-6-2/ E 61000-6-2:

:',1,' 1*,+,- ;< D !, 3$#2 E' ),) D 11(,- 7 (),

1,): ;# &<>

E 55022 Class B:

:71, ,'- ?(*1, D  ),(+' '',),') D 1,)  1,) 7

1)(1,): ;&""5 &2# C #2# <>

Low Voltage Directive 73/23/EEC

7 &" +(- &"% ) 1 +-

93/68/EEC

 ,' & 7

## 8(- &"" +) 2

E 60730/1:

:/*'7', 7 (,1,' ',' ,) 7 ()  /1 .)> E

?(1,):>

E 60730/2/8:

:/*'7', 7 (,1,' ',' ,) 7 ()  /1 .)> !,'(

?(1,) 7 ','- *, , 0) '( '' ?(1,):>

1,- 8> /,))1

) F /,) *,>

Kohler Company

444444

44444 ((), #" # 3

/,(4444 ,

((), #" # 3 3

Kohler Co. 3 1058866-5-D

Important Information

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

This device may not cause harmful interference.

This device must accept any interference received, including

interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference

will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or

more of the following measures.

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

•Consult the dealer or an experienced radio/television technician

for help.

Modiﬁcations: Any modiﬁcations made to this device that are not

approved by Kohler Co. may void the authority granted to the user by

the FCC to operate this equipment.

This Class B digital apparatus complies with Canadian ICES-003.

Thank You For Choosing Kohler Company

Thank you for choosing Kohler Company. Your Kohler Company

product reﬂects the true passion for design, craftsmanship, artistry, and

innovation Kohler Company stands for. We are conﬁdent its

dependability and beauty will surpass your highest expectations,

satisfying you for years to come.

All information in this guide is based upon the latest product

1058866-5-D 4 Kohler Co.

Thank You For Choosing Kohler Company (cont.)

information available at the time of publication. At Kohler Company,

we strive to fulﬁll our mission of improving the level of gracious living

for each person who is touched by our products and services. We

reserve the right to make changes in product characteristics, packaging,

or availability at any time without notice.

Please take a few minutes to review this guide. Pay special attention to

the care and cleaning instructions.

Your Kohler Electronic Valve

Design Features

The valve is designed speciﬁcally for use with 1-1/2″(1.9 cm) top spud

toilets as offered by Kohler Company and others.

The valve is supplied with factory preset timing values. No

programming or adjustment is required.

Depending upon use, the ″AA″alkaline batteries can be expected to

last for two to three years before replacement is required.

Flush Operations

The exposed electronic valve provides the following ﬂushing

operations:

An automatic main ﬂush operation: Shortly after the individual

departs the ﬁxture, the valve provides a main ﬂush that lasts for

several seconds.

An automatic 24-hour ﬂush operation: After 24-hours of non-use,

the valve produces a full ﬂush.

Low Battery Indication

The ″AA″alkaline batteries can be expected to last for two to three

years before replacement is required. When the battery reaches a

certain point in its lifetime, the valve announces the low battery

condition by continuously ﬂashing an LED whenever a user is in

range. The batteries are easily replaced as described in the section

″Replace the Batteries″in this guide.

Replacement batteries can be purchased from drugstores or other stores

stocking batteries. The batteries are standard 1.5 volt ″AA″alkaline

cells (four required).

Seasonal Use

Kohler Co. 5 1058866-5-D

Your Kohler Electronic Valve (cont.)

The exposed electronic valve is not designed for operation in freezing

conditions. If freezing conditions are expected, isolate and drain the

valve along with whatever other winterization steps are taken for the

facility.

Mobile Use

The exposed electronic valve is not designed for use in moving

environments such as boats.

Care and Cleaning

For best results, keep the following in mind when caring for your

KOHLER product:

•Use a mild detergent such as liquid dishwashing soap and warm

water for cleaning. Do not use abrasive cleaners that may scratch

or dull the surface.

•Carefully read the cleaner product label to ensure the cleaner is

safe for use on the material.

•Always test your cleaning solution on an inconspicuous area

before applying to the entire surface.

•Do not allow cleaners to sit or soak on the surface.

•Wipe surfaces clean and rinse completely with water immediately

after cleaner application. Rinse and dry any overspray that lands

on nearby surfaces.

•Use a soft, dampened sponge or cloth. Never use an abrasive

material such as a brush or scouring pad to clean surfaces.

For detailed cleaning information and products to consider, visit

www.kohler.com/clean. To order Care & Cleaning information, call

1-800-456-4537 and press 1 for Kohler Products and then 3 for

Literature.

1058866-5-D 6 Kohler Co.

Control Stop Valve Operation

Use a strap wrench to remove the vandal resistant cap from the

control stop valve.

Close the stop valve by turning the valve screw clockwise as far

as it can go.

Open the stop valve by turning the valve screw counterclockwise

as far as it can go.

When done, place the stop cap on the control stop valve and

tighten using a strap wrench.

Wall Flange

Wall Tube

Control Stop

Stop Cap

Kohler Co. 7 1058866-5-D

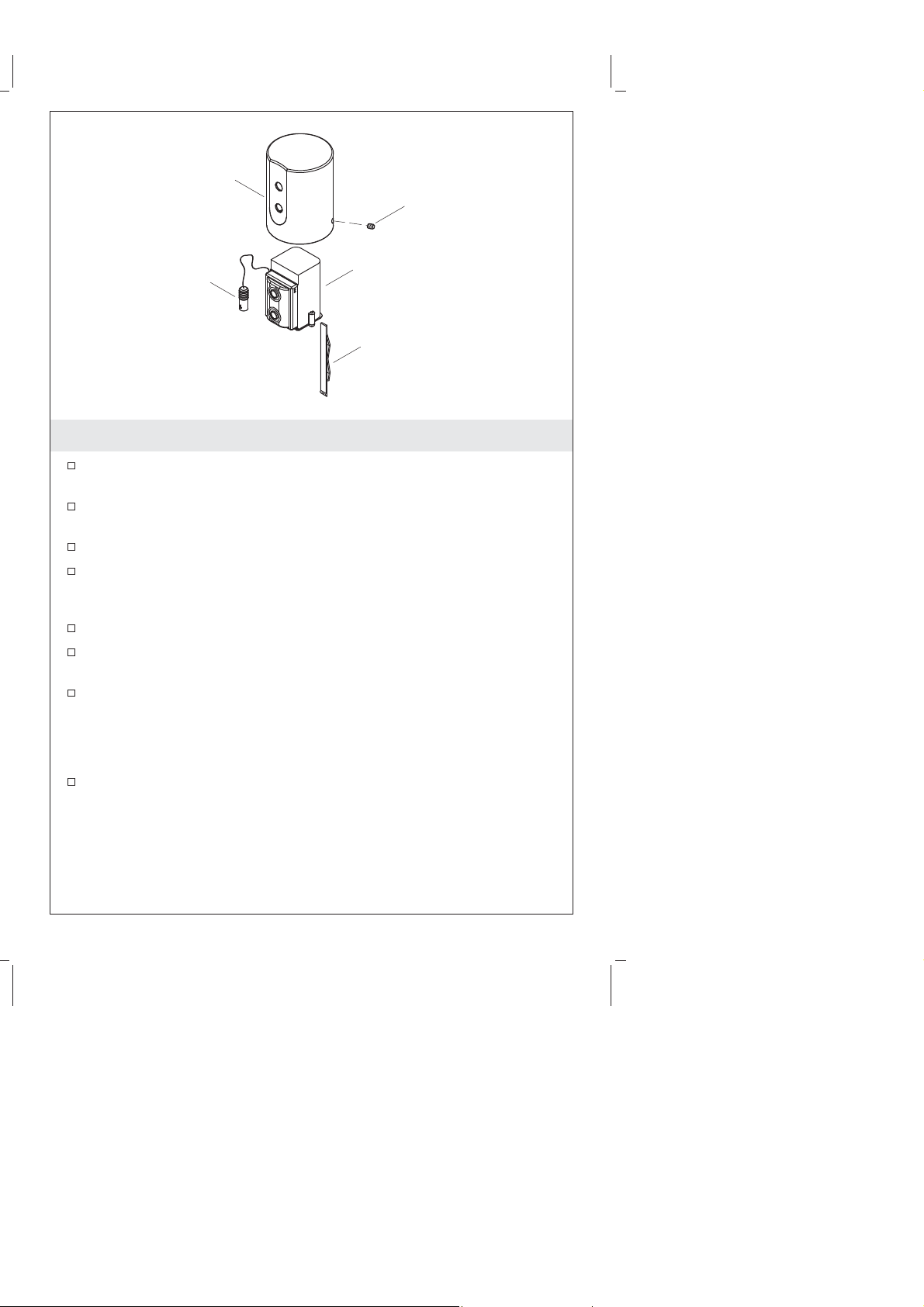

Remove the DC Sensor

Close the control stop valve (refer to the ″Control Stop Valve

Operation″section).

Using a 3/32″hex head wrench, remove the setscrew from the

valve cap.

Remove the cap by carefully lifting from the valve body.

Disconnect the DC sensor connector to the solenoid by grasping

each side of the connector pair and pulling apart. Do not separate

the connector pair by pulling on the wires.

Position the cap on its side and look inside.

Remove the wedge clip that holds the DC sensor in place inside

the cap.

Turn the cap over and slide the sensor into your hand.

NOTE: The batteries inside the sensor may be considered hazardous

waste. Discard the old sensor and/or batteries in accordance with

any applicable codes.

If replacing the DC sensor, discard the old DC sensor and

batteries.

Cap

Setscrew

DC Sensor

Connector

Wedge Clip

1058866-5-D 8 Kohler Co.

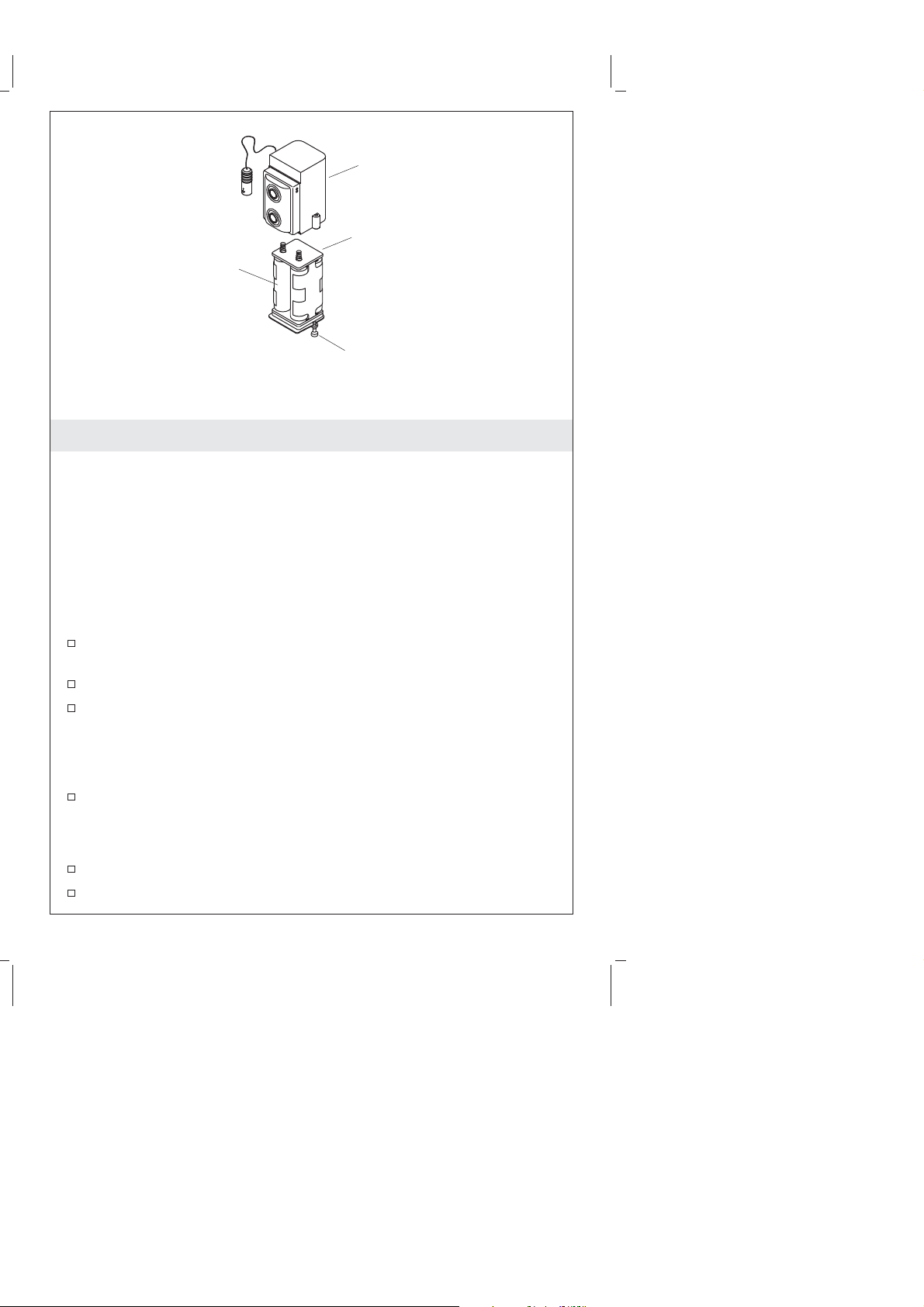

Replace the Batteries

NOTICE: Do not over tighten the screws. The plastic threads on the

screws can be easily damaged.

NOTE: When purchasing replacement batteries, select four 1.5 volt

AA alkaline batteries.

NOTE: If replacing the sensor, install a battery in the new sensor

unit before installing the sensor.

NOTE: It is not necessary to remove the sensor from the cap to

replace the batteries.

Using a 3/32″hex wrench, remove the two screws from the

bottom of the DC sensor.

Remove the battery holder from the DC sensor.

Using small ﬂat-blade screwdriver (if necessary), carefully pry the

batteries from the battery holder.

NOTE: The batteries may be considered hazardous waste. Discard

the old batteries in accordance with any applicable codes.

Remove and discard the old batteries.

NOTE: Note the polarity stamped on the battery holder for proper

battery placement.

Insert the new batteries into the battery holder.

Reinstall the battery holder into the DC sensor.

DC Sensor

Batteries

Screws

Battery Holder

Kohler Co. 9 1058866-5-D

Install the DC Sensor

NOTICE: Do not pinch or kink the wires between the cap and the

valve body. If the wires are damaged, the unit may not operate.

Hold the cap horizontally with the sensing holes down and align

the DC sensor with the cap.

Slide the DC sensor into the cap until the sensor eyes align with

the holes in the cap. Ensure the sensor wires are not pinched and

the DC sensor connector hangs free.

Slide the wedge clip between the DC sensor and the cap until

snug.

Connect the DC sensor connector to the solenoid connector on the

valve. Ensure that the connector pair is fully seated.

Locate the connector assembly adjacent to the sensor body to

prevent pinching when cap is reinstalled on the valve.

Place the cap on the valve body.

Align the sensor eyes toward the user.

Secure the cap with the setscrew.

Open the control stop valve (refer to the ″Control Stop Valve

Operation″section).

Reinstall the stop cap onto the control stop and tighten ﬁrmly

with a strap wrench.

Verify that the valve functions.

Cap

Setscrew

DC Sensor

Connector

Wedge Clip

1058866-5-D 10 Kohler Co.

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Kohler Unità di controllo

Kohler

Kohler Rite-Temp K-8304-K Manuale utente

Kohler

Kohler K-304 Istruzioni per il montaggio

Kohler

Kohler K-402 Istruzioni per il montaggio

Kohler

Kohler K-402 Manuale utente

Kohler

Kohler ENGLEFIELD K-98095X Istruzioni per il montaggio

Kohler

Kohler 1216612 Manuale utente

Kohler

Kohler K301 Manuale utente

Kohler

Kohler rada VZ1 10 Manuale utente

Kohler

Kohler K-T10669 Istruzioni per il montaggio

Kohler

Kohler K-10675 Manuale utente

Kohler

Kohler K-528 Manuale utente

Kohler

Kohler DTV+ Konnect K-97999-NA Manuale utente

Kohler

Kohler 28139T-DR Manuale utente

Kohler

Kohler Mastershower K-406 Manuale utente

Kohler

Kohler K-307 Manuale utente

Kohler

Kohler DTV+ Istruzioni per il montaggio

Kohler

Kohler K-13516X Istruzioni per il montaggio

Kohler

Kohler K-528 Manuale utente

Kohler

Kohler TAUT 73193T-4CD Manuale utente

Kohler

Kohler K-76746GL-NA Manuale utente

Kohler

Kohler K-304 Istruzioni per il montaggio

Kohler

Kohler K-11842 Series Istruzioni per il montaggio

Kohler

Kohler K-10949 Manuale utente

Kohler

Kohler 28138T Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
