Contours™Options™4 Wheeler Stroller Instruction Sheet

Hoja de instrucciones de la carriola Contours™Options™de 4 ruedas

Feuille d’instructions pour la poussette à 4 roues Contours™Options™

Avoid serious injury from falling or sliding out. Always use Restraint

System. Your child's safety depends on you. Proper stroller use cannot be

assured unless you follow these instructions. DO NOT USE STROLLER

UNTIL YOU READ AND UNDERSTAND THESE INSTRUCTIONS.

IMPORTANT SAFETY INFORMATION:

How to Keep Your Child Safe While Using this Stroller

•Adult Assembly Required.

•NEVER LEAVE YOUR CHILD UNATTENDED WHILE IN STROLLER.

Accidents can happen quickly while your back is turned. You must

always keep your child in view while your child is in the stroller,

even when sleeping. Do not use this product as a bed. Your child

may become tangled in straps or pads and suffocate.

•Always use restraint systemto keep child fromstanding up or

falling out of the stroller. Do not use product without full 5 point

harness restraint. Removing the shoulder straps will not

adequately restrain child.

•Always lock the stroller open before allowing your child in or near

the stroller.This prevents injuries caused by stroller collapsing.

•

Onlyuse this stroller with children who weigh less than 40 lbs. (18.14

kg)or are less than 40” (1 meter)tall.

Use by larger children may

damage the stroller, or cause a hazardous, unstable condition to

exist.

•Use this stroller in the reclined position until child can sit up

unassisted.

•Always set the wheel brakes when stroller is not moving, especially

on an incline.This prevents the stroller from rolling away.

•Always fasten the canopyonto the seat back when using the

stroller in the reclined position.

What to Avoid While Using this Stroller

•Always balance the weight of the stroller evenly. To prevent the

stroller from becoming unstable or tipping:

• Do not place parcels or accessory items on the stroller canopy,

seat, or over the handle.

• Do not put more than 10 lbs. (4.54 kg) in the basket.

• Do not allow children to play with or hang onto the stroller.

•Never use this stroller on stairways or escalators.

•DO NOT lift by tray.

•Make sure children are clear of any moving parts if you adjust the

stroller, otherwise they may be injured.

WARNING

Continued on next page

•This is not an exercise stroller! Do not use this product while

running, jogging, in-line skating or participating in other athletic

activities.

•DO NOT put child in basket.

•Take care when folding and unfolding to prevent finger pinching.

• Product may become unstable if a parcel bag, other than the one

recommended by the manufacturer is used.

•DO NOT allow children to climb into stroller unassisted. Stroller

may tip over and injure child.

• Only use replacement parts supplied by the manufacturer.

How to Use this Stroller with Your Infant Car Seat

•AVOID SERIOUS INJURY FROM FALLS:

• DO NOT place carseat in stroller seat. Car seat will not be secure.

• DO NOT use seat and infant car seat adapter at the same time.

• This product is only to be used with certain Infant Car Seats. See

below for list of compatible Infant Car Seats.

• When using this product with your Infant Car Seat, infant must

always be secured in the car seat with the car seat harness.

• To ensure your Infant Car Seat is properly installed on the stroller,

make sure it is:

• Facing the person pushing the stroller.

• Tightly secure to the stroller with the car seat adapter’s restraint

straps.

• If at any time your Infant Car Seat does not secure properly to the

stroller, or if you have questions about assembly or use of the

stroller, Do Not use this product. Call Kolcraft at 1-800-453-7673.

•Make sure the stroller is fullyunfolded and the car seat adapter is

securelylatched before attaching your Infant Car Seat. This

prevents finger pinching and injuries caused by stroller collapsing.

•Onlytransport infants that are within the size and weight

limitations of your Infant Car Seat, as described in the instruction

manual provided by the Infant Car Seat manufacturer.

•THE FOLLOWING INFANT CAR SEATS CAN BE USED IN CAR

SEAT ADAPTER:

•Baby Trend®Latch-Loc

•Baby Trend® Flex-Loc

•Britax® Handle with Care®

•

Chicco®Key Fit

•

Combi®Tyro™

•Combi®Connection™

•

Cosco®Arriva®Series

•

Cosco®Designer 22®

Series

•

Cosco®Eddie Bauer®Opus® 35®

•

Cosco®

Eddie Bauer

Caress

•

Cosco®First Ride DX

•

Cosco®Turn-A-Bout®

•

Evenflo®Cozy Carry™

•

Evenflo®Discovery™

•Evenflo

EmbraceTM

•

Evenflo®On-My-Way™

•

Evenflo®Portabout™

•

Graco®Snug Ride™ Series

•

Graco® Safe Seat™

•

Peg Perego®Primo Viaggio

•

Peg Perego®SIP

•

Safety 1st®Designer® 22™

•

Safety 1st®Starter™

Continued on next page

Parts List

Stroller Frame

Rear Wheels

(2)

Brake Assembly

Right (with ★)

Front Tray

Seat

Infant Car Seat Adapter

Washers

(2)

Cotter

Pins (2) Hub Caps

(2)

Cup Holder

(select models)

Front Wheel

Assembly Right

(with ▲)

Rear Axle

Brake Assembly

Left (with ▲)

Canopy

•If your Infant Car Seat is not one of the models listed above, DO

NOT use your infant car seat with this stroller.Other Infant Car

Seat models will not fit properlyand may result in serious injuryto

your child.

•

DO NOT USE THE FOLLOWING CAR SEATS WITH THIS STROLLER!

This list is not inclusive.

Baby Trend®, Britax®, Century®, Chicco®, Combi®, Cosco®, EvenFlo®, Gerry®,

Fisher Price®, Graco®, Peg Perego®and Safety 1st®are trademarks of their

respective owners. They are not associated with Kolcraft Enterprises, Inc.

and no approval by them is to be implied.

•Britax®Baby Safe™

•Britax®Companion

•Century®535/580/590 Series

•Century®Assura®Series

•Century®Avanta™Series

•

Century®Vanté™5

•Century

Smart FitTM Series

•

Cosco®TLC

•

Cosco®Dream Ride®

•

Eddie Bauer® Caress

•

Fisher Price®Stay in View™

•All Gerry

Infant Car Seats

•Kolcraft

Secura

•Kolcraft

Infant Rider

Front Wheel

Assembly Left

(with ★)

How to Assemble Your Stroller

To Open Stroller

Remove any cardboard inserts or plastic

ties used to protect the product during

shipment.

Release the locking latch.

NOTE: Keep hands/fingers away from

side locks when unfolding the handle!

Place one hand on the foam grip

located on the basket (A) and the other

on the side lock (B). Gently pull apart to

seperate.

Rotate handle back until side locks and

frame click into place. Push down on

basket tube with hand or foot to confirm

the lower frame is locked.

NOTE: You can tell if lower frame is in

locked position by looking at the square

window in the lower frame lock. If a red

tab appears in that window, the lower

frame is locked.

To Test for use: First pull up and then

push down on handle to make sure it is

fully engaged.

2 & 3

Pull Apart

Locking Latch

Pull Apart

Side Locks

Lower Frame

Lock Tab

Push Down

Lower Frame

Lock

3 & 4

To Assemble Rear Wheels

1 & 2

There is a LEFT and RIGHT brake

assembly. Be sure to assemble them

onto the correct rear leg tube. LEFT

from RIGHT will be identified as shown.

Each brake assembly will have either a

triangle or a star on the bottom of the

part.

• TRIANGLE = “▲” LEFT

• STAR = ”★“ RIGHT

Position brake assembly as shown, with

the brake lever pointing towards the

stroller handle. Push brake assembly

completely onto rear leg tube.

Remove and discard protective foam

sleeves from ends of axle. Insert axle

into outside hole of brake assembly and

slide it through frame.

Slide a rear wheel onto the axle then

slide a washer onto the axle.

Fit straight part of cotter pin through

hole on axle as shown.

Assemble other rear wheel to axle with

washer and cotter pin.

Line up each of the 4 tabs of the hub

cap with the 4 slots in the wheel and

snap hub cap into place. Repeat for

second side.

▲★

To Assemble Front Wheels

1Lay stroller back on handle.

Position front wheel assembly as shown.

NOTE: There is a LEFT and RIGHT front

wheel assembly. Be sure to assemble

them onto the correct leg tube.

• TRIANGLE = “▲” RIGHT

• STAR = ”★“ LEFT

Push front wheel assembly onto front leg

tube until spring loaded button clicks

into place.

NOTE: Make sure that spring loaded

buttons pop through frame. If your

spring loaded button becomes out of

place, take pliers and feed button into

hole. If spring loaded buttons DO NOT

pop through, front wheel assembly could

fall off during use.

Repeat for other side.

Align both sides of adjustable footrest

mechanism with seat tube frame as

shown.

Push adjustable footrest mechanism

onto seat tube until spring loaded

button clicks into place.

NOTE: Make sure that spring loaded

buttons pop through frame. If your

spring loaded button becomes out of

place, take pliers and feed button into

hole.

To Assemble Adjustable Footrest Mechansism to Seat

Spring Loaded Button

Push Together

2 & 3

Spring

Loaded

Buttons

▲

★

★▲

To Attach Front Tray

Release Button

CAUTION

To prevent injury to your child, take

care when inserting tray into frame.

Align tray into holes located on seat

frame.

Snap tab in place until a click is heard.

Repeat for second side.

TO ROTATE OR REMOVE TRAY: Push

in release button located near side

housing and pull tray out. Repeat on

other side, to remove tray completely.

1 & 2

To Attach Seat

3 & 4

WARNING

DO NOT Place car seat in stroller

seat. Car seat will not be secure.

Seat Housing Slot

Seat Post

Seat Lock Tab

Release Button

4 & 5

Place stroller upright with all 4 wheels on

the ground.

Pick up seat by seat frame and place

seat in either forward or reverse position.

Align posts with seat housing slots as

shown.

Press seat down until a "click" is heard

on both sides. Pull up on seat to make

sure it is secured to stroller frame.

NOTE: You can tell if seat is locked in

place by looking at square window on

side of seat housing slot. If a red tab

appears in that window, seat is locked.

To reverse seat, push in release buttons

located on both sides of seat frame, lift

up and reverse seat direction.

To Attach Canopy

To Attach Parent Cup Holder (select models)

Align cup holder hole with posts on

handle and snap onto handle.

TO REMOVE, Hold cup holder and pull

upward from the bottom. Cup holder is

top rack dishwasher safe.

WARNING

DO NOT place more than 3 lbs. (1.36 kg)

in this tray to avoid tipping!

Post

Insert canopy posts into slots onto seat

frame as shown.

Infant neck roll is to be used with newborns

who can not hold up their head. It should be

used only when the seat is reclined. It can be

removed when a child can hold their head up

unassisted.

When using the infant neck roll, be sure that

the shoulder restraint straps are fed through

the holes on either side. Restraint must

always be used with the infant neck roll.

To Install Infant Neck Roll

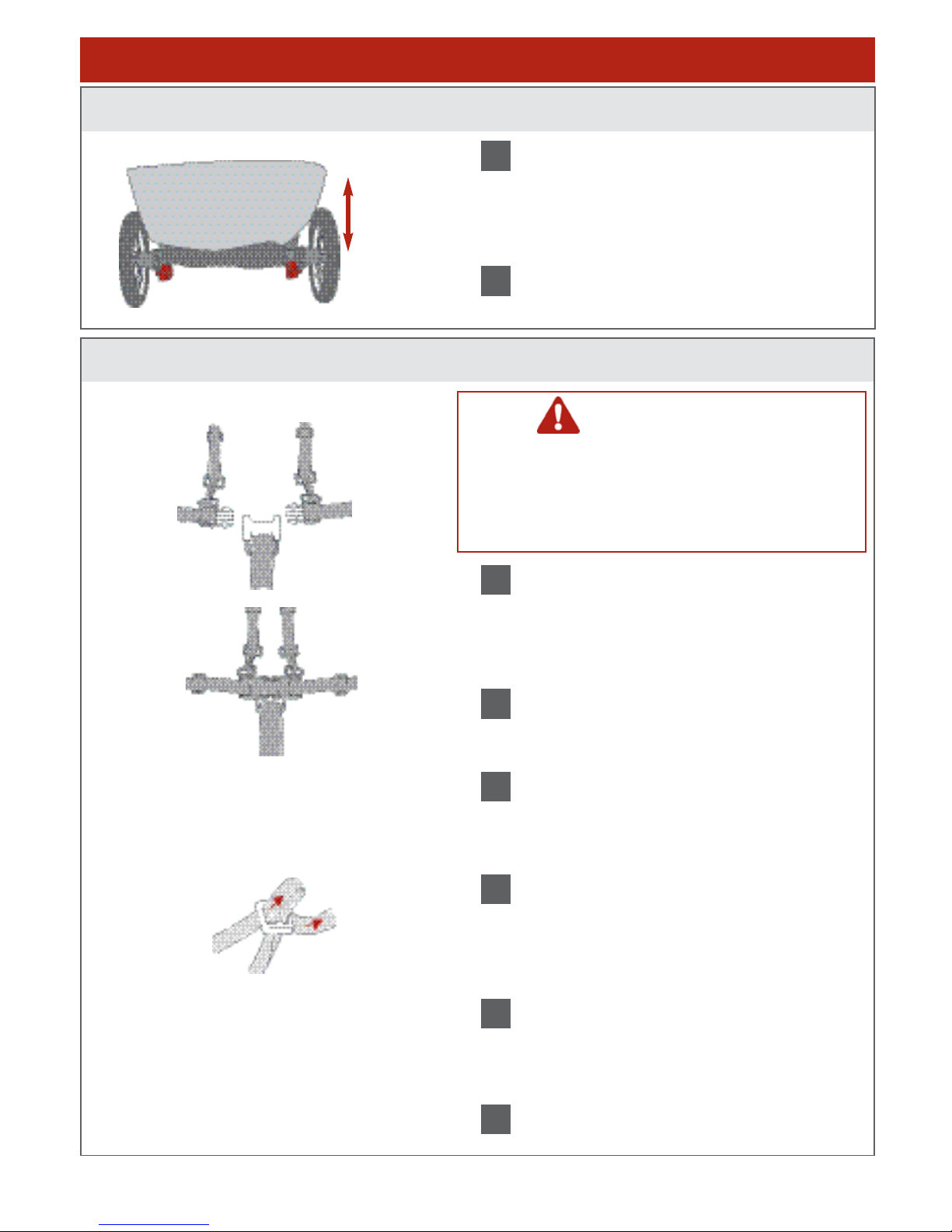

To Secure Child In Stroller

Lock both foot brakes to keep stroller

from rolling.

Place child in stroller.

Hook shoulder straps to waist belt.

To fasten restraint system buckles -

push together. Be sure both buckles

are fastened to secure child safely.

To unsnap restraint system buckles -

press tabs to release.

For proper fit, adjust shoulder straps

and waist band as shown.

WARNING

Avoid serious injury from falling or sliding

out. Always use restraint system. Do not

use product without full 5-point Harness

Restraint. Removing the shoulder straps

will not adequately restrain child.

Adjust Restraint

System Harness

How to Properly Use Your New Stroller

To Operate Brakes

1Push levers on both rear wheels down to

lock.

Pull levers up to unlock.

Unlock

Lock

Altri manuali per Contours Options

Indice

Lingue:

Altri manuali Kolcraft Passeggino

Kolcraft

Kolcraft CONTOURS S67-T-R1 12/10 Manuale utente

Kolcraft

Kolcraft Jeep Overland Limited Manuale utente

Kolcraft

Kolcraft Jeep S77-T-R3 Manuale utente

Kolcraft

Kolcraft Tender Vibes B27-R4 Manuale utente

Kolcraft

Kolcraft Jeep Liberty 3-Wheel Stroller Manuale utente

Kolcraft

Kolcraft S64-R4 Manuale utente

Kolcraft

Kolcraft Twin Sport Series Manuale utente

Kolcraft

Kolcraft Jeep Wrangler Manuale utente

Kolcraft

Kolcraft SPRINT X Manuale utente

Kolcraft

Kolcraft Jeep S56J-R3 Manuale utente

Kolcraft

Kolcraft Universal Express Rider Manuale utente

Kolcraft

Kolcraft Jeep Cherokee Sport Series Manuale utente

Kolcraft

Kolcraft Jeep Wrangler All-Weather Umbrella Stroller Manuale utente

Kolcraft

Kolcraft SPRINT pro Manuale utente

Kolcraft

Kolcraft S67-T 4/07 Manuale utente

Kolcraft

Kolcraft S69-R1 Manuale utente

Kolcraft

Kolcraft Jeep S47J-A-R1 Manuale utente

Kolcraft

Kolcraft S53-R1 Manuale utente

Kolcraft

Kolcraft Cloud Manuale utente

Kolcraft

Kolcraft Jeep S45J-A-R3 Manuale utente

Kolcraft

Kolcraft Contours Options Manuale utente

Kolcraft

Kolcraft Jeep S45J-T Manuale utente

Kolcraft

Kolcraft Jeep S50J-A Manuale utente

Kolcraft

Kolcraft Jeep S47J-R7 Manuale utente

Manuali Passeggino popolari di altre marche

Hauck

Hauck Priya Trioset Manuale utente

CHILDHOME

CHILDHOME CWQDN Manuale utente

Dreamer Design

Dreamer Design Rebound GST Manuale utente

Britax

Britax STEELCRAFT AGILE Manuale utente

Graco

Graco 7427 Manuale utente

Comfort

Comfort COMPASS Manuale utente

OBaby

OBaby Aura Manuale utente

Tutek

Tutek Tirso Manuale utente

Babify

Babify Dual Plus Manuale utente

Graco

Graco Stroller Manuale utente

Special Tomato

Special Tomato Jogger Manuale utente

Chicco

Chicco CORTINA TOGETHER TWO-PASSENGER STROLLER Manuale utente

Otto Bock

Otto Bock Kimba neo Manuale utente

Milly Mally

Milly Mally ROYAL Guida rapida

Hauck

Hauck DUETT 3 PRAM Manuale utente

BOB

BOB DUALLIE Manuale utente

Nuna

Nuna Pepp Manuale utente

Britax

Britax B2 Manuale utente
