Konica Minolta HT-502 Manuale utente

4034-7190-01

INSTALLATION MANUAL

HT-502

Applied Machine: / /

for Product Code 4034/4035

Heater

NOTE

• Before installing, be sure to unplug the power cord of the machine.

• Keep all packing materials out of the reach of children.

4034-7190-01E.fm 0 ページ２００５年３月１８日　金曜日　午後１２時５９分

HT-502

– 1 –

■Introduction

Observe these precautions to prevent accidents.

Thoroughly understand the meanings of the symbols before reading the precautions.

■Warning and Precaution Symbols

■Meaning of Symbols

Ignoring this warning could cause

serious injury or even death.

Ignoring this caution could cause injury

or damage to property.

A triangle indicates a danger against which you

should take precaution.

A diagonal line indicates a prohibited course of

action.

A black circle indicates an imperative course of

action.

Before setting up this unit, be sure to turn OFF the Power Switch

of the machine and unplug the power cord of the machine.

Install this machine so that it can quickly be unplugged from the

electrical outlet in case of an emergency.

The socket-outlet shall be installed near the machine and shall

be easily accessible.

4034-7190-01E.fm 1 ページ２００５年３月１８日　金曜日　午後１２時５９分

HT-502

– 2 –

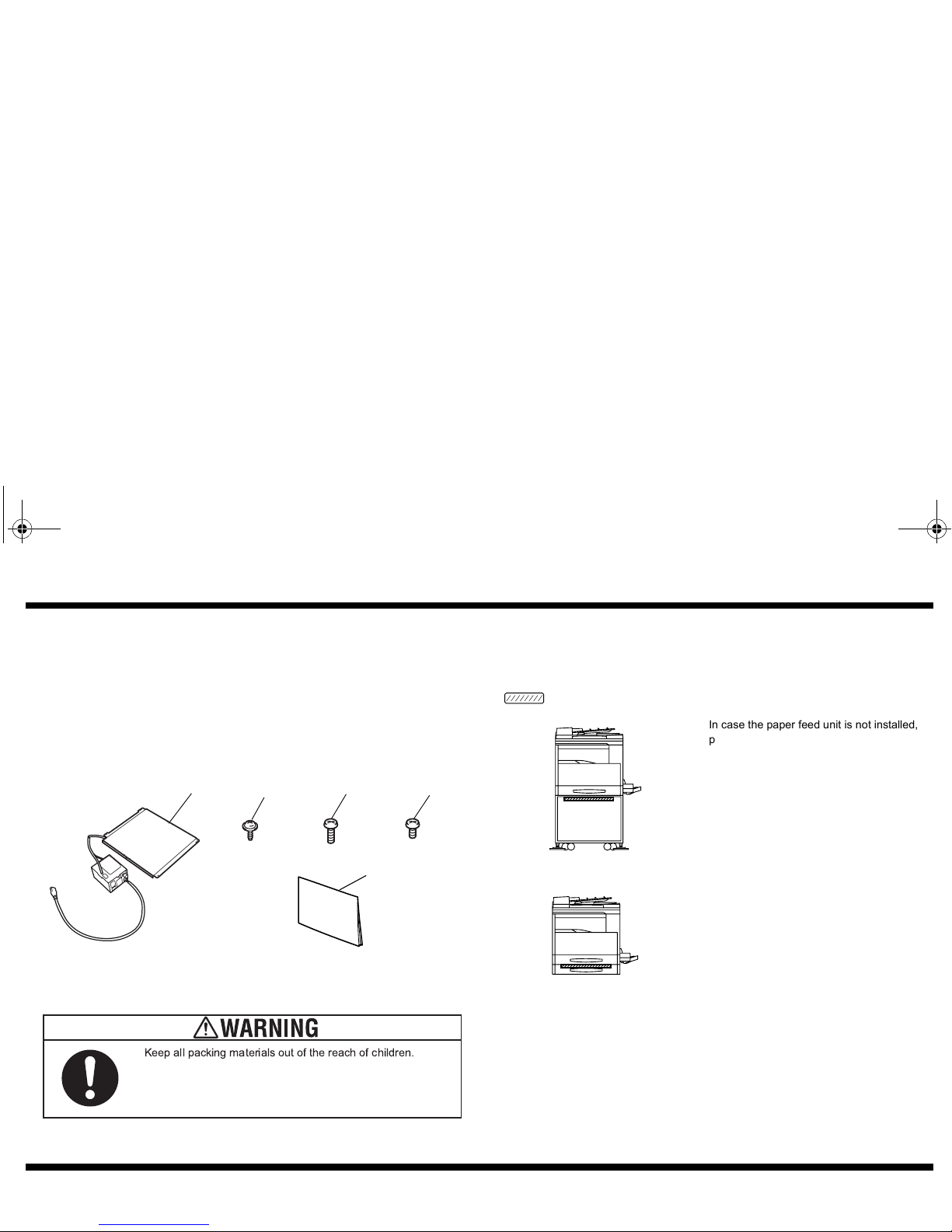

■Unpacking

Check that the following accessories are available in the box.

■Installation Position of the Dehumidifier Heater

The installation position of the dehumidifier heater differs according to the paper feed

unit or desk that are installed. Install the dehumidifier heater at the locations shown in

the illustrations below.

: Installation position of the dehumidifier heater

1. Heater .................................................................................................... 1

2. Screw A (3 × 8 mm)............................................................................... 4

3. Screw B (4 × 8 mm)............................................................................... 4

4. Screw C* (3 × 8 mm) ............................................................................. 4

5. Installation Manual (this manual) ........................................................... 1

* Screws care not used

123

4034IXC013DA

4034IXC014DA 4034IXC015DA 4034IXC016DA

4980U021AA

Keep all packing materials out of the reach of children.

In case the paper feed unit is not installed,

purchase a desk and install the inner heater

in it.

4021U002AA

In case the paper feed unit is installed,

install the dehumidifier heater in the bottom

paper feed unit.

4021U003AB

4034-7190-01E.fm 2 ページ２００５年３月１８日　金曜日　午後１２時５９分

HT-502

– 3 –

■Removal of the Power Supply Unit Harness

■Installing the Dehumidifier Heater

1. Remove two screws from the power box

and remove the cover.

4004U001AA

2. Remove the harness at power feed from

the edge cover and unplug the connector

from the board.

3. Install the cover using the two screws.

4004U002AA

1. Cut off the code cover at rear side of the

paper feeder unit with nipper.

NOTE

This step is not necessary when install-

ing the dehumidifier heater onto the

desk.

4021U014AA

2. Place the dehumidifier heater on top of

the paper feed unit/desk, and then secure

it with the screws.

NOTE

Different types of screws are to be

used between when attaching the

dehumidifier heater to the paper feed

unit and when attaching it to the desk.

<When attaching the dehumidifier heater

to the paper feed unit>

(1) Use four screws A to secure the

dehumidifier heater to the paper feed

unit.

4021U015AA

(2) Pass the cord for the dehumidifier

heater through the notch made in step

C4004U311AA

4034-7190-01E.fm 3 ページ２００５年３月１８日　金曜日　午後１２時５９分

HT-502

– 4 –

<When attaching the dehumidifier heater

to the desk>

(1) Use four screws C to secure the

dehumidifier heater to the desk.

4021U010AA

(2) Pass the cord for the dehumidifier

heater through the slot.

4021U006AA

3. Fit the hook of the power supply unit into

a ditch of the paper feed unit or the desk.

4021U009AA

Use care not to allow

the heater cord to be

wedged in mechanisms

during installation to the

machine. A fire could

result if the heater is

used with the heater

cord wedged in

mechanisms.

4. Fix the paper feed unit or the desk to the machine.

(1) Open one of the paper feed units

attaching the inner heater and the

other paper feed unit. Fix the front of

them with two screws.

4686U023AD

4686U024AD

(2) Fix the back of the paper feed units

with two screws.

4686U003AB

Secure the paper feed unit/desk to the machine by using

screws.

Unstable Machine may cause injury.

4034-7190-01E.fm 4 ページ２００５年３月１８日　金曜日　午後１２時５９分

HT-502

– 5 –

Open the cassette. Fix it with a Plastic Plate and six screws.

4034IXC018DA

5. Plug the power cord of the machine in the

power supply unit.

4021U020AA

Plastic Plate

6. Plug the power cord of the power supply

unit in the machine.

7. Turn on the power supply unit for the

dehumidifier heater.

4021U018AA
