E-1

AU-201S Authentication Unit

INSTALLATION MANUAL

A795-9632-00

Applied Machines: PRO958/958/808/758

MFP: 95 ppm/80 ppm/75 ppm

Product Code: A796/A8KN/A795

1. Accessory parts

* This part is not used in this installation.

Note:

• To install this authentication unit, the Working

Table WT-506 or the Mount Kit MK-735 is

required.

• When you attach this authentication unit to the

Working Table WT-506, we recommend you

attach this unit to the working table before you

attach the working table to the machine.

• When you use the Mount Kit MK-735 to attach

this authentication unit to the machine, see the

installation manual of the mount kit for informa-

tion on the installation procedure.

• This manual provides the illustrations of the

accessory parts and machine that may be

slightly different in shape from yours. In that

case, instead of the illustrations, use the

appearance of your machine to follow the

installation procedure. This does not cause any

significant change or problem with the proce-

dure.

No. Name Shape Q’ty

1. Authentication

unit

2. Ferrite core

3. Hook-and-loop

fastener A

(hook)

(25.4 × 10 mm)

4. Hook-and-loop

fastener B

(loop)

(25.4 × 10 mm)

5. Rubber foot *

6. Safety

information

guide 1

set

7. Additional

information

set

Keep this bag away from babies and

children. Do not use in cribs, beds,

carriages, or playpens.

The thin film may cling to nose and

mouth and prevent breathing. This bag is

not a toy.

E-2

2. Installation procedures

(1) Turn OFF the power switch and unplug the

power cord from the power outlet.

(2) Attach the ferrite core as shown in the illustra-

tion.

Note:

• Install the ferrite core by winding the cable two

turns.

• Place the ferrite core approximately 60 mm

away from the authentication unit.

(3)

<When the Working Table WT-506 is mounted to the

main body>

Refer to the installation manual for the Working

Table WT-506 and remove the working table.

(4) Remove the cover from the working table.

(Three screws)

Note:

The cushion, cable tie, and authentication label

are contained inside the cover.

(5) Paste the cushion to the cover, aligning the

cushion with the line marked inside the cover.

Note:

The cushion is supplied with the working table.

(6) Position the authentication unit, aligning its four

corners with the four marks indicated on the

underside of the working table.

(7) Secure the authentication unit cable to the work-

ing table plate with the cable tie.

Note:

• The cable tie is supplied with the working table.

• Cut the excess portion of the cable tie.

(8) Attach the cover removed in step (4).

(Three screws)

Note:

Put the ferrite core inside the cover.

Line

Mark

Cable tie

E-3

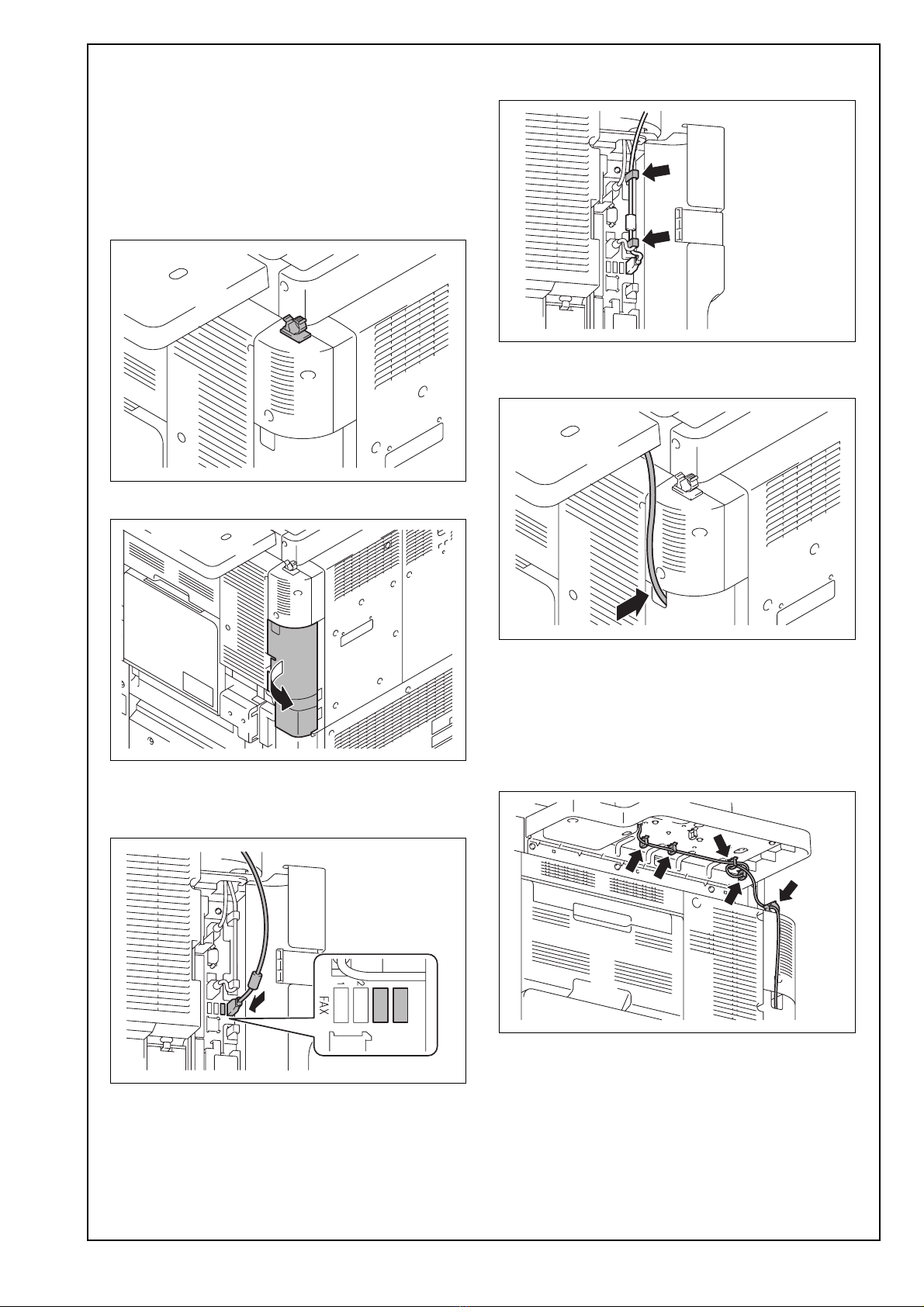

(9) Attach the working table to the main body.

Note:

For the installation procedure, see the working

table installation manual.

(10) Attach the cable clamp onto the position shown

in the illustration.

Note:

The cable clamp is supplied with the working

table.

(11) Open the upper rear right door.

(12) Connect the USB cable to the main body.

Note:

Connect it to either of the two ports.

(13) Fit the USB cable into the two cable guides.

Pull the USB cable up in order to remove slack.

(14) Route the USB cable through the notch of the

upper rear right door and close the door.

(15) Route the USB cable as shown in the illustra-

tion.

Route the USB cable through the four wire sad-

dles and the cable clamp.

Note:

Arrange the cable so that it does not interfere with

opening or closing of the right door.

Port

E-4

(16) Paste the authentication label to the position

shown in the illustration.

Note:

The authentication label is supplied with the work-

ing table.

3. Configuration procedures

Install the AU-201S loadable driver (ICC_LDR.tar) to

the main unit.

(1) Prepare a USB memory where only the loadable

device driver is stored in the ROOT directory.

(Please do not save any other data in the USB

memory.)

(2) Connect the USB memory to the USB port of the

main unit.

(3) Plug the power cord into the power outlet and

turn on the machine.

(4) Display the Service Mode screen.

(For details of how to display the Service Mode

screen, see the service manual.)

(5) Touch “System 2” →→“Driver Install.”

(6) Touch “SET” and press Start key to install the

data.

(7) Check that the data are normally installed from

the message that appears on the control panel.

(8) Turn OFF the power switch.

(9) Remove the USB memory.

(10) Turn ON the power switch.

Note:

When displayed the Service Mode screen, be sure

to turn off the power after exiting the Service Mode

screen and wait for 10 seconds or more before

turning on.

(1) Display the Service Mode screen.

(For details of how to display the Service Mode

screen, see the service manual.)

(2) Display the Billing Setting screen.

(To display the Billing Setting screen, press Stop

→ 9 on the Control Panel.)

(3) Touch “Authentication Device2.”

(4) Touch “Authentication Device2.”

(5) Touch “Card.”

(6) Touch “END.”

(7) Turn OFF and ON the power switch.

Note:

When displayed the Service Mode screen, be sure

to turn off the power after exiting the Service Mode

screen and wait for 10 seconds or more before

turning on.
