Konica Minolta AD-509 Manuale utente
AD-509
Automatic Duplex Unit
INSTALLATION MANUAL
Applied Machines: 225i/205i; 236/226/206; 235/215/195
MFP: 23 ppm/22 ppm/21 ppm/20 ppm/19 ppm
Product Code: ACN2/ACN3; A8A5/A8A6; A3PE/A3R2
E-12019. 7 Printed in China A3PG-9950-03
1CA0835001
1. Pre-installation check items
■ General checks
• Refer to “Pre-installation check items” described
in the installation manual of the main body.
• Be sure to turn OFF the main power switch of
the main body and unplug the power cord before
starting the installation.
• Do not turn the power ON before the instruction.
■ Notice about this option
● Tools/jigs required for installation
• Stubby driver
■ Notice about description contents of the
manual
• This manual provides the illustrations of the ac-
cessory parts and machine that may be slightly
different in shape from yours.
In that case, instead of the illustrations, use the
appearance of your machine to follow the instal-
lation procedure. This does not cause any signif-
icant change or problem with the procedure.
• If none of the later steps instruct you to use the
parts including screw and cover that you re-
moved following the instructions described in this
manual, discard them.
2. Accessory parts
No. Name Shape Q’ty
1. Automatic du-
plex unit
1
2. Transport guide 1
No. Name Shape Q’ty
3. Cooling fan as-
sembly
1
4. Metal plate 2
5. Wire saddle 1
6. Screw A (3 x 8
mm)
1
7. Screw B (3 x 8
mm)
3
8. Installation
manual
1 set
WARNING
Keep this bag away from babies and chil-
dren. Do not use in cribs, beds, carriages,
or playpens.
The thin film may cling to nose and mouth
and prevent breathing. This bag is not a
toy.
E-2

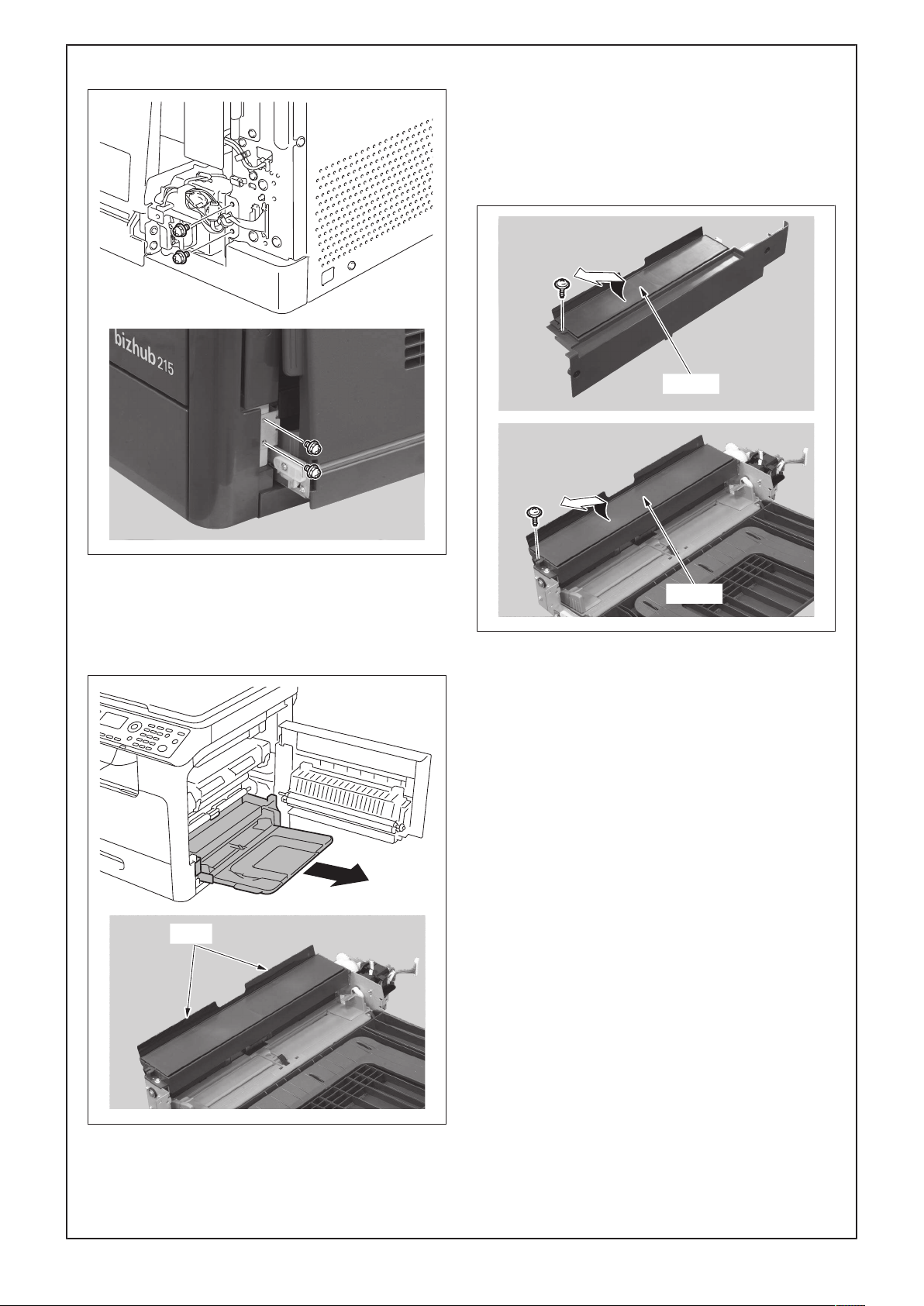

3. Installation procedures
(1) Turn OFF the main power switch and unplug
the power cord from the power outlet.
(2) Remove the indicated cover from the rear right
side of the main body. (Two screws)
(3) Remove the indicated cover from the right door
of the main body. (Two screws)
(4) Perform the following procedure.
<When the multi bypass tray is not installed>
a) Remove the indicated cover from the lower
right side of the main body. (Two screws)
<When the multi bypass tray is installed>
a) Remove the covers (left and right). (Three
screws)
b) Disconnect the connector.
Connector
E-3
c) Remove the four screws.
d) Open the multi bypass tray and the right door
of the main body.
e) Remove the multi bypass tray.
Note:
Be sure not to deform the film.
Film
(5) Remove the indicated cover from the cover re-
moved in step (4). (One screw)
Note:
• If you remove the multi bypass tray in step (4),
remove the indicated cover from the multi by-
pass tray.
• Be sure not to deform the film.
Cover
Cover
E-4

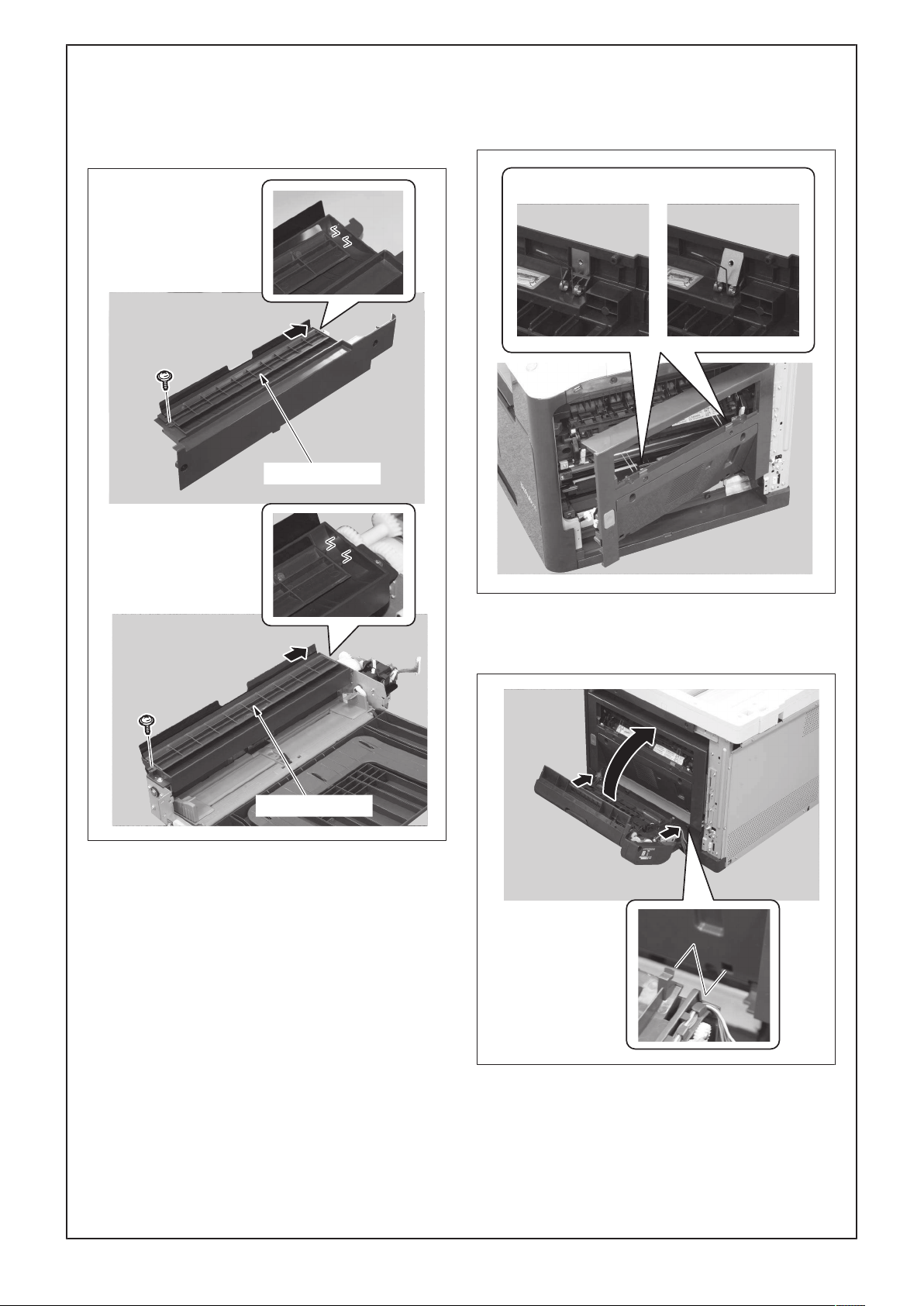

(6) Attach the supplied transport guide. (One sup-
plied screw A)
Note:
If you remove the multi bypass tray in step (4), at-
tach the transport guide to the multi bypass tray.
Transport guide
Transport guide
(7) Open the right door when it is closed.
(8) Attach the two supplied metal plates.
Note:
Make sure that the metal plates are in an upright
position.
< OK > < NG >
(9) Close the right door.
(10) Position the automatic duplex unit onto the
right door.
E-5

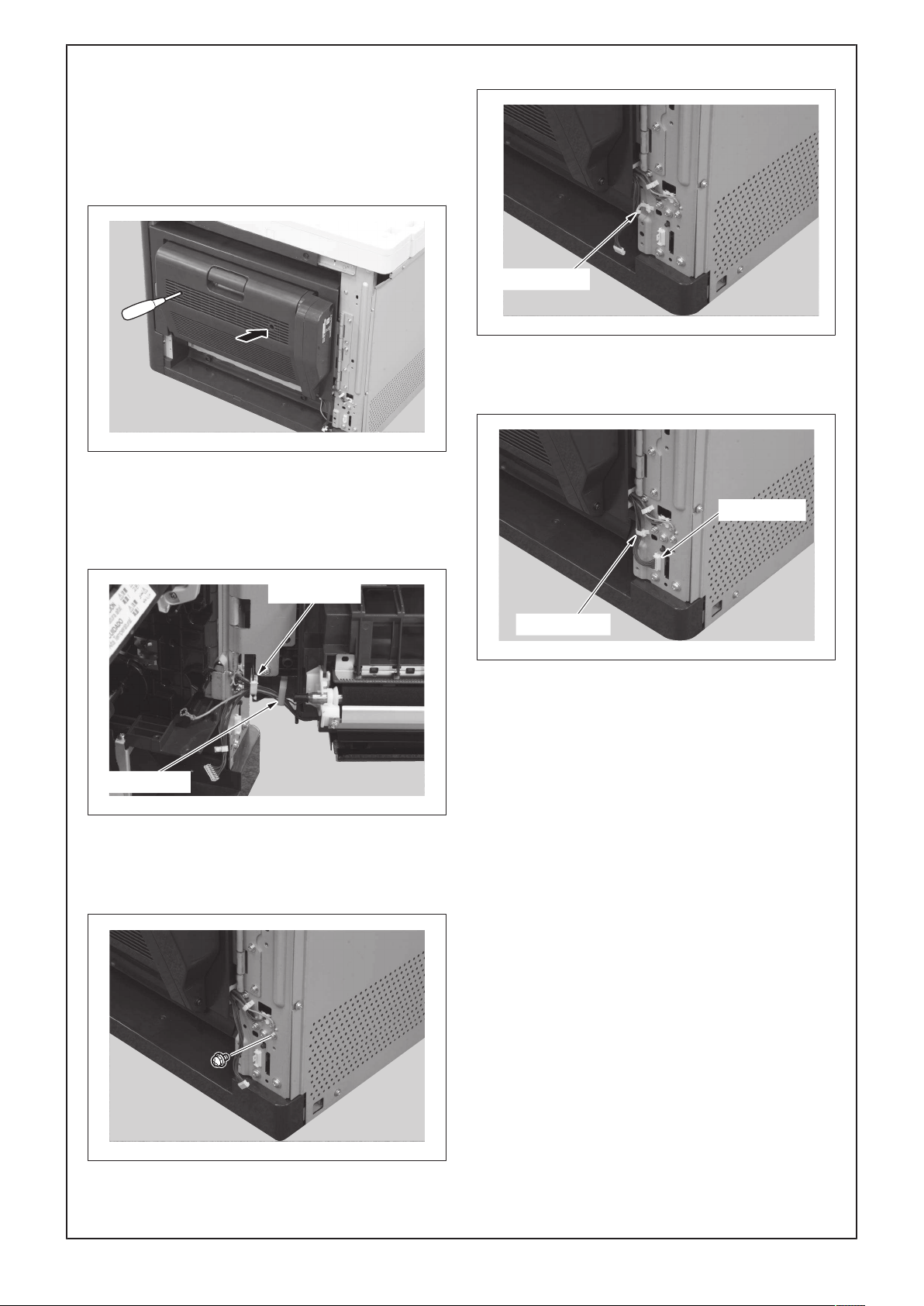

(11) Tighten the two fixing screws of the automatic
duplex unit.
Note:
• Tighten the screw on the reference side (indi-
cated by the arrow) first.
• Make sure the automatic duplex unit is not
tilted.
(12) Open the right door.
(13) Route the ground wire and wire harness of the
automatic duplex unit as shown in the illustra-
tion, and route them through the edge cover
and wire saddle.
Wire saddle
Edge cover
(14) Close the right door.
(15) Secure the ground wire terminal of the auto-
matic duplex unit to the main body. (One sup-
plied screw B)
(16) Attach the supplied wire saddle.
Wire saddle
(17) Plug in the connector of the automatic duplex
unit and route its cable through the wire sad-
dle.
Wire saddle
Connector
(18) Open the right door.
(19) Perform the following procedure.
<When the cover has been removed in step (4)>
a) Reattach the cover removed in step (4). (Two
screws)
Note:
When attaching the cover, be sure not to deform
the film.
<When the multi bypass tray has been removed in
step (4)>
a) Reverse a) to e) of the step (4) to reinstall the
multi bypass tray.
Note:
• When setting the multi bypass tray to the main
body, be sure not to deform the film.
• When attaching the covers (left and right) re-
moved in a), open the multi bypass tray and
attach the covers to the main body, and then
close the tray and screw the covers.
(20) Close the right door when it is open.
(21) Reattach the cover removed in step (2). (Two
screws)
E-6
(22) Remove the left cover from the main body.
(Five screws)
(23) Fit the two bosses into the holes, and attach
the supplied cooling fan assembly to the main
body. (Two supplied screws B)
Boss
(24) Connect the connector of the cooling fan as-
sembly to the main body.
Connector
(25) Reattach the left cover to the main body. (Five
screws)
