Konica Minolta Bizhub 4752 Manuale utente

E-12017. 10 Printed in China

PUB1041-001

INSTALLATION MANUAL

AA1P-9601-00

Applied Machines: /

Be sure to correctly follow the procedures in order as explained in this Installation Manual.

If you do not follow the procedure in order, the image trouble may occur.

1. Outline of installation procedures

When installing the machine and associated options as a system, follow the order shown on the upper.

Note:

• For the detailed installation procedures for each option, follow the instructions given in the corresponding

installation manual and perform the procedures correctly.

• Once the Power Switch is turned ON, do not turn OFF it until the installation work has been completed.

Caution:

• Lifting the machine in an awkward position or transporting it in a poorly balanced position could result in

personal injury. When transporting the machine, assign an adequate number of persons to the job and

ensure that each person can take a good position of not being excessively loaded (mass: approx. 24.4 kg

(53-13/16 lb))

Machine

FS-P02

PF-P15

PF-P16

KP-101

EK-P07*1

DK-P02*2

UK-216*2

EK-P06*1

EK-P05*1

UK-219*1

FK-517

AU-201S

AU-102

*1: No particular order in installation

procedures

*2: Varies depending on the applicable

marketing area

E-2

2. Installation space

To make it easier to control, replace the consum-

ables, inspect, and etc., maintain some space for

installation shown below.

3. Pre-installation check items

(1) Select a level and stable place for installing the

machine.

(2) Be sure to use a power source of the voltage and

frequency indicated in the product specifications.

Ensure that the current carrying capacity of the

power outlet is at least equal to the current listed

in the product specifications.

(3) Power the machine directly from a dedicated

power outlet. (Do not use an extension cord.)

(4) Do not plug or unplug the power cord with wet or

dirty hands, otherwise you may get an electric

shock.

(5) Avoid a hot and humid environment, or a place

exposed to direct sunlight.

(6) Avoid a dusty location, or a place near volatile

and flammable substances.

(7) Avoid a poorly ventilated place.

4. Notes on using touch panel

Be sure to instruct users on the following points.

• This machine uses a capacitive touch panel.

When you touch the touch panel, use your fin-

ger or the stylus pen for the capacitive touch

panel. If you touch the panel using your nail or a

pen tip instead of using your finger or the stylus

pen, the touch panel does not respond nor-

mally.

• Pressing the touch panel hard may cause dam-

age.

• Do not strongly press the panel or press it using

the sharp tip of mechanical pencils.

• The key is a finger tapping (quick light touch

using a finger) operation.

No. Direction Space to maintain

1 Right 110 mm (4-5/16 inches)

2 Front 304.8 mm (12 inches)

3 Left 65 mm (2-9/16 inches)

4 Rear 100 mm (3-15/16 inches)

When the optional Finisher

FS-P02 is mounted:

270 mm (10-5/8 inches)

5 Top 305 mm (12 inches)

E-3

5. Accessory parts

* Varies depending on the applicable marketing

area

* Power supply: 110-127V 8.2A, 220-240V 4.2A

Note:

This manual provides the illustrations of the acces-

sory parts and machine that may be slightly differ-

ent in shape from yours. In that case, instead of

the illustrations, use the appearance of your

machine to follow the installation procedure. This

does not cause any significant change or problem

with the procedure.

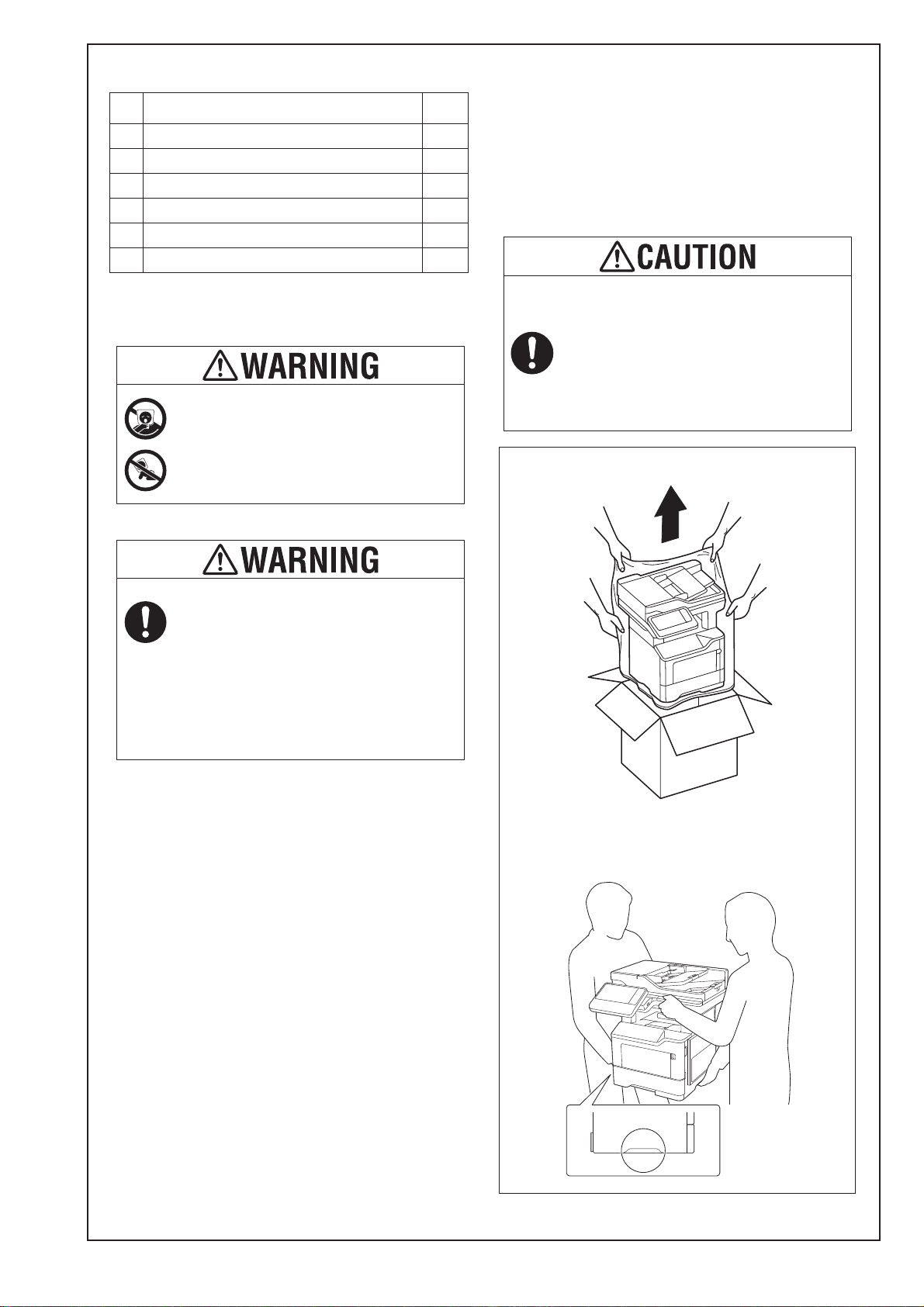

6. Unpacking the machine

(1) Open the packing carton and remove the acces-

sory parts and cushions.

(2) Raise and remove the packing carton.

(3) Assign two or more persons and put their hands

at the positions indicated in the illustration to

raise the machine from the box, and place the

machine on the horizontal and robust place.

No. Name Q’ty

1. Quick start guide 1

2. Installation manual 1 set

3. User’s guide CD 1

4. DVD 1

5. Panel sheet 1

6. Power cord * 1

Keep this bag away from babies and

children. Do not use in cribs, beds,

carriages, or playpens.

The thin film may cling to nose and

mouth and prevent breathing. This bag is

not a toy.

If a power cord is not supplied, use only

the power cord that meets the following

conditions.

Failure to do this could result in a fire or

electrical shock.

• The power cord has voltage and current rating

appropriate for the rating plate on this machine.

• The power cord meets regulatory requirements

for the area.

• The power cord is provided with grounding

pin/terminal.

Be sure to hold the place specified in the

User’s Guide or other manuals to transfer

the machine.

Holding other places than the specified in

transferring the machine could cause

personal injury due to the drop of the

machine or other reasons.

(Machine mass: approx. 24.4 kg

(53-13/16 lb))

< When taking the machine out of the carton >

<When transferring the machine

after being installed>

E-4

7. Removing protective tape, packing and

other shipping materials

(1) Remove tapes for protective sheet and get rid of

the protective sheet.

(2) Remove all protective tapes and protective mate-

rials used for fixing the machine housing.

(3) Open the automatic document feeder (ADF) and

remove the protective tape and protective mate-

rial.

(4) Press the front door button to open the front

door.

(5) Hold the handle and slowly pull out the toner car-

tridge.

(6) Hold the handle and slowly pull out the imaging

unit.

E-5

(7) Shake the imaging unit from front to back and

from side to side.

(8) Remove the protective materials from the imag-

ing unit.

Note:

Do not touch the photo conductor.

(9) Reinstall the imaging unit.

Note:

Align the arrows on the imaging unit with the

arrows on the machine.

(10) Hold the handle and shake the toner cartridge

from front to back and from side to side.

E-6

(11) Reinstall the toner cartridge.

Note:

Align the arrows on the toner cartridge with the

arrows on the machine

(12) Close the front door.

(13) Slide out the tray 1 and remove the protective

materials from the inside of the tray.

8. Loading the tray 1

(1) Slide the paper guides to the appropriate paper

size.

(2) Fix the paper guide.

(3) Set paper with the printing side downward.

(4) Reinstall the tray 1.

(5) Slide out the exit guide.

bizhub 4752/4052 H SERVICE MODE > 2. Starting procedure

H-2

2.Starting procedure

NOTE

▪ Ensure appropriate security for Service Mode function setting procedures. They should NEVER be shown to any unauthorized

person not involved with service jobs.

2.1Procedure

1. Touch Menu.

2. Touch [Counter].

3. Touch [Display Keypad].

4. Press the following keys in this order.

• Stop -> 0 -> 0 -> Stop -> 0 -> 1

5. Enter the CE password and touch [END]. (The CE password is initially set to “9272927292729272.”)

NOTE

▪ When [Administrator Settings] -> [Security Settings] -> [Enhanced Security Mode] is set to “ON”, CE password

authentication is necessary.

▪ If a wrong CE password is entered, re-enter the right password.

The machine will not enter Service Mode unless the CE password is entered correctly. To return to the basic screen, turn

OFF the main power switch and turn it ON again.

▪ When [Administrator Settings] -> [Security Settings] -> [Security Details] -> [Prohibited Functions When Authentication

Error] is set to “Mode 2”, operation will be prohibited since it indicates authentication failure by failing to enter the correct

CE password within the specified number of times.

If the access lock is activated, the lock release timer starts to operate by input the Stop -> 0 -> 9 -> 3 -> 1 -> 7 in Menu ->

[Counter] -> [Print List] -> [Display Keypad] after the main power switch is turned OFF and On.

When the timer reaches the time specified in this setting, the access lock is released.

▪ The service code entered is displayed as “ * ”

6. The Service Mode menu will appear.

NOTE

▪ Be sure to change the CE password from its default value.

▪ For the procedure to change the CE password, see the [Enhanced Security] -> [CE Password].

▪ NEVER forget the CE password.

bizhub 4752/4052 H SERVICE MODE > 3. Setting procedure

H-3

3.Setting procedure

1. Press the key corresponding to the function you would like to change the setting for. Keys or setting screens will appear for each function.

Ex.: System 1

1. Press the key for the item that you would like to change the setting for. Setting screens will appear for each item.

Ex.: Install Date

2. Press the key for the setting you would like to change. You can also input the numerical value using the 10-key pad. (the [+]/[-] keys can

also be used for settings. Follow the directions on the screen to input numerical values.)

NOTE

▪ For more details, see the description pages for each setting item.

3. Touch [END]. This closes the setting screen and returns to the Service Mode screen. (If deep within the hierarchy of the setting screen, it

may be necessary to touch [END] several times)

4. Touch [Exit]. This will close the Service Mode screen and exit the Service Mode.

5. Turn OFF the main power switch. After waiting 10 seconds, turn ON the main power switch again. Turning the main power switch OFF and

then ON again makes the changes to the Service Mode setting take effect.

NOTE

▪ Simply exiting the Service Mode will not make the changed settings take effect. You must turn the main power switch OFF

and then ON again.

bizhub 4752/4052 H SERVICE MODE > 4. Exiting procedure

H-4

4.Exiting procedure

1. Touch [Exit] on the Service Mode screen.

2. Turn OFF the main power switch. Wait 10 seconds, then turn ON the main power switch again.

E-7

9. Installing options

To install options, refer to the installation manual for

each option and follow the “Installation Procedures.”

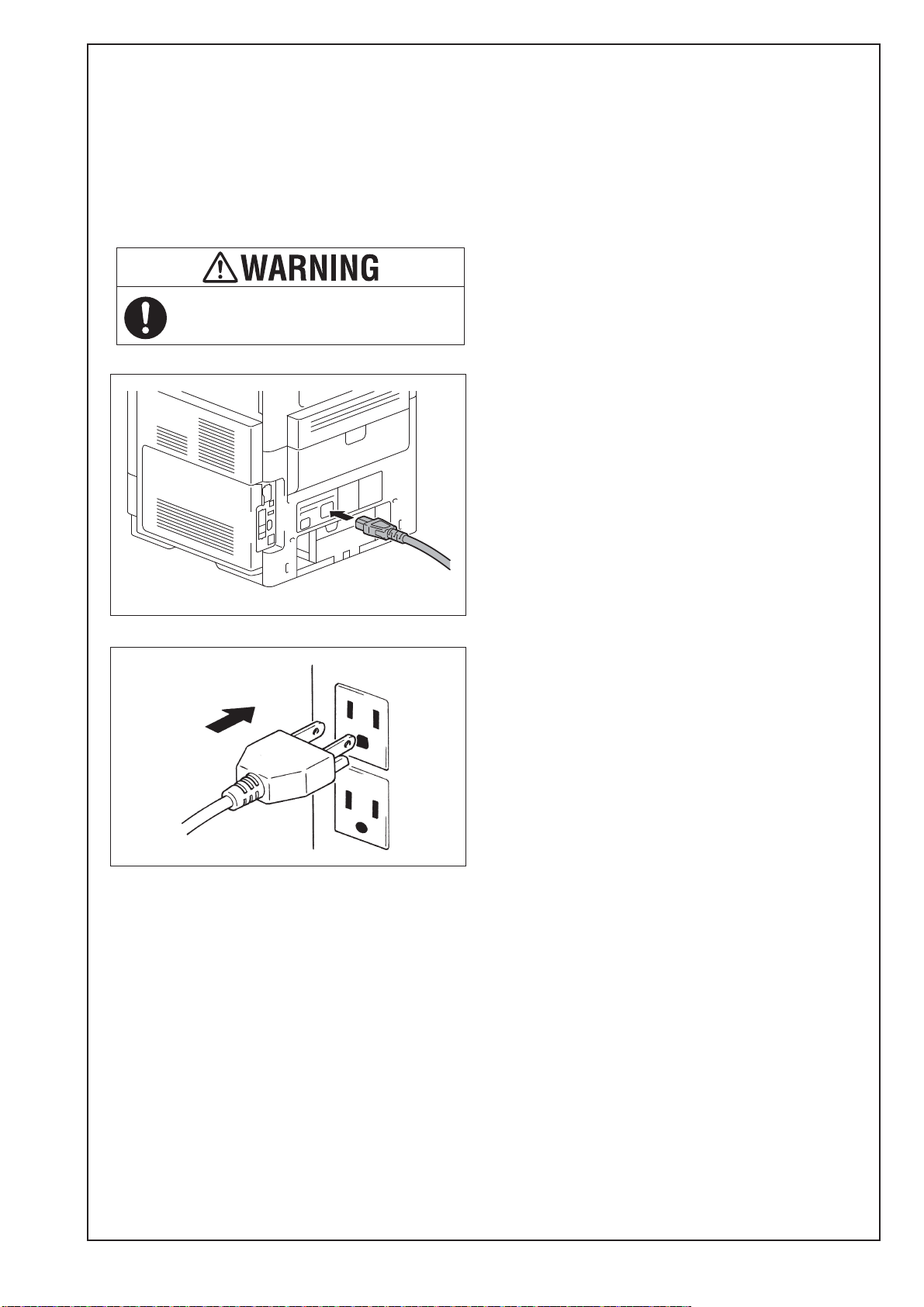

10. Connecting the power cord

(1) Connect the plug of the power cord into the main

body.

(2) Plug the power cord into the power outlet.

11. Starting the machine

Turn ON the power switch on the rear of the main

body.

12. Date & Time Setting/Time Zone Setting

(Service Mode)

(1) Display the Service Mode screen.

(For details of how to display the Service Mode

screen, see the service manual.)

(2) Display the Date & Time Setting/Time Zone Set-

ting screen.

(To display the Date & Time Setting/Time Zone

Setting screen, press Stop o3 on the control

panel.)

(3) Do not input date and time but touch “Entry” of

the Date & Time Setting.

(4) Input the time zone using up/down keys or direct

keys.

(5) Touch “Entry” of the Time Zone Setting.

(6) Touch “Apply.”

(7) Touch “OK.”

(8) Touch “Next.”

13. Serial number input

Note:

Serial number input is, if necessary, needed only

for the optional devices installed in “9. Installing

options.”

(1) Touch the item you want to enter and input the

serial number.

(2) Touch “END.”

(3) For other devices, enter their serial number in

the same way.

(4) Touch “END.”

(5) Touch “Next.”

14. Unit change

Note:

This function allows the user to select the type of

message that will appear when the replacement

time arrives for each of the different units.

(1) Select the appropriate message type for each

unit.

(2) Touch “Service.”

Use the appropriate power cord.

Failure to do this could result in a fire or

electrical shock.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Konica Minolta Stampante

Konica Minolta

Konica Minolta A32P011 Manuale utente

Konica Minolta

Konica Minolta bizhub 4000P Manuale utente

Konica Minolta

Konica Minolta magicolor 2430 DL Manuale utente

Konica Minolta

Konica Minolta Magicolor 5650EN Manuale utente

Konica Minolta

Konica Minolta Magicolor 2300W Manuale utente

Konica Minolta

Konica Minolta Magicolor 2530 DL Manuale utente

Konica Minolta

Konica Minolta Magicolor 3300 Manuale utente

Konica Minolta

Konica Minolta PagePro 1390 MF Guida rapida

Konica Minolta

Konica Minolta A0VD011 Istruzioni originali

Konica Minolta

Konica Minolta Magicolor 3300 Manuale utente

Konica Minolta

Konica Minolta bizhub C550 Series Manuale utente

Konica Minolta

Konica Minolta magicolor 2430 DL Manuale

Konica Minolta

Konica Minolta AccurioPress C2070 Manuale utente

Konica Minolta

Konica Minolta Magicolor 5440 dl Guida alla configurazione

Konica Minolta

Konica Minolta DRYPRO SIGMA 2 Manuale utente

Konica Minolta

Konica Minolta Crown II Manuale del proprietario

Konica Minolta

Konica Minolta Magicolor 2550 Manuale utente

Konica Minolta

Konica Minolta bizhub pro 1100 Manuale utente

Konica Minolta

Konica Minolta DF-612 Manuale utente

Konica Minolta

Konica Minolta magicolor 8650DN Manuale utente

Konica Minolta

Konica Minolta bizhub 40p Manuale utente

Konica Minolta

Konica Minolta PagePro 1250W. Manuale utente

Konica Minolta

Konica Minolta Network Printer Manuale utente

Konica Minolta

Konica Minolta Magicolor 5430 DL Manuale utente

Manuali Stampante popolari di altre marche

Lexmark

Lexmark 1400 Series Manuale

Canon

Canon i70 Series Manuale utente

Evolis

Evolis Elypso Manuale utente

Kyocera

Kyocera FS-9530DN Manuale utente

Canon

Canon LASER SHOT LBP-1210 Manuale utente

Samsung

Samsung BIXOLON SRP-350plusF Manuale utente

Canon

Canon PIXMA PRO-1 Series Manuale utente

Canon

Canon PIXMA G3560 Guida all'installazione

Dell

Dell Color Laser Printer 2130cn Manuale utente

Tektronix

Tektronix Phaser 840 Manuale utente

Epson

Epson ET-7750 Istruzioni operative

Canon

Canon CLBR 460ps Manuale utente

Eltron

Eltron P210 Guide Manuale utente

Ricoh

Ricoh MD-P1 Manuale utente

Epson

Epson SC-F7100 series Manuale utente

Epson

Epson Stylus C40UX Manuale utente

Canon

Canon imagePASS-A2 Manuale utente

Canon

Canon S820D Manuale utente

Konica Minolta bizhub 4752 Manuale utente

Manuali Stampante popolari di altre marche
