Konica Minolta Magicolor 2430 DL Manuale

magicolor DLSeries

Firmware Updater

Guide

4138-7795-01A

1760673-001A

System Requirements 1

System Requirements

Computer:

PC with a Pentium 2, 400 MHz or faster processor

(A Pentium 3, 500 MHz or faster processor is recommended.)

Operating system:

–Microsoft Windows XP Home Edition/Professional, Windows Server

2003, Windows 2000, Windows Me, Windows 98SE

Available hard disk space:

–Approximately. 20 MB (printer driver and Status Display)

Memory:

128 MB or more

Interface:

–10Base-T/100Base-TX (IEEE 802.3) Ethernet interface port

–USB 2.0 or later interface port

Compatible printers:

magicolor 2430 DL, magicolor 5430 DL, magicolor 5440 DL

Printer driver:

Must be installed

–magicolor 2430 DL version 1.7.925.0 or later

–magicolor 5430 DL version 1.9.126.0 or later

–magicolor 5440 DL version 1.6.1130 or later

Starting magicolor DL Series Firmware Updater2

Starting magicolor DL Series Firmware

Updater

CAUTION

Before starting the firmware updater, make sure that the printer driver is

installed.

1Download the firmware updater from the Web site, and then decompress

it in any folder.

2Double-click magicolor DL Series Firmware Updater.exe.

3Select I accept, and then click the OK button.

Starting magicolor DL Series Firmware Updater 3

4Select the appropriate connection for the environment where the printer is

being used.

For a network connection

1When using Windows XP Service Pack 2 or later, the following message

will appear. Click the Unblock button.

For a network connection:

The firmware updater searches the print-

ers connected to the Local Area Network.

Select Network. →p. 3

For a local (IP) connection:

The firmware updater searches the print-

ers listed in the Printers folder on your

computer.

Select Local. →p. 8

For a local (USB) connection:

The firmware updater searches the print-

ers listed in the Printers folder on your

computer.

Select Local. →p. 13

Starting magicolor DL Series Firmware Updater4

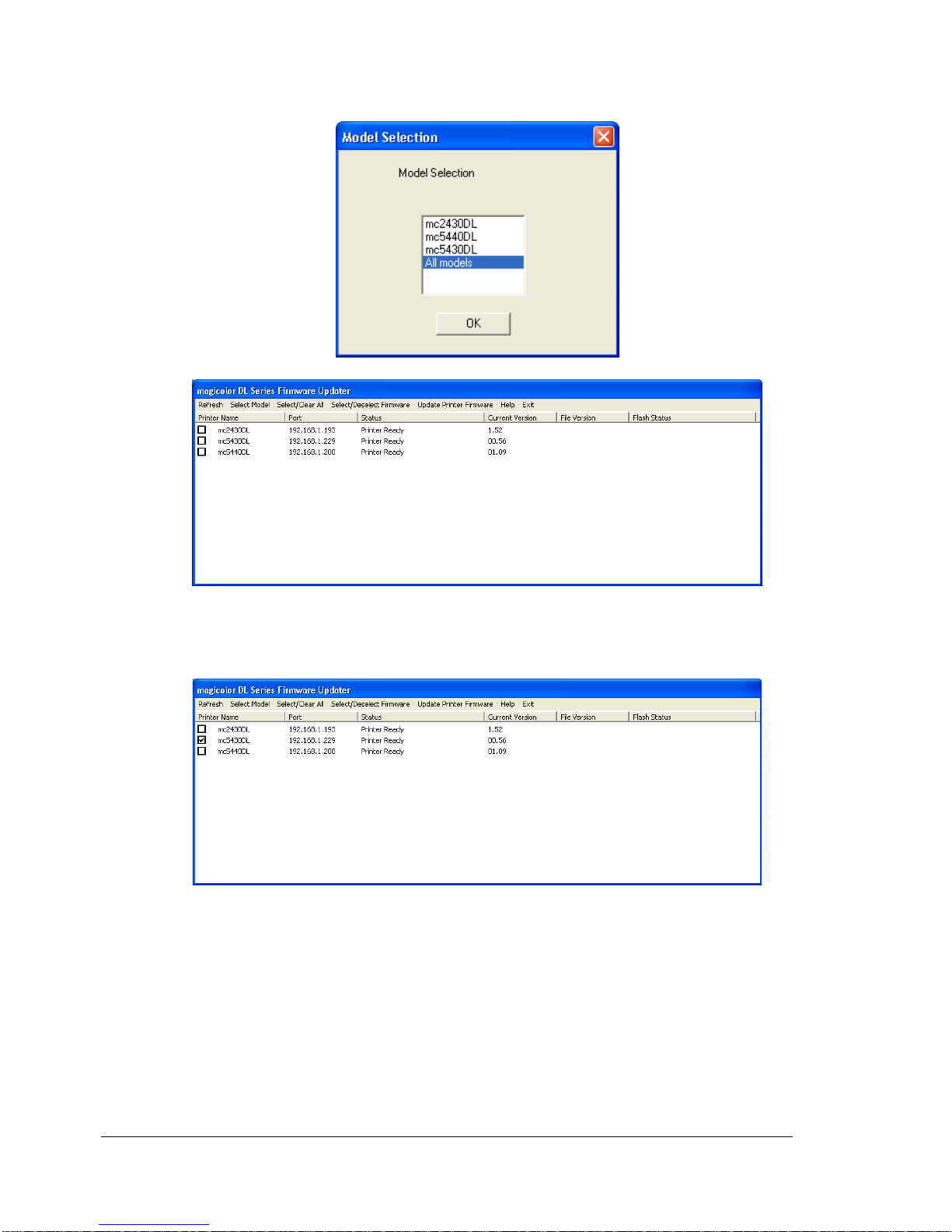

2Select the appropriate printer model, and then click the OK button.

A list of printers on the network appears.

3Select the check box for the printer whose firmware is to be updated, and

then click Select/Deselect Firmware in the menu bar.

Starting magicolor DL Series Firmware Updater 5

4Select the updated firmware file for the printer, and then click the Open

button.

" If one of the following messages appears, an incorrect firmware

file was selected. Click the OK or No button, and then select the

correct firmware file.

Starting magicolor DL Series Firmware Updater6

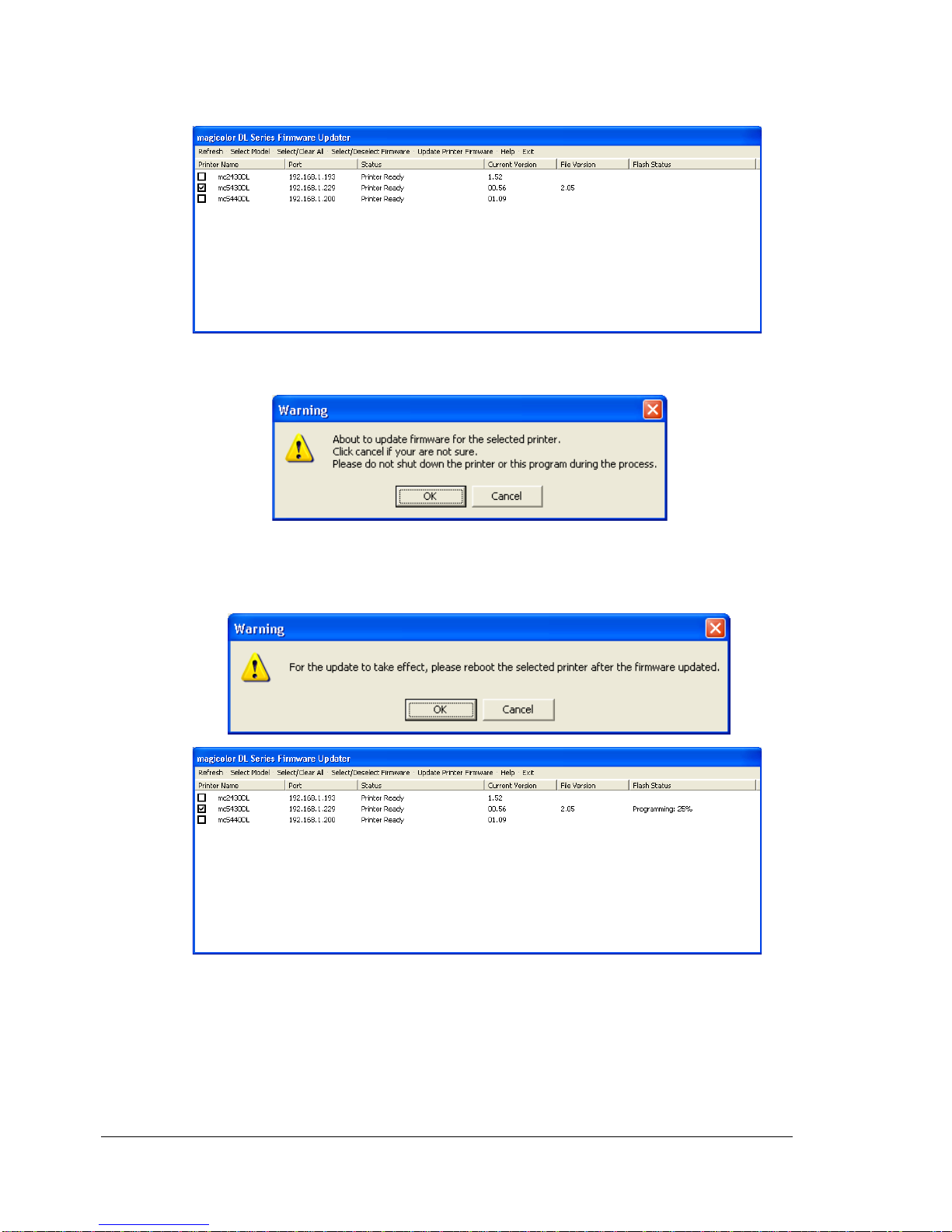

5Click Update Printer Firmware in the menu bar.

As an example, the following dialog box shows file version 2.05 selected.

6Click the OK button.

7Click the OK button.

Updating of the firmware begins.

" Do not turn off the printer while its firmware is being updated.

Starting magicolor DL Series Firmware Updater 7

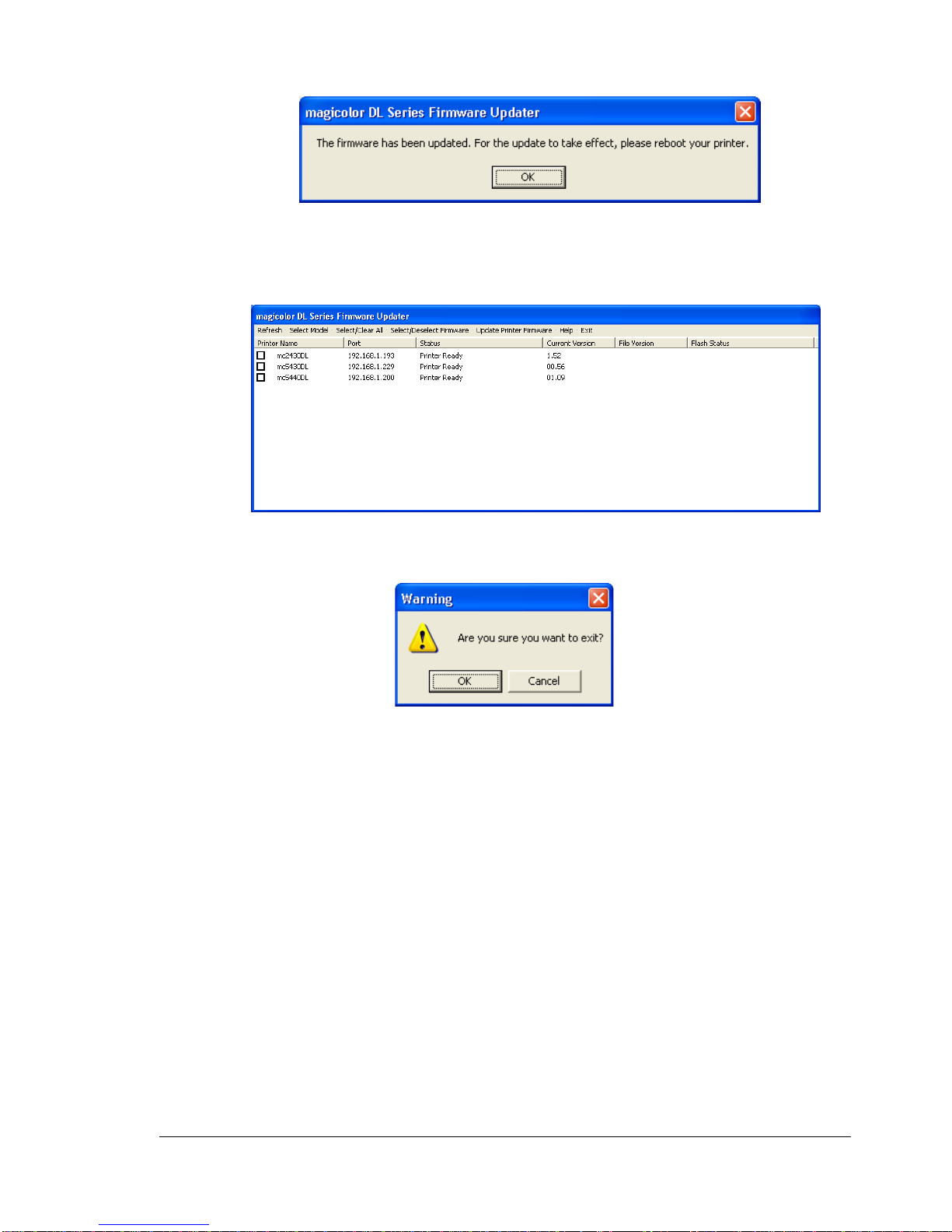

" If the following message appears, click the OK button.

8Reboot your printer.

9Click Exit in the menu bar

10 Click the OK button to exit the Updater.

Starting magicolor DL Series Firmware Updater8

For a local (IP) connection

1When using Windows XP Service Pack 2 or later, the following message

will appear. Click the Unblock button.

2From the Printer Selection list, select the printer whose firmware is to be

updated.

3Click the Browse button.
