Konica Minolta FS-107 Come usare

KONICA CORPORATION

TECHNOLOGY SUPPORT CENTER

TOKYO JAPAN

SERVICE HANDBOOK

FS-107

2001.02

Ver. 3.0

CN26NF1780

KONICA CORPORATION

CONTENTS

1 OUTLINE

2 UNIT EXPLANATION

3 DIS./ASSEMBLY

CONTENTS

SAFETY AND IMPORTANT WARNING ITEMS ...........

Refer to the 7020/25/30/35 service handbook on page C-1

1. OUTLINE

FS-107 PRODUCT SPECIFICATIONS .................. 1-1

[1] Type ........................................................ 1-1

[2] Functions ................................................ 1-1

[3] Stapler kit................................................ 1-2

[4] Machine data .......................................... 1-2

[5] Maintenance ........................................... 1-2

[6] Machine environment ............................. 1-2

CENTER CROSS SECTION .................................. 1-3

DRIVE SYSTEM DIAGRAM ................................... 1-4

[1] Paper conveyance drive ......................... 1-4

[2] Stapler unit drive ..................................... 1-5

PAPER CONVEYANCE PATH .............................. 1-6

[1] Straight mode ......................................... 1-6

[2] Offset mode/staple mode ....................... 1-7

2. UNIT EXPLANATION

EXTERNAL SECTION ........................................... 2-1

[1] Composition ............................................ 2-1

CONVEYANCE SECTION ..................................... 2-2

[1] Composition ............................................ 2-2

[2] Mechanisms ........................................... 2-2

[3] Conveyance control ................................ 2-3

[4] Tray up/down control .............................. 2-5

PAPER EXIT/STAPLER UNIT ............................... 2-7

[1] Composition ............................................ 2-7

[2] Mechanisms ........................................... 2-7

[3] Paper alignment control .......................... 2-9

[4] Paper exit control.................................. 2-10

[5] Paper stack control ............................... 2-11

[6] Stapler control ...................................... 2-12

[7] Staple control........................................ 2-13

OTHER CONTROLS ............................................ 2-15

[1] Movement with power on ...................... 2-15

[2] Opening and closing motion of

the front door ........................................ 2-15

3. DISASSEMBLY/ASSEMBLY

DISASSEMBLY/ASSEMBLY .................................. 3-1

[1] Removing and reinstalling of the finisher

unit .......................................................... 3-1

[2] Removing and installing of the tray ........ 3-1

[3] Replacing the paper exit roller/A ............ 3-2

[4] Removing and installing of the up/down

wire ......................................................... 3-4

[5] Replacing the stapler cartridge ............... 3-5

[6] Removing and installing

the stapler unit........................................ 3-6

Blank page

1 OUTLINE

2 UNIT EXPLANATION

3 DIS./ASSEMBLY

1 OUTLINE

2 UNIT EXPLANATION

3 DIS./ASSEMBLY

OUTLINE

Blank page

1 OUTLINE

2 UNIT EXPLANATION

3 DIS./ASSEMBLY

FS-107

1-1

1 OUTLINE

2 UNIT EXPLANATION

3 DIS./ASSEMBLY

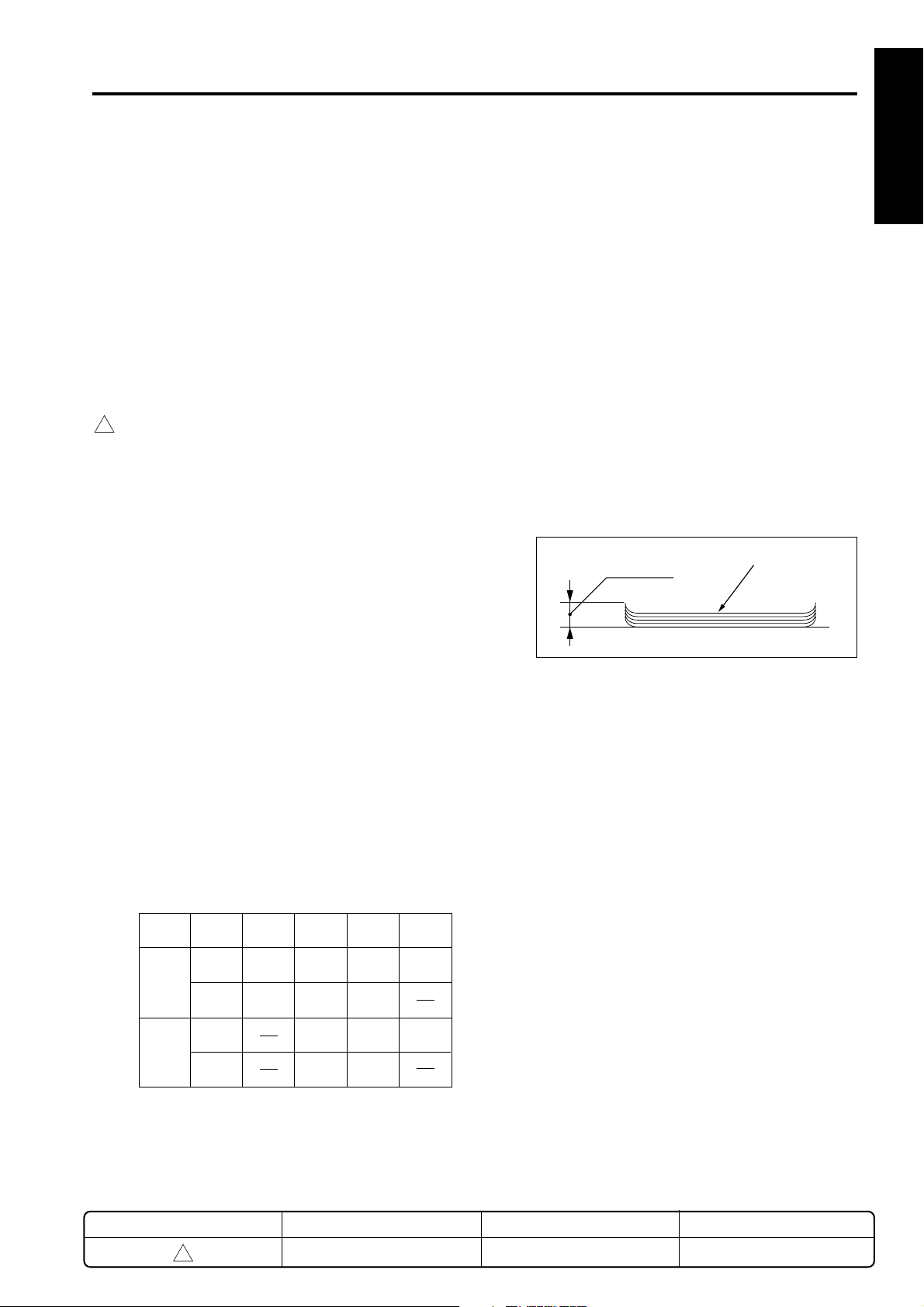

FS-107 PRODUCT SPECIFICATIONS

[1] Type

Type: Built-in type compact finisher

(multiple trays type)

Option: Finisher tray [FT-107]

(Up to two trays can be

installed)

[2] Functions

Kinds of paper: Same as the main body

Modes: Normal exit mode (straight)

Offset mode (shift)

Staple mode

Paper size

Straight paper exit: A3, B4, A4, A4R, B5, B5R,

A5R, B6R, F4, 11 x 17, 8.5 x

14, 8.5 x 11, 8.5 x 11R, 5.5 x

8.5R

Offset: A3, B4, A4, A4R, B5, B5R,

F4, 11 x 17, 8.5 x 14, 8.5 x 11,

8.5 x 11R

1 position staple: A3, B4, A4, A4R, B5, B5R, A5R,

One point F4, 11 x 17, 8.5 x 14, 8.5 x 11,

8.5 x 11R, 5.5 x 8.5R

2 position staple: A3, B4, A4, A4R, B5, B5R, A5R,

Two points F4, 11 x 17, 8.5 x 14, 8.5 x 11,

8.5 x 11R, 5.5 x 8.5R

Maximum

Paper capacity: 2 trays: 100 +1000 = 1,100

sheets

3 trays: 100 + 100 + 600 =

800 sheets

4 trays: 100 x 4 = 400 sheets

Copy

Paper weight: 50 to 200g/m2papers

Stack capacity: (80g/m2high-quality paper)

With 2 standard trays

Non-

staple

Staple

Non-

staple

Staple

Special

media

sheets

Large

size

100

sheets

sets

300

sheets

sets

Medium

size

100

sheets

sets

1000

sheets

sets

Small

size

100

sheets

sets

Tray 1

Tray 2

Note 1: The above figures apply only to if

stacked paper is all of the same size.

Note 2: The number of stacked sheets in staple

mode must not exceed the stack sheet

capacity for non-staple mode.

Note 3: Small size: B6R, A5R, 5.5x8.5R

Medium size: Everything other than

small size, large size,

special paper.

Large size: A3, B4, F4, 8.5x14,

11x17

Special paper: Thin paper (60g/m2or

less), thick paper (over

128g/m2), blueprint

masters, OHP, etc.

Note 4: The stacking capacity of the option

conforms to the stacking capacity of tray

Paper curling: 10mm max

Amount of sort

off-setting: 30mm

Curl

Five copy sheets

METHOD

REPLACEMENT

PA G E

1-1

DATE

Feb. 2001

REVISED EDITION

FS-107

1-2

1 OUTLINE

2 UNIT EXPLANATION

3 DIS./ASSEMBLY

[3] Stapler kit

Staple ability Maximum 50 sheets (with

80g/m2paper, paper thick-

ness less than 5mm)

Stapler capacity: 5,000 staples/cartridge

Staple position: A = 8.6mm ± 3mm

B = 8.6mm ± 3mm

C = refer to following table

D = 10.5mm ± 3mm

E = 8.0mm ± 3mm

Paper Size

A3/A4

B4/B5

A4R/A5

B5R

A5R

F4 (8 x 13)

F4 (8.125 x 13)

F4 (8.25 x 13)

F4 (8.5 x 13)

11 x 17/8.5 x 11

8.5 x 14/8.5 x 11R

5.5 x 8.5

5.5 x 8.5R

C (mm)

60±4

53±4

90±4

80±4

63±4

90±4

91.5±4

93±4

95±4

52±4

95±4

60±4

[4] Machine data

Power source: DC24V/5V (supplied from the

main body)

Maximum power

Consumption: Max.70VA

Weight: 13kg

External

dimensions: Length 782mm

Depth 502mm

Height 392mm

[5] Maintenance

Maintenance: Same as the main unit

Machine life: Same as the main unit

[6] Machine environment

Temperature: 10 to 30˚C

Humidity: 20 to 80%RH

Note: Specifications are subject to change without

notice.

METHOD

REPLACEMENT

PA G E

1-2

DATE

May 2000

REVISED EDITION

FS-107

1-3

1 OUTLINE

2 UNIT EXPLANATION

3 DIS./ASSEMBLY

CENTER CROSS SECTION

Tray 1

Tray 2

Conveyance roller

Conveyance rollers

Conveyance belt

Stapler unit

Exit rolle/A

METHOD

REPLACEMENT

PA G E

1-3

DATE

May 2000

REVISED EDITION

FS-107

1-4

1 OUTLINE

2 UNIT EXPLANATION

3 DIS./ASSEMBLY

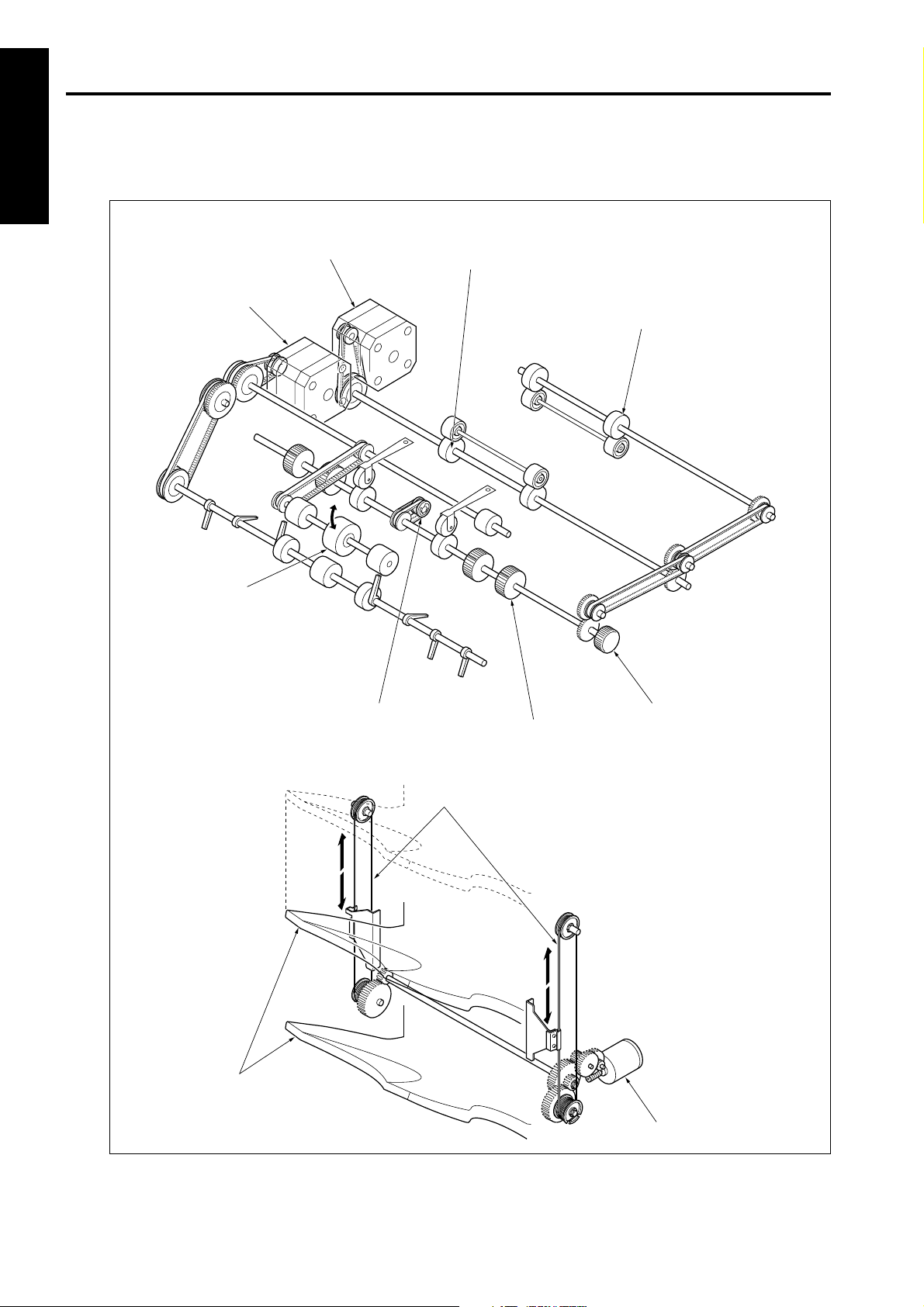

DRIVE SYSTEM DIAGRAM

[1] Paper conveyance drive

Paper conveyance

motor (M701)

Paper exit motor (M702)

Conveyance roller

Exit roller A

Conveyance belt

Conveyance roller

Paper jam release knob

Tray up/down motor (M706)

Tray up/down wires

Trays

Conveyance roller
