Introduction

1 Introduction

Welcome to Kramer Electronics (since 1981): a world of unique, creative and

affordable solutions to the infinite range of problems that confront the video, audio

and presentation professional on a daily basis. In recent years, we have redesigned

and upgraded most of our line, making the best even better! Our 500-plus

different models now appear in 8 Groups

, which are clearly defined by function.

Congratulations on purchasing your Kramer VM-5DS Video Audio

Distribution Amplifier / Scaler!It is ideal for:

Video audio duplication, delivering undiminished quality duplicates

CCTV and other monitoring applications

The package includes the following items:

VM-5DS Video Audio Distribution Amplifier / Scaler

Power cord

This user manual

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and

packaging materials for possible future shipment

Review the contents of this user manual

Use Kramer high performance high resolution cables

2.1 Quick Start

This quick start chart summarizes the basic setup and operation:

1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:

Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;

GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors

2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com

3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

Overview

3 Overview

The VM-5DS is a distribution amplifier for composite video and stereo audio

signals. It will take one composite video and stereo audio input, provide

correct buffering and isolation and distributes the signal to five identical

video and audio outputs plus one scaled output.

In particular, the VM-5DS features:

Has a high bandwidth of 360MHz, ensuring transparent performance

even in the most critical applications

Scaled graphics output resolutions: VGA (640x480), SVGA (800x600),

XGA (1024x768), or WXGA (1366x768)

Looping inputs, buttons for termination and video AC/DC coupling

Audio level control (independently for the left and right levels)

Video level (gain) and EQ. (Peaking) control

Is housed in a 19" 1U rack-mountable enclosure and is fed from a

90-240 VAC universal switching power supply

To achieve the best performance:

Connect only good quality connection cables, thus avoiding

interference, deterioration in signal quality due to poor matching, and

elevated noise levels (often associated with low quality cables)

Avoid interference from neighboring electrical appliances and

position your VM-5DS away from moisture, excessive sunlight and dust

4 Your VM-5DS Video Audio Distribution Amplifier / Scaler

This section defines the front and rear panels of the VM-5DS Video Audio

Distribution Amplifier / Scaler:

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your VM-5DS Video Audio Distribution Amplifier / Scaler

Figure 1: VM-5DS Video Audio Distribution Amplifier / Scaler Front Panel

Table 1: VM-5DS Video Audio Distribution Amplifier / Scaler Front Panel Features

# Feature Function

1 POWER Switch Illuminated switch for turning the unit ON or OFF

2 Button

Press to select the SCALER OUT resolution: VGA,

SVGA, XGA, or WXGA

SCALER

RESOLUTION

LEDs

Light the specific resolution selected via the SCALER

RESOLUTION button: VGA (640x480), SVGA (800x600),

XGA (1024x768), or WXGA (1366x768)

Your VM-5DS Video Audio Distribution Amplifier / Scaler

Figure 2: VM-5DS Video Audio Distribution Amplifier / Scaler Rear Panel

Table 2: VM-5DS Video Audio Distribution Amplifier / Scaler Rear Panel Features

# Feature Function

4 INPUT BNC Connector Connects to the composite video source

5 TERM IN Button Press to terminate with 75or release to Hi-Z for looping

6 Coupling Button Press for DC or release for AC

7 LOOP BNC Connector Connect to an additional unit

8 GAIN Trimmer Adjusts

the video level

9 EQ. Trimmer Adjusts

the video EQ. (equalization) compensation of outputs

VIDEO

OUTPUT BNC Connectors Connects to the composite video acceptors (from 1 to 5)

11 IN L RCA Connectors Connect to the audio source

12 IN R RCA Connectors Connect to the audio source

13 LOOP L RCA Connectors Connect to an additional unit

14 LOOP R RCA Connectors Connect to an additional unit

15 GAIN L Trimmer Adjusts

the left audio output signal level

16 GAIN R Trimmer Adjusts

the right audio output signal level

17 OUT R RCA Connectors Connect to the audio acceptors (from 1 to 5)

AUDIO

OUT L RCA Connectors Connect to the audio acceptors (from 1 to 5)

19 SCALER OUT HD15 Connector Connects to the video acceptor that displays the scaled output

20 Power Connector with FUSE AC connector for supplying power to the unit

1 Insert a screwdriver into the hole and carefully rotate it, to trim the level

KRAMER: SIMPLE CREATIVE TECHNOLOGY

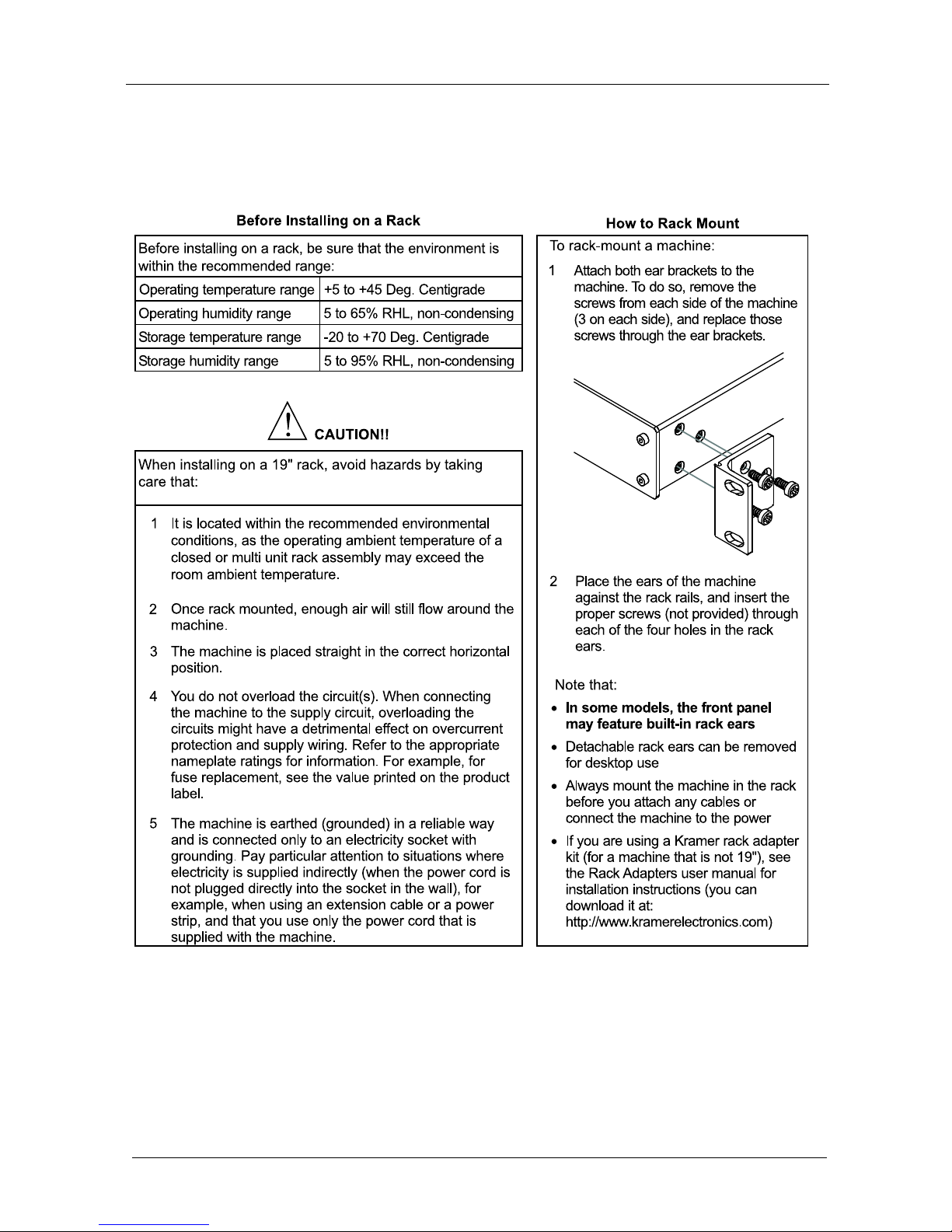

Installing on a Rack

5 Installing on a Rack

This section describes what to do before installing on a rack and how to rack

mount.

Connecting the VM-5DS

6 Connecting the VM-5DS

To connect the VM-5DS, as the example in Figure 3 shows, do the following

1. Connect a composite video source (for example, a composite video

player) to the VIDEO INPUT BNC connector and the AUDIO IN R and

L RCA connectors.

2. Connect the VIDEO OUT 1 BNC connector and the AUDIO OUT 1 R

and L RCA connectors to a composite video acceptor (for example, a

composite video recorder).

3. Connect the VIDEO OUT 5 BNC connector to a composite video

acceptor (for example, a video display).

4. Connect the SCALER OUT HD15 connector to a VGA acceptor (for

example, an LCD display).

5. Connect the power cord to the mains electricity.

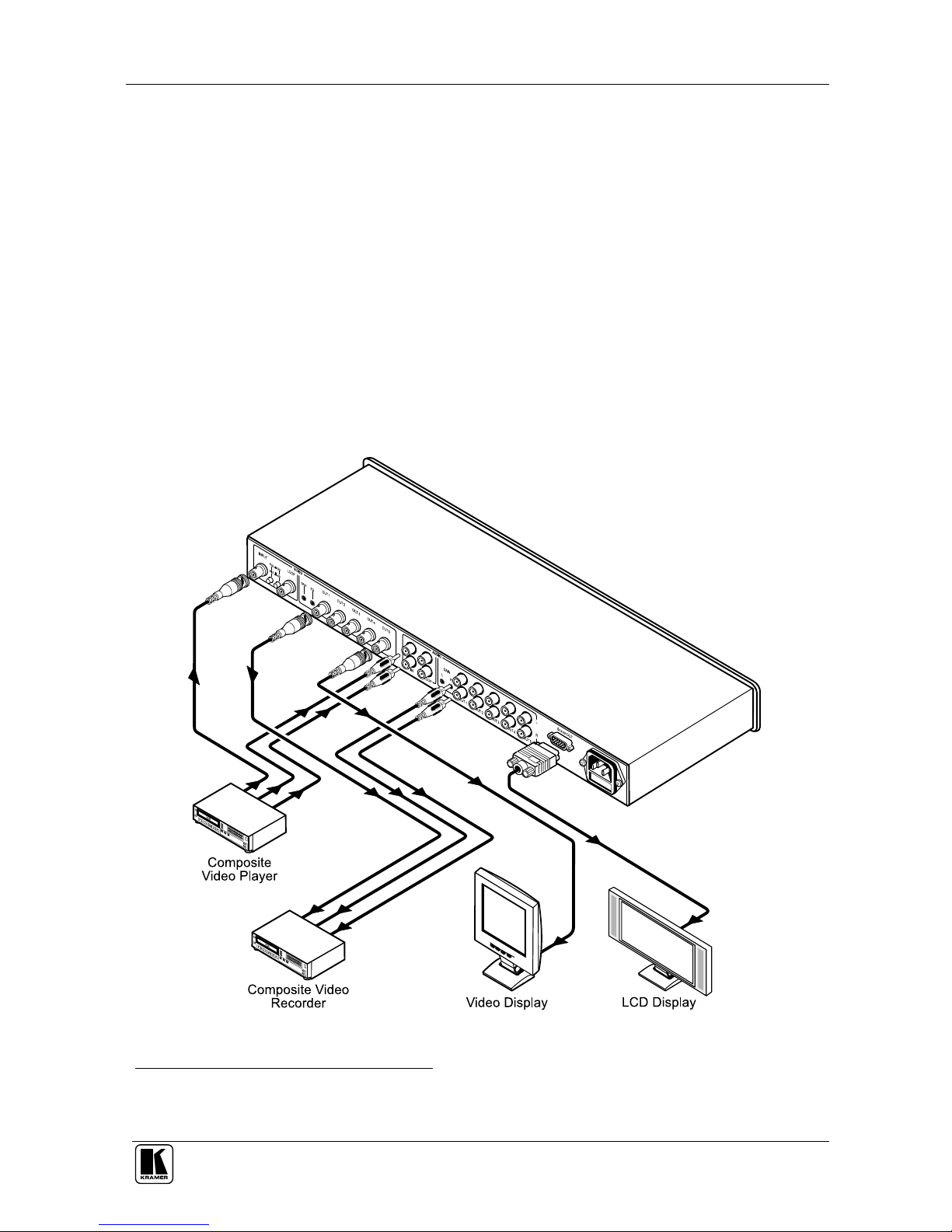

Figure 3: Connecting the VM-5DS Video Audio Distribution Amplifier / Scaler

1 Switch OFF the power on each device before connecting it to your VM-5DS. After connecting your VM-5DS, switch on its

power and then switch on the power on each device

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Technical Specifications

7 Technical Specifications

Table 3 includes the technical specifications

of the VM-5DS:

Table 3: Technical Specifications of the VM-5DS

INPUTS: 1 video composite, looping, 1Vpp/75on BNC connectors with

termination switch

1 audio stereo looping, +4dBm/50kon RCA connectors

OUTPUTS: 5 video composite 1 Vpp/75on BNC connectors

5 audio stereo, +4dBm/50, 27 Vpp max. on RCA connectors

1 VGA through WXGA on an HD15F connector

SCALED OUTPUT RESOLUTIONS:

VGA (640 x 480), SVGA (800x 600), XGA (1024x 768),WXGA (1366 x 768)

MAX.VIDEO OUTPUT LEVEL: 2.2 Vpp

BANDWIDTH (-3dB): VIDEO: 360MHz AUDIO: 60kHz

DIFF. GAIN: 0.03%

DIFF. PHASE: 0.06 Deg.

K-FACTOR: 0.05%

S/N RATIO: VIDEO: 76dB AUDIO: 0.004%

CONTROLS: Video gain: -1 to +1.8dB, EQ.: 0 to +2.5dB, audio: 0.2 to +6dB

COUPLING: VIDEO: DC/AC selectable AUDIO: AC

AUDIO THD + NOISE: 0.021% (1V, 1kHz.)

POWER SOURCE: 100-240 VAC, 50/60Hz 15 VA

DIMENSIONS: 19-inch (W), 7-inch (D) 1U (H) rack mountable

WEIGHT: 1.94 kg (4.3 lbs.) approx.

ACCESSORIES: Power cord, rack ears

1 Specifications are subject to change without notice
