Kramer VM-50AN Manuale utente

VM-50AN Quick Start

P/N:

2900- 301264QS

Rev:

Scan for full manual

VM-50AN Quick Start Guide

This guide helps you install and use your VM-50AN for the first time.

Go to www.kramerav.com/downloads/VM-50AN to download the latest user manual and check if firmware

upgrades are available.

Step 1: Check what’s in the box

VM-50AN 1:5 Audio Distributor

4 Rubber feet

Power supply (12V DC)

1 Quick start guide

Step 2: Get to know your VM-50AN

Feature

Function

POWER Switch

Illuminated switch supplying power to the unit

INPUT MODE BAL/UNBAL Button

When released, selects the balanced stereo audio input when pushed in, selects

the unbalanced stereo audio

RIGHT LEVEL Trimmer

Adjusts the right output signal level (use a small screwdriver)

LEFT LEVEL Trimmer

Adjusts the left output signal level (use a small screwdriver)

INPUT 3.5mm Mini Plug Connector

Connects to the unbalanced audio source

INPUT Terminal Block Connector

Connects to the balanced audio source

OUT 3.5mm Mini Plug Connector

Connects to the unbalanced audio acceptor (from 1 to 5)

OUT Terminal Block Connector

Connects to the balanced audio acceptor (from 1 to 5)

12 VDC 200mA

+12V DC connector for powering the unit

Step 3: Mount VM-50AN

Install VM-50AN using one of the following methods:

•Attach the rubber feet and place the unit on a flat surface.

•Mount the unit in a rack using the recommended rack adapter (see www.kramerav.com/product/VM-50AN).

•Ensure that the environment (e.g., maximum ambient temperature & air flow) is compatible for the device.

•Avoid uneven mechanical loading.

•Appropriate consideration of equipment nameplate ratings should be used for avoiding overloading of the circuits.

•Reliable earthing of rack-mounted equipment should be maintained.

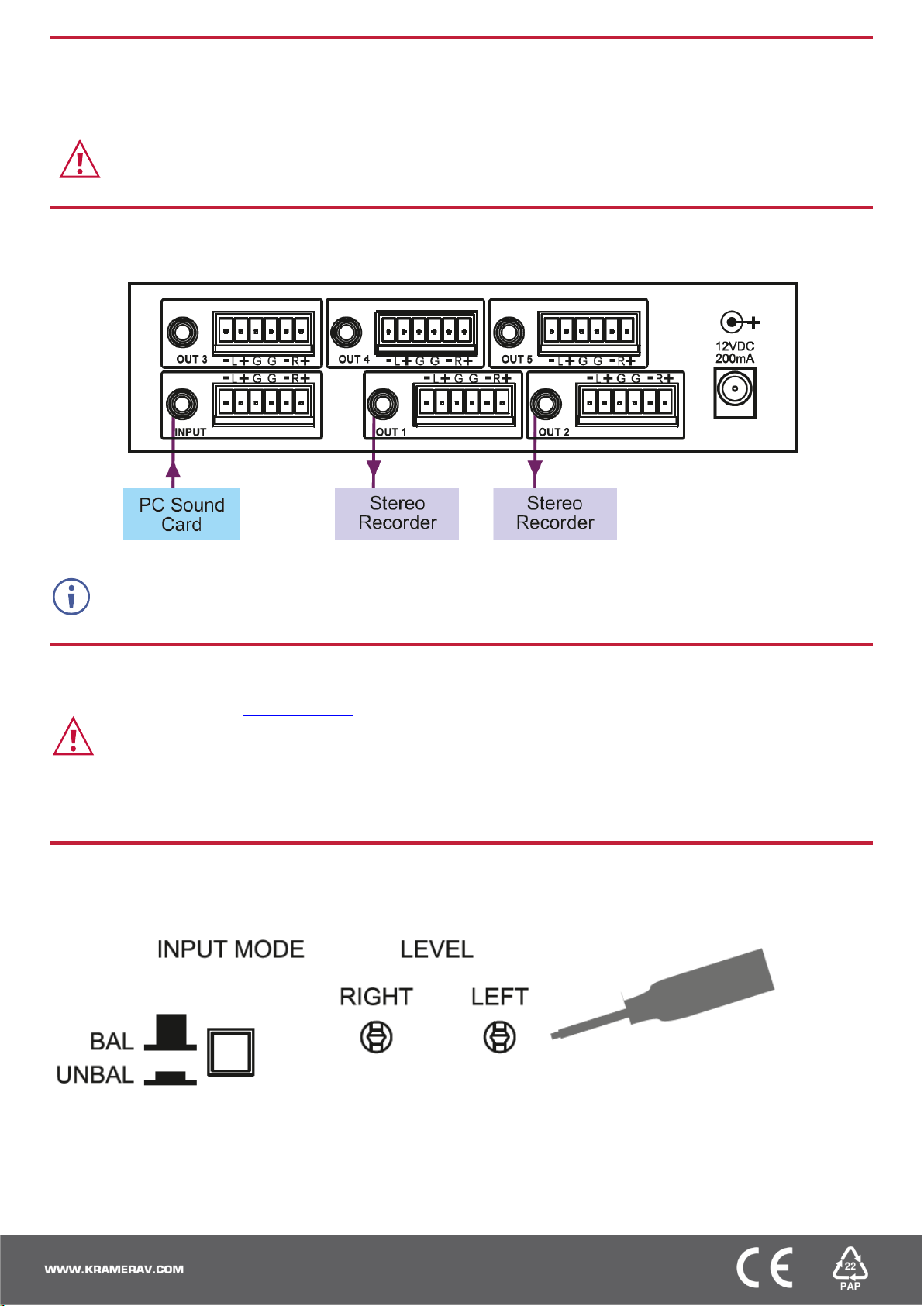

Step 4: Connect inputs and outputs

Always switch OFF the power on each device before connecting it to your VM-50AN.

To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/VM-50AN.

Using third-party cables may cause damage!

Step 5: Connect power

Connect the 12V DC power adapter to VM-50AN and plug it into the mains electricity.

Safety Instructions (See www.kramerav.com for updated safety information)

Caution:

•For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the

terminal or in the User Manual.

•There are no operator serviceable parts inside the unit.

Warning:

•Use only the power cord that is supplied with the unit.

•Disconnect the power and unplug the unit from the wall before installing.

Step 6: Operate VM-50AN

Set the input mode to balanced or unbalanced stereo.

Using a small screwdriver, adjust the output level.
