Kramer WP-580T Manuale utente

KRAMER ELECTRONICS LTD.

USER MANUAL

MODELS:

WP-580T

HDMI Line Transmitter

WP-580R

HDMI Line Receiver

P/N: 2900-300094 Rev 3

WP-580T/WP-580R – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 2

2.3 Recycling Kramer Products 3

3Overview 4

3.1 About HDBaseT™ Technology 5

3.2 Using Twisted Pair Cable 5

4Defining the WP-580T HDMI Line Transmitter 6

5Defining the WP-580R HDMI Line Receiver 8

6Connecting the WP-580T Transmitter to the WP-580R Receiver 10

6.1 Wiring the TP LINE IN / LINE OUT RJ-45 Connectors 12

6.2 Grounding the Transmitter/Receiver 13

7Technical Specifications 14

Figures

Figure 1: WP-580T HDMI Line Transmitter for the US and Decora® 6

Figure 2: WP-580T HDMI Line Transmitter for Europe (80mm/86mm) 7

Figure 3: WP-580R HDMI Line Receiver for the US and Decora® 8

Figure 4: WP-580R HDMI Line Receiver for Europe (80mm/86mm) 9

Figure 5: Connecting the WP-580T/WP-580R Transmitter/Receiver 11

Figure 6: TP PINOUT 12

Figure 7: Grounding Connection Components 13

WP-580T/WP-580R - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 13 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP

5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP

7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:

Sierra Video Products; GROUP 12: Digital Signage; and GROUP 13: Audio.

Congratulations on purchasing your Kramer WP-580T transmitter and/or

WP-580R receiver (for the US, Europe and/or Decora® wall plates), which can be

part of a transmitter/receiver system and is ideal for the following typical

applications:

Conference rooms, boardrooms, auditoriums, hotels, churches, classrooms

and production studios

Rental and staging

Note that WP-580T and WP-580R are purchased separately, and

can be connected to other HDBaseT certified transmitters and

receivers, respectively.

WP-580T/WP-580R - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check if

firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer WP-580T transmitter and WP-580R receiver away

from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning:

Disconnect the power and unplug the unit from the

wall before installing

WP-580T/WP-580R - Getting Started

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

WP-580T/WP-580R - Overview

3 Overview

The WP-580T and WP-580R are a high-performance, HDBaseT technology

Twisted Pair transmitter and receiver for HDMI signals. The WP-580T converts the

HDMI signal to a twisted pair signal. The WP-580R converts the twisted pair signal

back into an HDMI signal.

The WP-580T and the WP-580R can form a transmission and reception system

either together or each device separately with another certified HDBaseT device.

For example, the transmitter and receiver system can be composed of the

WP-580T that connects to the Kramer TP-580R to form a transmitter receiver pair.

The WP-580T transmitter and WP-580R receiver feature:

A bandwidth of up to 10.2Gbps (3.4Gbps per graphic channel), supporting

4K resolution

System Range - Up to 70 meters (230 feet)

HDBaseT technology

HDTV compatibility and HDCP compliance

HDMI support - HDMI (deep color, x.v.Color™, lip sync, HDMI

uncompressed audio channels, Dolby TrueHD, DTS−HD, CEC, 2k, 4k, 3D)

EDID pass-through - passes EDID signals from the source to the display

LED status indicators for power

Wall plate size of 2 gang EU/US/Decora®

For optimum range and performance using HDBaseT™, use Kramer's

BC−HDKat6a cable. Note that the transmission range depends on

the signal resolution, source and display used. The distance using

non−Kramer CAT 6 cable may not reach these ranges.

WP-580T/WP-580R - Overview

3.1 About HDBaseT™ Technology

HDBaseT™ is an advanced all-in-one connectivity technology (Supported by the

HDBaseT Alliance). It is particularly suitable in the consumer home environment

as a digital home networking alternative where it enables you to replace numerous

cables and connectors by a single LAN cable used to transmit, for example,

uncompressed full high-definition video, audio, IR, as well as various control

signals.

The products described in this user manual are HDBaseT certified.

3.2 Using Twisted Pair Cable

Kramer engineers have developed special twisted pair cables to best match our

digital twisted pair products; the Kramer BC−HDKat6a (CAT 6 23 AWG cable)

significantly outperforms regular CAT 5 / CAT 6 cables.

WP-580T/WP-580R - Defining the WP-580T HDMI Line Transmitter

4 Defining the WP-580T HDMI Line Transmitter

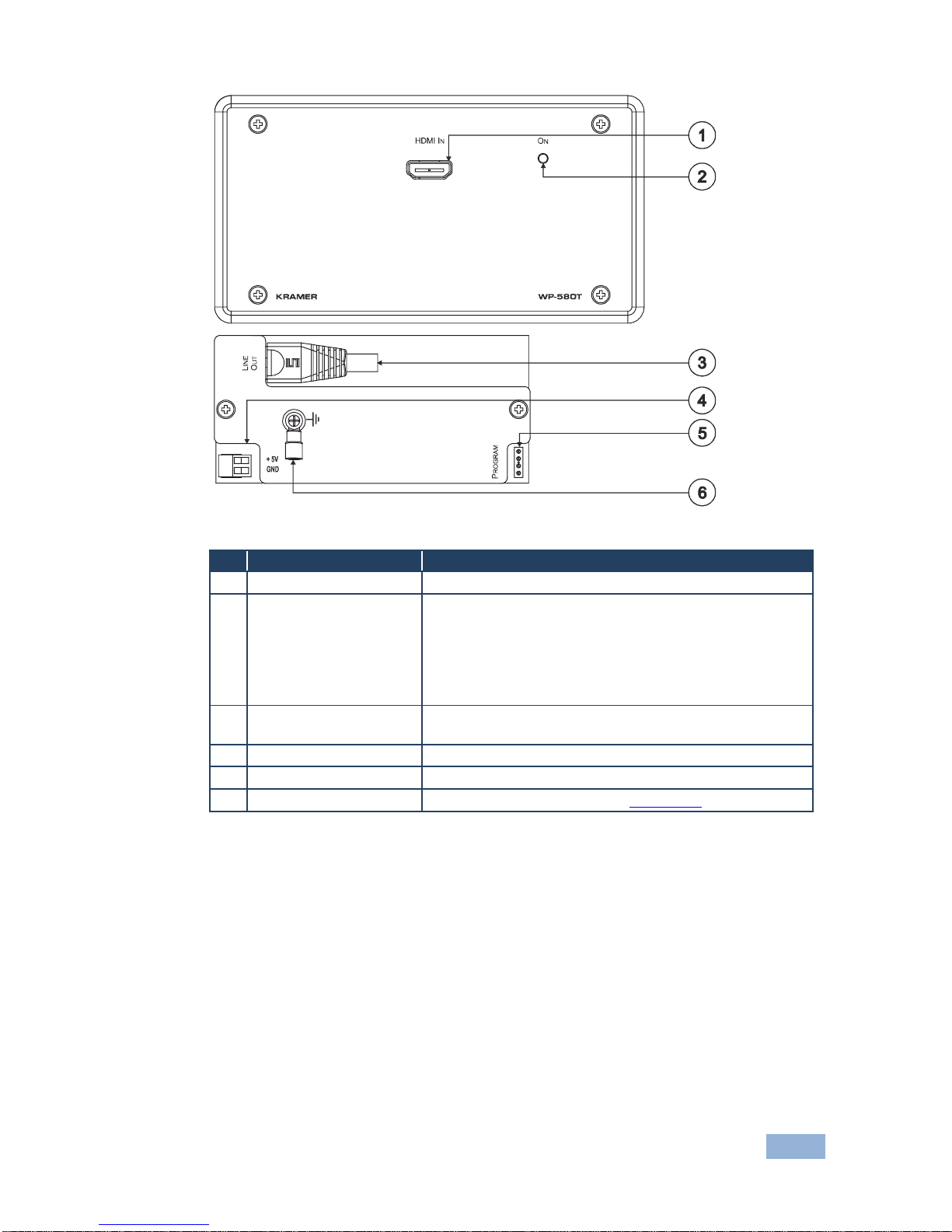

Figure 1: WP-580T HDMI Line Transmitter for the US and Decora®

Note that the Decora® type wall plate is supplied with a Midway

Size 2 gang frame. You can also fit it into a different sized Decora®

frame (not supplied) such as Standard Size or Oversized.

WP-580T/WP-580R - Defining the WP-580T HDMI Line Transmitter

Figure 2: WP-580T HDMI Line Transmitter for Europe (80mm/86mm)

Feature

Function

HDMI IN Connector

Connects to the HDMI source

ON LED

Lights red when only the power is connected; orange

when the power and the input only are connected; and

green when the power and both the input and output are

connected

Note, if no input is connected the device invokes the

power save mode automatically turning off the power

HDBT OUT/LINE OUT

RJ-45 Connector

Connects to the HDBT IN/LINE IN RJ-45 connector on

the WP-580R

5V DC

+5V DC connector for powering the unit

PROG 4-pin Connector

For internal use

Grounding Screw

Connect to grounding wire, see Section 6.2
