Kramer Galil 6-C Manuale utente

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

Galil 6-C (SPK-C612)

Closed-back Ceiling Speakers

P/N: 2900-300368 Rev 2

Galil 6-C – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Recycling Kramer Products 3

3Overview 4

4Your Galil 6-C Closed-back Ceiling Speakers 5

5Installing the Galil 6-C Closed-back Ceiling Speakers 7

5.1 Choosing the Best Location 7

5.2 Cutting the Ceiling Tile 7

5.3 Mounting the Speakers 8

5.4 Setting up an Array Installation 11

5.5 Painting the Speaker 14

6Technical Specifications 15

Figures

Figure 1: Galil 6-C in a Boardroom Setup 4

Figure 2: Galil 6-C Closed-back Ceiling Speaker 5

Figure 3: Galil 6-C Schematic Diagram 6

Figure 4: Mounting the Galil 6-C 9

Figure 5: Plugging and Securing the Cable 10

Figure 6: Tighten the Mounting Tabs 10

Figure 7: Adjust Tap Selector 11

Figure 8: Square Layout 12

Figure 9: Hexagonal Layout 12

Figure 10: Square Layout Parallel Wiring 13

Galil 6-C - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Products.

Congratulations on purchasing your Kramer Galil 6-C Closed-back Ceiling

Speakers, which are ideal for the following typical applications:

Hotel lobbies and conference rooms

Boardrooms, meeting rooms and presentation venues

Classrooms and training rooms

Galil 6-C is designed for indoor dry locations and is suitable for use

in air handling spaces (plenum spaces).

Galil 6-C - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check if

firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer Speakers away from moisture, excessive sunlight and

dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

Do not open the housing of the speaker; doing so may reduce the

quality of the sound.

UL2043 –Fire Test for Heat and Visible Smoke Release for

Discrete Products and their Accessories Installed in Air-Handling

Spaces.

Galil 6-C - Getting Started

2.2 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

Galil 6-C - Overview

3 Overview

The Galil 6-C consists of a pair of high performance closed back speakers.

Mount your Galil 6-C speakers to the ceiling in one of two ways: either directly

onto the ceiling or, for added protection, secure the speakers safely, using our

ceiling mounting kit that is provided free (see Section 5.3).

The Galil 6-C speakers feature a multi-tap power transformer for selecting 8Ω

(bypassing the transformer) or 70V/100V power settings that are suitable for an

array installation. Figure 1shows an example of how the Galil 6-C can be

installed in a boardroom setup:

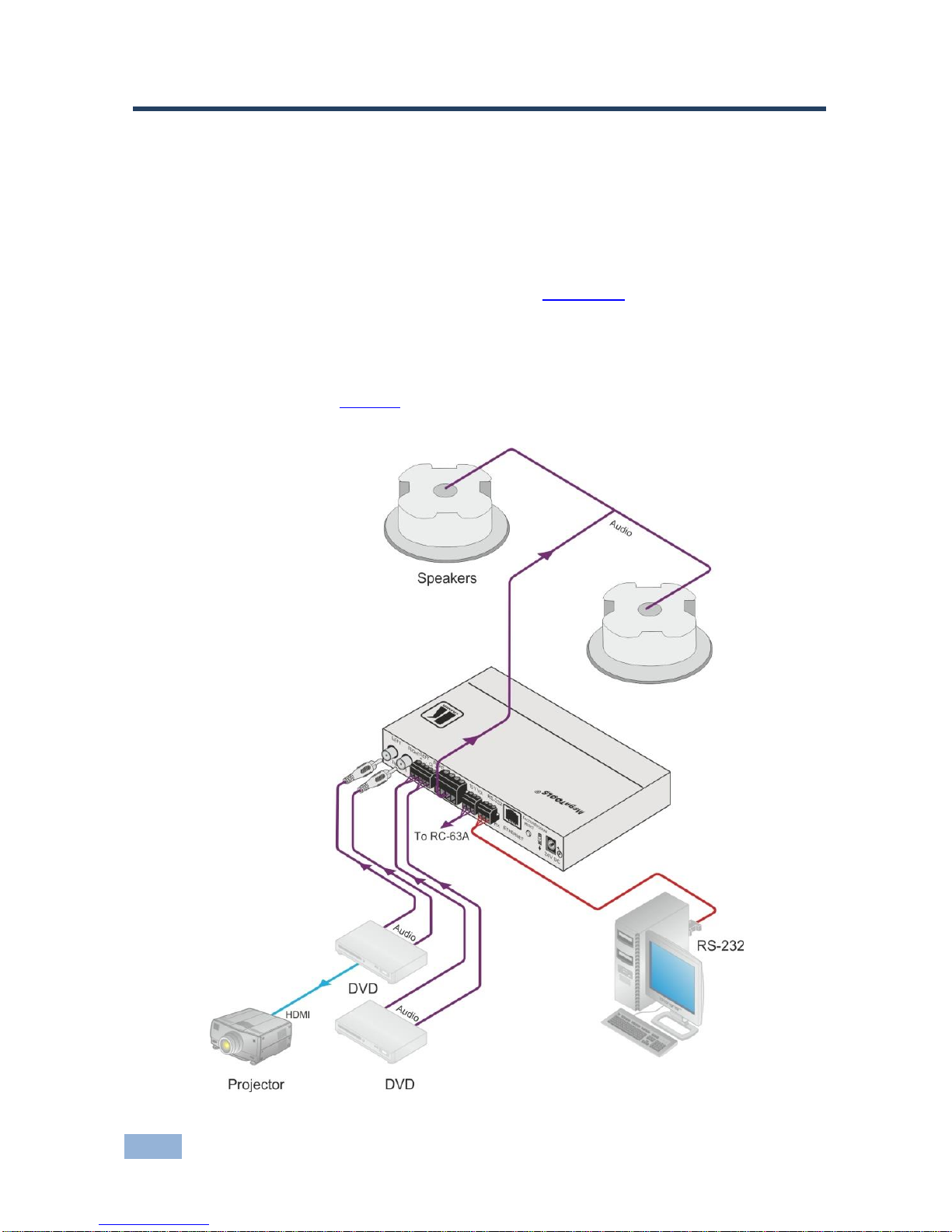

Figure 1: Galil 6-C in a Boardroom Setup

Galil 6-C - Your Galil 6-C Closed-back Ceiling Speakers

4 Your Galil 6-C Closed-back Ceiling Speakers

Figure 2 defines the Galil 6-C:

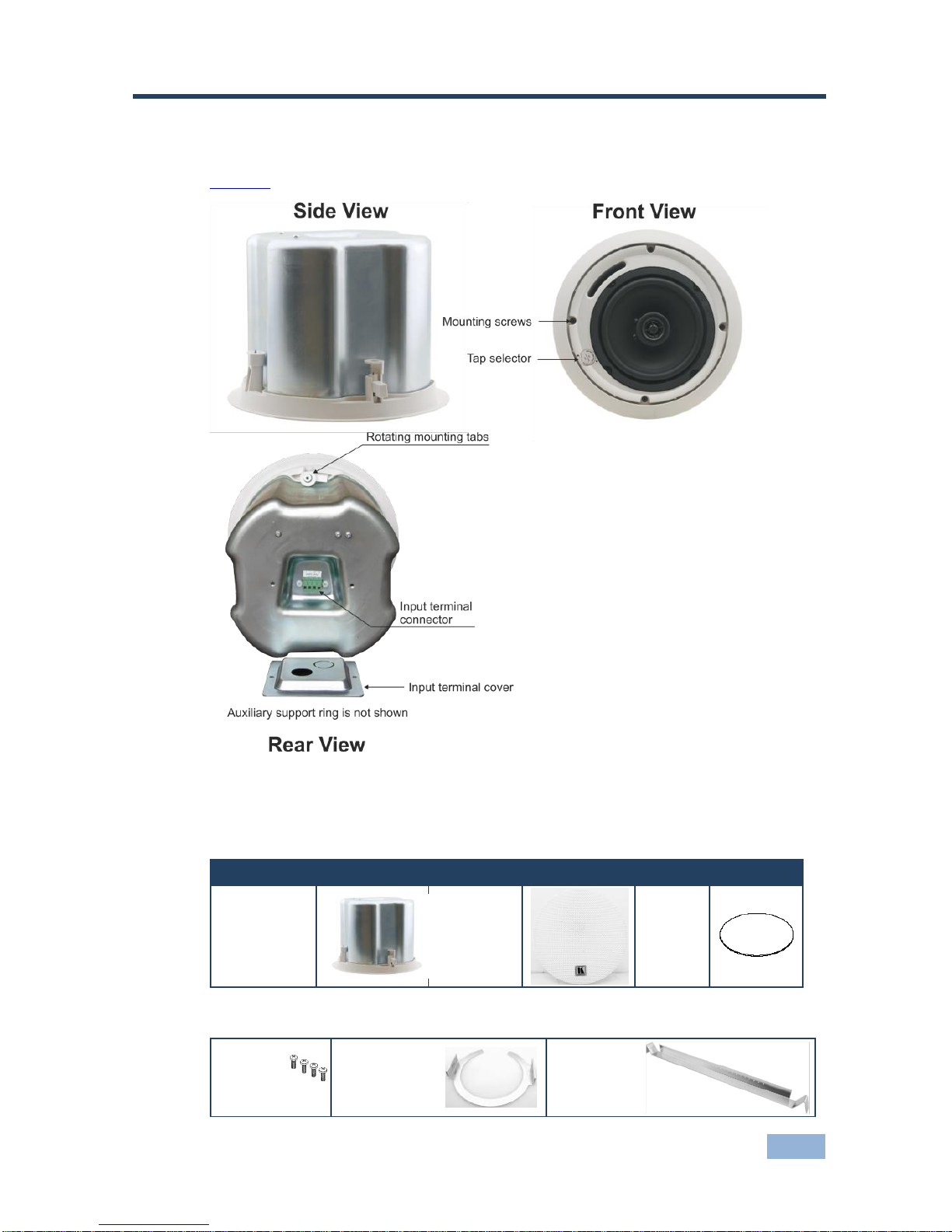

Figure 2: Galil 6-C Closed-back Ceiling Speaker

The following table defines the Galil 6-C hardware items (per speaker pair) for

each model in the series:

Description

A pair of

ceiling

speakers

(one shown)

Two grilles

(one shown)

Cutout

template

This table defines the ceiling mounting kit items:

Four

support

ring

screws

Two ceiling

support rings

(C-ring) –one

shown

Two pairs of

tile rails –

one of a pair

shown

Galil 6-C - Your Galil 6-C Closed-back Ceiling Speakers

Each Closed-back Ceiling speaker is supported by a C-ring and two tile rails. The tile

rails prevent the speakers from falling if the tile itself comes out or falls apart, as

their ends catch onto the T-grid. When mounting onto the ceiling tiles, use both

supports. When mounting onto a sheetrock ceiling, the C-ring alone is used to

reinforce the ceiling material.

Be sure that the tiles can support the speaker. Smaller sized tiles or

fiberglass-type tiles cannot support the weight of the speakers.

When this is the case, the speakers will need additional support.

Figure 3 shows a schematic diagram of the Galil 6-C:

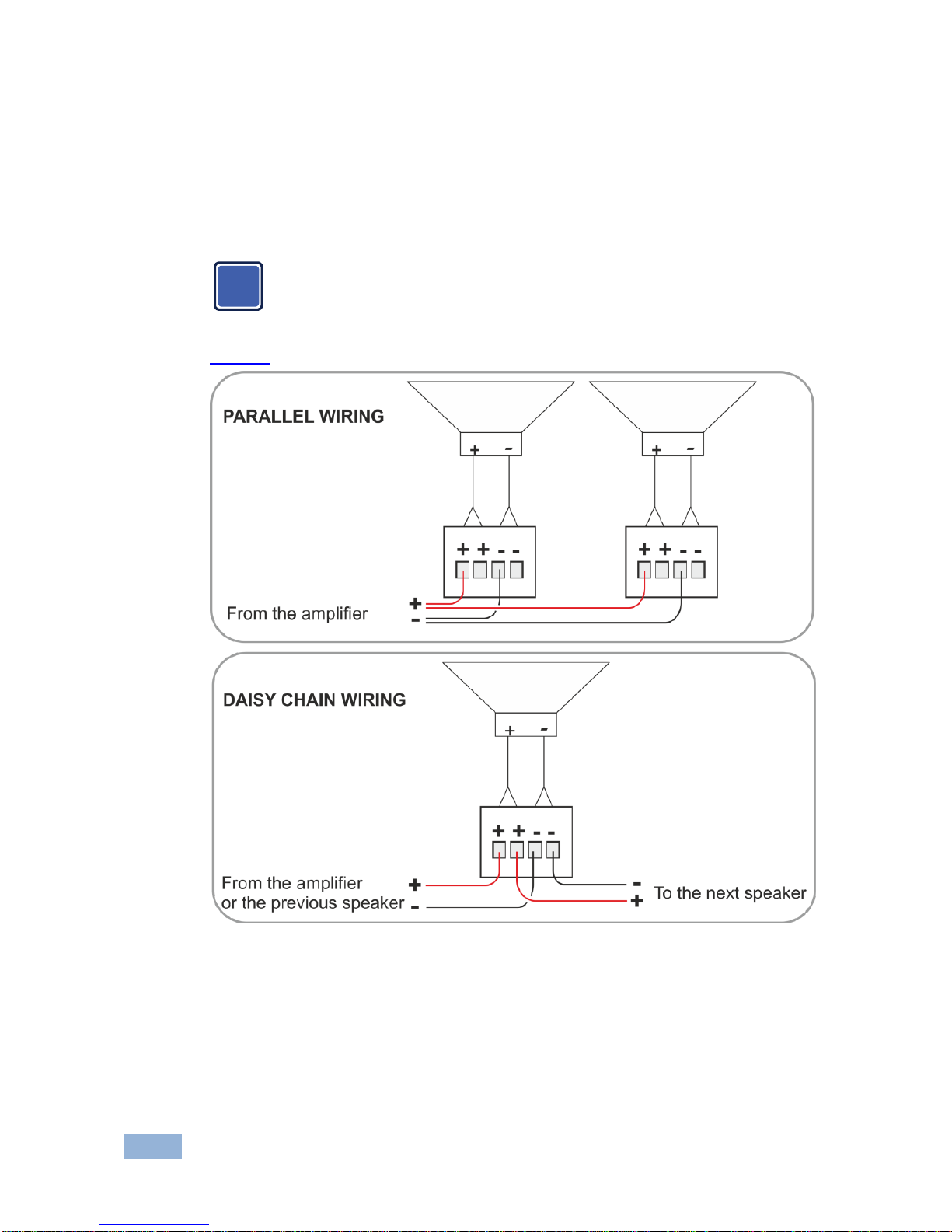

Figure 3: Galil 6-C Schematic Diagram

Galil 6-C - Installing the Galil 6-C Closed-back Ceiling Speakers

5 Installing the Galil 6-C Closed-back Ceiling

Speakers

This section explains how to install the Galil 6-C, that is:

Choosing the best place to locate your speakers (see Section 5.1)

Cutting the ceiling tile (see Section 5.2)

Mounting the Speakers (see Section 5.3)

Setting up an array installation (see Section 5.4)

Painting the speakers (see Section 5.4)

5.1 Choosing the Best Location

Ideally, locate the speakers above the main listening area. Before doing so, be

sure that:

The desired location is free of obstructions, such as electrical piping, AC

ducts or water lines, and so on

There is enough space behind the mounting surface for the speakers

The rear side of the speaker is not blocked by wall studs or other objects

5.2 Cutting the Ceiling Tile

To cut the ceiling tile, do the following:

1. Remove the circle in the supplied template.

Keep this template for later use as a mask, as you may want to paint the speakers (see

Section 5.4)

2. Mark the opening in the correct location by tracing the hole in the template.

3. Cut out the hole according to the template or with a circular cutter set to the

appropriate cutout size.

Initially, you can cut a smaller area inside the marked hole just to be sure that the

space above the speakers is clear
